www.poynting.tech

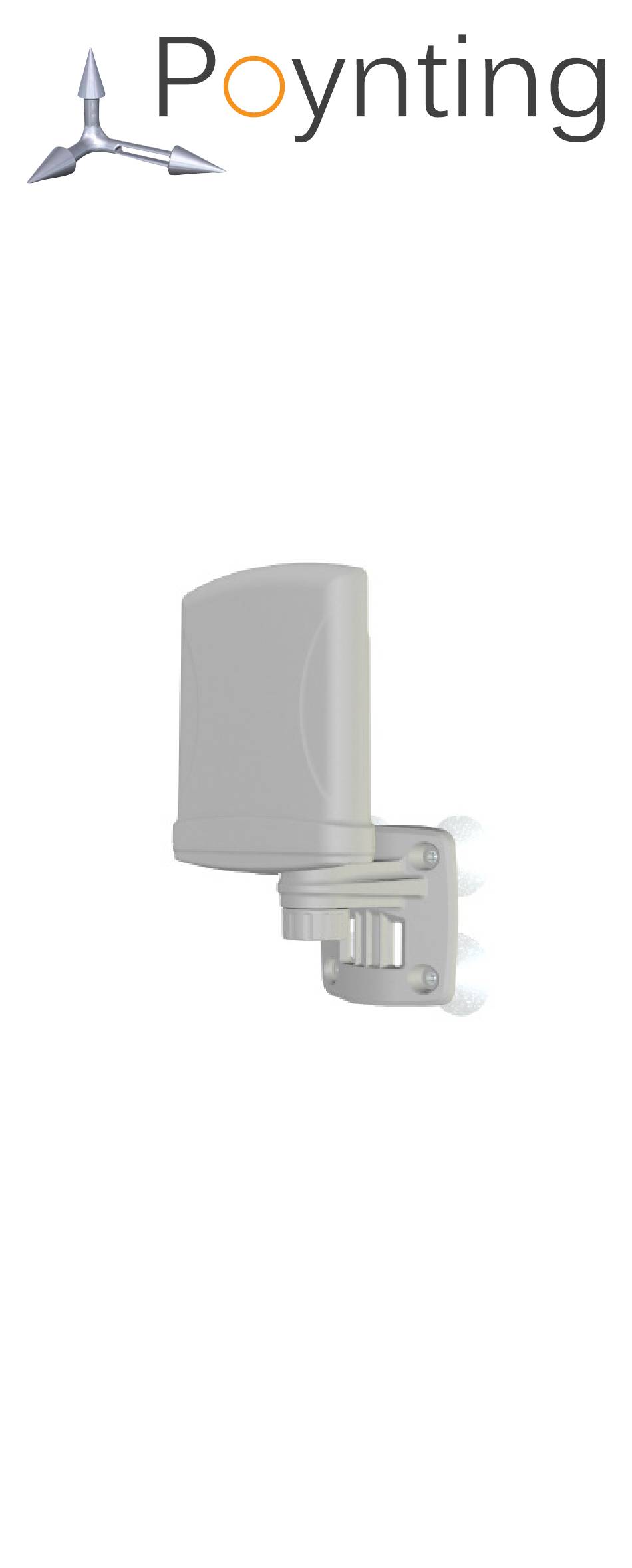

XPOL-1 - User Guide
South Africa
Unit 4, N1 Industrial Park
Landmarks Ave
Samrand, 0157,
South Africa
Tel: +27 12 657 0050
info@poynting.tech
Making wireless happen
Europe
Kronstadler Straße 4,
81677 München
Germany
Tel: +49 89 2080 265 38
Mob.: +49 176 529 733 50
sales-europe@poynting.tech
Version: 3.0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Poynting XPOL-1
Summary of Contents for Poynting XPOL-1
- Page 1 Making wireless happen www.poynting.tech XPOL-1 - User Guide South Africa Europe Unit 4, N1 Industrial Park Kronstadler Straße 4, Landmarks Ave 81677 München Samrand, 0157, Germany South Africa Tel: +49 89 2080 265 38 Tel: +27 12 657 0050 Mob.: +49 176 529 733 50 info@poynting.tech...
- Page 2 A-XPOL-0001_PCL...
- Page 3 Index Packing Check List Tools Required Introduction Antenna Alignment Antenna Mounting Precautions Cable Routing Safety Version: 3.0...
- Page 4 Packing Check List Item Description Quantity A-XPOL-0001 Antenna Only Pipe clamp Suckers Sucker mounting pins Wall knock-in screws SMA grip extender A-XPOL-0001_PCL...
- Page 5 The appearance of each component Antenna Unit Pipe Clamp Suckers Sucker mounting pins Wall knock-in screws SMA grip extender Version: 3.0...
- Page 6 Tools Required Tools that may be required: 6mm Masonry drill bit Impact drilling machine Screw driver-Cross slot/Philips Hammer A-XPOL-0001_PCL...
-
Page 7: Mounting Configurations
Introduction XPOL-1 is a unique window, wall or pole mount- able, high gain, CPE antenna. It can be mount- ed outdoors on a pole of up to 50mm in diam- eter, against a window or against a wall. Follow the instructions below for installation. - Page 8 Introduction 2. Window Mounting • Select a suitable mounting place for mount- ing the antenna. • Clean the selected area to remove the dirt. • Place each of the four suckers through the holes in the bracket. • Insert the sucker pins from the front of the bracket into the hole in the four suckers.

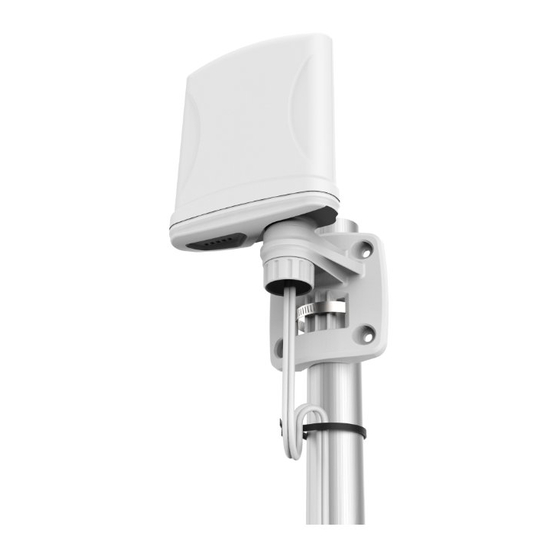

- Page 9 Introduction 3. Pole Mounting • Lay the antenna out at the installation site and assemble the antenna on the ground. • Place the pipe clamp through the bracket as shown below. • Next place the cable clamp around the pole and tighten the screw on the cable clamp until the bracket is secured to the pole.
-
Page 10: Antenna Alignment
Antenna Alignment • Use appropriate equipment (signal meter or App) to locate the nearest cellular tower in your location as well as the greatest signal strength for the antenna to draw upon. • Once you have located the tower, point the main center beam of your antenna in the gener- al direction of the cell tower. -
Page 11: Cable Routing
Antenna Mounting Precautions • Place the antenna at the highest point possible and ensure that there aren’t any surrounding obstructions to the antenna. • In order to avoid communication interference, ensure that the antenna is placed at least 0.5m away from other antennas and metal objects. - Page 12 Cable Routing Safety • If you are installing an antenna for the first time or unsure about how to install your antenna, obtain the help of a professional installer. • Carefully survey the installation site before installation to locate secure handholds, dangerous conditions (such as power lines and weak roofs) and the safest and most convenient placement for ladders if...
- Page 13 Safety 4. Avoid operating while under the influence of drugs, alcohol or medication. 5. Make sure that any loose fitting jewellery or clothing is secured and tie back long hair as they can get caught in moving parts during installation. 6.
