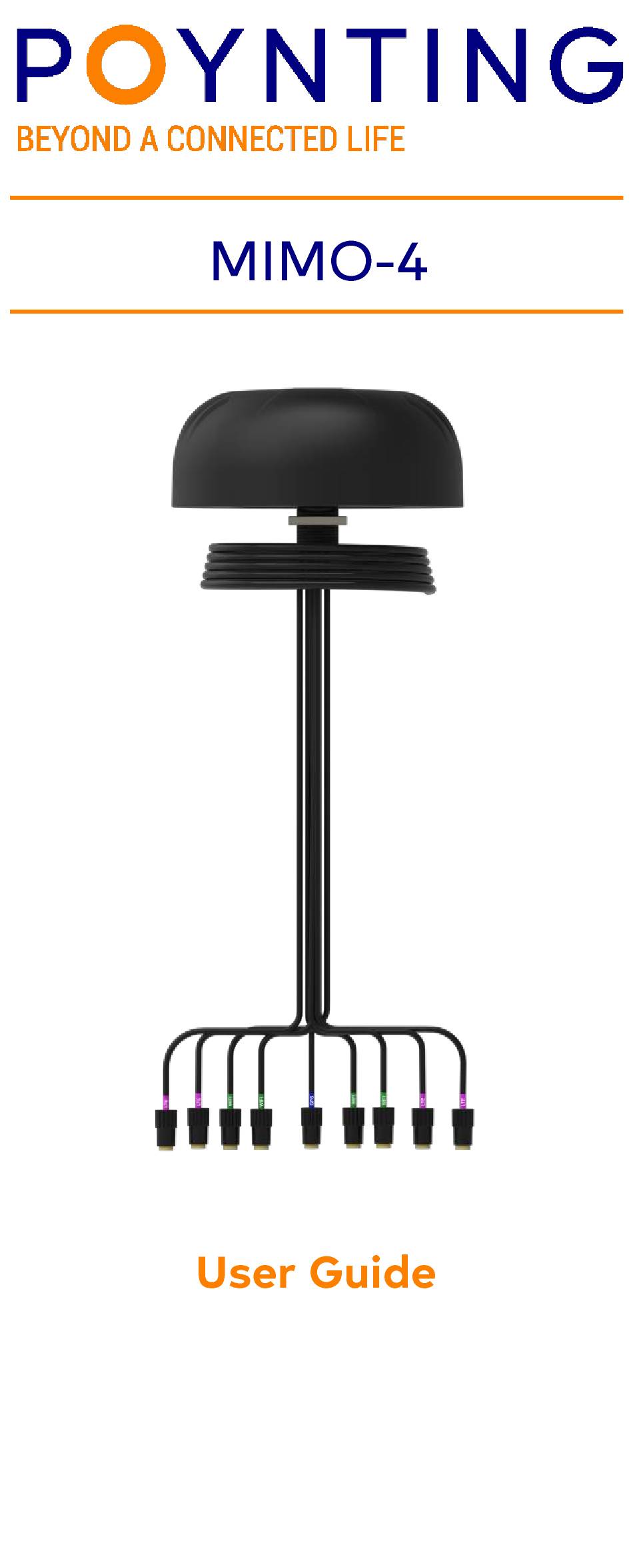

- Page 1 Revision 4.0...
- Page 2 Revision 4.0...

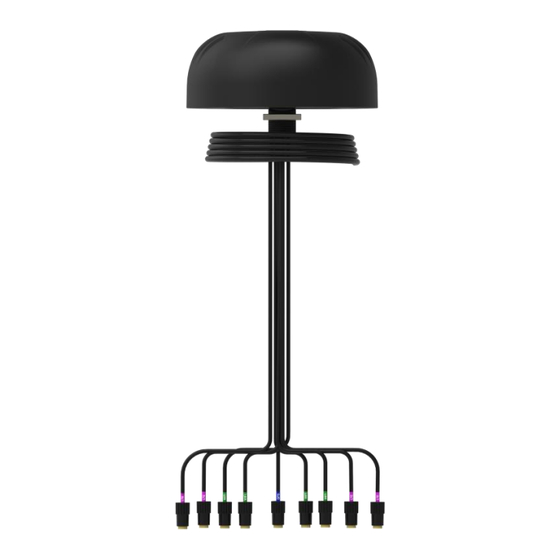

- Page 3 Packing Check List Introduction Antenna Mounting Precautions Cable Routing Safety *Antenna colour and number of cables will differ with different versions Revision 4.0...
- Page 4 Item Description Quantity *A-MIMO-0004 Antenna Only M4 x 10mm Flat Head Stainless Steel Screws (Attached to the antenna) 37mm and 85mm Threaded Male Spigots (1 Attached to the antenna) 55mm Threaded Female Female Spigot Magnetic Base Adapters **Pole/ Wall Mount Bracket Locking Nut Spigot/Adhesive Mount...
- Page 5 Antenna Unit M4 x 10mm Flat Head Stainless Steel Screws 37mm and 85mm Threaded Male Spigots 55mm Threaded Female Spigot Magnetic Base Adapter Pole/ Wall Mount Bracket Revision 4.0...
- Page 6 Locking Nut Spigot/Adhesive Mount Foam Seal Grip Extenders *SMA(F) to RP-SMA(M) Adapters Pipe Clamp Wall Knock-in Screws Magnet Mount Foam Seal Antennas with Wi-Fi only Revision 4.0...
- Page 7 Drills (Pilot drill (3mm) and Hole saw (22mm) or step drill (4-22mm)) Impact Drilling Machine Hammer Safety Goggles 27mm Spanner/Wrench Revision 4.0...
-
Page 8: Drilling Template
Masking Tape Centre Punch Drilling Template (Available on www.poynting.tech/downloads) Revision 4.0... - Page 9 This User Guide provides information on the installation instructions of the Omni-directional antenna (A-MIMO-0004). Note: Ensure that all RF connections made outdoors are adequately waterproofed. Waterproof connector boots are recommended. Pole mount with supplied bracket and pipe clamp. • Lay the antenna out at the installation site. •...
- Page 10 b) Interior vertical pole mount with bracket and supplied pipe clamp Exploded View c) Exterior horizontal pole mount with bracket and supplied cable clamp Exploded View Revision 4.0...
- Page 11 d) Interior horizontal pole mount with bracket and supplied cable clamp Exploded View Wall mount with supplied bracket and wall knock- in screws. • Select a suitable place for mounting the antenna. • Attach the bracket onto the base of the antenna using four flat head screws.
- Page 12 Note: Use a 6mm masonry drill bit to drill two holes into the wall. See the dimensions below. Exploded View Revision 4.0...
- Page 13 Marine mount with supplied wall knock-in screws and marine bracket (BRKT-37- Not provided). • Select a suitable place for mounting the antenna. • Drill four holes into the surface for the cables and fasteners. See the dimensions below. • Mount the marine bracket (BRKT-37) onto the surface using suitable fasteners.
- Page 14 Exploded View Revision 4.0...
- Page 15 Threaded spigot mounting. Use the Drill template below or download the 1:1 drill template from http://www.poynting.tech/downloads • Choose a flat mounting location which should be at least 50cm from heat sources, with a clear line of sight to the sky.
- Page 16 antenna to a surface structure of 70mm thickness or less. Securing the antenna • Fasten the required spigot with the Flat head screws. • Clean the plastic surface of the antenna base and threaded spigot. • Peel off the top wax paper layer from the spigot mount adhesive foam seal and stick the foam seal to the antenna surface.
- Page 17 Revision 4.0...
- Page 18 Adhesive mounting • Clean the entire surface on which you plan to stick the antenna. Alcohol wipes can be used to remove oil and dirt from the surface. • Remove the nut, foam seal, flat head screws and short spigot from antenna. •...
- Page 19 Optional magnetic mount with magnetic base kit (A-MBK-003 -Not Provided). For temporary and low mobility installations. • Clean the entire surface on which you plan to place the antenna. Alcohol wipes can be used to remove oil and dirt from the surface. •...
- Page 20 • Place the antenna at the highest point possible and ensure that there are not any surrounding obstructions to the antenna. • In order to avoid communication interference, ensure that the antenna is placed at least 0.5m away from other antennas and metal objects.
- Page 21 When handling the antenna cables, it is essential you follow these basic rules: • Never pull on the cable connectors; pull only on the cable. • Cover connectors with insulation tape before threading them through a hole. • Tighten the connectors and ensure that the cables don’t rattle loose.
- Page 22 jewelry or clothing is secured and tie back long hair as they can get caught in moving parts during installation. If the antenna assembly starts to fall, get away from it and let it fall to avoid harming yourself. • When drilling remember: 1.
