www.poynting.tech

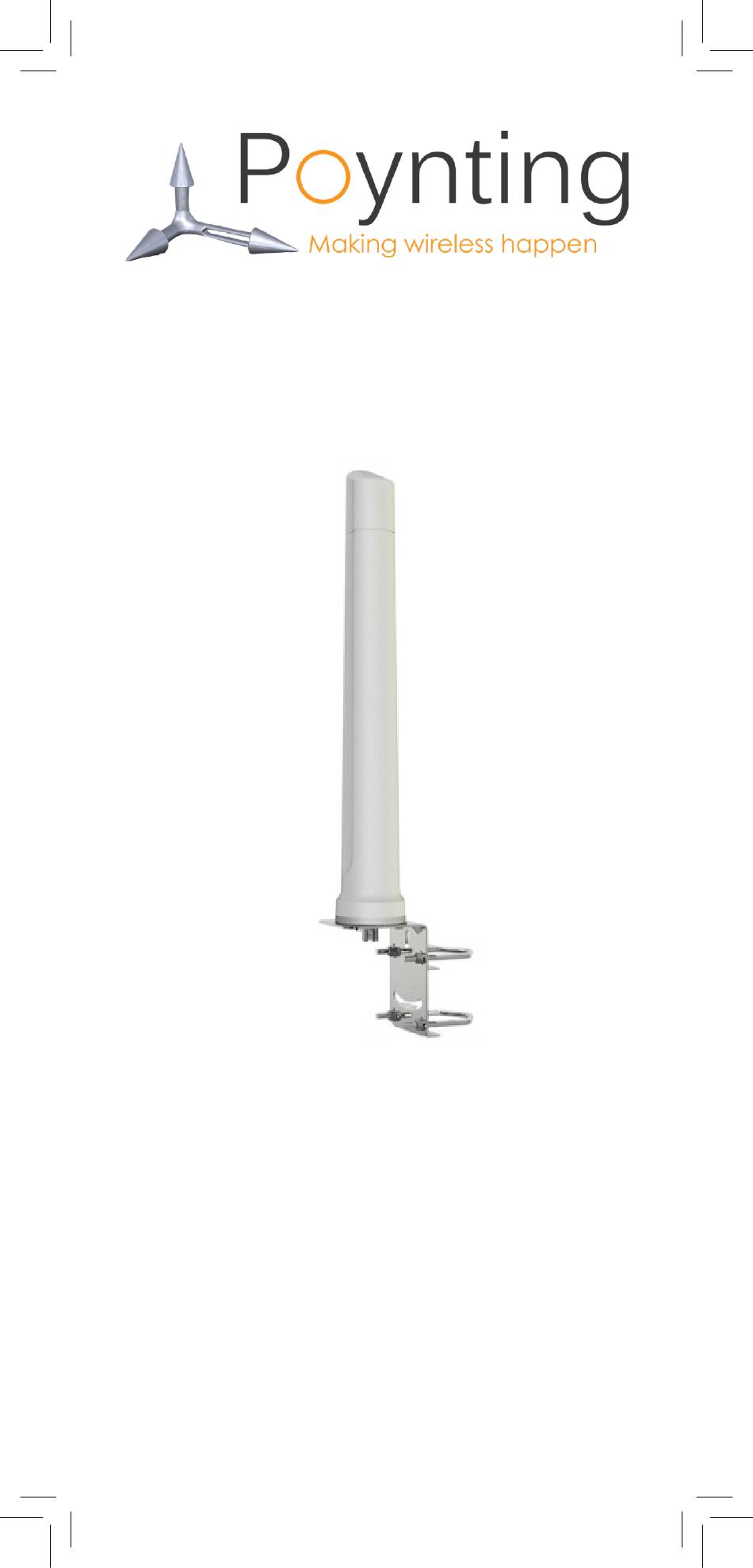

OMNI-292-V2
User Guide
South Africa
Unit 4, N1 Industrial Park
Landmarks Ave
Samrand, 0157,
South Africa
Tel: +27 12 657 0050
info@poynting.tech
Europe
Kronstadler Straße 4,
81677 München
Germany
Tel: +49 89 2080 265 38
Mob.: +49 176 529 733 50
sales-europe@poynting.tech
Version: 1.2
Advertisement
Related Manuals for Poynting OMNI-292-V2
Summary of Contents for Poynting OMNI-292-V2
- Page 1 OMNI-292-V2 User Guide South Africa Europe Unit 4, N1 Industrial Park Kronstadler Straße 4, Landmarks Ave 81677 München Samrand, 0157, Germany South Africa Tel: +49 89 2080 265 38 Tel: +27 12 657 0050 Mob.: +49 176 529 733 50 info@poynting.tech...
- Page 2 A-OMNI-0292-V2_PCL...
- Page 3 Index Packing Check List The Appearance of Each Component Tools Required Pole Mounting Configuration Wall Mounting Configuration Antenna Mounting Precautions Cable Routing Safety Version: 1.2...
-
Page 4: Item Description
Packing Check List Item Description Quantity A-OMNI-0292 Antenna only M4 stainless steel machine screw and washer Stainless steel L-Bracket Stainless steel Econo bracket M6x90mm stainless steel U-Bolts M6 Nyloc and standard stainless steel nuts M6 stainless steel flat washers Easy fit wall plug and screw A-OMNI-0292-V2_PCL... - Page 5 The appearance of each component Antenna Unit Stainless steel L bracket assembly M4 stainless steel machine screw and M4 flat washers Easy fit wall plug and screw Version: 1.2...
- Page 6 Tools Required Tools that may be required: 6mm Masonry drill bit Impact drilling machine Screw driver-Cross slot/Philips Hammer Safety goggles Spanner/Wrench A-OMNI-0292-V2_PCL...
-
Page 7: Pole Mounting Configuration

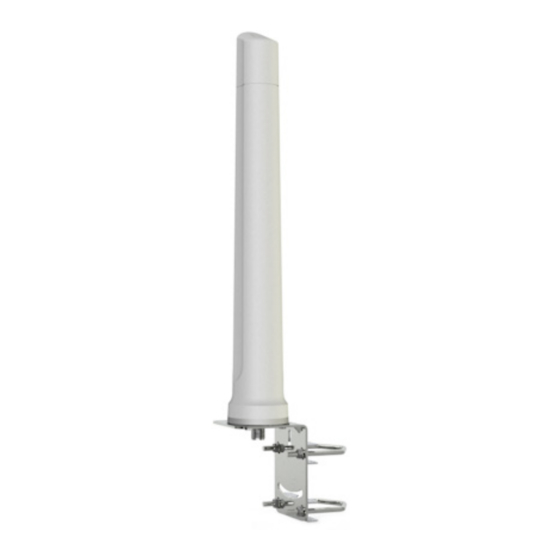

Pole Mounting Configuration OMNI-292 is a pole and wall mountable, medium gain, omnidirectional antenna. It can be mounted outdoors on a pole of up to 50mm in diameter, or against a wall. Follow the instructions below for installation. Pole Mounting • Lay the antenna out at the installation site and carefully assemble the antenna to the L-bracket using the provided bolts. - Page 8 Wall Mounting Configuration Wall Mounting • This antenna should be mounted on a wall using the wall plugs as shown in the figure below • Strain relieve the cable to the wall with saddles or cable tie to the closest structure. • Connect the end of cable to radio device Wall Plug M4 screws A-OMNI-0292-V2_PCL...
-
Page 9: Cable Routing
Antenna Mounting Precautions • Place the antenna at the highest point possible and ensure that there are not any obstructions surrounding the antenna. • In order to avoid communication interference, ensure that the antenna is placed at least 0.5m away from other antennas and metal objects. - Page 10 Safety • If you are installing an antenna for the first time or unsure of how to install your antenna, obtain the help of a professional installer. • Carefully survey the installation site before installation to locate secure hand holds, dangerous conditions (such as power lines and weak roofs) and the safest and most convenient placement for ladders if necessary.
- Page 11 • When drilling, remember to: 1. Use safety goggles when drilling the holes. 2. Avoid using bits that are dull, bent or damaged. 3. Be aware of where your fingers are in relation to the drill bit when using the drilling machine. 4. To stop the drilling machine, let the drill chuck come to a complete stop on its own.
