- Page 1 OMNI-280 User Guide South Africa Europe Unit 4, N1 Industrial Park Kronstadler Straße 4, Landmarks Ave 81677 München Samrand, 0157, Germany South Africa Tel: +49 89 2080 265 38 Tel: +27 12 657 0050 Mob.: +49 176 529 733 50 info@poynting.tech...
- Page 2 A-OMNI-0280_PCL...
- Page 3 Index Packing Check List The appearance of each component Tools required Pole mounting Wall mounting Desk mounting Antenna mounting precautions Cable routing Safety Version: 2.0...
-
Page 4: Item Description
Packing Check List Item Description Quantity OMNI-0280 antenna only M4 x 8mm Stainless Steel screw Wall bracket Coaxial cable clip Velcro hook Velcro loop A-OMNI-0280_PCL... - Page 5 The Appearance of each component The appearance of each component Antenna unit Wall bracket Coaxial cable clip M4 x 8mm stainless steel screw Version: 2.0...
-
Page 6: Tools Required
Tools Required Tools that may be required: Safety goggles Masonry drill bit Hand drilling machine Screw driver-Cross slot/Philips A-OMNI-0280_PCL... -
Page 7: Pole Mounting Configuration

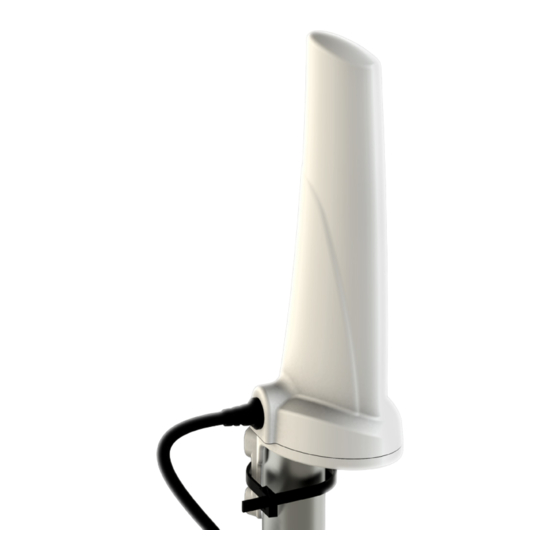

Pole Mounting Configuration Pole Mounting • Lay the antenna out at the installation site. • Attach the bracket onto the base of the antenna using three M4 x 8mm screws. • Run the cable tie or hose clamp around the bracket and pole until the bracket is secured to the pole. - Page 8 Wall Mounting Configuration Select a suitable place for mounting the antenna • Using the wall mount bracket as a guide, mark two points to drill on the wall. Use a 5mm masonry drill bit to drill the marked points. • Use a masonry drill bit to drill a cable entry hole to fit the connector.
- Page 9 Desk Mounting Configuration • Select a suitable position on the desk to mount the antenna • Peel the adhesive film off the Velcro hook and paste it onto the desk • Peel the adhesive film off the Velcro loop and paste it underneath the base of the antenna •...
-
Page 10: Cable Routing
Antenna Mounting Precautions • Place the antenna at the highest point possible and ensure that there are no surrounding obstructions to the antenna. • In order to avoid communication interference, ensure that the antenna is placed at least 0.5m away from other antennas and metal objects. - Page 11 Safety • If you are installing an antenna for the first time, or if you are unsure about the antenna installation process, the use of a professional installer’s services is recommended. • Survey the installation site beforehand to identify safe access paths and/or ladder mounting positions, and hazards such as power lines and structural weak spots.
- Page 12 Safety • When drilling, remember to: 1. Use safety goggles when drilling the holes. 2. Avoid using bits that are dull, bent or damaged. 3. Be aware of where your fingers are in relation to the drill bit when using the drilling machine.
