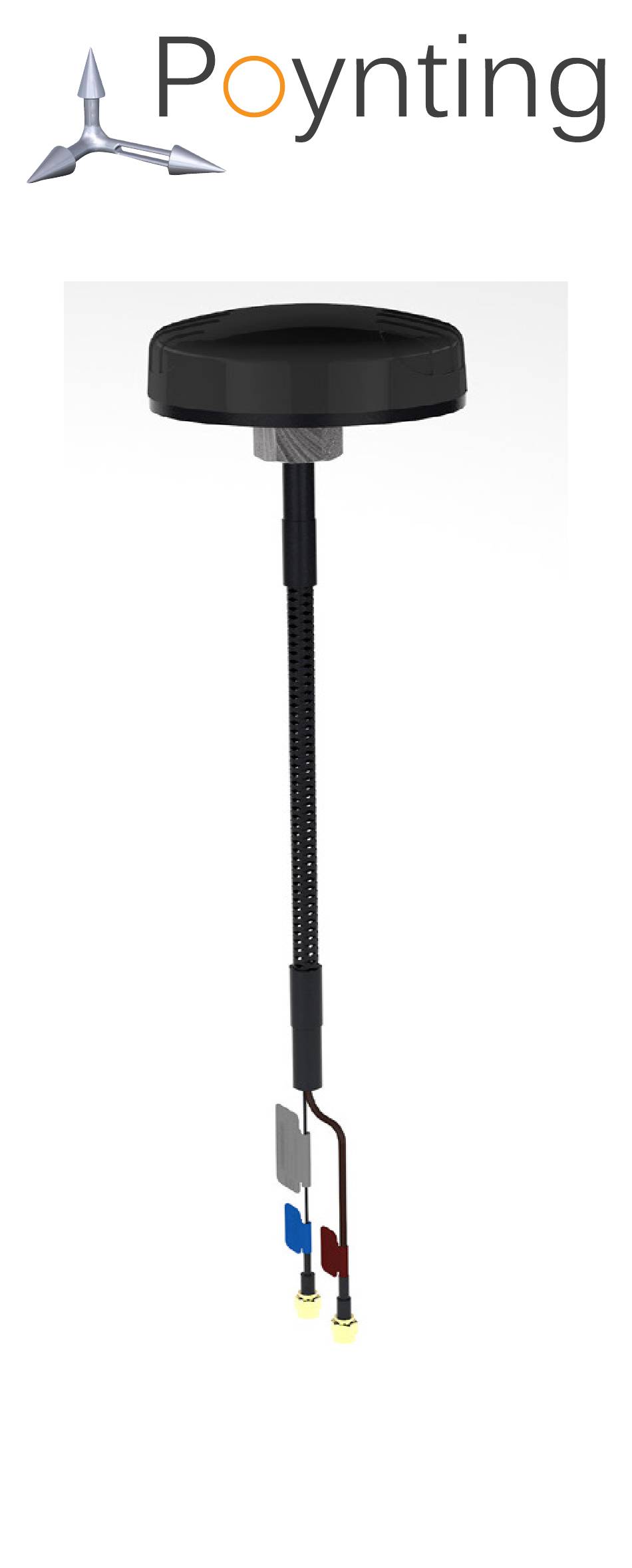

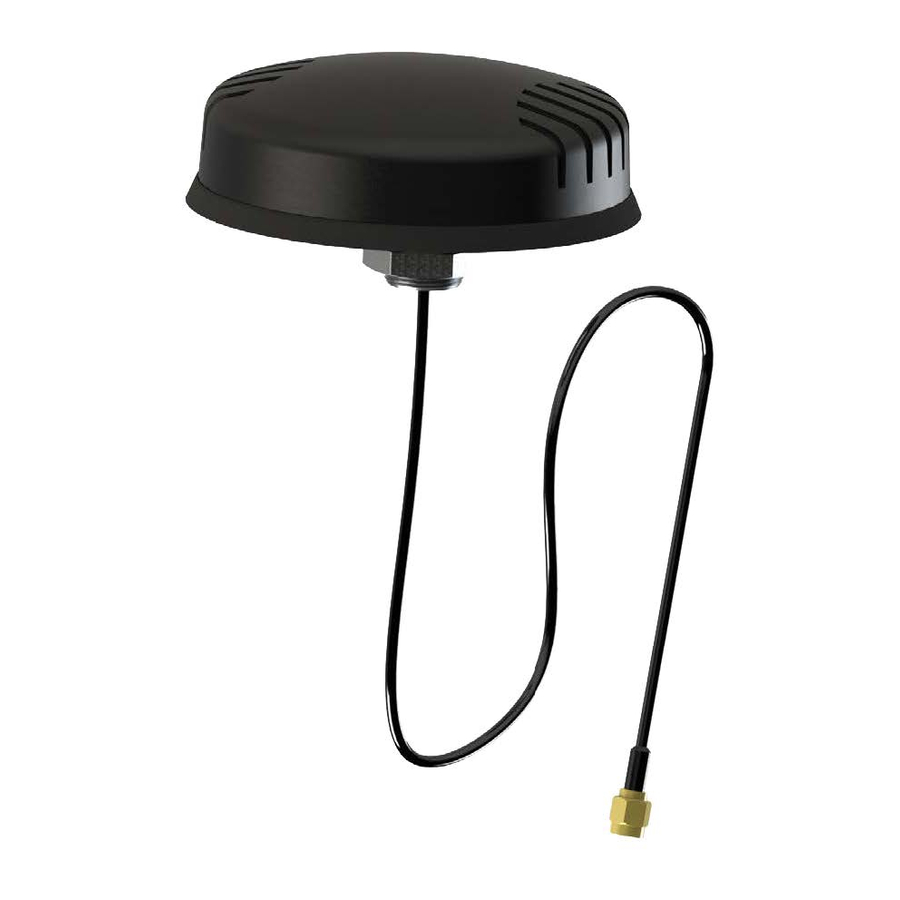

- Page 1 Making wireless happen OMNI-232-02 User Guide Version: 1.1...
-
Page 2: Table Of Contents
Index Packing Check List Tools Required Optional Accessories Introduction Installation Instructions Routing Cables Safety A-OMNI-0232-02_PCL... -
Page 3: Packing Check List
Packing Check List Item Description Quantity A-OMNI-0232-02 Antenna only M18 stainless steel M18 Star washers The appearance of each component Antenna Unit M18 Nut - SS M18 Star Washer Version: 1.1... -
Page 4: Tools Required
Tools Required Item Safety goggles Drills (Pilot drill and Hole (3mm) or step (20mm) drill (4 - 20mm) Masking tape Hand drilling machine Centre punch Hammer 27mm spanner/ wrench Drilling template (available on www.poynting.tech) A-OMNI-0232-02_PCL... -
Page 5: Optional Accessories
Optional Accessories Optional Accessories Various Cable extensions are available Version: 1.1... -
Page 6: Introduction
Introduction This User Guide provides information on the installation instructions of the OMNI-232-02 antenna. Cable Configuration Exploded View A-OMNI-0232-02_PCL... -
Page 7: Installation Instructions
Installation Instructions Mounting the antenna • Download the 1:1 drill template from http://www.poynting.tech. • Choose the mounting location carefully. Choose a position at least 50cm from heat sources and with a clear line of sight to the sky. It is recommended that the antenna be installed at the highest possible location on the vehicle’s roof... - Page 8 OMNI -232-02 is Ø20mm. Go to: www.poynting.tech to download the scale 1:1 template. • Clean the entire surface on which you plan to mount the antenna. Cleaning is done so as not to damage the vehicle’s paint and to ensure good contact of the foam surface to the mounting area.
- Page 9 Installation Instructions Installation Drawing NOTE: Torque specifications: Recommended fastening torque 20Nm max tightening torque is 30Nm Version: 1.1...
-
Page 10: Routing Cables
• Tighten the cable’s SMA connectors to 0.3-0.6Nm torque to ensure that the OMNI-232-02 cables are properly secured to the extension cables Note: Take advantage of any existing cable channels e.g., brake light opening or wiring conduits to route the cables. -
Page 11: Safety
Safety • If you are installing an antenna for the first time or unsure of how to install your antenna, obtain the help of a professional installer. • Carefully survey the installation site before installation to locate secure hand holds, dangerous conditions (such as power lines and weak roofs) and the safest and most convenient placement for ladders if necessary. - Page 12 Safety • When drilling, remember to: 1. Use safety goggles when drilling the holes. 2. Avoid using bits that are dull, bent or damaged. 3. Be aware of where your fingers are in relation to the drill bit when using the drilling machine.
