- Page 1 Making wireless happen www.poynting.tech OMNI-121 - User Guide South Africa Europe Unit 4, N1 Industrial Park Kronstadler Straße 4, Landmarks Ave 81677 München Samrand, 0157, Germany South Africa Tel: +49 89 2080 265 38 Tel: +27 12 657 0050 Mob.: +49 176 529 733 50 info@poynting.tech...
- Page 2 A-OMNI-0121_V3_PCL...
- Page 3 Index Packing Check List Tools Required Mounting Configuration Antenna Mounting Precautions Cable Routing Safety Version: 1.0...
- Page 4 Packing Check List Item Description Quantity A-OMNI-0121-V3 Antenna only M6x60mm U-Bolt ss Econo Bracket ss M6 Nuts ss M6 Flat Washers ss Easy fit wall plug and screw A-OMNI-0121_V3_PCL...
- Page 5 The appearance of each component Antenna Unit M6x60mm U-Bolt ss Econo Bracket ss M6 Nuts & Washer Easy fit wall plug and screw Version: 1.0...
- Page 6 Tools Required Tools that may be required: 6mm Masonry drill bit Impact drilling machine Screw driver-Cross slot/Philips Hammer A-OMNI-0121_V3_PCL...
-
Page 7: Pole Mounting Configuration

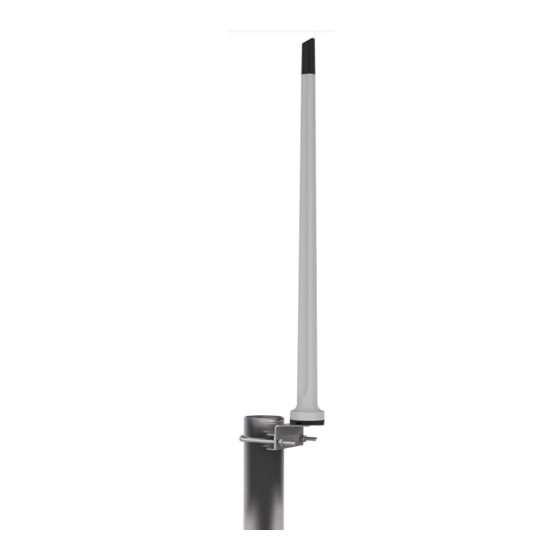

Pole Mounting Configuration OMNI-121-V3 is a pole and wall mountable, medium gain, omnidirectional antenna. It can be mounted outdoors on a pole of up to 50mm in diameter, against a wall. Follow the instructions below for installation. Pole Mounting • Lay the antenna out at the installation site and carefully assemble the antenna to the L-bracket using the provided bolts. - Page 8 Pole Mounting Configuration 2. Wall Mounting • This antenna should be mounted on a wall using the wall plugs as shown in the figure below • Strain relieve the cable to the wall with sad- dles or cable tie to the closest structure. • Connect the end of cable to radio device A-OMNI-0121_V3_PCL...
-
Page 9: Cable Routing
Antenna Mounting Precautions • Place the antenna at the highest point possible and ensure that there aren’t any surrounding obstructions to the antenna. • In order to avoid communication interference, ensure that the antenna is placed at least 0.5m away from other antennas and metal objects. - Page 10 Cable Routing A-OMNI-0121_V3_PCL...
- Page 11 Safety • If you are installing an antenna for the first time or unsure about how to install your antenna, obtain the help of a professional installer. • Carefully survey the installation site before installation to locate secure handholds, dangerous conditions (such as power lines and weak roofs) and the safest and most convenient placement for ladders if necessary.
- Page 12 Safety • When drilling, remember 1. Use safety goggles when drilling the holes. 2. Avoid using bits that are dull, bent or damaged. 3. Be aware of where your fingers are in relation to the drill bit when using the drilling machine. 4. To stop the drilling machine, let the drill chuck come to a complete stop on its own.
