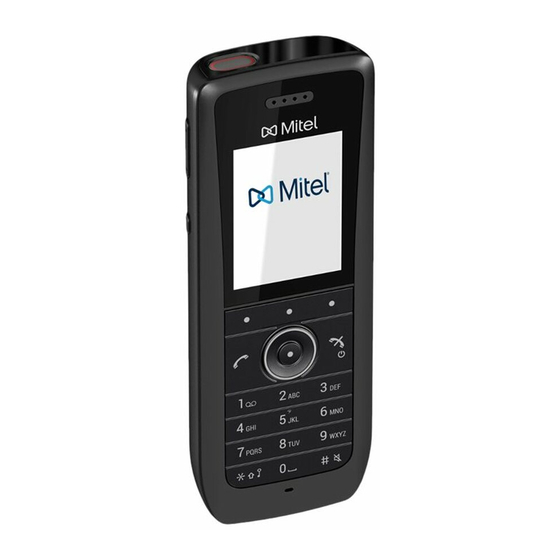

INSTALLING 5634 WIFI PHONE ON MIVOICE
OFFICE 250
QUICK REFERENCE GUIDE
APRIL 2021

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5634 and is the answer not in the manual?

Questions and answers

Related Manuals for Mitel 5634

Summary of Contents for Mitel 5634

  • Page 1 INSTALLING 5634 WIFI PHONE ON MIVOICE OFFICE 250 QUICK REFERENCE GUIDE APRIL 2021...
  • Page 2 Mitel or any of its affiliates or subsidiaries. Mitel and its affiliates and subsidiaries assume no responsibility for any errors or omissions in this document. Revisions of this document or new editions of it may be issued to incorporate such changes.

  • Page 3: Table Of Contents

    Table of Contents REFERENCES ..............................4 INTRODUCTION ..............................5 MIVOICE OFFICE 250 DATABASE PROGRAMMING ..................6 5634 WIFI PHONE CONFIGURATION ......................8 SUPPORTED FEATURES ..........................15...

  • Page 4: References

    1 REFERENCES This table lists the required software and the documentation references for installing the 5634 WiFi phone on MiVoice Office 250. Training Learning Management System > Search 5634 WinPDM tool Download Center > Wireless Endpoints > 5634 Wi-Fi Handset > 5634 Wi-Fi Handset v2.3.3 >...

  • Page 5: Introduction

    All configuration information is stored on a central storage, which facilitates replacement and servicing of portable handsets. WiFi Router For information about the WiFi router and its installation, refer to Chapters 3 and 4 in the Mitel WiFi 5634 Handset Configuration Guide.

  • Page 6: Mivoice Office 250 Database Programming

    MIVOICE OFFICE 250 DATABASE PROGRAMMING Software License – SIP Licensing Ensure that MiVoice Office 250 is equipped with sufficient Category ‘F’ licenses for the required number of SIP endpoints. This can be verified within the Software License Feature section form. Figure 1: Software License...
  • Page 7 SIP phone creation Complete the following steps to create a SIP phone: Add a SIP phone in MiVoice Office 250 database programming (DBP). Under System > Devices and Feature Codes > Phones. Then right-click to select Create SIP Phone… In this example, SIP extension 1001 is created. Figure 2: Adding a SIP phone in MiVoice Office 250 After creating the SIP phone, the MiVoice Office 250 Database Programming automatically creates a SIP Phone Group with a default configuration profile.

  • Page 8: 5634 Wifi Phone Configuration

    Prerequisites WiFi Router Configuration You must configure the WiFi router before you proceed to configure the 5634 WiFi Phone. Refer to the WiFi Router Administration guide for details about the configuration procedure. Following is an example of a basic WiFi router configuration: Connect your router to the PC using LAN port and connect to router web page using the default IP address, for example, 192.168.0.1...
  • Page 9 Start WinPDM. For instructions on how to install and use the WinPDM, refer to the Installation and Operation Manual (listed in References). Configuration steps Open WinPDM and load the latest version of 5634 build: File – File Management - Add (add 5634 package file, such as, 5634_v2.3.3.pkg) Figure 5: WinPDM main window Place the 5634 WiFi handset in the cradle connected to WinPDM.
  • Page 10 Import the template bundled with the package available from the Mitel Software Download Center: Go to File > Import >Templates and import template for MiVO 250. Go to Numbers (Note: If the number does not appear after you have inserted 5634 into the Desktop Programmer, you must create it manually).
  • Page 11 In Edit parameters, collapse the System node and select Network A. Configure the highlighted parameters. Figure 8: Edit parameters for 5634 WiFi Phone Note: In our test environment, we have used DHCP mode and left the default IP settings intact.
  • Page 12 Note: The setting for SSID must exactly match the one configured in your wireless access point. The Security mode of choice for the validation was WPA2-PSK AES. Figure 9: Network configuration In Edit parameters, expand the VoIP node and click General. Select SIP as the VoIP protocol and ensure that the Codec configuration corresponds to your Network deployment.
  • Page 13 Figure 11: SIP proxy configuration Enter the password for the device as previously configured on the MiVoice Office 250 in the SIP proxy password field. Ensure that In-Bound Authentication password in MiVO 250 database programming (DBP) matches SIP proxy password set in the WinPDM. Figure 12.
  • Page 14 Office 250 (required for MWI). Enter the extension of the Voice Mail in both, the Message Centre number and the Voice mail number. Verify that the 5634 handset is now connected to the Wi-Fi router. Verify No Access warning is not displayed.

  • Page 15: Supported Features

    SUPPORTED FEATURES For a list of supported features, refer to the Table 113 and Table 114 in the MiVoice 250 Features and Programming Guide available on Mitel Document Center.
