Phones Supporting Japanese Character Bitmaps ........19 Document Part Number 835.3262-2 Page 1 A946/4373A © Mitel Networks Corporation May 2010... -
Page 2: Introduction
Introduction Introduction This user guide supplement was created for the Mitel 5000 Communications Platform (CP) version 4.0 software release. This supplement specifies the affected 5000 CP user guides, and provides information and instructions for the 5000 CP v4.0 new features and changes. See the following sections for details: •... -
Page 3: New Supported Devices

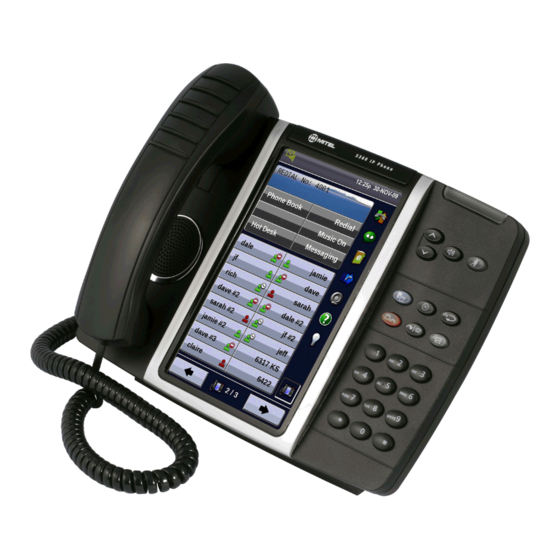

And, a 10/100/1000 auto-sensing Gigabit Ethernet LAN connection allows unconstrained bandwidth from the network to the desktop. The phone supports the Mitel Cordless Handset and Headset, the Mitel Line Interface Module, the Mitel 5310 IP Conference Unit, and the Mitel Wireless LAN Stand. - Page 4 (to turn the display off if desired) • has a calibrate display function (to re-calibrate the touch screen accuracy if necessary) For additional information about the phone and available system features, refer to the Mitel 5360 IP Phone User Guide, part number 550.8124. ®...
-
Page 5: 5310 Ip Conference Unit
The Conference Controller application is not available on the 5224 and 5324 phones. NOTE To access the Conference Controller application: Press (Applications). Press Conference Unit. To exit the Conference Controller application: Press Close in the Conference Controller application. ® Page 5 Mitel 5000 CP Phone User Guide Supplement for v4.0, May 2010... -
Page 6: Turning The Conference Unit On And Off
5340, and 5360), the optional remote control mouse (5324), or the side control unit (5224) to mute the conference unit, the orange mute indicator does light up as designed. ® Page 6 Mitel 5000 CP Phone User Guide Supplement for v4.0, May 2010... -
Page 7: Placing The Conference Unit In Presentation Mode
For the 5324 phone: Use the Presentation button on the optional remote control mouse. For the 5224 phone: Use the Presentation button on the Side Control Unit. ® Page 7 Mitel 5000 CP Phone User Guide Supplement for v4.0, May 2010... -
Page 8: Line Interface Module (Lim)
The LIM (shown below) is an optional device that adds an analog phone line capability to the Mitel 5224, 5324, 5330, 5340, and 5360 IP Phones. Where the analog line or loop start line connects directed to the IP telephone via the LIM module interface. -
Page 9: Making And Answering Calls Using The Lim Button
To end the current analog call when an incoming call arrives: Press the Star button ( ) to cancel. The current analog call ends and you are connected to the new caller. ® Page 9 Mitel 5000 CP Phone User Guide Supplement for v4.0, May 2010... -
Page 10: Making And Answering Calls Using The Failover Mode
To make an Emergency Call using the LIM line, when the IP connection has failed: Lift the handset. Press the LIM line key that you have programmed. IP FAIL: ANALOG CALL appears. Dial your local emergency number. ® Page 10 Mitel 5000 CP Phone User Guide Supplement for v4.0, May 2010... -
Page 11: 5610 Cordless Handset And Ip Dect Stand
Dynamic Extension Express associated destinations (like any other phone in the system). The IP DECT stand connects to the network through the PC port on a Mitel 5312, 5320, 5324, 5330, 5340, or 5360 IP phone. To extend the wireless reception range, If needed, the IP DECT Stand can be equipped with an optional repeater. -
Page 12: Using Configuration Assistant
You need a Configuration Assistant extension number to use this feature. Contact NOTE your system administrator for more information. Changing Your Station Password Before using Configuration Assistant, Mitel recommends that you change your default Station password to something more secure. To change your Station password: Dial 392. ENTER PASSWORD appears. -
Page 13: Changing Dynamic Extension Express Settings
Enable (only if DND is disabled) o Disable (only if DND is enabled) Hang up, or press the Star button (*) to return to the main menu. ® Page 13 Mitel 5000 CP Phone User Guide Supplement for v4.0, May 2010... -
Page 14: Manual Forwarding Calls
You can add the Activate Door Relay feature to a phone keymap button, just like any other station feature. To unlock a door: While idle or while on a call, dial 332. The door is unlocked. ® Page 14 Mitel 5000 CP Phone User Guide Supplement for v4.0, May 2010... -
Page 15: Canadian French Support
US, UK, US & UK Spanish Spanish Japanese Canadian Fr-Can 52xx/53xx 8560/8660 8528/8568 All Others This feature may or may not be enabled for your system. ® Page 15 Mitel 5000 CP Phone User Guide Supplement for v4.0, May 2010... -
Page 16: Phones Supporting New Character Bitmaps
Phones Supporting New Character Bitmaps Phones Supporting New Character Bitmaps The Mitel 52xx/53xx IP phones, the 8660 IP phone, and the 8528, 8568, and 8560 digital telephones are able to support all of the new character bitmaps required to fully support the Canadian French and Mexican Spanish languages. - Page 17 È É Ê Ë è é ê ë Î Ï î ï Ô Œ ó œ Ù Û Ü ù û Ü Ÿ Ÿ « » ® Page 17 Mitel 5000 CP Phone User Guide Supplement for v4.0, May 2010...
-
Page 18: Phones Supporting Old Character Bitmaps
Phones Supporting Old Character Bitmaps Phones Supporting Old Character Bitmaps All phones other than the Mitel 52xx/53xx IP phones, the 8660 IP phone, and the 8528, 8568, and 8560 digital telephones are unable to support all of the new character bitmaps required to fully support the Canadian French and Mexican Spanish languages. -
Page 19: Phones Supporting Japanese Character Bitmaps
Mitel is a registered trademark of Mitel Networks Corporation. All other trademarks mentioned in this document are the property of their respective owners, including Mitel Networks Corporation. All rights reserved. The contents of this document, which reflect current Mitel standards, may include technical or other inaccu- racies.
