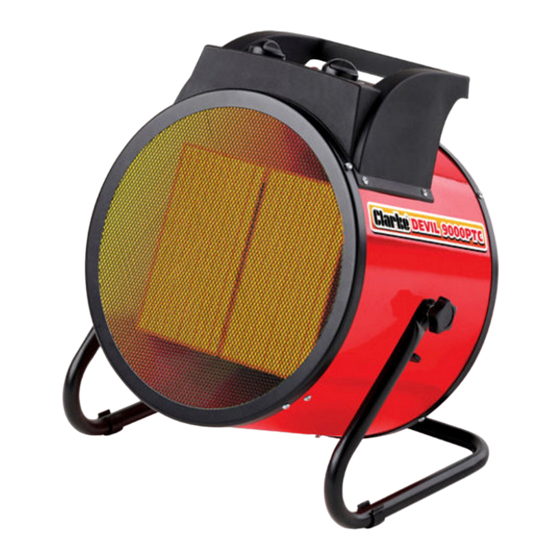

- Page 1 Only suitable for well insulated areas and not designed to be the primary heat source 400V ELECTRIC FAN HEATER MODEL NO: DEVIL 9000PTC PART NO: 6925238 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS DL1123 -Rev 2...
-
Page 2: Function And Operating Parameters
INTRODUCTION Thank you for purchasing this CLARKE product. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. - Page 3 THE FOLLOWING TABLE ADDRESSES THE INFORMATION REQUIREMENTS OF REG.2015/1188 Item Symbol Value Unit Heat output Measured seasonal space heating energy efficiency Nominal heat output Minimum heat output (indicative) Maximum continuous heat output Auxiliary electricity consumption At nominal heat output At minimum heat output In standby mode Type of heat input for electric storage local heaters only Manual heat charge control with integrated thermostat...
-
Page 4: Safety Symbols
6. Check the heater for damage before use. DO NOT use if the heater tubes/ elements are damaged or broken. Any damage should be properly repaired or the part replaced. If in doubt, DO NOT use. Consult your local CLARKE dealer. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 5: Maintenance
Cleaning and Maintenance. 3. Only recommended parts should be used. Unapproved parts may be dangerous and will invalidate the warranty. 4. DO NOT attempt to repair a damaged heater, contact the Clarke service department. POSITIONING WARNING: DO NOT USE THE HEATER NEAR FLAMMABLE MATERIAL, LIQUIDS, SOLIDS, GASSES OR COMPRESSED GAS CYLINDERS ETC. -
Page 6: Operation
OPERATION 1. This heater is intended for drying & warming of commercial/industrial buildings where adequate ventilation is provided. It is NOT for domestic use or for heating habitable areas. 2. The heater should NOT be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. -
Page 7: Electrical Connections
DCL16B extension lead can be used. This is fitted with a red 5 pin 16 amp industrial plug to EN 60309 with 16A socket. (CLARKE part No 6925233). If in any doubt, consult a qualified electrician. DO NOT attempt any electrical repairs yourself. - Page 8 OPERATION WARNING: DO NOT USE THIS HEATER IN SMALL ROOMS WHEN THEY ARE OCCUPIED BY PERSONS NOT CAPABLE OF LEAVING THE ROOM ON THEIR OWN, UNLESS CONSTANT SUPERVISION IS PROVIDED. CAUTION: SOME PARTS OF THIS PRODUCT CAN BECOME VERY HOT AND CAN CAUSE BURNS.
- Page 9 6. For fan only operation, turn the power switch to the fan only setting and set the thermostat to its minimum setting. 7. Adjust the angle by loosening both adjusting knobs and setting the required angle. 8. Retighten the adjusting knobs. 9.
-
Page 10: Troubleshooting
Replace if necessary and investigate plugged in with circuit breaker cause. If fuse blows repeatedly, consult the switch and trips. your CLARKE dealer. thermostat No power at Insert the plug in a suitable socket. switched on. socket outlet Heating element... -
Page 11: Environmental Recycling Policy
Cleaning and Maintenance. 3. Only recommended parts should be used. Unapproved parts may be dangerous and will invalidate the warranty. 4. DO NOT attempt to repair a damaged heater, contact the Clarke service department. ENVIRONMENTAL RECYCLING POLICY... -
Page 12: Specifications
SPECIFICATIONS Operating Voltage and Frequency: 400 V / 50Hz / 3 Phase Operating Temperature: (Min/Max) -15 to +25°C Heat Output: 9 kW Air Output: 1180m Safety Device: Thermal cut-out Duty Cycle Classification: Continuous duty Electrical Insulation Class Ingress protection IPX0 Product: Depth x Width x Height 395 x 307 x 455 mm Product Weight... -
Page 13: Component Parts
COMPONENT PARTS Setting knob Friction pad Thermostat control knob Relay support Lamp cover Blade fastening Control box cover Switch Motor Thermostat Cable clamp Capacitor Power cable/plug Relay Motor bracket Front grille Rear grille Air outlet Temperature sensor Temperature controller Surround Heating element Foot pad Air duct... -
Page 14: Declarations Of Conformity
DECLARATIONS OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 15 DECLARATIONS OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
