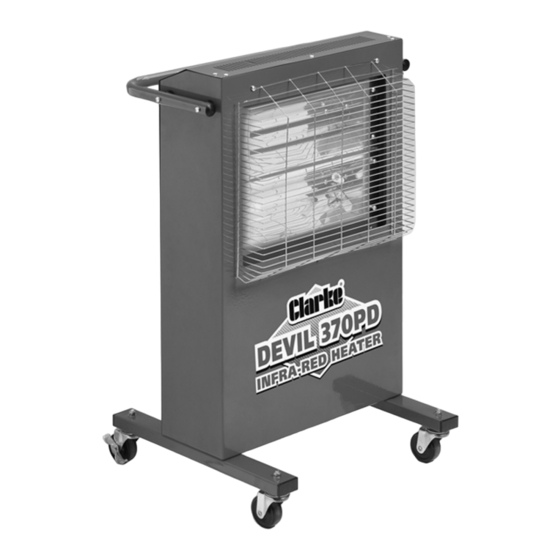

- Page 1 DEVIL QUARTZ HALOGEN HEATER MODEL NO: DEVIL 370PD PART NO: 6920257 OPERATING & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC08/22...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE Quartz Halogen Heater. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. - Page 3 THE FOLLOWING TABLE ADDRESSES THE INFORMATION REQUIREMENTS OF REG.2015/1188 Item Symbol Value Unit Heat output Measured seasonal space heating energy efficiency Nominal heat output Minimum heat output (indicative) Maximum continuous heat output Auxiliary electricity consumption At nominal heat output At minimum heat output In standby mode 0.001kw Type of heat input for electric storage local heaters only...
-
Page 4: General Safety Rules
GENERAL SAFETY RULES 1. These heaters are for INDOOR USE only. 2. DO NOT expose the heater or power cable to rain or wet conditions. Any water entering the heater will increase the risk of electric shock. DO NOT use this heater in a bathroom, shower room or any other wet environment. 3. -
Page 5: Environmental Recycling Policy
7. Check the heater for damage before use. DO NOT use if the heater tubes are damaged or broken. Any damage should be properly repaired or the part replaced. If in doubt, DO NOT use. Consult your local Clarke dealer. SERVICE & REPAIRS 1. -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE POWER SUPPLY. The 230v models are provided with a 13 amp BS 1363 plug, fitted with a 13 amp fuse and MUST be connected to a standard, 230 Volt (50Hz) electrical supply, preferably through a suitably fused isolator switch. -
Page 7: Unpacking And Assembly
UNPACKING AND ASSEMBLY UNPACKING Before assembling, please check contents against the following list and advise your dealer immediately if any parts are missing. 1 x Heater 2 x Support frames with castors (2 with brakes) 1 x Handle 1 x Fixings pack 1 x Remote control unit ASSEMBLY 1. -
Page 8: Operation
OPERATION WARNING: FOR SAFE OPERATION OF THIS HEATER IT IS ESSENTIAL TO READ THESE INSTRUCTIONS BEFORE USE. WARNING: PLEASE NOTE THAT THE HEATING ELEMENTS OF THIS PRODUCT DO NOT GLOW WHILST IN OPERATION. ANY PICTURES SHOWING THIS IN ADVERTISING MATERIAL ARE FOR ILLUSTRATION ONLY. USING THE REMOTE CONTROL All operations must be done using the remote control. - Page 9 3. Press to turn on the upper heating lamp and the screen will show P1. 4. Press to select the mode from P1-P6, referring to the different temperature settings. Only the upper element is working Both elements are working • During mode P2-P5 the upper element is working all the time and the lower element will be turned off automatically according to the set temperature.
- Page 10 SETTING THE SHUTDOWN TIMER 1. Press to set the shutdown timer. The time on the screen flickers with initial status 00:00. 2. Press to set the time to turn the heater off. • It increases/decreases 1 hour per press. 3. Press when you finish setting and the heater will be in the countdown mode.
-
Page 11: Cleaning And Maintenance
3. Ensure heating tubes are clear of dust (use compressed air to clean if possible). (ALWAYS wear a dust mask if performing this operation). 4. Refer to your CLARKE dealer if internal repair is required. 5. When storing the heater, allow it to cool down, then place it in its packing box for storage in a dry, ventilated place. -
Page 12: Fault Finding
Fuse blown. Replace if necessary and investigate the cause. If fuse blows repeatedly, consult your CLARKE dealer. No power at socket Insert plug into a suitable outlet. socket. Tilt safety switch is Ensure unit is upright. If disabling unit. -
Page 13: Parts Diagram
PARTS DIAGRAM Description Description Castor (standard) Bolt Castor with Brake Support frame Ceramic end cap Control panel module Halogen tube Circuit-board (not shown) Wire guard Tilt safety switch (not shown) Power cable On/off power switch (not shown) Handle Remote control unit Plastic spacers Parts &... - Page 14 DECLARATION OF CONFORMITY-UK Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 15: Declaration Of Conformity (Ce)
DECLARATION OF CONFORMITY-CE Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
