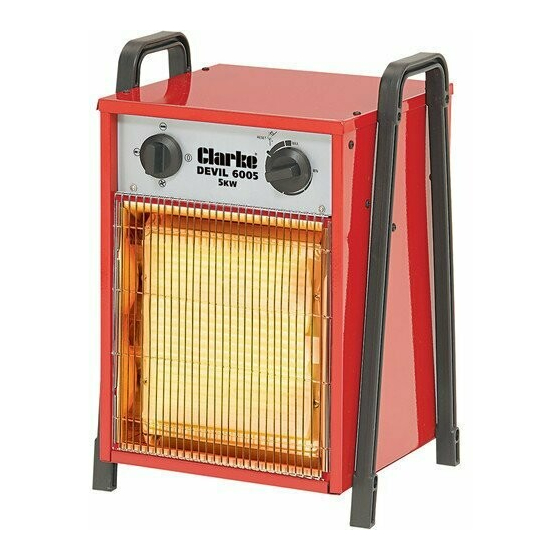

- Page 1 ELECTRIC FAN HEATERS MODEL NO: DEVIL 6003,6005,6009 & 6015 PART NO: ,6925220, 6925225, 6925230 & 6925235 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0618- rev 8...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE product. This heater is only suitable for well insulated spaces or occasional use. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. - Page 3 THE FOLLOWING TABLE ADDRESSES THE INFORMATION REQUIREMENTS OF REG.2015/1188 Item Symbol Value Unit Heat output Measured seasonal space heating energy efficiency 6003 6005 6009 6015 Nominal heat output Minimum heat output (indicative) Maximum continuous heat output Auxiliary electricity consumption At nominal heat output At minimum heat output In standby mode Type of heat input for electric storage local heaters only...
-
Page 4: Safety Symbols
SAFETY SYMBOLS The following symbols appear on the unit. Do Not High Surface, Cover Voltage Do Not Touch SAFETY RULES Make sure that you read, understand and comply with the following. POSITIONING WARNING: DO NOT USE THE HEATER NEAR FLAMMABLE MATERIAL, LIQUIDS, SOLIDS, GASES OR COMPRESSED GAS CYLINDERS ETC. -
Page 5: Electrical Safety
ELECTRICAL SAFETY WARNING: THIS HEATER MUST BE FITTED WITH A SUITABLE SUPPLY CABLE AND PLUG. CLARKE PART NUMBER 6925237 WARNING: THIS HEATER MUST BE EARTHED • Regularly inspect the power cable / plugs and all electrical connections for signs of damage/looseness. Do not use the heater it the power cable is damaged. -
Page 6: Service And Repairs
Cleaning and Maintenance. • Use recommended parts only. Unapproved parts may be dangerous and will invalidate the warranty. • DO NOT attempt to repair a damaged heater, contact the Clarke service department. SERVICE & REPAIRS • Have your appliance repaired by a qualified person using identical replacement parts. -
Page 7: Electrical Connections
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. DEVIL 6003 (3KW) HEATER UNITS Connect the mains lead to a standard 230Volt 50Hz electrical supply through an approved 13 amp BS1363 plug or a suitably fused isolator switch. -
Page 8: Operation
OPERATION The Devil range of fan assisted electric heaters are suitable for household (Devil 6003 only) or workshop/factory use. They incorporate a thermostat which detects the temperature of the room air and controls the heater to maintain a pre-selected temperature between 0 & 40°C. A manually reset thermal cutout is provided for safety in the event of overheating on the 6005, 6009 &... - Page 9 3 KW HEATERS The 3kw heater has three settings for 1) fan only, 2) fan plus single heating element, 3) fan plus both heating elements. The other control is a progressive thermostat which is rotated through 270 degrees. A cutout is used to maintaina constant pre-set temperature.
-
Page 10: Maintenance
5. Avoid using solvents when cleaning plastic parts, most plastics are susceptible to damage from various types of commercial solvents. 6. Refer to your Clarke dealer if internal maintenance is required. The unit is fitted with tamper-proof screws to discourage users from dismantling the heater. -
Page 11: Fault Finding
Fuse blown Replace if necessary and investigate cause. If fuse blows repeatedly consult your Clarke dealer. No power at socket. Plug into a suitable socket. Heating element glowing Incorrect input voltage Use correct power sup- hot. -
Page 12: Parts Diagram Devil 6003
PARTS DIAGRAM DEVIL 6003 Support Leg Front Grille Top Panel Fan Control KNob Chassis Panel Front Panel Mounting Packer Motor Washer Retaining Clips Control Unit Rear Panel Temp Controller Power Cable Side Panel (LH) Side Panel (RH) Air Duct Base Panel... -
Page 13: Parts Diagram Devil 6005
PARTS DIAGRAM DEVIL 6005 Support Leg Heating Element Top Panel Front Grille Chassis Panel Fan Control KNob Front Panel Motor Plastic Plug 5-Pin Socket Support Bar Rear Panel Control Unit Cable Entry Temp Controller Side Panel (RH) Side Panel (LH) Base Panel Heat Shield Heater Bracket... -
Page 14: Parts Diagram Devil 6009
PARTS DIAGRAM DEVIL 6009 Support Leg Heating Element Top Panel Front Grille Chassis Panel Fan Control KNob Front Panel Motor Plastic Plug 5-Pin Socket Support Bar Rear Panel Control Unit Cable Entry Temp Controller Side Panel (RH) Side Panel (LH) Base Panel Heat Shield Heater Bracket... -
Page 15: Parts Diagram Devil 6015
PARTS DIAGRAM DEVIL 6015 Support Leg Front Grille Top Panel Fan Control Knob Chassis Panel Front Panel Heat Shield Motor Closing Plate Angle Bracket Control Unit Rear Panel Temp Controller Cable Entry Side Panel (LH) Side Panel (RH) Heater Retainer Base Panel Support Bar Heater Bracket... -
Page 16: Specifications
SPECIFICATIONS Item Published Specification Model Devil 6003 Devil 6003 Devil 6009 Devil 6015 Part No 6925220 6925225 6925230 6925235 Weight 5.5 kg 7.0 kg 9.0 kg 14.4 kg Dimns (mm) 295x265x425 295x305x250 350x335x465 350x335x465 Input 1.5(setting 1) 2.5(setting 1) 4.5(setting 1) -
Page 17: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 18: Wiring Diagrams
WIRING DIAGRAMS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 19 WIRING DIAGRAMS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
