Only suitable for well insulated areas and not designed
to be the primary heat source

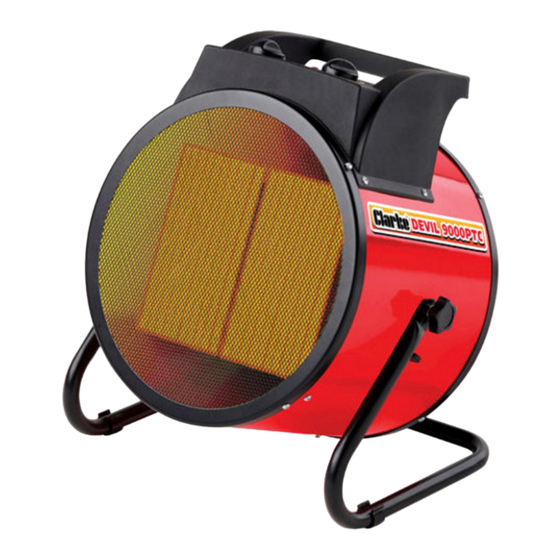

400V ELECTRIC FAN HEATER
MODEL NO: DEVIL 9000PTC
PART NO: 6925238
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
GC0621 -Rev 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DEVIL 9000PTC and is the answer not in the manual?

Questions and answers

Summary of Contents for Clarke DEVIL 9000PTC

  • Page 1 Only suitable for well insulated areas and not designed to be the primary heat source 400V ELECTRIC FAN HEATER MODEL NO: DEVIL 9000PTC PART NO: 6925238 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0621 -Rev 1...
  • Page 2: Specifications

    INTRODUCTION Thank you for purchasing this CLARKE product. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
  • Page 3 THE FOLLOWING TABLE ADDRESSES THE INFORMATION REQUIREMENTS OF REG.2015/1188 Item Symbol Value Unit Heat output Measured seasonal space heating energy efficiency Nominal heat output Minimum heat output (indicative) Maximum continuous heat output Auxiliary electricity consumption At nominal heat output At minimum heat output In standby mode Type of heat input for electric storage local heaters only Manual heat charge control with integrated thermostat...
  • Page 4: Safety Advice

    • Only recommended parts should be used. Unapproved parts may be dangerous and will invalidate the warranty. • DO NOT attempt to repair a damaged heater, contact the CLARKE service department. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 5: Common Sense

    POSITIONING WARNING: DO NOT USE THE HEATER NEAR FLAMMABLE MATERIAL, LIQUIDS, SOLIDS, GASES OR COMPRESSED GAS CYLINDERS ETC. • This heater is designed for indoor use only. • DO NOT place the heater close to a bath, wash basin, shower, swimming pool or any other water-filled area or wet surface.
  • Page 6: Service And Repairs

    • DO NOT obstruct the air inlet and outlet sections of the heater. • DO NOT cover the heater. • DO NOT touch the heater casing or grille when first switched off, as these will be very hot and will take time to cool. •...
  • Page 7: Electrical Connections

    DCL16B extension lead can be used. This is fitted with a red 5 pin 16 amp industrial plug to EN 60309 with 16A socket. (CLARKE part No 6925233). If in any doubt, consult a qualified electrician. DO NOT attempt any electrical repairs yourself.
  • Page 8 4. Set the mode selector to one of the 3 settings: Fan Only Heat Setting 1 Heat Setting 2 • The heater will take up to three minutes to reach optimum temperature. 5. Once the room reaches the required temperature, turn the thermostat control slowly counter-clockwise until the thermostat clicks, leave the control in this position.
  • Page 9: Troubleshooting

    Make sure that the heater grill is not blocked. No other maintenance is required, should you discover any problem with the heater, return it to the CLARKE service department for repair. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 10: Component Parts

    COMPONENT PARTS Setting knob Friction pad Thermostat control knob Relay support Lamp cover Blade fastening Control box cover Switch Motor Thermostat Cable clamp Capacitor Power cable/plug Relay Motor bracket Front grille Rear grille Air outlet Temperature sensor Temperature controller Surround Heating element Foot pad Air duct...
  • Page 11: Declarations Of Conformity
