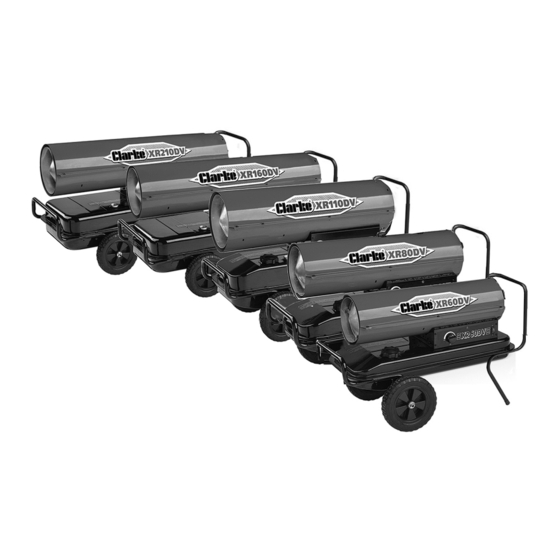

- Page 1 DUAL VOLTAGE DIESEL/PARAFFIN HEATERS MODEL NO: XR60DV, XR80DV, XR110DV, XR160DV, & XR210DV PART NO: 6931015, 6931019, 6931023, 6931027 & 6931032 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC08/23 -Rev 1...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE product. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. SPECIFICATIONS Model XR60DV XR80DV XR110DV XR160DV XR210DV Part No 6931015 6931019 6931023 6931027 6931032 Burn Rate: (Btu/hr) -
Page 3: Function And Operating Parameters
GUARANTEE This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended. -
Page 4: Safety Warnings
SAFETY WARNINGS Your safety is important to you and to others, so please read these instructions before you operate this heater. 1. Failure to comply with the precautions and instructions provided with this heater can result in death, serious bodily injury and property loss or damage from the hazards of fire, explosion, burns, asphyxiation, carbon monoxide poisoning, and/or electric shock. -
Page 5: Safety Precautions
SAFETY PRECAUTIONS 1. Check the heater thoroughly for damage. Never operate a damaged heater. 2. This heater is for indoor use only. Make sure that the heater is not directly exposed to rain or water spray. 3. Use in well ventilated spaces and provide at least 2 sq. ft. (0.19 sq.m.) of air opening near the floor and 2 sq. - Page 6 FRESH AIR PRECAUTIONS VENTILATION Even though this heater operates very close to 100 percent combustion efficiency, it still produces small amounts of carbon monoxide. Carbon monoxide (CO) is toxic. CO can build up in a confined spaces and failure to provide adequate ventilation can be fatal.
-
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved BS1363/A plug fitted with a BS1362 13 amp fuse. The heater may also be connected to a 110V supply through a suitably approved plug. -
Page 8: Unpacking And Assembly
UNPACKING AND ASSEMBLY Remove the heater from carton and discard all protective material which may have been applied to the heater for shipment. Recycle packaging materials responsibly. 1. Pass the axle through the wheel frame as shown 2. Add a flat washer and secure everything in place by inserting a split pin into the small hole at the end of the axle. -
Page 9: Suitable Fuels
• When filling the heater, make sure that the heater is level and do not overfill. Use a funnel or can with a long fill spout. • Fill with a minimum of 5 litres of fuel for the XR60DV, 6 litres for the XR80DV & XR110DV, or 10 litres the XR160DV and XR210DV. -
Page 10: Operation
OPERATION STARTING UP WARNING: DO NOT START HEATER WHEN EXCESS FUEL HAS ACCUMULATED IN THE COMBUSTION CHAMBER. 1. Make sure power switch is in the OFF position. 2. Turn thermostat to lowest setting. 3. Plug the heater into the power supply (either 230V or 110V). - Page 11 MAINTENANCE, STORAGE AND SERVICING WARNING: TO PREVENT PERSONAL INJURY, UNPLUG THE HEATER FROM THE MAINS SUPPLY BEFORE SERVICING. GENERAL 1. Make a general visual inspection of the heater for loose or damaged parts. • Damaged parts should be repaired or replaced before using the heater again.
- Page 12 FILTERS Dirty air filters will cause an imbalance in the air-fuel mixture. The best indication that this condition exists is an increase in odour or difficulty getting your heater to ignite. This heater should never be operated without the filters in place.
- Page 13 500 hrs.). NOTE: If the filter is damaged or extremely dirty, a replacement filter of the same type must be fitted, this is available from your local CLARKE service department. AIR OUTPUT FILTER CLEANING 7. To clean the air output filter (Annually or as required) remove the air output filter and tap the contaminated side gently on a solid object to remove contaminates.
-
Page 14: Troubleshooting
1. Check fuel level 2. Check the mains plug is correctly fitted and that the fuse inside it has not blown. 3. Return to Clarke service department for repair. LED gives 3 High limit Make sure heater is cooled down, Flashes switch failure. -
Page 15: Wiring Diagram
WIRING DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 16: Component Parts
COMPONENT PARTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 17 COMPONENT PARTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 18 COMPONENT PARTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 19: Declarations Of Conformity
DECLARATIONS OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
