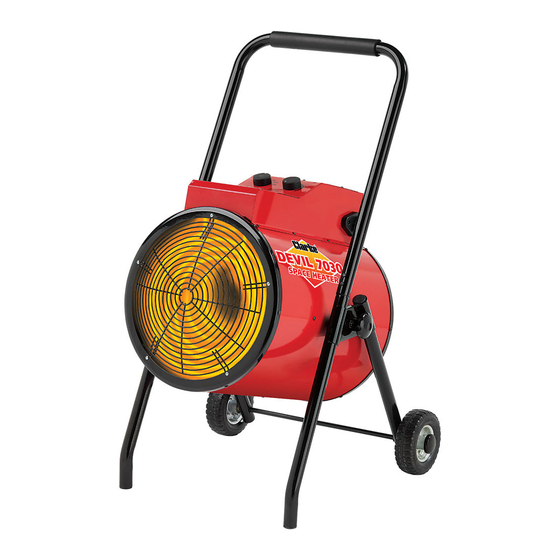

- Page 1 This product is only suitable for well insulated spaces or occasional use. 30KW ELECTRIC FAN HEATER MODEL NO: DEVIL 7030 PART NO: 6935458 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS LS0618 - ISS 5...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE product. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. This product is only suitable for well insulated spaces or occasional use. GUARANTEE This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. - Page 3 THE FOLLOWING TABLE ADDRESSES THE INFORMATION REQUIREMENTS OF REG.2015/1188 Item Symbol Value Unit Heat output Measured seasonal space heating energy efficiency Nominal heat output Minimum heat output (indicative) Maximum continuous heat output Auxiliary electricity consumption At nominal heat output At minimum heat output In standby mode Type of heat input for electric storage local heaters only Manual heat charge control with integrated thermostat...
-
Page 4: Safety Symbols
SAFETY SYMBOLS The following symbols appear on the unitt. Do Not High Surface, Cover Voltage Do Not Touch SAFETY RULES Make sure that you read, understand and comply with the following. ELECTRICAL SAFETY WARNING: THIS HEATER MUST BE FITTED WITH A SUITABLE CABLE AND PLUG (NOT SUPPLIED). - Page 5 Cleaning and Maintenance. • Use recommended parts only. Unapproved parts may be dangerous and will invalidate the warranty. • DO NOT attempt to repair a damaged heater, contact the Clarke service department. POSITIONING WARNING: DO NOT USE THE HEATER NEAR FLAMMABLE MATERIAL, LIQUIDS, SOLIDS, GASES OR COMPRESSED GAS CYLINDERS ETC.
-
Page 6: Common Sense
COMMON SENSE • DO NOT operate the heater when you are tired or under the influence of alcohol, drugs or intoxicating medication. • DO NOT stand on the heater. • DO NOT use the heater with wet hands or when there is water on the power cable. -
Page 7: Electrical Connections
SAFETY SYSTEMS THERMOSTATIC PROTECTION The Devil 7030 has a thermal cut out to prevent the unit from overheating. If the temperature of the front grille gets too high the thermal cutout will turn off the heating elements. When the fan has cooled the unit sufficiently, normal operation will resume. - Page 8 ASSEMBLY 1. Fit the right leg frame to the main body as shown. NOTE: The bolt needs to be inserted before the handwheel. NOTE: The bolt goes through the larger of the 2 holes in the spacer. 2. Fit the axle and left hand support frame.
-
Page 9: Operation
OPERATION WARNING: DO NOT USE THIS HEATER IN SMALL ROOMS WHEN THEY ARE OCCUPIED BY PERSONS NOT CAPABLE OF LEAVING THE ROOM ON THEIR OWN, UNLESS CONSTANT SUPERVISION IS PROVIDED. CAUTION: SOME PARTS OF THIS PRODUCT CAN BECOME VERY HOT AND CAUSE BURNS. -
Page 10: Maintenance
• Make sure that the heater grill is not blocked. • No other maintenance is required, should you discover any problem with the heater, return it to the Clarke service department for repair. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 11: Specifications
SPECIFICATIONS Operating Voltage, Current and Frequency: 400 V / 43A / 50Hz / 3 Phase (V / A / Hz / Phs) Operating Temperature: (Min/Max) (°C) 0-40°C Heat Output: (kW) 30 kW Air Output: (m 1440m Safety Device Thermal cut-out Duty Cycle Classification Continuous duty Electrical Insulation Class... -
Page 12: Troubleshooting
Fuse blown or Replace if necessary and investigate although circuit breaker cause. If fuse blows plugged in trips. repeatedly, consult your Clarke dealer. with the No power at Insert the plug in a suitable socket. switch and socket outlet. thermostat switched on. -
Page 13: Parts Diagram
PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 14: Parts List
PARTS LIST Front Rings House Casing Front Grille Heat Shield Motor Switch Knob Rear Grille Securing Rings Rear Rings Speed Controller Heating Elements Location Part For Switch Heater Bracket Upper Temperature Controller Heater Bracket Bottom Fasten Spring Wheel Thermostat Knob Wheel Cover Control Box L Securing Plate... -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
