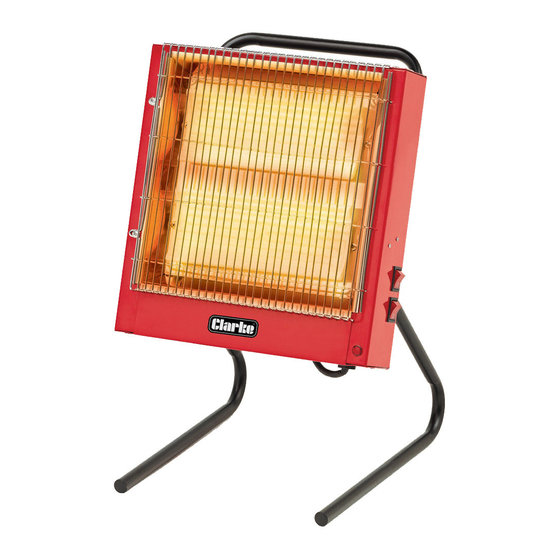

CERAMIC HEATER
MODEL NO: DEVIL 350 230V/110V
PART NO: 6920262 & 6920263
OPERATING & MAINTENANCE
INSTRUCTIONS
GC0615

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DEVIL 350 230V and is the answer not in the manual?

Questions and answers

Summary of Contents for Clarke DEVIL 350 230V

  • Page 1 CERAMIC HEATER MODEL NO: DEVIL 350 230V/110V PART NO: 6920262 & 6920263 OPERATING & MAINTENANCE INSTRUCTIONS GC0615...
  • Page 2: Environmental Recycling Policy

    INTRODUCTION Thank you for purchasing this CLARKE Ceramic Heater. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
  • Page 3: General Safety Rules

    GENERAL SAFETY RULES Please keep these instructions in a safe place for future reference. 1. These heaters are for INDOOR USE ONLY. 2. Do not expose the heater or power cable to rain or wet conditions. Any water entering the heater will increase the risk of electric shock. DO NOT use this heater in a bathroom, shower room or any other wet environment.
  • Page 4: Service And Repairs

    6. Check the heater for damage before use. Any damage should be properly repaired or the part replaced. If in doubt, DO NOT use. Consult your local Clarke dealer. SERVICE & REPAIRS 1. If necessary, have your heater repaired by a qualified person using identical replacement parts.
  • Page 5: Electrical Connections

    ELECTRICAL CONNECTIONS DEVIL 350 (230V) UNITS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE POWER SUPPLY. The 230v model is provided with a 13 amp BS 1363 plug, fitted with a 13amp fuse and MUST be connected to a standard, 230 Volt (50Hz) electrical supply, preferably through a suitably fused isolator switch.
  • Page 6: Unpacking And Assembly

    DEVIL 350 (110V) UNITS The 110V model is fitted with a 32 amp, three pin industrial plug to EN 60309 and MUST be connected to a 110-130 volt, 1 phase 50Hz supply through a suitably fused isolator switch. On no account must a 230V, 13amp (BS1363) plug be used.
  • Page 7: Cleaning And Maintenance

    DO NOT use abrasive cleaners. Take care that no moisture enters the heater. • Refer to your CLARKE dealer if internal maintenance is required. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 8: Element Replacement

    Fuse blown. Replace if necessary and investigate the cause. If fuse blow repeatedly, consult your Clarke dealer. No power at socket Insert plug into a suitable outlet socket. Tilt safety switch is Ensure unit is upright. If...
  • Page 9: Parts Diagram

    PARTS DIAGRAM Description Front Guard Tip-Over Switch M6x15 Pan Screw On/Off Switch Top Panel Casing Ceramic Heat Element Screw Neon Indicator Lamp Power Cable & Plug Reflector Panel Cable Clamp No10x12 Pan Screw Handle End Plug When requesting spare parts, please quote WS DEV 35001 to WS DEV 35016, stating the model/voltage of your heater if applicable.
  • Page 10: Specifications

    1200W/2400W Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. A selection of suitable extension leads & plugs is available from your nearest CLARKE dealer, for further information, contact your nearest dealer, or telephone CLARKE International Sales department on 01992 565300.
  • Page 11: Declaration Of Conformity

    DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...

This manual is also suitable for:

Devil 350 110v
