TO PREVENT POSSIBLE TIPPING, BOLT THIS UNIT TO THE EXERCISE
FLOOR USING MINIMUM 4-1/2" LENGTH BOLTS. FAILURE TO DO SO
MAY RESULT IN SERIOUS INJURY OR DEATH.
A00
A00
A00
A00
CF-3365
HALF RACK
**WARNING!**

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CF-3365 and is the answer not in the manual?

Questions and answers

Related Manuals for Hoist Fitness CF-3365

Summary of Contents for Hoist Fitness CF-3365

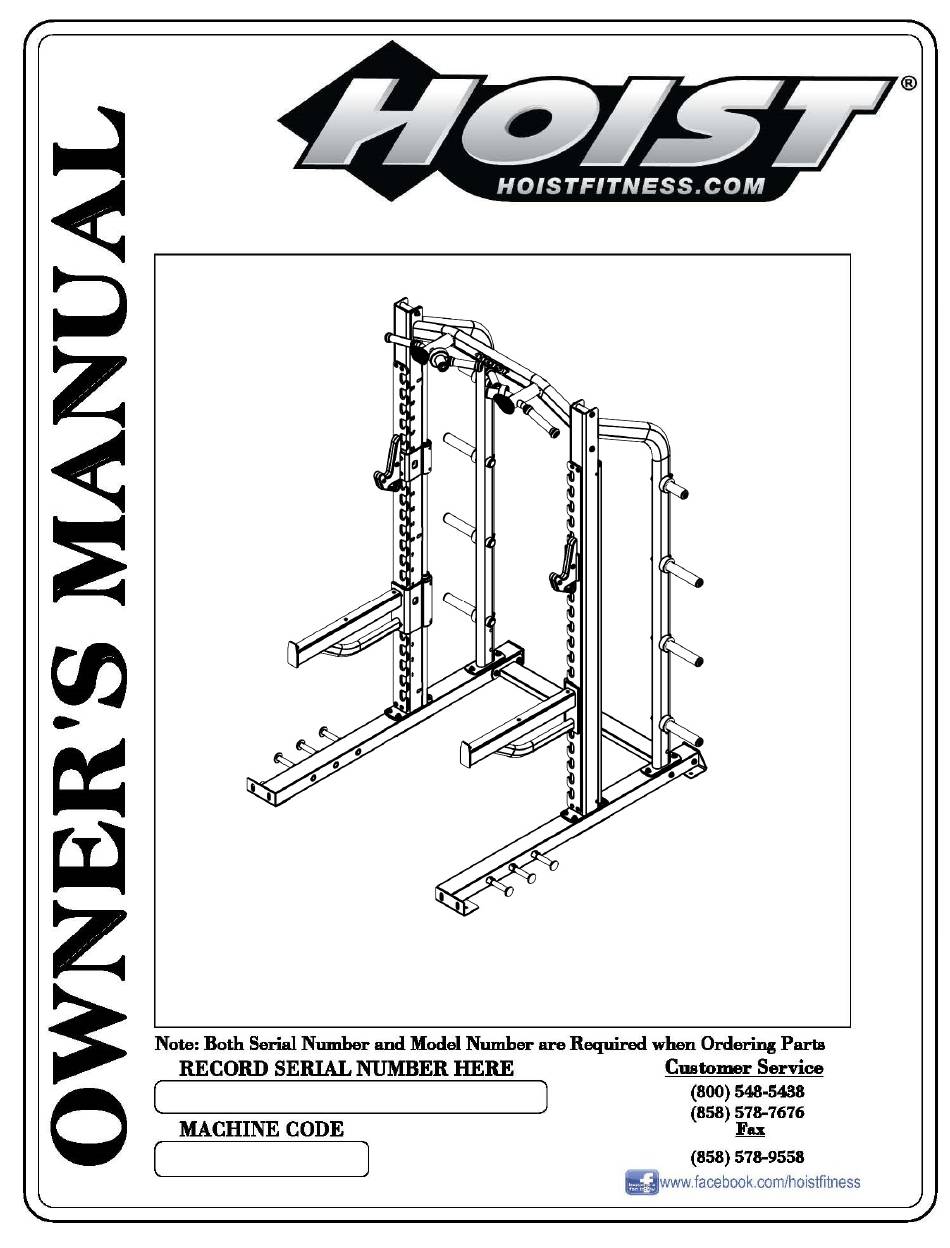

  • Page 1 CF-3365 HALF RACK **WARNING!** TO PREVENT POSSIBLE TIPPING, BOLT THIS UNIT TO THE EXERCISE FLOOR USING MINIMUM 4-1/2” LENGTH BOLTS. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH.

  • Page 2: Table Of Contents

    OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL CONTENTS INSTRUCTIONS……………………………..…………………... FRAME ASSEMBLY……………………..………..………….… PRE-ASSEMBLY………………………………..………………. DECAL PLACEMENT………………………..……………….. DECAL REFERENCE………………...….………….……. PART LIST…………………………..……….…….…………..… ABBREVIATIONS……………………..……….………….…….. BOLT SIZING CHART…………………………………………... WASHER SIZING CHART…………….….…….……………..MAINTENANCE SCHEDULE…………..………….………..…. GENERAL MAINTENANCE INFORMATION.....…….… WEIGHT TRAINING TIPS…………………….……….……….. EXERCISE LOG…………………………………..……………... LIMITED WARRANTY…………………………..………………. PAGE 01 CF-3365 ASSEMBLY...

  • Page 3: Instructions

    Be sure to have your serial number and this manual when calling. When all parts have been accounted for, continue on. TOOLS REQUIRED Ratchet Wrench 1/2", 9/16" and 3/4" Sockets Adjustable Wrench Rubber Mallet Tape Measure Level SAE Hex Key Wrench Set Two People CF-3365 ASSEMBLY PAGE 02...
  • Page 4 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL ***THIS PAGE WAS INTENTIONALLY LEFT BLANK*** PAGE 03 CF-3365 ASSEMBLY...

  • Page 5: Frame Assembly

    OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY CF-3365 ASSEMBLY PAGE 04...
  • Page 6 FRAME ASSEMBLY NOTE: HAND TIGHTEN HARDWARE. SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. NOTE: ENSURE ORIENTATION OF FLANGE OFFSET AND THREADED INSERTS AS SHOWN BELOW. THREADED INSERTS SHOULD FACE TOWARDS THE BACK OF THE UNIT PAGE 05 CF-3365 ASSEMBLY...
  • Page 7 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: HAND TIGHTEN HARDWARE. SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. *BE SURE TO ALWAYS SUPPORT UPRIGHTS (11 & 12) THROUGH THE FOLLOWING STEPS UNTIL ASSEMBLY IS SECURED. FAILURE TO FOLLOW THESE DIRECTIONS MAY RESULT IN SERIOUS INJURY OR DEATH.* CR-3365 ASSEMBLY PAGE 06...
  • Page 8 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: HAND TIGHTEN HARDWARE. SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. ENSURE MOUNTING TABS ON ITEM 10 ARE ORIENTED AS SHOWN (TOWARD V-GROOVE WHEEL (50)). PAGE 07 CF-3365 ASSEMBLY...
  • Page 9 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: HAND TIGHTEN HARDWARE. SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. REPEAT ASSEMBLY FOR OPPOSITE SIDE (10 & 12). CF-3365 ASSEMBLY PAGE 08...
  • Page 10 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE:. SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY SLIDE (13 & 14) DOWN (39), THEN ROTATE (13 & 14) TOWARD (46) TO LOCK IN PLACE. PAGE 09 CF-3365 ASSEMBLY...
  • Page 11 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE:. SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY SLIDE (15 & 17) DOWN (39), THEN ROTATE (15 & 17) TOWARD (47) TO LOCK IN PLACE. CF-3365 ASSEMBLY PAGE 10...
  • Page 12 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: HAND TIGHTEN HARDWARE. SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY REPEAT ASSEMBLY FOR OPPOSITE SIDE (3 & 6). PAGE 11 CF-3365 ASSEMBLY...
  • Page 13 HAND TIGHTEN HARDWARE. SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. *BE SURE TO ALWAYS SUPPORT ASSEMBLY (7) THROUGH THE FOLLOWING STEPS UNTIL ASSEMBLY IS SECURED. FAILURE TO FOLLOW THESE DIRECTIONS MAY RESULT IN SERIOUS INJURY OR DEATH.* CF-3365 ASSEMBLY PAGE 12...
  • Page 14 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL CABLE PROFILE VIEW NOTE: SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. 77 1/2” LG. [1968.5] PAGE 13 CF-3365 ASSEMBLY...
  • Page 15 WARNING — CABLE BOLT MUST BE THREADED A MINIMUM OF 3/8” WITH JAM NUT TIGHTENED SECURELY TO ENSURE PROPER CONNECTION. FINE TUNING LOOSEN JAM NUT AND THREAD BOLT IN/OUT TO GIVE THE CABLE PROPER TENSION. RE-TIGHTEN JAM NUT CF-3365 ASSEMBLY PAGE 14...
  • Page 16 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: WRENCH TIGHTEN HARDWARE. REPEAT ASSEMBLY FOR OPPOSITE SIDE (1, 11, 28 & 40) INSTALL CABLE AND PULLEYS AT SAME TIME. SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY PAGE 15 CF-3365 ASSEMBLY...
  • Page 17 WARNING — CABLE BOLT MUST BE THREADED A MINIMUM OF 3/8” WITH JAM NUT TIGHTENED SECURELY TO ENSURE PROPER CONNECTION. FINE TUNING LOOSEN JAM NUT AND THREAD BOLT IN/OUT TO GIVE THE CABLE PROPER TENSION. RE-TIGHTEN JAM NUT CF-3365 ASSEMBLY PAGE 16...
  • Page 18 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: WRENCH TIGHTEN HARDWARE REPEAT ASSEMBLY FOR OPPOSITE SIDE (11 & 45). SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY PAGE 17 CF-3365 ASSEMBLY...
  • Page 19 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: WRENCH TIGHTEN HARDWARE SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. CF-3365 ASSEMBLY PAGE 18...
  • Page 20 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: WRENCH TIGHTEN HARDWARE SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 19 CF-3365 ASSEMBLY...
  • Page 21 *WRENCH TIGHTEN ALL PREVIOUSLY HAND TIGHTENED HARDWARE* *IMPORTANT* NOW THAT THE CF-3365 IS COMPLETELY ASSEMBLED, TAKE TIME TO ASSURE THAT YOUR UNIT IS ASSEMBLED SQUARE AND PERPENDICULAR. IF IT IS NOT PERPENDICULAR IN BOTH DIRECTIONS, IT WILL BE NECESSARY TO LOOSEN SOME FRAME HARDWARE TO RE-ALIGN THE FRAME AND RETIGHTEN BOLTS.

  • Page 22: Pre-Assembly

    OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL PRE-ASSEMBLY NOTE: WRENCH TIGHTEN HARDWARE SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 21 CF-3365 ASSEMBLY...
  • Page 23 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL PRE-ASSEMBLY NOTE: WRENCH TIGHTEN HARDWARE. SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. CF-3365 ASSEMBLY PAGE 22...
  • Page 24 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL PRE-ASSEMBLY NOTE: WRENCH TIGHTEN HARDWARE SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 23 CF-3365 ASSEMBLY...
  • Page 25 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL PRE-ASSEMBLY NOTE: WRENCH TIGHTEN HARDWARE SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. CF-3365 ASSEMBLY PAGE 24...
  • Page 26 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL PRE-ASSEMBLY NOTE: WRENCH TIGHTEN HARDWARE SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 25 CF-3365 ASSEMBLY...
  • Page 27 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL PRE-ASSEMBLY NOTE: WRENCH TIGHTEN ALL PREVIOUSLY HAND TIGHTENED HARDWARE SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. REPEAT ASSEMBLY FOR OPPOSITE SIDE (2 & 52). CF-3365 ASSEMBLY PAGE 26...
  • Page 28 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL PRE-ASSEMBLY NOTE: WRENCH TIGHTEN ALL HARDWARE. SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. QTY. 2 QTY. 6 PAGE 27 CF-3365 ASSEMBLY...

  • Page 29: Decal Placement

    OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL DECAL PLACEMENT NOTE: SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. CF-3365 ASSEMBLY PAGE 28...
  • Page 30 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL DECAL PLACEMENT NOTE: SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 29 CF-3365 ASSEMBLY...
  • Page 31 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL DECAL PLACEMENT NOTE: SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. CF-3365 ASSEMBLY PAGE 30...

  • Page 32: Decal Reference

    OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL DECAL REFERENCE 021-0003512 021-0003247 021-0013342 SERIAL # DECAL 021-0018022 021-0004264 PAGE 31 CF-3365 ASSEMBLY...
  • Page 33 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL DECAL REFERENCE CONTINUED 021-0004265 021-0003135 021-0003008 CF-3365 ASSEMBLY PAGE 32...

  • Page 34: Part List

    2.375" END CAP (DOMED) 016-0203005-B ".56"" PLASTIC PLUG 018-0002008 Ø3.50" WIDE GROOVE PULLEY 019-0001001 PLUG BUMPER 021-0003008 DECAL COMMERCIAL MAINTENANCE 1.50 X 6.69 021-0003135 DECAL WARNING 1.50" X 7.75" 021-0003427 DECAL ADJUST 021-0018022 HOIST EMBLEM + 2 SIDED TAPE PAGE 33 CF-3365 ASSEMBLY...
  • Page 35 1/4" X 16mm SAE FLAT WASHER (Ni) 013-1002010 5/16" SAE FLAT WASHER (Ni) 013-1002007 3/8" X 22mm FLAT WASHER (Ni) 013-1002006 1/2" X 27mm SAE FLAT WASHER (Ni) 013-1009001 3/8" CURVED WASHER (Ni) 013-1006003 3/8" SPLIT LOCK WASHER (Ni) CF-3365 ASSEMBLY PAGE 34...
  • Page 36 1/2"-13 UNC THIN NYLOCK NUT (Ni) 013-1006004 1/2" SPLIT LOCK WASHER (Ni) 021-0003512 DECAL PINCH POINT 1.18" X 1.35" (TRIANGLE) 021-0004264 DECAL "LIFT HERE" 021-0013342 PLACARD: CF-3365 SERIAL # DECAL DECAL SERIAL # 1.63" X 2.63" 021-0004265 CAUTION DECAL 026-01P7170 SPACER PLATE 019-0001015...

  • Page 37: Abbreviations

    HHB = Hex Head Bolt FHCS = Flat Head Cap Screw BHCS = Button Head Cap Screw SHCS = Socket Head Cap Screw Low Head SHCS = Low Head Socket Head Cap Screw SHSS = Socket Head Shoulder Screw CF-3365 ASSEMBLY PAGE 36...

  • Page 38: Bolt Sizing Chart

    RECOMMENDED RECOMMENDED RECOMMENDED TORQUE RANGE: TORQUE RANGE: TORQUE RANGE: 47-65 ft-lbs 5-7 ft-lbs 19-26 ft-lbs 3/8" SHSS 5/16" SHSS 1/4" SHSS RECOMMENDED RECOMMENDED RECOMMENDED TORQUE RANGE: TORQUE RANGE: TORQUE RANGE: 17-22 ft-lbs 8-10 ft-lbs 3-4 ft-lbs PAGE 37 CF-3365 ASSEMBLY...

  • Page 39: Washer Sizing Chart

    CURVED WASHER LOCK WASHER LOCK WASHER LOCK WASHER SPACER 026-01M0238 016-0009003 013-0003002 2" ALUMINUM 1" SHIM WASHER 3/8" FENDER WASHER FLATHEAD CAP 013-0003004 026-01PL151 1 1/16" PLASTIC 1 1/16" FENDER WASHER FENDER WASHER 014-0018002 1" LONG SPACER CF-3365 ASSEMBLY PAGE 38...
  • Page 40 026-01M0762 026-01M0768 .44" LONG HEAVY 1 1/4" LONG HEAVY 1 1/2" LONG HEAVY FLANGED SPACER FLANGED SPACER FLANGED SPACER 026-01M0239 026-01M0240 1 5/8" ALUMINUM 1 3/8" ALUMINUM FLATHEAD CAP FLATHEAD CAP 026-01M0600 .625" LONG FLANGED SPACER PAGE 39 CF-3365 ASSEMBLY...

  • Page 41: Maintenance Schedule

    Your equipment comes with a commercial maintenance decal. For personal, in home use, please follow the home maintenance schedule listed above. Never use ammonia, acid-based, or petroleum-based solvents on any portion of the machine as it may damage the finish. CF-3365 ASSEMBLY PAGE 40...

  • Page 42: General Maintenance Information

    OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL HOIST FITNESS SYSTEMS GENERAL MAINTENANCE INFORMATION Links, Pull-Pins, Snap Hooks, Swivels, Weight Stack Pins: *Check all pieces for signs of visible wear or damage. *Check springs in snap hooks and pull-pins for proper tension and alignment.

  • Page 43: Weight Training Tips

    Now that you have your CF-3365, it is only natural that you want to get started immediately. First, determine a set of realistic goals and objectives for yourself. By deciding on an exercise plan that is right for you prior to starting, you will contribute significantly to your success.

  • Page 44: Exercise Log

    OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL PAGE 43 CF-3365 ASSEMBLY...

  • Page 45: Limited Warranty

    Hoist Fitness Systems sole responsibility shall be to repair or replace the component within the terms stated above. Hoist Fitness Systems shall not be liable for any loss or damage of any kind including any incidental or consequential damages resulting, directly or indirectly from any warranty expressed or implied or any other failure of this product.
