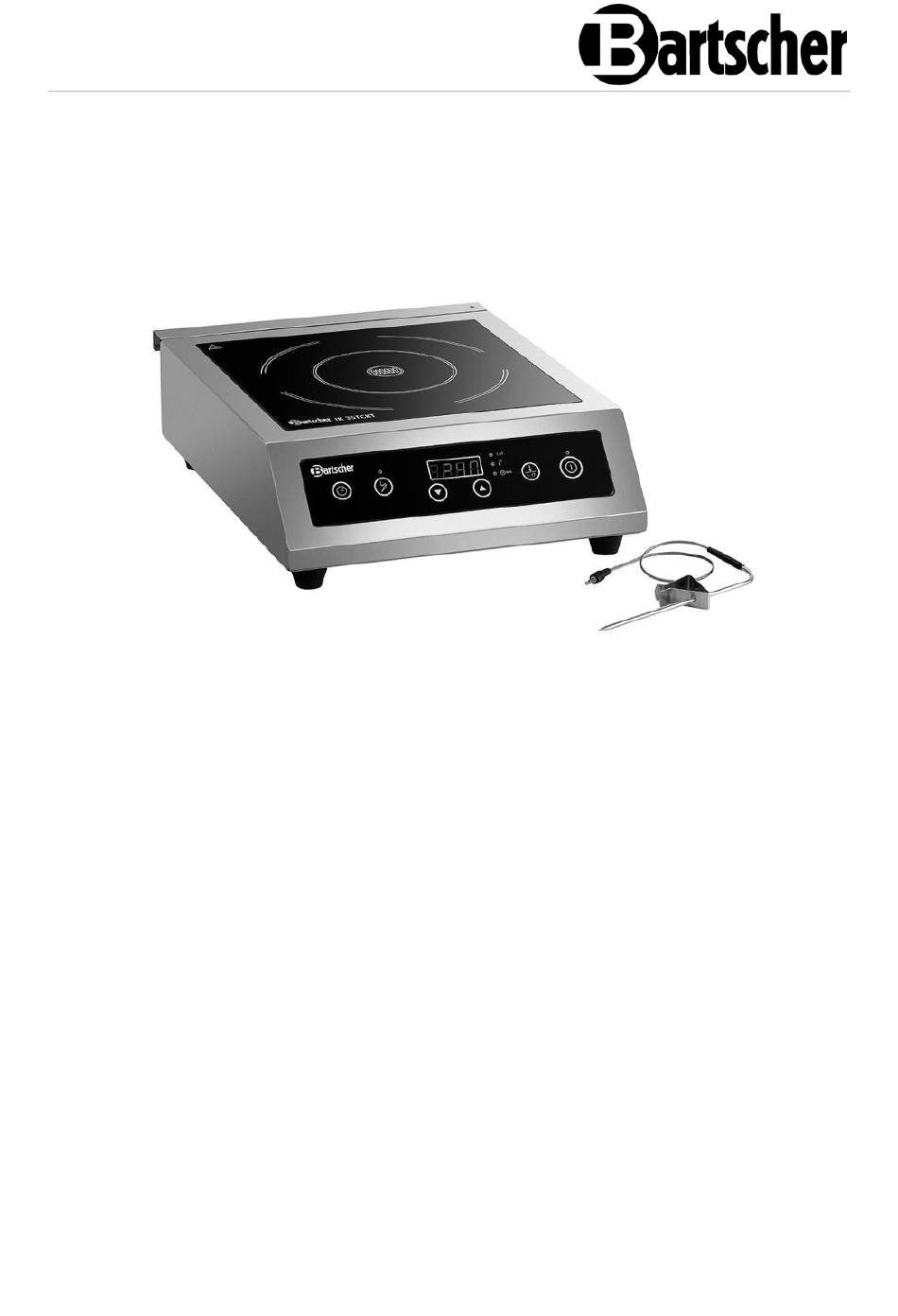

- Page 1 IK 35TCKTF 105859...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2021-03-05...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 7 Unintended Use ..................7 General information ..................8 Liability and Warranty ................8 Copyright Protection ................8 Declaration of Conformity ................ 8 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hi nweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety • In order to avoid overheating, do not place any aluminium foil or metal plates on the heating surface of the appliance. • Do not heat up sealed containers, e.g. canned food, on the heating area of the induction cooker. Resulting overpressure may cause explosion (rupture) of a container or a can.
- Page 8 Safety Supervised Usage only • Only supervised appliance may be used. • Always remain in an immediate vicinity of the appliance. Operating personnel • This appliance is not intended to be used by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge.
-
Page 9: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Preparing and heating-up foods with the use of suitable cookware. This appliance is intended for use in households and similar places, e.g.: –... -
Page 10: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 11: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 12: Technical Data
Technical Data Technical Data Technical Specifications Name: Induction cooker IK 35TCKTF 105859 Article number: Material: stainless steel Heating plate material: glass Number of hobs: Glass hob dimensions (W x D), in mm: 285 x 285 Hob diameter, in mm: Power output per hob:... -
Page 13: List Of Components Of The Appliance
Technical Data • Control: electronic, touch • Dust filter and grease filter • Thermal core probe holder List of Components of the Appliance Fig. 1 1. Power cord 2. Hob 3. Control panel 4. Thermal core probe with line 5. Feet (4 pcs) 6. -
Page 14: Installation And Operation
Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. -
Page 15: Operation
Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •... - Page 16 To obtain better results, use only pans/pots with a diameter of 12–26 cm. Example: Induction cooker cookware, Bartscher 9-piece set of cookware Chrome-nickel steel, anti-drip edges, non-heating handles 4 pots with lids 2.0 litre, 16 cm diameter, H 10.0 cm 2.7 litre, 18 cm diameter, H 11.0 cm...
- Page 17 Installation and operation Not Suitable Cookware • Containers with bulged bottoms • Aluminium, brass, copper cookware unless they are clearly indicated as suitable for induction • Pots/pans with a diameter below 12 cm • Cookware with feet • Ceramic cookware •...
- Page 18 Installation and operation Before Use 1. Before use, clean the appliance, observing instructions in section 6 'Cleaning'. 2. Dry the appliance thoroughly. 3. Place appropriate cookware with food in the middle of the hob. Fig. 3 Settings 1. Plug the appliance into a single grounded socket. 2.
- Page 19 Installation and operation The output level setting may be changed during operation using arrow keys (7 or 8). Temperature Levels 1. Press the temperature mode key or output mode key (6) to go to the temperature mode. By default, the appliance is set to 120°C. 2.
- Page 20 Installation and operation 1. Insert the line of the connected thermal core probe into the connection provided in the rear wall of the appliance. 2. Activate the thermal core probe key (9) to operate with the thermal core probe. The thermal core probe indicator light (1) lights Fig.
-
Page 21: Cleaning
Cleaning Dust Filter and Grease Filter The induction cooker is provided with a dust filter and grease filter. It is located at the bottom of the appliance. The dust filter and grease filter is to protect the housing from dirt and grease sucked by the fan together with the air. -
Page 22: Disposal
Disposal The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. Error Code Cause Solution No cookware on the hob Use only suitable cookware or inappropriate cookware Appliance is getting too Clear ventilation openings;...
