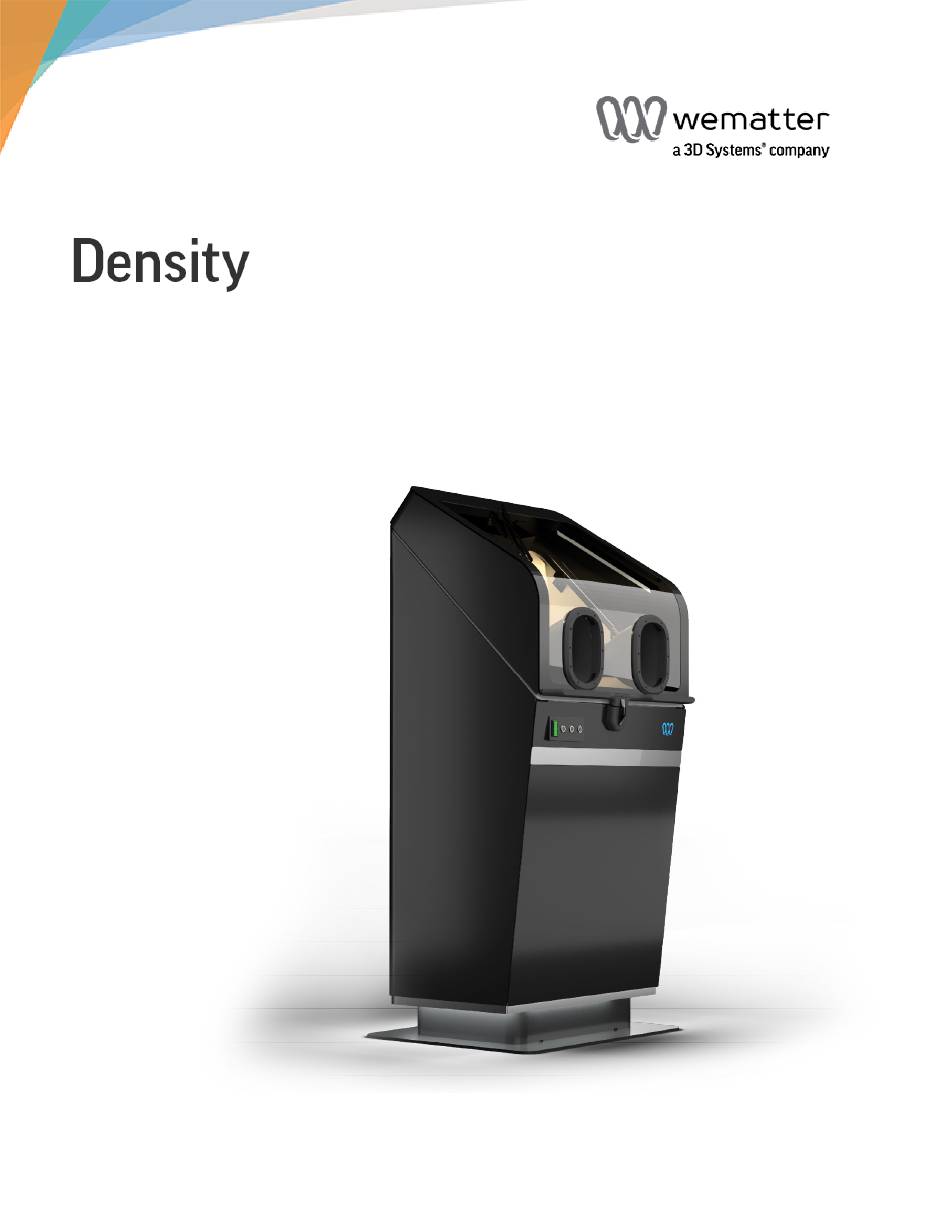

- Page 1 User Guide Release Date: 7/19/2023 Original Instructions...
-
Page 2: Table Of Contents
5.5 Refilling Water ....................................10 5.6 Emptying Water ................................... 10 MAINTENANCE ..........................11 6.1 Drain the Air Tank from Condensed Water ..........................11 SERVICE AND SUPPORT ........................12 DENSITY EC DECLARATION OF CONFORMITY ................13 3D Systems, Inc. p/n 74-D002, Rev. A... -
Page 3: Introduction
3D Systems may (but shall not be obligated to) make improvements to this document from time to time. However, the Licensed User acknowledges that at any time after the expiration of the date of issuance, 3D Systems may institute a periodic charge or fee payable by the Licensed User in return for ongoing receipt of improvements. -
Page 4: Important Safety Instructions
Density system. Safety Symbols and Definitions The following are safety symbols that are common to 3D Systems guides. Some or all of these symbols may appear in this guide and/or in other Density documentation. CAUTION: Indicates the possibility of loss of data or damage to equipment. -
Page 5: Intended Use
Do not carry out any disassembly or tampering with the machine that is not described in the manual In case of any machine breakdown contact 3D Systems for service and maintenance. Only use it as described in this manual and contact 3D Systems immediately if there are any problems. 2.2 Installation and Service Restrictions... -
Page 6: Overview
The Density should be connected to a separate fuse from the Gravity. Sound Emission Does not exceed 85 dB(A) Machine Control Buttons at the front. Handles in the blasting chamber. Ventilation Well ventilated with free-flowing air. 3D Systems, Inc. p/n 74-D002, Rev. A... -
Page 7: Model Deviations
The Density included in the Essential system version does not come with the Compressed air with an integrated supply feature. The Essential version therefore has two instead of three buttons on the front machine control panel. 3D Systems, Inc. p/n 74-D002, Rev. A... -
Page 8: Preparation And Setup
When the indicator is fully green the machine is full, please do not overfill as it will reduce the machine's capacity. The indicator behavior is not linear so be careful when filling with water as the level indication can change quickly. 3D Systems, Inc. p/n 74-D002, Rev. A... -
Page 9: Filter
Open the grid in the blasting chamber and make sure there is a filter in place. The grid is opened by pulling the handle. Figure 2: There must be a filter in place before the machine is used. 3D Systems, Inc. p/n 74-D002, Rev. A... -
Page 10: Machine Use
7. When done, wait for the compressor to turn off automatically and then turn the machine off by pressing the left button on the machine's front. 3D Systems, Inc. p/n 74-D002, Rev. A... -
Page 11: Removing 3D Prints
5. Screw the filter holder in place and make sure it presses firmly against the filter. If not, dirty water will get into the machine's internal water systems and damage the machine. Figure 5: The filter is located below the grid in the blasting chamber. 3D Systems, Inc. p/n 74-D002, Rev. A... -
Page 12: Refilling Water
When the system is empty, close the valve and remove the hose. Figure 7: Drain valve at the bottom front right corner. 3D Systems, Inc. p/n 74-D002, Rev. A... -
Page 13: Maintenance
4. Let the water run out onto the paper and then close the valve again. CAUTION: Always be certain that the system is depressurized before opening the valve. Figure 8: Drain valve at the bottom back left corner 3D Systems, Inc. p/n 74-D002, Rev. A... -
Page 14: Service And Support
How to Reach 3D Systems You can learn more about 3D Systems’ warranty, service, updates, and other support by visiting our customer support site at https://support.3dsystems.com. You may also directly contact 3D Systems using the numbers or email addresses below:... -
Page 15: Density Ec Declaration Of Conformity
DENSITY EC DECLARATION OF CONFORMITY by 3D Systems, Inc. All rights reserved. Specifications © 3D Systems, Inc. subject to change without notice. 3D Systems, and the 3D 333 Three D Systems logo, are registered trademarks of 3D Systems, Inc. Systems Circle |... - Page 16 3D Systems, Inc. 333 Three D Systems Circle Rock Hill, SC 29730 www.3dsystems.com Register Statement 2023 by 3D Systems, Inc. All rights reserved. Specifications subject to © change without notice. 3D Systems and the 3D Systems logo are registered trademarks of 3D Systems, Inc.
