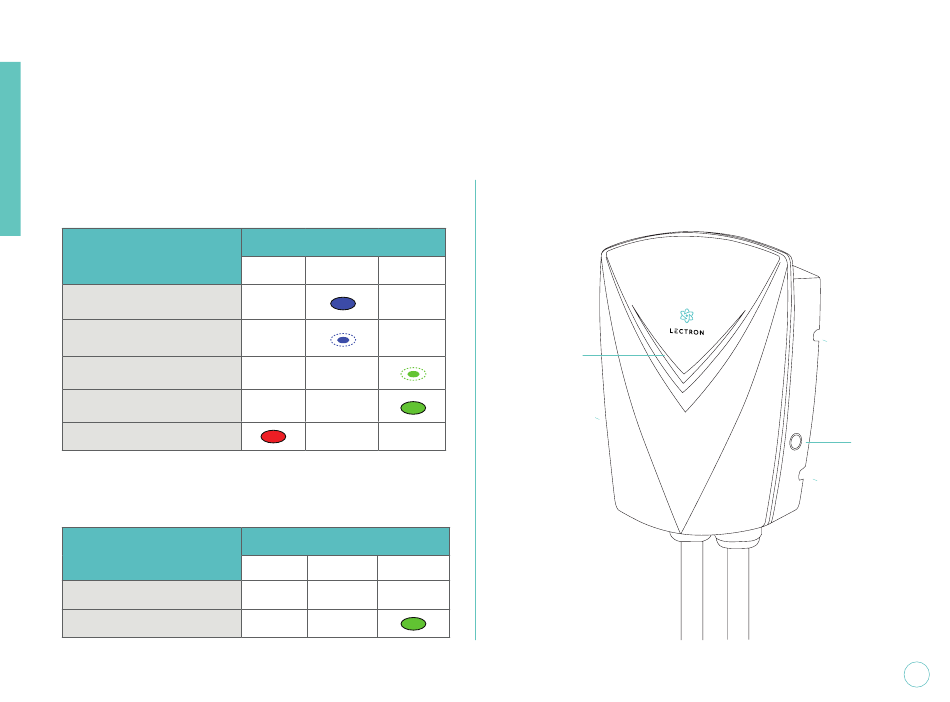

L E D S T A T U S I N D I C A T O R S
Status indications are displayed on the V-shaped LED of the V-BOX Pro Charging Station. The Power Button LED on the
right-hand side of the unit indicates if the charging station is switched on.
F U N C T I O N & S T A T U S I N D I C A T I O N
( V - S H A P E D L E D )
F U N C T I O N
S T A T U S
No connection to EV
Connected to EV,
communication in progress
Charging in progress
Charging complete
Error/Warning
P O W E R B U T T O N
( R I G H T S I D E O F S T A T I O N )
B U T T O N P O S I T I O N
OFF
ON
L E D C O L O R
(Red) (Blue) (Green)
L E D C O L O R
(Red) (Blue) (Green)
V - B O X P R O D I A G R A M
V-shaped
LED
Power
button
5
