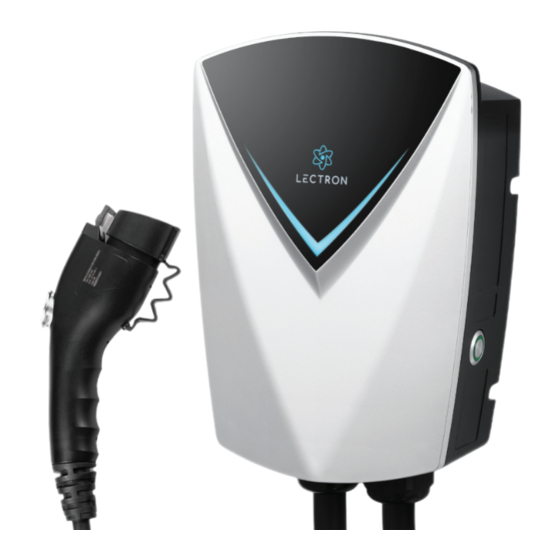

Lectron V-BOX PRO 48A User Manual

Ev charging station (wifi version)
Hide thumbs Also See for V-BOX PRO 48A:

Advertisement

Quick Links

Download this manual

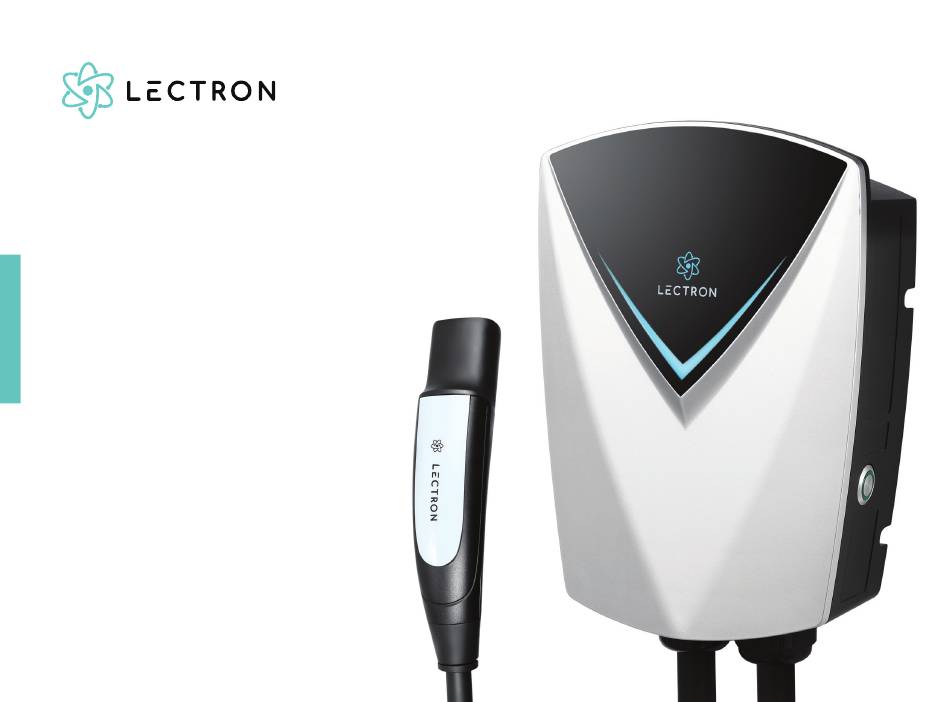

V - B O X P R O 4 8 A
EV Charging Station
(WiFi Version)
U S E R M A N U A L

Advertisement

loading
Need help?

Need help?

Do you have a question about the V-BOX PRO 48A and is the answer not in the manual?

Questions and answers

Related Manuals for Lectron V-BOX PRO 48A

Summary of Contents for Lectron V-BOX PRO 48A

  • Page 1 V - B O X P R O 4 8 A EV Charging Station (WiFi Version) U S E R M A N U A L...
  • Page 2 LED Status Indicators ..............................Installation ..................................Adjusting Charging Current ..........................Hardwiring the V-BOX Pro ............................. Accessing Bluetooth ..............................Accessing the Lectron App ........................... Charging Your Vehicle .............................. Disconnecting Your Vehicle ........................... Resetting and Unbinding the Charger ......................Specifications.................................. Get More Support ................................
  • Page 3 Charging handle Tesla | NACS C O M P A T I B I L I T Y Tesla NACS mount NEMA 14-50 Tesla | NACS (240 V) Connector...
  • Page 4 Do not use this product if the flexible power cord or assistance, please contact customer support at EV cable is frayed, has broken insulation, or shows contact@ev-lectron.com. any other signs of damage. Do not use this product if the enclosure or the EV connector is broken, cracked, open, or shows any other indication of damage.
  • Page 5 L E D S T A T U S I N D I C A T O R S Status indications are displayed on the V-shaped LED of the V-BOX Pro Charging Station. The Power Button LED on the right-hand side of the unit indicates if the charging station is switched on. F U N C T I O N &...
  • Page 6 E R R O R I N D I C A T I O N ( V - S H A P E D L E D ) F A U LT S T A T U S R E D L E D Control pilot fault 1 flash followed by 2 seconds off, repeating Input UVP (Under Voltage Protection)
  • Page 7 I N S T A L L A T I O N 1. Use the drilling reference paper to mark the wall for 3. Insert wall anchors, align the mounting plate, and the mounting plate’s location. attach it firmly. 2. Drill holes at the marked positions using the correct drill and bit size.
  • Page 8 5. Align V-BOX Pro slots with mounting plate tabs 7. Connect the power cable to a NEMA 14-50 outlet. and attach. Please note, the unit must be hardwired for 48A; do not use the plug. 6. Reinsert V-BOX Pro screws, conceal with screw caps.
  • Page 9 To adjust the charging current (Amps) on the V-BOX Pro using the Lectron App: 1. Ensure that the charger is powered on. Charging current can only be adjusted through the Lectron App when the device is active. 2. Download the Lectron App for detailed control of your V-BOX Pro (refer to page 12: “Accessing the Lectron App”...
  • Page 10 H A R D W I R I N G T H E V - B O X P R O Prior to any hardwire installation, deactivate the circuit breaker associated with the relevant electrical circuit. The hardwiring process should be conducted by an electrician with the necessary qualifications. NOTE: Grounding Instructions This product must be connected to a grounded, metal, permanent wiring system.
  • Page 11 A C C E S S I N G B L U E T O O T H 1. Enable Bluetooth Permissions 2. Additional Steps for Android Ensure that Bluetooth permissions are enabled on your If you are using an Android device, please also enable Apple or Android device by following these steps: “Nearby Devices”...
  • Page 12 A C C E S S I N G T H E L E C T R O N A P P 1. Scan the QR code to download the Lectron App. Sign up with your email, Google, or Apple account.
  • Page 13 6. Once connected, the V-BOX Pro 7. You can now manage your V-BOX and password. will be added to your account. Pro charger using the Lectron App. 8. Scan the QR code to maximize your 9. Add Device Video Guide experience with the V-BOX Pro.
  • Page 14 1. Please first click the power button on the right side of the charger to turn on the charger. The power button will now show a green light. 3. The default is plug and charge mode. You can also adjust other charging modes on the Lectron APP to start charging.
  • Page 15 C H A R G I N G D I S C O N N E C T I N G Y O U R V E H I C L E YO U R V E H I C L E 4.
  • Page 16 R E S E T T I N G A N D U N B I N D I N G T H E C H A R G E R If you can’t find the charger when adding a device through the Lectron App, you can reset and unbind the charger using the following steps: 1.
  • Page 17 R E S E T T I N G A N D U N B I N D I N G T H E C H A R G E R 5. Open the Lectron App, go to My Chargers > Add 4.
  • Page 18 S P E C I F I C A T I O N S Maximum current: 48 A Current settings: 16 A, 32 A, 40 A(default setting: NEMA plug), 48 A(Hardwired) Input / output: 208 - 240 V AC Frequency: 50 / 60 Hz Cable length: 16 ft...
  • Page 19 G E T M O R E S U P P O R T Need assistance? Scan the QR code below or email us at contact@ev-lectron.com www.ev-lectron.com Made in China...
