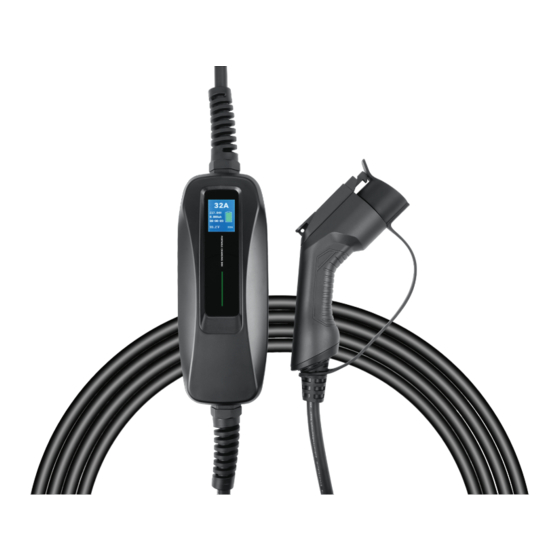

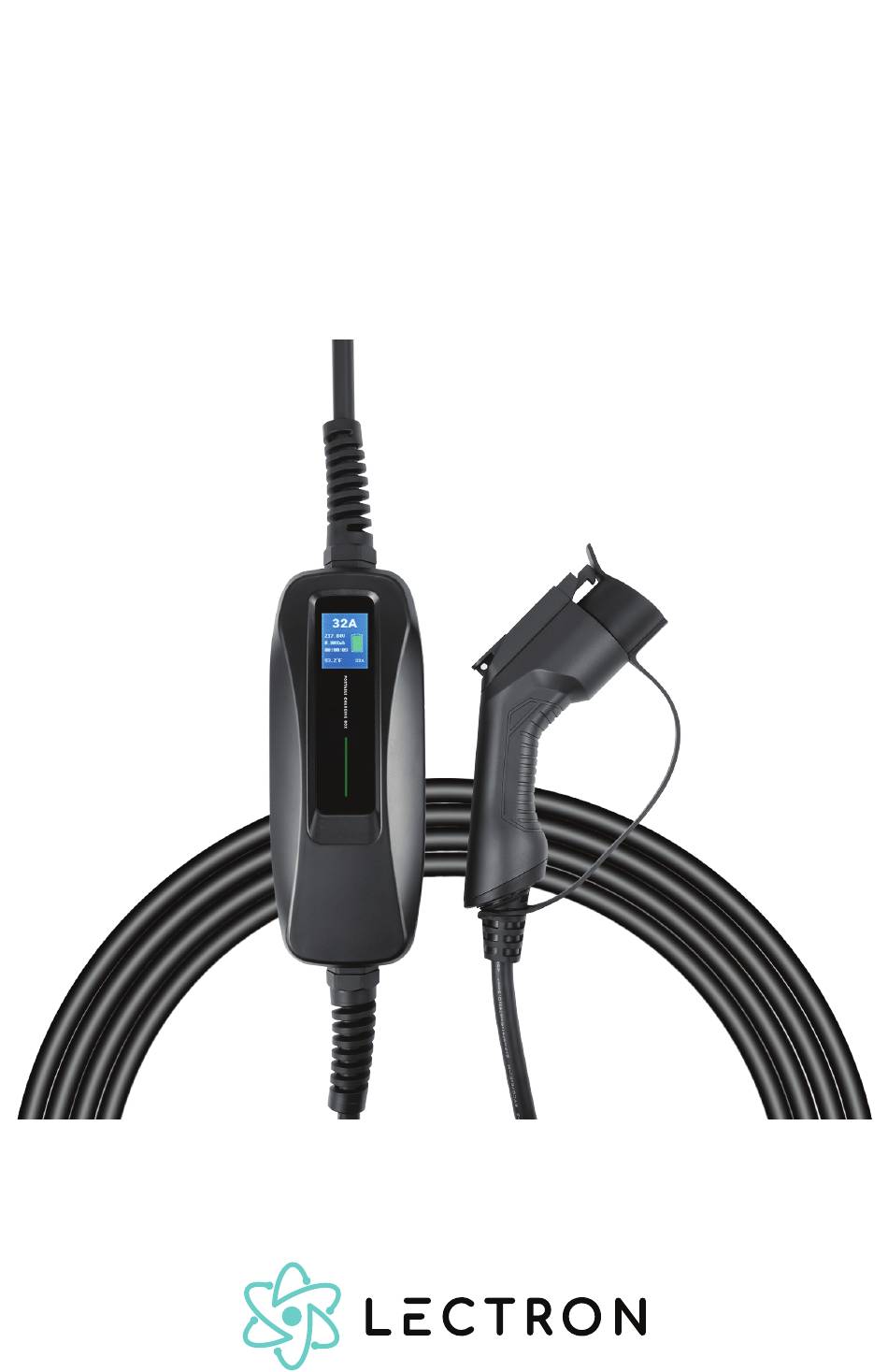

Lectron 32A Level 2 EV Charger User Manual

Lectron 32A Level 2

EV Charger

USER MANUAL

Table of Contents

Need help?

Do you have a question about the 32A Level 2 EV Charger and is the answer not in the manual?

Page 1 Lectron 32A Level 2 EV Charger USER MANUAL...
Page 2 3. Do NOT DROP the charger or handle. 4. If the output plug separates from the charger module or the handle. Do not attempt to repair the cable on your own. Contact the customer support: contact@ev-lectron.com - for assistance. Page 1...
Page 3 5. When using your charger, basic precautions should always be followed, including the following: • Read warnings on the charger cord label before operating the charger for the ﬁrst time. Read all instructions in this guide before using this charger. •...
Page 4 How to Use Note: Ensure the car is parked and the engine is turned off. 1. Plug into the socket. 2. Press the button to switch on the charging current. 217.84V 0.00KWH 00:00:09 36℃ Page 3...
Page 5 3. Plug the handle into your EV. 4. Charging begins automatically. While charging, the LED indicator will blink continuously. Verify the charging status by checking your vehicle dashboard. Page 4...
Page 6 5. When the vehicle is fully charged, the LED indicator light will stay solid. Fully Charged + 0 km 6/6 A 210 V 6. Disconnect the handle when the charging is complete by pressing the release button on the handle and removing it from the vehicle. Page 5...
Page 7 NEMA 14-50 EV connector: SAE-J1772 Dimensions: 16.5 X 13 X 5 in Weight: 9.9 lb Operating temperature: -22°F to 122°F Get More Support Scan the QR code below or email us at contact@ev-lectron.com. For more information, visit: www.ev-lectron.com Made in China...
