Summary of Contents for Lectron Level 1 EV Charger for J1772
- Page 1 Level 1 / Level 2 EV Charger for J1772 USER MANUAL...

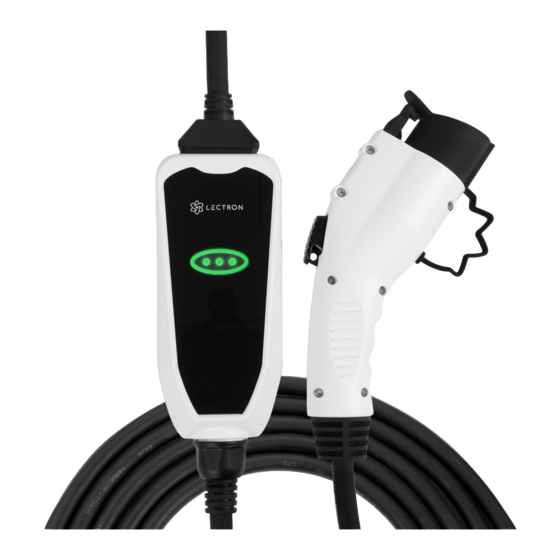

- Page 2 In the Box Mobile connector Charging handle 5-15 plug 14-50 plug Warnings • It is recommended that electrical outlets for your mobile connector be installed by a licensed and qualified electrician. To avoid serious injury or death, installation must comply with the provisions of the National Electric Code (NEC) and all local codes. In cases of any conflict between the local codes and the NEC, local codes shall take precedence.
-
Page 3: Safety Information
Safety Information When using your charger, always follow basic precautions including the following: • Read warnings on the back of the mobile connector and all instructions in this manual before operating. • Never use the mobile connector with a power strip. •... -
Page 4: Charging Your Vehicle
Charging Your Vehicle Ensure that the car is parked and the engine is turned OFF. 1. Insert the plug into a powered wall outlet. 2. Once powered on, the mobile connector display will show 3 LED lights and a blinking ring, indicating that it is ready to charge your EV. - Page 5 3. Plug the handle into your vehicle’s charging port. 4. Charging begins automatically. The 3 LEDs will start blinking and the LED ring will light up. Always double check your EV dashboard to make sure it is being charged. Continuous LED ring Blinking LED lights Note: Find all charging statuses on the back of the mobile connector.
- Page 6 5. When the vehicle is fully charged, the 3 LEDs will blink and the outer ring will stay solid. Double check your EV dashboard to make sure it is fully charged. Fully Charged Continuous LED ring + 0 km 6/6 A 210 V Slow blinking LED lights 6.
-
Page 7: Troubleshooting
Carefully unplug from the wall outlet and allow 1. Temperature is too high. The it to cool. mobile connector will restart charging b. If the problem persists, contact Lectron when it cools down. customer support at contact@ev-lectron.com for assistance. - Page 8 Charging Status Table All of the charging statuses can be found on the back of the mobile connector. * Mobile connector display * Mobile connector (front) Outer LED ring LED lights (L1, L2, L3) Charging status table* * Mobile connector (back) Green Green Green...
- Page 9 Weight: 4.5 kg Operating Temp: -22 °F to +122 °F (-30 °C to +50 °C) Get More Support Scan the QR code to contact us or send us an email at contact@ev-lectron.com. For more information, visit: www.ev-lectron.com Made in China...
