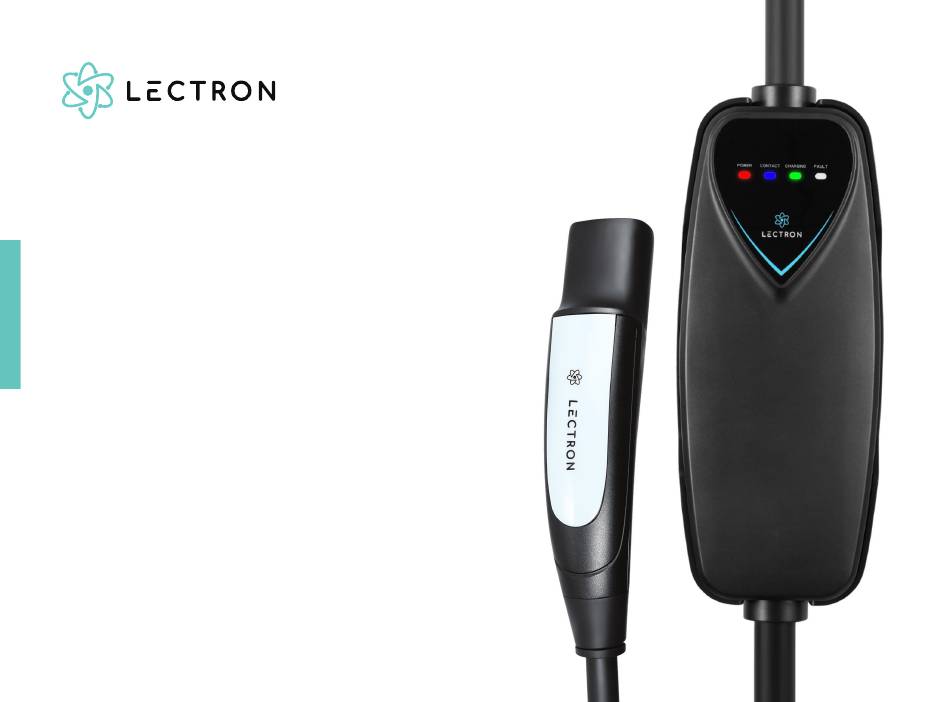

- Page 1 4 0 A M P C H A R G E R C O M P A T I B L E W I T H T E S L A Portable EV Charger U S E R M A N U A L...
-
Page 2: Table Of Contents
C O N T E N T S What’s Included ................................Safety Instructions ............................... LED Status Indicators ..............................Installation Guide ................................. Charging Your Vehicle .............................. Troubleshooting ................................Specifications .................................. Get More Support ................................ -
Page 3: Mounting Plate
40 Amp Portable EV Charger Compatible with Tesla Charging Mounting plate 40 Amp handle portable EV charger Tesla | NACS Screw + anchor set (for mounting plate) C O M P A T A B I L I T Y NEMA 14-50 Tesla | NACS (240 V) -
Page 4: Safety Instructions
If there are conflicts between local codes THE CABLE YOURSELF. For assistance, contact Customer and the NEC, local codes shall take precedence. Service at: contact@ev-lectron.com • This product must be grounded. In case of a malfunction • When using your charger, basic precautions should always... -
Page 5: Led Status Indicators
L E D S T A T U S I N D I C A T O R S Status indications are displayed on the V-shaped LED of the V-BOX Pro Charging Station. The Power Button LED on the right-hand side of the unit indicates if the charging station is switched on. F U N C T I O N &... -
Page 6: Installation Guide
I N S T A L L A T I O N G U I D E 1. Using the provided mounting plate to guide your 3. Clip the charger to the mounting plate. installation, drill four holes in a stable and secure wall or stud. -
Page 7: Charging Your Vehicle
C H A R G I N G Y O U R V E H I C L E Important: Prior to charging, ensure your vehicle is parked 3. Plug the charging handle into your vehicle’s charging and turned off. outlet until it clicks. - Page 8 5. When your vehicle is fully charged, the Charging Indicator light will stay solid. Your vehicle has a “dashboard gauge”, which also shows if your vehicle is fully charged. Refer to your vehicle user manual to find the location of the gauge on the dashboard. PowerC onne ct Charging ERROR...
-
Page 9: Troubleshooting
1.Inspect the charger module for overheating: a. Carefully unplug the charger module from the wall outlet and allow it to cool. Above the temperature limit. b. If the problem continues, contact Lectron Customer Support at contact@ev-lectron.com for assistance. Cases: 1. Temperature is too high. The charger will restart charging when it cools down. -
Page 10: Specifications
S P E C I F I C A T I O N S Maximum current: 40 A Input / output: 208 - 240 V AC Frequency: 50 / 60 Hz Cable length: 16 ft Plug: NEMA 14-50 EV connector: North American Charging Standard (NACS) | Tesla Dimensions: 11 x 4 x 2.3 in (280 x 104 x 59 mm) -
Page 11: Get More Support
G E T M O R E S U P P O R T Need assistance? Scan the QR code below or email us at contact@ev-lectron.com www.ev-lectron.com Made in China...
