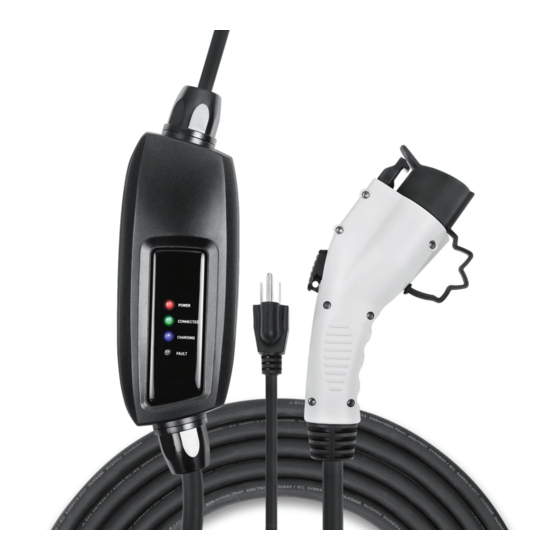

- Page 1 Portable Level 1 Charger 16A User Manual...
- Page 2 In the Box 1 x portable Level 1 charger 16A Warning • It is recommended that electrical outlets for your mobile connector be installed by a licensed and qualified electrician. To avoid serious injury or death, installation must comply with the provisions of the National Electric Code (NEC) and all local codes.
-
Page 3: Safety Information
Safety Information When using your charger, always follow basic precautions including the following: • Read warnings on the back of the mobile connector and all instructions in this manual before operating. • Never use the mobile connector with a power strip. •... -
Page 4: Charging Your Vehicle
Charging Your Vehicle Note: Ensure that the car is parked and the engine is turned OFF. 1. Insert the charger into an appropriate wall outlet. 2. The power light will turn solid orange and the connected light will turn solid green, indicating that your charger is receiving power and is ready to be used. - Page 5 3. Plug the handle into your vehicle's charging port so it clicks firmly into place. 4. Charging begins automatically. The charging light will blink blue continuously. POWER CONNECTED CHARGING FAULT Page 4...
- Page 6 5. When your vehicle is fully charged, the charging light will stay solid blue. You can also verify the charging status by checking your vehicle's dashboard. Fully charged POWER CONNECTED CHARGING + 0 km 6/6 A 210 V FAULT 6. When charging is complete, press the button on the handle and pull it out of the charging port.
-
Page 7: Troubleshooting
Carefully unplug the charger module from 1. Temperature is too high. The the wall outlet and allow to cool. charger will restart charging when it b. If the condition persists, contact Lectron cools down. Customer Support at contact@ev-lectron.com for assistance. -
Page 8: Specifications
9.5 x 3.5 x 2.4 in Weight: 4.6 lb Operating temp: -22 °F to +122 °F Get More Support Scan the QR code to contact us or send us an email at contact@ev-lectron.com. For more information, visit: www.ev-lectron.com Made in China...
