MP -120
MONO AMPLIFIER
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading

Related Manuals for FONESTAR MPA-120

Summary of Contents for FONESTAR MPA-120

  • Page 1 MP -120 MONO AMPLIFIER INSTRUCTION MANUAL...
  • Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.

  • Page 3: Exemption Of Liability

    The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.

  • Page 4: Controls And Functions Front Panel

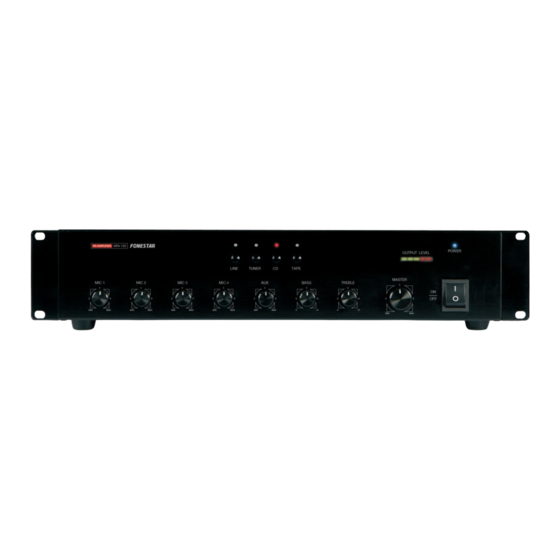

    DESCRIPTION Mono amplifier with phantom power supply, priority and 4 aux input selector. 180 W maximum, 120 W RMS. CONTROLS AND FUNCTIONS FRONT PANEL 1.- LINE: button which allows selection of the line input as an audio source for the AUX channel. 2.- LINE: LED indicator that lights up when the selected input signal is LINE.

  • Page 5: Rear Panel

    REAR PANEL 1.- CHIME: allows selection between 2 and 4 chime tones. 2.- MIC PRIORITY: micro-selectors that allow you to individually activate priority in microphones 1 to 4 over the rest of the inputs. 3.- CHIME VOLUME: chime output volume control. 4.- ON/OFF +48 V PHANTOM: switches that allow the 48 V phantom in pins 2 and 3 of the XLR connector to be activated or deactivated for each of the microphone inputs 1 to 4.
  • Page 6 CONNECTION Make the connections with the amplifier and all the components of the audio system switched off and disconnected from the power supply. Firstly, connect the audio sources through the TAPE, CD, TUNER or LINE inputs. Connect the microphones to the MIC 1 to 4 inputs, and select if you wish to apply 48 V phantom power supply (for condenser microphones) or not (dynamic microphones).

  • Page 7: Technical Specifications

    TECHNICAL SPECIFICATIONS MPA-120 CHARACTERISTICS PA amplifier. Phantom power supply. Priority paging. Chimes. 4 aux input selector. POWER 180 W maximum, 120 W RMS RESPONSE 50 -16,000 Hz ±3 dB DISTORTION Harmonic: < 0.5% at 1 kHz INPUTS 4 balanced mics., XLR 2,000 Ω 5 mV, adjustable 4 aux, 2 x RCA 10,000 Ω...

  • Page 8: Warranty

    2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.
