Summary of Contents for FONESTAR MPZ-461

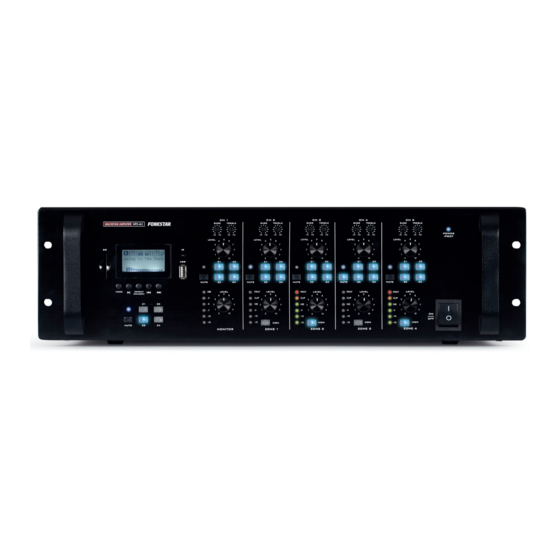

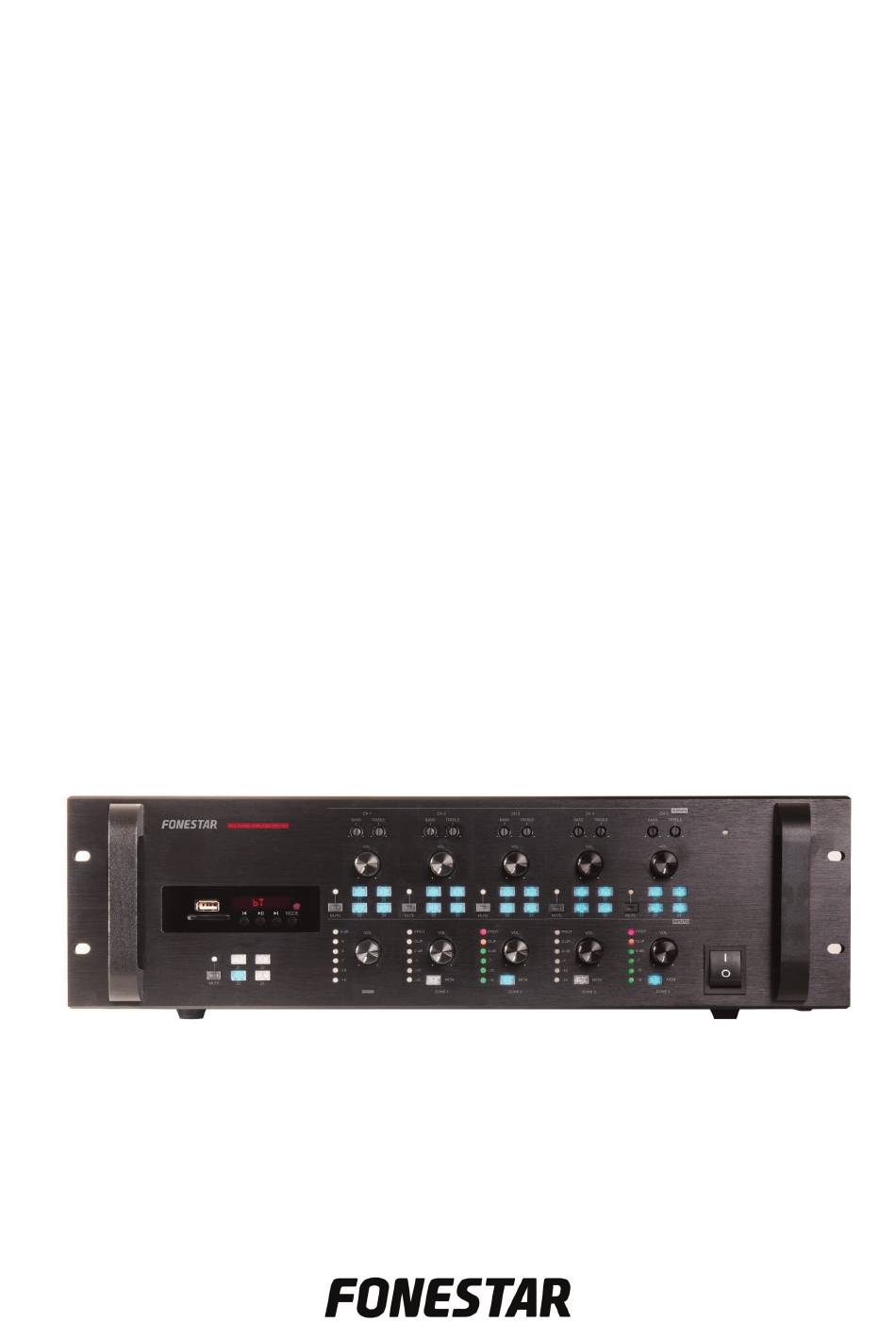

- Page 1 MPZ-461 MATRIX AMPLIFIER WITH USB/SD/MP3 PLAYER, BLUETOOTH RECEIVER AND FM TUNER INSTRUCTION MANUAL...
-
Page 2: Controls And Functions Front Panel
DESCRIPTION Amplifier with 5-input channel matrix and USB/SD/MP3 player with digital FM tuner assignable to 4 output zones with independent volume control. Possibility of remote paging using a microphone with zone selector model M-46. Suitable for multi-zone commercial installations with various music programs. CONTROLS AND FUNCTIONS FRONT PANEL 1.- MP3 Module... -
Page 3: Rear Panel
13,- Signal level indicators for the corresponding output. 14.- MON Z1-Z4: you can select which zone you want to listen to with the MONITOR output. When a zone is selected, the corresponding button is illuminated. 15.- ZONE 1-4 LEVEL: a rotating dial that regulates the output volume of each zone. 16.- ON/OFF: on/off switch. -
Page 4: Remote Control
INSTRUCTIONS FOR USE M-46 MICROPHONE CONNECTION To connect the M-46 microphone to the MPZ-461, multi-zone amplifier, use the data cable supplied with the microphone. The microphone is powered by the data and audio cable. If the distance is more than 50 meters, the microphone must be powered using the supplied power adapter because of losses in the data cable. -
Page 5: Input Priority
If the CHIME button is pressed before the TALK button, each time a warning is to be given, chimes will sound. It is necessary to press the CHIME button again to deactivate the chimes. By pressing the ALL CALL button, all zones are selected/deselected simultaneously for paging. INPUT PRIORITY The priority function automatically decreases the level of the lowest priority entries so that the message emitted by the highest priority entries can be heard clearly. - Page 6 Before connecting to other equipment, take into account all necessary conditions for HIGH IMPEDANCE (100 V line) and LOW IMPEDANCE installations. You can find more information at: fonestar.com/downloads/install_fonestar_es.pdf - If you want to record the amplifier output or connect it to other equipment, use the REC OUT output of each zone.
-
Page 7: Block Diagram
BLOCK DIAGRAM - 7 -... - Page 8 COMMUNICATION PROTOCOL RS-232 To control the equipment via the RS-232 port it is recommended that you use Windows Hyperterminal or similar applications, using a straight-through RS-232 cable for connection. The program must be configured using the following values: - Select the corresponding COM port, click on Configure and set the following values: Bits per second: 9600 Data bits: 8 Parity: none...
- Page 9 COMMAND FUNCTION COMMAND FUNCTION MP3 MODULE FF 06 81 87 FF 06 83 89 Assign MP3 Assign MP3 to ZONE 1 to ZONE 3 FF 06 01 07 FF 06 03 09 FF 06 82 88 FF 06 84 8A Assign MP3 Assign MP3 to ZONE 2...
-
Page 10: Especificaciones Técnicas
ESPECIFICACIONES TÉCNICAS MPZ-461 CHARACTERISTICS Matrix amplifier with paging microphone. USB/SD/MP3 player. Bluetooth receiver. Digital FM radio tuner. 5-input channel allocation matrix and USB/SD/MP3 player and Bluetooth receiver with FM digital tuner to 4 output zones. 4 zones with independent volume control and line output. - Page 11 - 11 -...
- Page 12 www.fonestar.com...
