Summary of Contents for FONESTAR MPZ-461
- Page 1 PZ-461 MULTIZONE AMPLIFIER WITH USB/SD/MP3 AND FM PLAYER INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Controls And Functions Front Panel

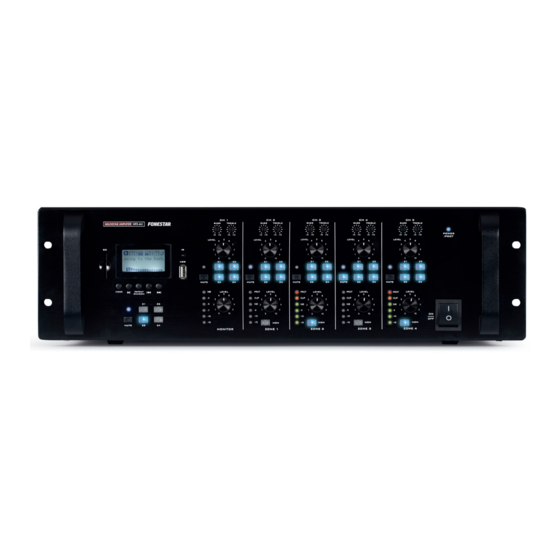

DESCRIPTION Multizone amplifier with 5-input channel matrix and USB/SD/MP3 player with digital FM tuner assignable to 4 output zones with independent volume control. Possibility to page remotely through the paging microphone mod. M-46. Suitable for commercial installations with several zones and different music programmes. CONTROLS AND FUNCTIONS FRONT PANEL USB/SD/MP3 - FM MODEL... -
Page 5: Rear Panel
18.- Z1-Z4: allows the corresponding input signal to be assigned to one or several zones. When a zone is selected, the corresponding button will light up. 19.- LED signal level indicators of the corresponding output. 20.- MON Z1-Z4: allows the zone in which the MONITOR output will be heard to be selected. When a zone is selected, the corresponding button will light up. -
Page 6: Remote Control
12.- GAIN: knobs which regulate the input signal level of CH 4 and CH 5. 13.- PHANTOM/LINE/MIC: These switches have 3 positions: LINE: in this position, line level audio sources can be connected to inputs CH 1 to CH 3, for example a preamplified desktop microphone or the line level output from a mixer. -
Page 7: Input Priority
INSTRUCTIONS FOR USE CONNECTION OF M-46 MICROPHONE In order to connect the microphone mod. M-46 with the multizone amplifier mod. MPZ-461, use the data cable supplied with the microphone. The microphone is powered through the data and audio cable. In the case of the distance being over 50 metres the microphone must be powered using the feeder supplied to avoid data loss. - Page 8 CONNECTION Make the connections with the amplifier and all the audio system components switched off and disconnected from the mains. Connect the microphones through the CH 1 to CH 3 inputs and select if you want to activate phantom power (for condenser microphones) or not (dynamic microphones).
-
Page 9: Block Diagram
BLOCK DIAGRAM - 9 -... - Page 10 COMMUNICATION PROTOCOL RS-232 In order to control the device via the RS-232 port, use of Windows HyperTerminal or a similar application is recommended. It must be configured with the following values: - Select the corresponding COM port, click on Configure and set the following values: Bits per second: 9600 Bits of data: 8 Parity: none...
- Page 11 CH 3 --> ZONE 1 CH 4 --> ZONE 1 CH 5 --> ZONE 1 ON: FF 06 89 8F ON: FF 06 95 9B ON: FF 06 99 9F OFF: FF 06 09 0F OFF: FF 06 15 1B OFF: FF 06 19 1F CH 3 -->...
-
Page 12: Technical Specifications
TECHNICAL SPECIFICATIONS MPZ-461 CHARACTERISTICS Matrix amplifier with paging microphone. USB/SD/MP3 player. Digital FM radio tuner. 5-input channel allocation matrix and USB/SD/MP3 player with FM digital tuner to 4 output zones. 4 zones with independent volume control and line output. Phantom power supply. -
Page 13: Warranty
2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it. - Page 14 - 14 -...
- Page 15 - 15 -...
- Page 16 www.fonestar.com...
