FONESTAR MPZ-6480RGU Instruction Manual

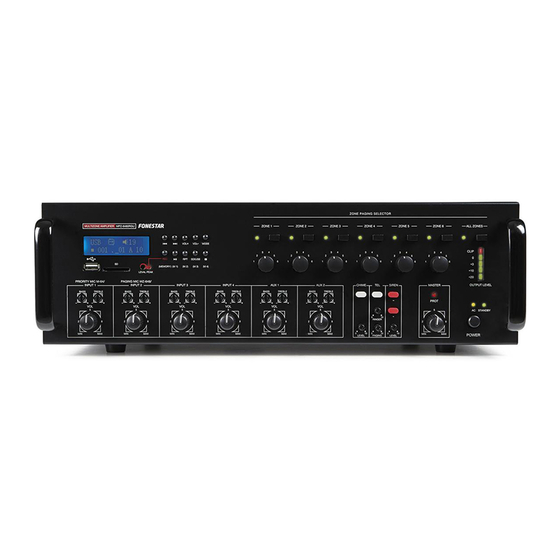

Multizone amplifier with usb/sd/mp3 player and fm radio
Hide thumbs Also See for MPZ-6480RGU:
Table of Contents

Advertisement

Quick Links

MPZ-6480R U
MULTIZONE AMPLIFIER WITH
USB/SD/MP3 PLAYER AND FM RADIO
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPZ-6480RGU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FONESTAR MPZ-6480RGU

Summary of Contents for FONESTAR MPZ-6480RGU

  • Page 1 MPZ-6480R U MULTIZONE AMPLIFIER WITH USB/SD/MP3 PLAYER AND FM RADIO INSTRUCTION MANUAL...
  • Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.

  • Page 3: Exemption Of Liability

    The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.

  • Page 4: Controls And Functions

    DESCRIPTION Zone amplifier with 6 output zones with independent volume control, pre-recorded message playback and USB/SD/MP3 player/recorder with digital FM tuner. Possibility of paging and pre-recorded message playback in zones through microphone with zone selector MZ-648. Operates in single or dual mode: in single mode, when paging in one or several zones music playback will be interrupted in the rest of the zones;...

  • Page 5: Front Panel

    12.- USB-SD (M3): in MP3 (USB/SD) playback mode it allows changing between the USB and SD audio source. In radio mode, a short press allows the station stored in position M3 to be selected. A long press stores the current station in the position M3 and then displays the list of stored stations. 13.- 3 (M4): stops the current playback.

  • Page 6: Rear Panel

    REAR PANEL 1.- PAGING AMP 100 V INPUT: 100 V signal input coming from an optional paging amplifier. This amplifier is used to be able to maintain the background music in the zones in which the microphone announcement is not going to be made. The power of this amplifier must be at least the same as that of the total load of the connected loudspeakers.
  • Page 7 MIC position, given that the voltage present in pins 2 and 3 of the XLR connector may cause damage in the microphones. If in doubt, contact your supplier or FONESTAR technical service. 12- GAIN: Controls that regulate the input signal level in INPUT 1-4.

  • Page 8: Microphone Connection

    INSTRUCTIONS FOR USE M-64 MICROPHONE CONNECTION Connect the M-64 microphone OUTPUT to the PRIORITY MIC M-64 INPUT 1 of the MPZ-6480RGU amplifier using the data cables provided. Activate the microphone capsule power supply by pressing the PHANTOM 24 V button in INPUT 1, located on the rear panel of the MPZ-6480RGU amplifier.
  • Page 9 MZ-648 MICROPHONE CONNECTION Connect the MZ-648 microphone output to the PAGING MIC MZ-648 INPUT 2 of the MPZ-6480RGU amplifier using the data cable provided. The microphone requires 15 V DC power supply provided by the mains adapter supplied. It is possible to connect up to 3 MZ-648 microphones to the system. These microphone are connected in cascade between the LINK output of the first microphone and the OUTPUT of the next.
  • Page 10 Pressing the ALL CALL button selects all the zones simultaneously to play the message. MZ-648 MICROPHONE MESSAGE RECORDING AND MODIFICATION 6 messages can be recorded in the internal memory of the MPZ-6480RGU amplifier which will be played via the MZ-648 microphone.
  • Page 11 The M-64 microphone and the MPZ-6480RGU amplifier CHIME can be changed, given that it is the same audio file. To do so, place the MSG/CHI/PROG selector on the rear panel of the MPZ-6480RGU in the CHI position and connect the amplifier to your computer using a USB cable.
  • Page 12 The system has 4 priority levels (1 maximum priority, 4 minimum priority) for any of the inputs, that can be adjusted from the MP3 on the front panel of the MPZ-6480RGU amplifier. The inputs with the same level of priority will be played simultaneously.
  • Page 13 To do so, the MPZ-6480RGU amplifier’s PAGING OUTPUT must be connected to the external amplifier’s input, to then connect the external amplifier’s 100 V line output to the MPZ-6480RGU amplifier’s PAGING AMP 100 V INPUT.

  • Page 14: Block Diagram

    BLOCK DIAGRAM - 14 -...

  • Page 15: Technical Specifications

    TECHNICAL SPECIFICATIONS MPZ-6480RGU CHARACTERISTICS PA amplifier. 6 zones with independent volume control. Playback of up to 6 prerecorded messages. USB/SD/MP3 recorder/player. Digital FM radio tuner. Internal memory to store messages and chimes Phantom power supply. Priority paging. Connection of up to 3 paging microphones MZ-648 and 3 microphones with priority M-64.

  • Page 16: Warranty

    This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los...
