- Page 1 M -680RGUZ PA AMPLIFIER WITH USB/SD/MP3 RECORDER/PLAYER,DIGITAL FM TUNER AND ZONE SELECTOR INSTRUCTIONS MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Controls And Functions Front Panel

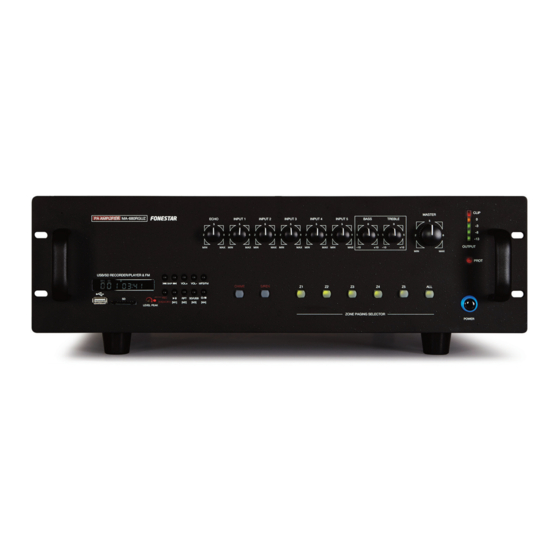

DESCRIPTION - PA amplifier with USB/SD/MP3 player/recorder, digital FM radio tuner and zone selector. 720 W maximum, 680 W RMS. - Specially suitable for commercial installations with background music and distributed audio. CONTROLS AND FUNCTIONS FRONT PANEL ECHO: control to adjust the number of echo effect repetitions. It affects the inputs INPUT 1-5 and the USB/SD/FM/MP3 module. - Page 5 VOL+/VOL-: USB/SD/MP3 player volume control and digital FM tuner. MP3/FM: pressing this button changes alternatively between the two available audio sources (USB/SD/MP3 player or FM radio). USB storage device connection port. SD memory card reader. REC (MEMORY): button which allows a recording of the inputs AUX 1-2 and INPUT 1-4. Follow the steps decribed below to carry out this recording: - Connect a USB storage device or an SD memory card.
-
Page 6: Rear Panel
REAR PANEL Z1-Z2-Z3-Z4-Z5-COM: terminals to connect the loudspeaker lines in zones 1 to 5. In order to activate/deactivate the zones use the front buttons. With the zone selection terminals only loudspeakers with100 V line transformers must be used. The total connected power in loudspeakers must not exceed the power of the amplifier. - Page 7 15.- INPUT 5: line level inputs which use 2 x RCA connectors and euroblock terminals. Use the DIP microswitches to adjust the following parameters depending on the characteristics of the signal: The microswitch 1 (AUX 1/AUX 2) allows selection between the two input signals if both are connected. The microswitch 2 (-10 dB PAD ENABLE) allows attenuation of the input signal in 10 dB.
- Page 8 CONNECTION - Make the connections with the amplifier and all the components of the audio system switched off and disconnected from the power supply. - Firstly connect the audio sources or microphones to the required inputs. - Connect the loudspeaker to the loudspeaker output. Use the low impedance output 4-8-16 Ω or the high impedance lines output 100 or 70 V, according to the type of loudspeakers to be connected.
-
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS MA-680RGUZ CHARACTERISTICS PA amplifier. USB/SD/MP3 recorder/player. Digital FM radio tuner. 5 selectable loudspeaker zones. Phantom power supply. Priority paging. Chimes. Siren. Echo effect. POWER 720 W maximum, 680 W RMS RESPONSE 50-17,000 Hz ±3 dB DISTORTION Harmonic: < 0.5% INPUTS 4 balanced mics./lines, combo (XLR and 6.3 mm jack) and 600 Ω... - Page 10 - 10 -...
-
Page 11: Declaration Of Conformity
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre. - Page 12 www.fonestar.com...
