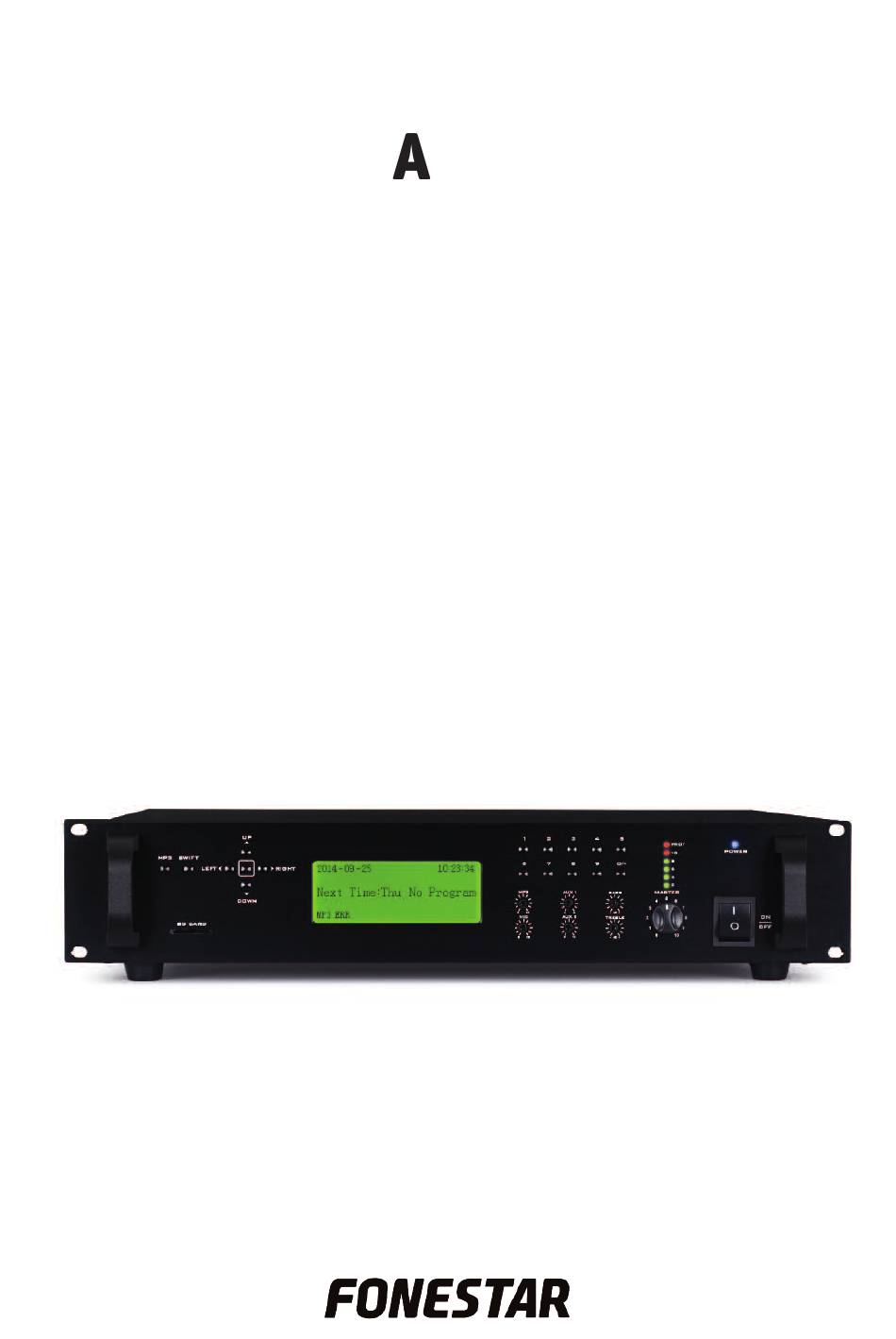

- Page 1 MP -122P MONO AMPLIFIER WITH MESSAGE PROGRAMMER INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Controls And Functions Front Panel

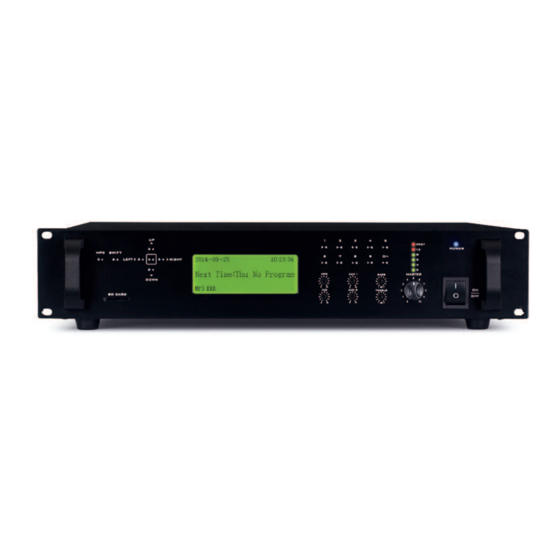

DESCRIPTION Monoamplifier with SD/MP3 programmer player. Weekly programming of MP3 file playback: bells, adverts, background music, etc. Specially recommended for schools, offices, businesses, churches, etc. CONTROLS AND FUNCTIONS FRONT PANEL 1.- MP3: button to access MP3 configuration menu. For more information, see MP3 Operating section in this manual. -
Page 5: Rear Panel
REAR PANEL 1.- AC socket: to connect the AC power supply cable. 2.- Loudspeaker output. For the connection of low impedance loudspeakers 4-16 Ω and in high impeadance lines of 100 and 70 V. Connect the line of loudspeakers between the COM terminal and the impedance or required line in V. -
Page 6: System Setting
MP3 OPERATING To access the MP3 configuration menu press the MP3 button on the front panel. The information display will show: Use the navigation buttons UP, DOWN, LEFT and RIGHT to select the type of playback among the following: 1.- PLAY ALL: plays all the audio tracks contained in the SD card and stops playback. 2.- PLAY ONE: plays one audio track and stops playback. -
Page 7: Time Setting
TIME SETTING Press the confirmation button to access the main menu. Then go to the Time Setting. Press the confirmation button again to access the Time Setting menu. Use the navigation buttons UP, DOWN, LEFT and RIGHT to configure the parameters of this menu. The year, month, day, day of the week, hour, minutes and seconds on the timer can be modified. - Page 8 Editing a program and event Select the required program number and browse through the different configuration options of each of the existing events. Go to the option you wish to edit and use the UP and DOWN navigation buttons to modify the specifications.
- Page 9 CONNECTION Make the connections with the amplifier and all the audio system components switched off and disconnected from the power supply. Connect the SD memory card to the corresponding input on the front panel. If you wish, connect the microphone to the MIC IN input. Connect the audio sources to the AUX1 IN and AUX2 IN inputs.
-
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS MPA-122P CHARACTERISTICS Weekly programmer. SD/MP3 player. PA amplifier. LCD screen. Priority paging. POWER 180 W maximum, 120 W RMS RESPONSE 50-18,000 Hz ±3 dB DISTORTION Harmonic: < 0.5 % at 1 kHz INPUTS 1 balanced mic., combo (XLR and 6.3 mm jack) 600 Ω 5 mV 2 aux, 2 x RCA 10,000 Ω... -
Page 11: Warranty
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre. - Page 12 www.fonestar.com...
