Summary of Contents for FONESTAR MXZ-2036
- Page 1 MXZ-2036 MULTIZONE MIXER/PREAMPLIFIER N Instruction Manual...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -

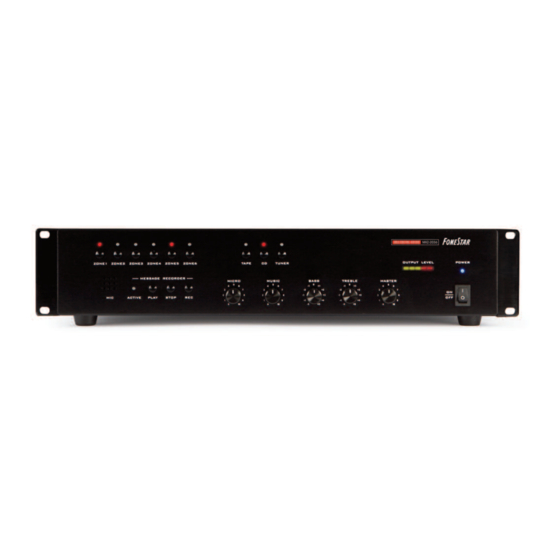

Page 4: Controls And Functions Front Panel
DESCRIPTION - 2-channel multizone mixer/preamplifier with 6 output zones. - Two operating modes: as auxiliary line switching unit with one amplifier per zone or as 100 V line switching unit with one background music amplifier and another for paging in all zones. - Message recording/playback with selectable playback mode. -
Page 5: Back Panel
BACK PANEL 1.- AC socket: for connecting the AC power supply cable. 2.- IN COM ZONE: background music line signal or background music amplifier input. 3.- RELAY ZONE CONSOL OUT: output control relays. During message sending from the remote microphone M-203, a voltage of 24 V DC is activated between the negative terminal and the active zones (1 to 6). -
Page 6: Message Playback
A control cable type Cat. 5 is used to connect the microphone model M-203. This cable is connected to the CONSOL output on the MXZ-2036 mixer and to the LINE IN input on the first M-203 microphone. In the case of needing more than one microphone, these are connected in cascade from the LINK OUT output on the first... - Page 7 CONNECTION Make the connections with the amplifier and all the system components switched off and disconnected from the power supply. The system can operate as an auxiliary line switching unit, which would require one amplifier per zone, or as a 100 V line switching unit, with one amplifier for background music and another for paging. Once the connections have been made according to your needs, connect the system to the mains and switch it on.
- Page 8 EXAMPLE OF CONNECTION AS AN AUXILIARY LINE SWITCHING UNIT In this setup an amplifier is needed for each zone. The power of each amplifier must be equal to the power of the speakers installed in each zone respectively. - 8 -...
-
Page 9: Block Diagram
BLOCK DIAGRAM - 9 -... -
Page 10: Specifications
SPECIFICATIONS MXZ-2036 CHARACTERISTICS Multizone mixer/preamplifier. 6 selectable output zones. Recorder/player for 3 pre-recorded messages. Remote paging and pre-recorded messages through the optional M-203 microphone. Phantom, chimes and priority. INPUTS 1 balanced mic., XLR 600 Ω 2.5 mV 1 mic. with zone selector, RJ-45 500 mV 1 CD, 2 x RCA 47 000 Ω... -
Page 11: Declaration Of Conformity
If any service is needed during the warranty period because of lack of conformity, please contact the business or distributor where the product was purchased in no more than 2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.
