- Page 1 X-824 12-CHANNEL MIXER/PREAMPLIFIER INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
- Page 3 The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.

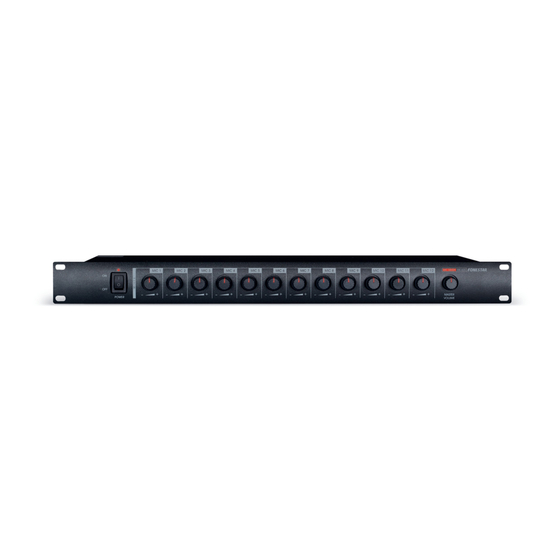

- Page 4 DESCRIPTION The model MX-824 is a 12-channel mixer for microphones with independent volume control and 48 V phantom power supply. It allows the number of microphones in a PA system to be easily increased. It is especially suitable for conference systems, PA installations and audio on commercial premises.
- Page 5 CONNECTION DIAGRAM Up to 12 microphones (either dynamic or condenser) can be connected. If the microphone being used needs PHANTOM power supply, activate it. The MASTER OUTPUT can be connected to a power amp or to auto-amplified loudspeakers. - 5 -...
- Page 6 TECHNICAL SPECIFICATIONS MX-824 CHARACTERISTICS Professional 12-channel mixer/preamplifier. Phantom power supply. INPUTS 12 balanced mics., XLR 600 Ω 2.5 mV OUTPUTS 1 balanced master XLR 600 Ω 7 mV and unbalanced 2 x RCA 4,700 Ω 150mV CONTROLS Input volume and master output...
- Page 7 2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it. To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out.
- Page 8 fonestar.com...
