Summary of Contents for FONESTAR MPZ-6241

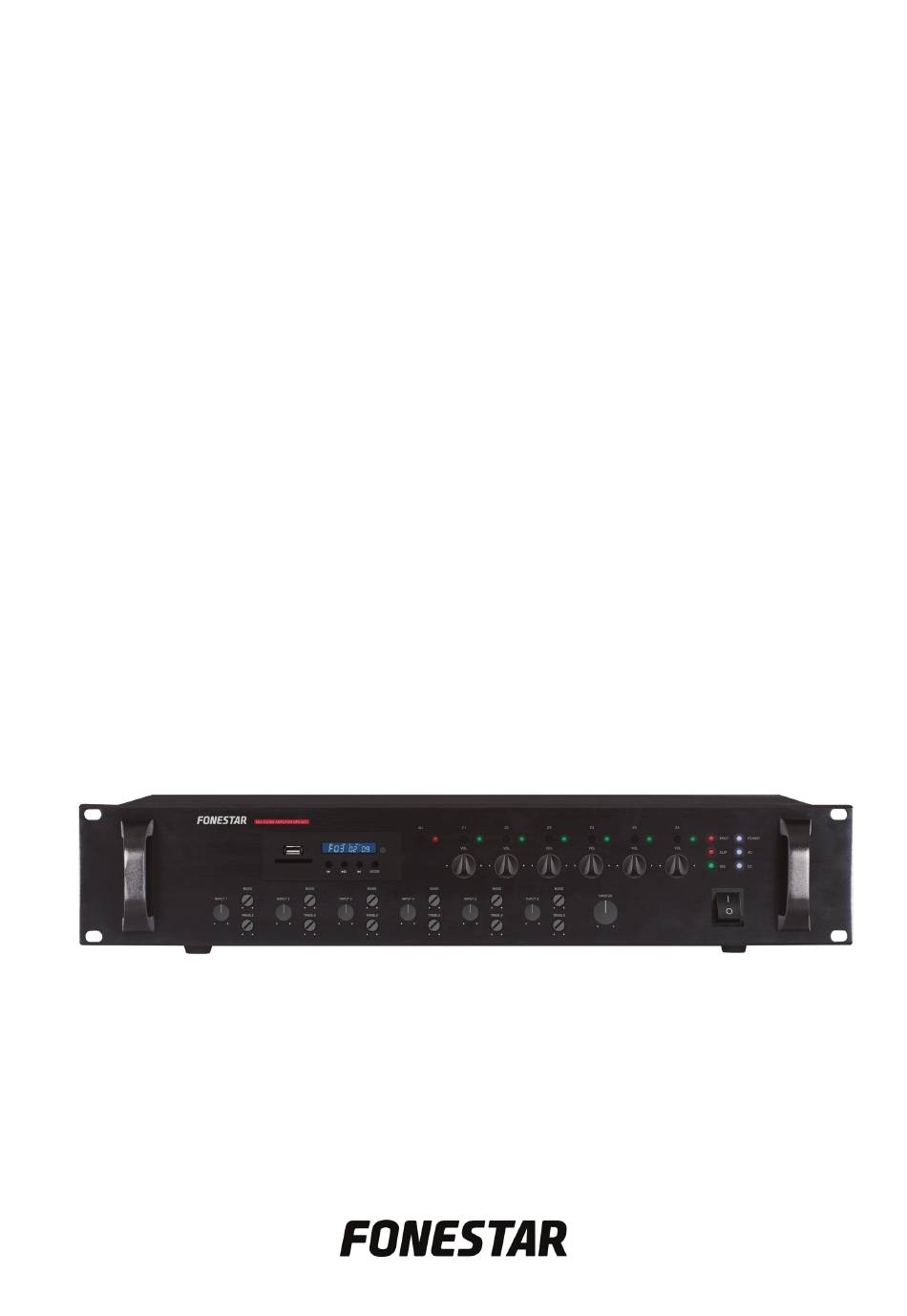

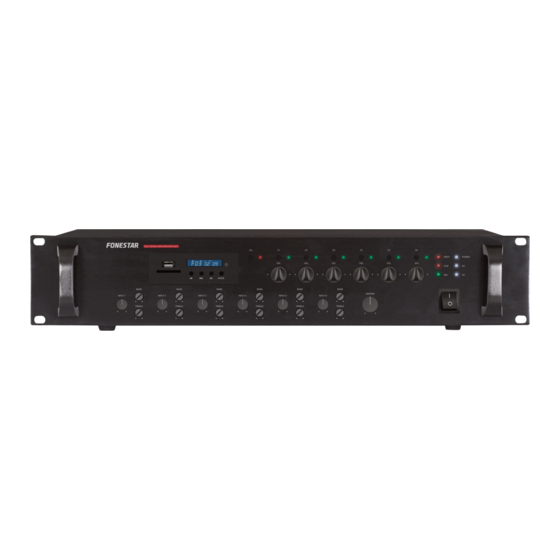

- Page 1 MPZ-6241 MULTI-ZONE AMPLIFIER WITH BT/USB/SD/MP3/FM PLAYER INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Remote Control
DESCRIPTION Zone Amplifier with 6 output zones with independent volume control, BT/USB/SD/MP3 player, and digital FM tuner. Possibility of paging and message playback in zones using microphone with zone selector M-62. Suitable for commercial installations consisting of several zones, each equipped with loudspeakers with piped music and the need to page in the various zones. -
Page 5: Front Panel
6.- EQ: equalization control. 7.- 7/8: in playback mode, a short press of these buttons allows you to skip to the previous/next song, a long press allows you to do a quick rewind/advance. In radio mode a press of these buttons allows you to skip to the previous/next preset station. -
Page 6: Rear Panel
REAR PANEL 1.- ZONES 100 V OUTPUTS: to turn zones on/off use the front switches. Only loudspeakers with a 100 V line transformer should be used with the zone selection terminals. Connect the positive terminal of each zone to the corresponding ZONE 1 to ZONE 6 terminal and the common terminal of each zone to the COM terminal. -
Page 7: Use Instructions
ID: ID: ZONE 1 equals ID 1, ZONE 2 equals ID 2, etc. The microphone identified by ID 1 will have priority to send messages over any other mics. Connect the LINK output of the M-62 microphone to the REMOTE MIC input of amplifier MPZ-6241 using the supplied data cable. Interconnect M-62 microphones using the LINK connectors.. - Page 8 To connect 100V line speakers, you must make parallel connections. The MPZ-6241 amplifier has several 100V line output zones with independent volume control.
-
Page 9: Block Diagram
BLOCK DIAGRAM - 9 -... -
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS MPZ-6241 CHARACTERISTICS Class D zone amplifier. 6 selectable loudspeaker zones with independent volume control, 50 W maximum per zone. BT/USB/SD/MP3 recorder/player. Digital FM radio tuner. Phantom power supply. Priority paging. Chimes. Connection of up to 6 paging microphones with zone selector M-62. -
Page 11: Warranty
2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no... - Page 12 - 12 -...
