- Page 1 Installation and Operating instructions for Built-in Panel PC CP67xx Version: 2.0 Date: 2009-07-07...
-
Page 3: Table Of Contents
Replacing the fluorescent lamps in the display Lamp sets Emergency procedures Shutting down Disposal Troubleshooting Fault correction Beckhoff Support & Service Beckhoff branches and partner companies Beckhoff Headquarters Beckhoff Support Beckhoff Service Appendix Technical data Approvals FCC: Federal Communications Commission Radio Frequency Interference... -
Page 4: General Notes
© This documentation is protected by copyright. Any reproduction or third party use of this publication, whether in whole or in part, without the written permission of Beckhoff Automation GmbH, is forbidden. Description of safety symbols The following safety symbols are used in this operating manual. They are intended to alert the reader to the associated safety instructions. -
Page 5: Basic Safety Measures
General Notes Basic safety measures Only switch the PC off after Before the Built-in Panel PC is switched off, software that is running closing the software must be properly closed. Otherwise it is possible that data on the hard disk is lost. Please read the section Switching the Built-in Panel PC on and off. -
Page 6: Operator's Obligation To Exercise Diligence
Every user must be familiar with all the functions of the software installed on the Industrial PC to which he has access. UL-Certificate of Compilance We herewith confirm that the Built-in Panel PC CP67xx of Beckhoff Automation GmbH meets the requirements of the Underwriters ®... -
Page 7: Product Description

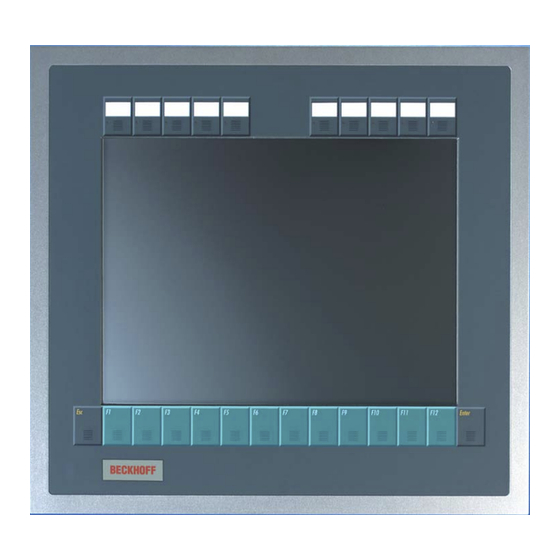

Product Description Product Description Appropriate Use The CP67xx Built-in Panel PC is designed for industrial application in machine and plant engineering. In addition to the integrated PC, a TFT display, touch screen/ pad (optional) and a PC keyboard (optional) are accommodated in an aluminum housing. -
Page 8: Connector Description
Product Description X 104 USB1, USB2 Signal Signal USB ports USB Type-A twin circuit board mounting (FCI 72309-0030B USB Double Receptacle A-Type) Connector description Serial interface Serial interface The Built-in Panel PC is equipped with a COM1 (X 100) serial interface COM1 (Type RS232) for the connection of serial peripheral devices. -
Page 9: Installation Instructions
4. Please keep the associated paperwork. It contains important information for handling the unit. 5. Check the contents for visible shipping damage. 6. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. CP67xx... -
Page 10: Installation Of The Pc In The Control Cabinet
Installation Instructions Installation of the PC in the control cabinet The Built-in Panel PC CP67xx is designed for mounting in control cabinets in machine and plant engineering applications. The ambient conditions specified for operation must be observed (see the section on Technical data). -
Page 11: Assembly Dimensions
Installation Instructions Assembly dimensions The assembly of the unit must take place with the orientation diagrammed here. Warning The figure shows the dimensions of the Built-in Panel PCs. Please refer to the tables for cutout dimensions. All dimensions are in mm. Wall Thickness 2-5 Built-in Panel PC CP670x Dimensions... -
Page 12: Mounting Of The Built-In Panel Pc
Installation Instructions Mounting of the Built-in Panel PC Please refer to the tables for the Built-in Panel PC cutout dimensions. Mounting of the Built-in Panel PC Release clamping levers, Insert the Built-in Panel PC into the cutout. Release the clamping levers with a No. -
Page 13: Connecting The Built-In Panel Pc
Installation Instructions Connecting the Built-in Panel PC The Built-in Panel PC must never be connected or disconnected in an area that is subject to explosion hazard! Risk of explosion! Danger The mains plug of the Panel PC must be disconnected! Warning Please read the documentation for the external devices prior to connecting them. -
Page 14: Operating Instructions
Operating Instructions Operating Instructions Please also refer to chapter General Notes. Switching the Built-in Panel PC on and off Switch on The Built-in Panel PC does not have its own mains power switch. As soon as the power supply is switched on the Panel PC is activated. Shutting down and Control software, as typically applied in Industrial PCs, enables the switching off... - Page 15 Operating Instructions The mouse cursor can be moved over the screen with the aid of the touch screen or of the touch pad (optional). The keys correspond to the left and right hand keys of a Microsoft mouse. The Del key deletes the character to the right of the cursor. The Ins key causes characters to the right of the cursor to be overwritten.
-
Page 16: Compact Flash Memory Card
Operating Instructions Compact Flash memory card Compact Flash memory A Compact Flash memory card (CF card) is located behind a cover at the card rear of the Built-in Panel PC. It is provided to save the operating system. Only use memory cards with extended temperature ranges according to industrial standards! Removing the cover To change the CF card, first of all unscrew the two screws (see above... -
Page 17: Servicing And Maintenance
Operating Instructions Servicing and maintenance Please also refer to chapter General Notes. Cleaning the Built-in Panel PC First switch off the Built-in Switch off the Built-in Panel PC and all devices connected to it, so that keys cannot be unintentionally actuated. Panel PC The front of the Built-in Panel PC can be cleaned with a soft, damp cleaning cloth. -
Page 18: Lamp Sets
Operating Instructions Lamp sets Order number Background illumination unit for C9900 - L364 12 inch TFT display LTD121C30S C9900 - L366 15 inch TFT display LQ150X1LW71N Emergency procedures In case of fire, the Built-in Panel PC should be extinguished with powder or nitrogen. -
Page 19: Troubleshooting
No power supply to Panel PC Check power supply cable Cable not connected 1. Correctly connect cable 2. Call Beckhoff Service Panel PC boots, software starts, but The cause of the error is in the Call the manufacturer of the... -
Page 20: Beckhoff Support & Service
Please contact your Beckhoff branch office or partner company for local support and service on Beckhoff products! The contact addresses for your country can be found in the list of Beckhoff branches and partner companies: www.beckhoff.com You will also find further documentation for Beckhoff components there. -
Page 21: Appendix
Appendix Appendix Technical data Dimensions Dimensions (W x H x D): see section Assembly dimensions Operation in areas that are The Built-in Panel PC must not be used where there is a risk of subject to explosion hazard explosion. The following conditions must be observed during operation: Environmental conditions Ambient temperature: 0 to 55°C...
