Installation and Operating instructions for
Built-in Panel PC CP63xx
Version: 1.3
Date:
2006-01-11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP63 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Beckhoff CP63 Series

  • Page 1 Installation and Operating instructions for Built-in Panel PC CP63xx Version: 1.3 Date: 2006-01-11...
  • Page 3: Table Of Contents

    Cleaning the Industrial PC Replacing the battery on the motherboard Servicing Shutting down Disposal Troubleshooting Fault correction Service and Support Beckhoff Service Beckhoff Support Company headquarters Appendix Technical data Approvals FCC: Federal Communications Commission Radio Frequency Interference Statement FCC: Canadian Notice...
  • Page 4: General Instructions

    © This documentation is copyrighted. Any reproduction or third party use of this publication, whether in whole or in part, without the written permission of Beckhoff Automation GmbH, is forbidden. Description of safety symbols The following safety symbols are used in this operating manual. They are intended to alert the reader to the associated safety instructions.
  • Page 5: Basic Safety Measures

    General instructions Basic safety measures Only switch the PC off after Before the Industrial PC is switched off, software that is running must closing the software be properly closed. Otherwise it is possible that data on the hard disk is lost. Please read the section Switching the Industrial PC on and off.
  • Page 6: Operator's Obligation To Exercise Diligence

    General instructions Operator's obligation to exercise diligence The operator must ensure that • the Industrial PC is only used for its intended use (see also Product Description chapter). • the Industrial PC is in a sound condition and in working order during operation.
  • Page 7: Product Description

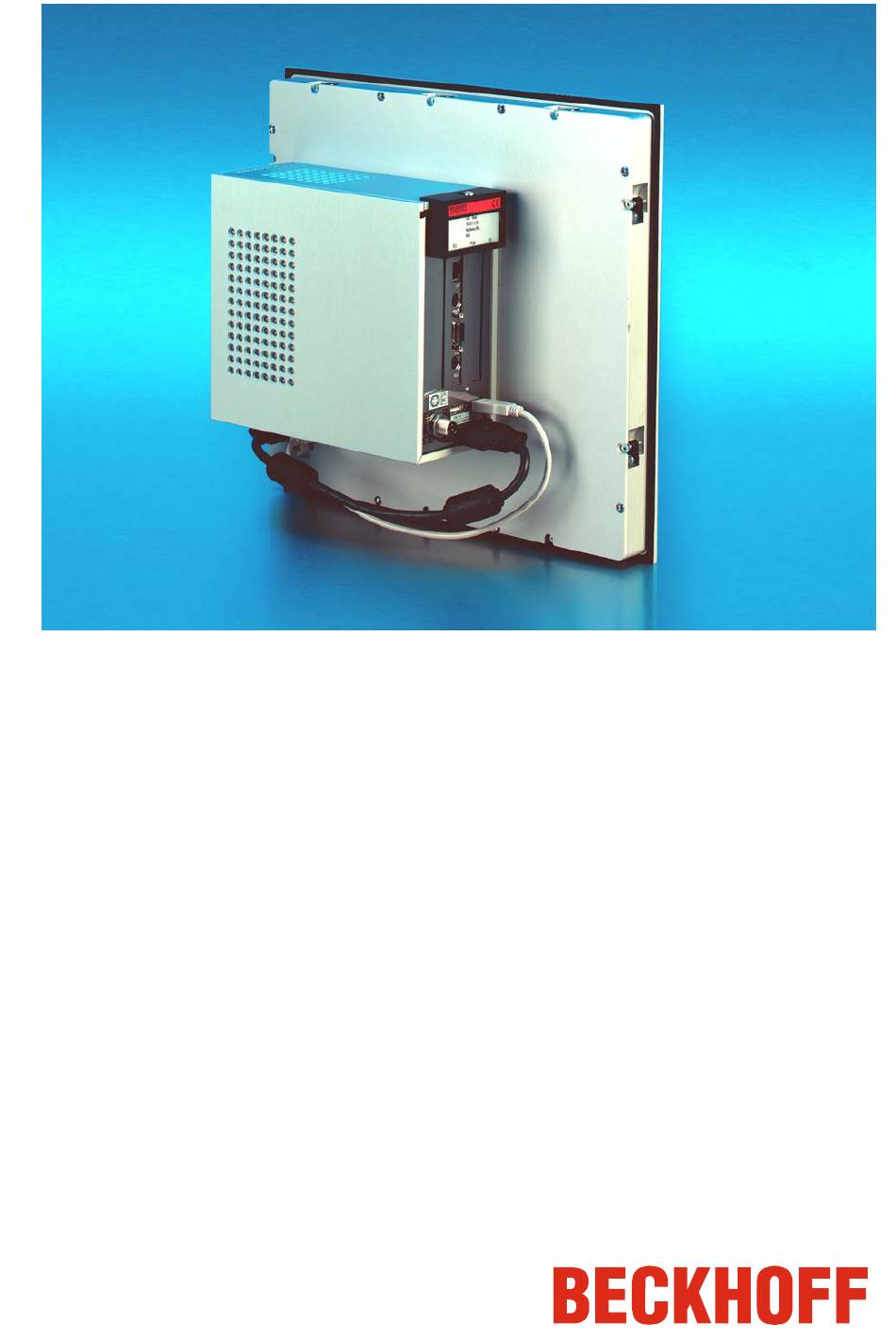

    Product Description Product Description Appropriate Use The Built-in Panel PC CP63xx is designed for front installation in control cabinets in machine and plant engineering applications. Structure Opening the housing To open the PC housing, release the screw (1) by one turn using a screwdriver.
  • Page 8 Product Description View of the open PC in basic configuration The computer chassis can now be removed from the housing. The power supply (1) and the hard disk (2) are located in the lower part of the chassis. The slot motherboard (3) is located in the central slot of the housing. CP63XX...
  • Page 9: Interfaces

    Product Description Interfaces Interfaces of the Built-in Panel PC CP63xx Serial interfaces RS 232 The basic version of the CP63XX Industrial PC has two serial interfaces, COM1 - COM2 COM1 (1) and COM2 (2), using the type RS232, which are brought to a 9 pin SUB-D plug connector.
  • Page 10: Installation Instructions

    4. Please keep the associated paperwork. It contains important information for handling the unit. 5. Check the contents for visible shipping damage. 6. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. CP63XX...
  • Page 11: Installation Of The Pc In The Control Cabinet

    Installation Instructions Installation of the PC in the control cabinet The Built-in Panel PC CP63xx is designed for mounting in control cabinets in machine and plant engineering applications. The ambient conditions specified for operation must be observed (see the section on Technical data).
  • Page 12: Power Supply

    Installation Instructions Power supply The 4-pin screw-type connector plug on the PC housing shown in the photograph is used to connect the power supply. Connector plug on the PC housing Supplied mains power unit The Industrial PC is equipped with a 24 V power supply unit.
  • Page 13: Connecting Devices

    Installation Instructions Connecting devices The power supply plug must be withdrawn! Warning Please read the documentation for the external devices prior to connecting them. During thunderstorms, plug connector must neither be inserted nor removed. When disconnecting a plug connector, always handle it at the plug. Do not pull the cable! Connecting cables The connections are located on the front of the Industrial PC, and are...
  • Page 14: Operating Instructions

    Operating Instructions Operating Instructions Please also refer to chapter General instructions. Switching the Industrial PC on and off Switch on The Industrial PC does not have its own mains switch. The Industrial PC will start when the equipment is switched on, or when it is connected to the power supply.
  • Page 15: Maintenance

    Operating Instructions Maintenance Please also refer to chapter General instructions. Cleaning the Industrial PC Switch off the Industrial PC and all connected devices, and disconnect the Industrial PC from the power supply. Danger The Industrial PC can be cleaned with a soft, damp cloth. Do not use any aggressive cleaning materials, thinners, scouring material or hard objects that could cause scratches.
  • Page 16: Troubleshooting

    Nothing happens after the Industrial No power supply to the Industrial Check power supply cable PC has been switched on Other cause Call Beckhoff Service The Industrial PC does not boot Floppy disk or CD in the drive Remove floppy disk or CD fully...
  • Page 17: Service And Support

    Beckhoff and their partners around the world offer comprehensive service and support, making available fast and competent assistance with all questions related to Beckhoff products and system solutions. Beckhoff Service The Beckhoff Service Center supports you in all matters of after-sales service: • on-site service •...
  • Page 18: Appendix

    Appendix Appendix Technical data Dimensions Dimensions (W x H x D): 226 x 196 x 93 mm (without Control Panel) with CD-ROM (W x H x D): 226 x 196 x 107 mm (without Control Panel) Weight: 9.5 kg (basic configuration) Do not use the PC in areas The Industrial PC may not be used in areas of explosive hazard.
