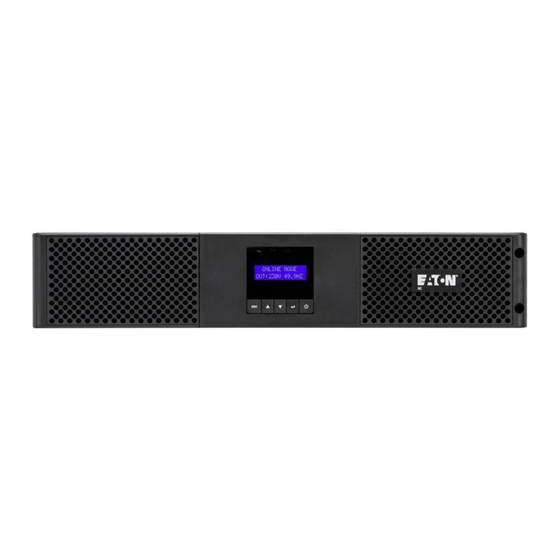

- Page 1 Eaton 9E Rack Advanced User Guide 9E1000IR 9E2000IR 9E3000IR 9EEBM72R Copyright © 2023 EATON All rights reserved. DPD-9E2305 English...
-
Page 2: Table Of Contents
5.3 Display functions........................... 11 5.4 User settings............................12 5.5 Communication ports........................... 15 5.6 UPS remote control functions......................16 5.7 Eaton Intelligent Power Software suite ....................17 5.8 Cybersecurity ............................17 Operation ........................17 6.1 Start-up and normal operation ......................17 6.2 Starting the UPS on battery........................ - Page 3 UPS maintenance......................19 7.1 Equipment care............................. 19 7.2 Storing the equipment.......................... 19 7.3 When to replace batteries........................19 7.4 Replacing batteries ..........................20 7.5 Recycling the used equipment ......................21 Troubleshooting......................22 8.1 Typical alarms and faults........................22 8.2 Service and support ..........................24 Specification and technical characteristics..............
-
Page 4: Special Symbols
1 Special symbols The following are examples of symbols used on the UPS or accessories to alert you to important information: DANGER: Dangerous voltage levels are present within the UPS. The UPS has its own internal power source (the battery). Consequently, the power outlets may be energized even if the UPS is disconnected from the AC power source. -
Page 5: Introduction
Thank you for selecting an Eaton 9E product to protect your electrical equipment. The Eaton 9E range has been designed with the utmost care. We recommend that you take the time to read this advanced user guide to take full advantage of the many features of your UPS (Uninterruptible Power System). -
Page 6: Benefits
- causing hours of lost productivity and expensive repairs. With the Eaton 9E, you can safely eliminate the effects of power disturbances and guard the integrity of your equipment. Providing outstanding performance and reliability, the Eaton 9E’s unique benefits include: •... -
Page 7: Presentation
3 Presentation 3.1 Weights and dimensions Description Dimensions (mm / inch) D x W x H Weights (kg / lbs) 9E1000IR 17.6 / 38.8 438 x 438 x 86.5 / 17.2 x 17.2 x 3.4 9E2000IR 29.9 / 63.9 608 x 438 x 86.5 / 23.9 x 17.2 x 3.4 9E3000IR 31.3 / 68.3... -
Page 8: Standard Installation
Relay-MS Eaton Relay card (1 x RS232 or 5 x Relay output) INDRELAY-MS Eaton Industrial relay card (5x relay outputs with dry contacts for remote alarm information) Environmental Monitoring Probe Gen2 EMPDT1H1C2 Compatibility : Gigabit Network Card (Network-M2, Network-M3) / Industrial Gateway Card... -
Page 9: Installation
4 Installation 4.1 Inspecting the equipment If any equipment has been damaged during shipment, keep the shipping cartons and packing materials for the carrier or place of purchase and file a claim for shipping damage. If you discover damage after acceptance, file a claim for concealed damage. -
Page 10: Recommended Positions
4.2 Recommended positions Installation in rack position Follow steps bellow for module mounting on the rails. The rails and necessary hardware are supplied by Eaton. ① Screw the rail on the back of the rack. ② Screw the rail on the front of the rack using the two holes at the bottom. -
Page 11: Ebm Connection
To increase stability, it is preferable to place the EBM below the UPS. Extension Battery Module (EBM) Eaton 9EEBM72R is compatible only with 9E2000IR and 9E3000IR UPS. UPS must be switch off and disconnected from the power supply prior to battery installation. -
Page 12: Ups Connection
Check that the indications on the name plate located on the back of the UPS correspond to the AC-power source and the true electrical consumption of the total load. For 9E1000IR and 9E2000IR: Connect the UPS input socket ① to the AC-power source using the cable of the protected equipment. -
Page 13: Lcd Description
Led indicator The following table shows the indicator status and description : Indicator Status Description Green The UPS is "ON" and the load is protected. Orange The UPS is in battery mode and the load is protected. The UPS is in bypass mode. ... -
Page 14: Display Functions
① Operation Description Action status This "Battery Low" warning is approximate, and the The UPS is in Battery mode and the BACKUP END MODE actual time to shutdown may vary significantly battery is running low. depending on the UPS load. HIGH EFFIC. -
Page 15: User Settings
② Load/equipment middle buttons (⯅ and ⯆) Description status The BATTERY voltage screen tracks the charge level of your Battery voltage and charge BAT:xxx.xV xxx% connected battery bank in terms of voltage and charge percentage percentage. The RUNTIME remaining screen tracks the approximate minutes of runtime available under the current loading and battery pack RUNTIME:xxxMIN Remaining battery runtime ... - Page 16 Main Menu Submenu Available settings Default settings [English] [Français] [Deutsch] [Español] [Italiano] [Português] [English] [Polish] Automatic message for user Language Menus, status, notices and alarms, configuration when UPS is UPS fault, Event Log data and powered for the first time. settings are in all supported languages.
- Page 17 Main Menu Submenu Available settings Default settings In constant charge mode: [No test] Auto battery test [Monthly] [Daily] [Weekly] [Monthly] [0%] ... [100%] Automatic restart will occur only when the set percentage of battery charge is reached, and "Auto Restart batt. level Restart"...
-
Page 18: Communication Ports
Connect the other end of the communication cable (15) or (16) to the USB (5) or RS232 (6) communication port on the UPS. The UPS can now communicate with Eaton power management software. You can improve the remote monitoring and power managment of the UPS by adding a communication... -
Page 19: Ups Remote Control Functions
5.6 UPS remote control functions Connectivity cards Connectivity cards allow the UPS to communicate in a variety of networking environments and with different types of devices. The 9E models have one available communication bay for the following connectivity cards: • Gigabit Network card (Network-M2, Network-M3) : provides a Gigabit Ethernet connection and enables secure UPS monitoring over HTTPS web browser interface, SNMP v1/v3 protocol and email alarms. -
Page 20: Eaton Intelligent Power Software Suite
It also gives you a complete record of critical power events, and it notifies you of important UPS or power information. If there is a power outage and the 9E UPS battery power becomes low, Eaton Software suite can automatically shut down your computer system to protect your data before the UPS shutdown occurs. -
Page 21: Return Of Ac Input Power
Battery mode When the UPS is operating during a power outage, the alarm beeps once every ten seconds and the indicator illuminates solid. The necessary energy is provided by the battery. When the utility power returns, the UPS transfers to Normal mode operation while the battery recharges. If battery capacity becomes low while in Battery mode, the audible alarm beeps faster. -
Page 22: Setting High Efficiency Mode
7.3 When to replace batteries Eaton 9E batteries have an expected life span of 3-5 years, after that period you should take proactive steps to ensure batteries replacement for optimal operation and reliability, contact your service representative to order new batteries. -
Page 23: Replacing Batteries
7.4 Replacing batteries For battery replacement, follow Eaton instructions provided on www.eaton.eu/BatteryServices . Battery replacement should be performed by qualified service personnel knowledgeable of batteries and required precautions. Keep unauthorized personnel away from batteries. Batteries can be replaced easily without turning off the UPS or disconnecting the load. -
Page 24: Recycling The Used Equipment
Battery mode and discharges the batteries for 10 seconds. The front panel displays "Battery test in progress" and the percentage of the test completed. 7.5 Recycling the used equipment Contact your local recycling or hazardous waste center for information on proper disposal of the used equipment. eaton.com/recycling DPD-9E2305... -
Page 25: Troubleshooting
8 Troubleshooting The Eaton 9E is designed for reliable, autonomous operation while providing you with notifications and alerts whenever a potential operational or performance issue occurs. Usually the alarms shown by the product do not mean that the output power is affected. Instead, they are preventive alarms intended to alert the user. - Page 26 Conditions Possible cause Action Battery fault Verify that all batteries are properly The battery test is failed due to bad or connected. If the condition persists, disconnected batteries. contact your service representative. LED is On. Beep continuous Apply utility power for 48 hours to charge The UPS does not provide The batteries need charging or service.
-
Page 27: Service And Support
8.2 Service and support If you have any question or problem with the UPS, call Eaton or your local service representative in your country / region. Please have the following information ready when you call for service: • Model number •... -
Page 28: Electrical Output
50Hz or 60Hz, autosensing or configurable as a frequency converter [102-130%*] 12 sec Output overload [130-150%] 2 sec >150% Shutdown immediately 9E1000IR: 10A Depend on the external fuse or breaker in the upstream of UPS 9E2000IR: 19.2A Short circuit current limitation 9E3000IR: 28.7A... -
Page 29: Battery
9.3 Battery Internal batteries 9E1000IR: 36Vdc - 3 x 12V, 7Ah (9Ah max) Specifications 9E2000IR: 72Vdc - 6 x 12V, 7Ah (9Ah max) 9EEBM72R: 72Vdc - 2 string of 6 x 12V, 18Ah 9E3000IR: 72Vdc - 6 x 12V, 9Ah Sealed, maintenance-free, valve-regulated, lead-acid, with minimum 3-5 year float service life at 25°C... -
Page 30: Glossary
10 Glossary Backup time Time during which the load can be supplied by the UPS operating on battery power. Low-battery warning This is a battery-voltage level indicating that battery power is low and that the user must take action before the UPS shuts down. Load Devices or equipment connected to the UPS output.
