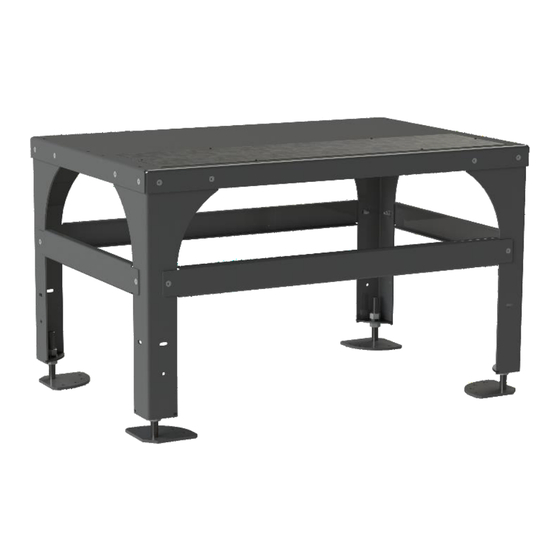

Eaton® PDI Universal Floor Stands
WaveStar
®
Static Transfer Switches
Power Distribution Units
PowerPak
PowerPak 2
PowerHub 2
WaveStar
®
Primary Systems
WaveStar
®
Secondary Systems
Installation Manual
p/n: P-164001105
Revision 01

Advertisement

loading
Need help?

Need help?

Do you have a question about the PDI Universal and is the answer not in the manual?

Questions and answers

Related Manuals for Eaton PDI Universal

Summary of Contents for Eaton PDI Universal

  • Page 1 Eaton® PDI Universal Floor Stands WaveStar ® Static Transfer Switches Power Distribution Units PowerPak PowerPak 2 PowerHub 2 WaveStar ® Primary Systems WaveStar ® Secondary Systems Installation Manual p/n: P-164001105 Revision 01...
  • Page 2 ToughRail Technology, and WaveStar are registered trademarks of Power Distribution Inc. All other trademarks are held by their respective owners. All other trademarks are property of their respective companies. ©Copyright 2023 Eaton, Raleigh, NC, USA. All rights reserved. No part of this document may be reproduced in any way without the express written approval of Eaton.
  • Page 3 4 4 A A s s s s e e m m b b l l i i n n g g a a F F l l o o o o r r S S t t a a n n d d ..................................................2 2 9 9 4.1 Assembling the Floor Stands........................29 4.2 Assembling Compound Floor Stands ......................31 Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 4 Table of Contents Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 5 Secondary System, PDU ≤ 300 kVA and (2) STS ≤ 600A ............... 25 Figure 15. Secondary System, PDU 288 kVA, (2) STS 800A ................. 26 Figure 16. Floor Stand Feet — Details......................27 Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...

  • Page 6: List Of Figures

    List of Figures Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 7 WaveStar Secondary System - (2) PowerPak PDUs (=288 kVA) and (1) WaveStar STS (=800A) ...... 23 Table 17. Single Floor Stand — BOM ......................29 Table 18. Single Floor Stand with Side Bracing — BOM ..................29 Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...

  • Page 8: List Of Tables

    List of Tables viii Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 9 Power Distribution, Inc. assumes no responsibility for any consequences arising out of the use of this manual. This document should not be viewed as sufficient by otherwise non-qualified personnel to operate, service, or maintain the equipment discussed. Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 10 Safety Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 11 2 2 . . 1 1 O O v v e e r r v v i i e e w w Eaton provides floor stands as options for the following power distribution products: • All Eaton Power Distribution Units (PDUs) •...
  • Page 12 36" Adjustable +/- 2" 34" - 38" MOD70102-H36 40" Adjustable +/- 2" 38" - 42" MOD70102-H40 44" Adjustable +/- 2" 42" - 46" MOD70102-H44 48" Adjustable +/- 2" 46" - 50" MOD70102-H48 Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 13 Qty. 1 - MOD70102-HXX - 60" W x 54"D Main Cabinet • Qty. 1 - MOD70618-HXX - 26" W x 54"D Sidecar Figure 1. PowerHub 2 PDU Floor Stand 60"H x 40"D Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 14 Floor Stands by Product Figure 2. PowerHub 2 PDU Floor Stand 60"W x 54"D Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 15 Floor Stands by Product Figure 3. PowerHub 2 PDU Floor Stand 86"W x 54"D Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 16 PowerPak PDU floor stands are also used with STS floor stands for Primary and Secondary Systems. See these sections: • 2.3 Primary System Floor Stand • 2.4 Secondary System Floor Stands Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 17 Floor Stands by Product Figure 4. PowerPak PDU Floor Stand 34.75"W x 32.5"D Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 18 36" Adjustable +/- 2" 34" - 38" MOD70103-H36 40" Adjustable +/- 2" 38" - 42" MOD70103-H40 44" Adjustable +/- 2" 42" - 46" MOD70103-H44 48" Adjustable +/- 2" 46" - 50" MOD70103-H48 Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 19 Floor Stands by Product Figure 5. PowerPak 2 PDU Floor Stand 42"W x 40"D Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 20 Floor Stands by Product Figure 6. PowerPak 2EX PDU Floor Stand 54"W x 40"D Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 21 36" Adjustable +/- 2" 34" - 38" MOD70107-H36 40" Adjustable +/- 2" 38" - 42" MOD70107-H40 44" Adjustable +/- 2" 42" - 46" MOD70107-H44 48" Adjustable +/- 2" 46" - 50" MOD70107-H48 Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 22 Floor Stands by Product Figure 7. TFA/STS Floor Stand 50"W x 36"D Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 23 Floor Stands by Product Figure 8. TFA/STS Floor Stand 60"W x 36"D Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 24 36" Adjustable +/- 2" 34" - 38" MOD70109-H36 40" Adjustable +/- 2" 38" - 42" MOD70109-H40 44" Adjustable +/- 2" 42" - 46" MOD70109-H44 48" Adjustable +/- 2" 46" - 50" MOD70109-H48 Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 25 MOD70112-H40 44" Adjustable +/- 2" 42" - 46" MOD70112-H44 48" Adjustable +/- 2" 46" - 50" MOD70112-H48 Floor stand consists of (2) 43.875" W x 43" D Floor Stands bolted together. Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 26 Floor Stands by Product Figure 9. WaveStar STS (≤ 600A) Floor Stand 34.75"W x 32.5"D Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 27 Floor Stands by Product Figure 10. WaveStar STS Floor Stand (800A) 45.75"W x 32.5"D Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 28 Floor Stands by Product Figure 11. WaveStar STS (1000-1200A) Floor Stand 82.5"W x 43"D Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 29 Floor Stands by Product Figure 12. WaveStar STS (1600A) Floor Stand 87.75"W x 43"D Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 30 MOD70097-H48 Floor stand consists of the following floor stands bolted together: • Qty. 1 - MOD70108-HXX - WaveStar STS Floor Stand • Qty. 1 - MOD70105-HXX - PowerPak PDU Floor Stand Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 31 46" - 50" MOD70741-H48 Floor stand consists of (3) Floor Stands bolted together: • Qty. 1 - MOD70109-HXX - WaveStar STS Floor Stand • Qty. 2 - MOD70105-HXX - PowerPak PDU Floor Stands Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 32 Floor Stands by Product Figure 13. Primary System Floor Stand, PDU ≤ 300 kVA, STS ≤ 600A Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 33 Floor Stands by Product Figure 14. Secondary System, PDU ≤ 300 kVA and (2) STS ≤ 600A Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 34 Floor Stands by Product Figure 15. Secondary System, PDU 288 kVA, (2) STS 800A Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 35 Secure all floor stand feet to subfloor using 1-4 anchor bolts per foot. Feet holes have clearances for 1/2" HILTI anchor bolts. Installer selects and provides anchor bolts appropriate to flooring. Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 36 Installing a Floor Stand Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 37 PowerPak 2 PDU > 34" (H36+ leg) • PowerHub 2 PDU > 34" (H36+ leg) • STS, TFA/STS > 38" (H40+ leg) • Primary System > 42" (H44+ leg) • Secondary System > 42" (H44+ leg) Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 38 Torque: 31 ft-lbs (42 nm) Legs have (2) or (3) holes, depending on height, for attaching a Side Brace at different heights. A Side Brace can be attached at any of these positions. Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 39 Bolt the individual Floor Stands together at (2) slots in the underside of the Top Plate. The slots have clearances for M10 screws. Installer chooses and provides hardware to bolt individual Floor Stands together. Eaton PDI Universal Floor Stands Installation Manual P-164001105—Rev 01...
  • Page 40 P-16400110501 P-164001105 01...
