- Page 1 Green Motion EV charger cord management ceiling kit Installation guide: EV charger cord management ceiling kit...
-
Page 2: Table Of Contents
Contents PRODUCT INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 PACKAGE CONTENTS . -
Page 3: Product Introduction

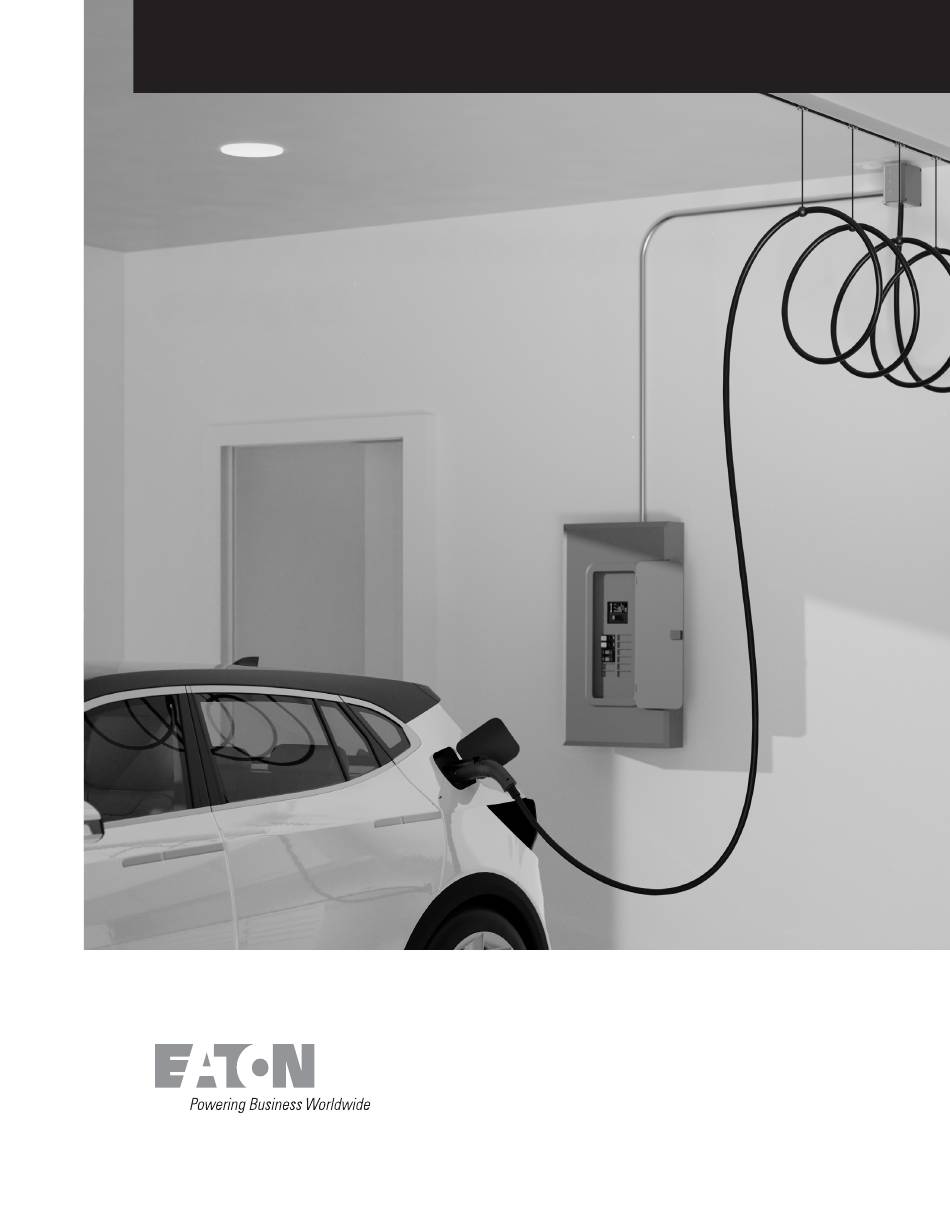

Installation Guide Product introduction Eaton’s EV charger cord management kit is ideal for residential garages and commercial parking lots. When installed with an EV smart breaker charger, the ceiling kit enables shared charging between adjacent parking spots. Works with GMEV32BR-JB and GMEV32BAB-JB. -
Page 4: Installation
YOUR ELECTRIC UTILITY TO DISCONNECT POWER TO AN EXISTING LOADCENTER. THE LINE SIDE OF THE MAIN BREAKER IS ENERGIZED UNLESS POWER IS DISCONNECTED UPSTREAM. EATON WILL NOT ASSUME RESPONSIBILITY FOR PROPERTY DAMAGE OR PERSONAL INJURY RESULTING FROM MISUSE OF THE INFORMATION IN THIS PUBLICATION. -
Page 5: General Reference
4 ft (1 .2 m) above the floor level for indoor loca- tions and 24 inches (600 mm) above the grade level for 48” max 48” max outdoor locations . 48” max 34” max 15” min 15” min 10” max 48” max EV CHARGER CORD MANAGEMENT CEILING KIT www.eaton.com 15” min... -
Page 6: A Set Up The Ceiling Kit Installation
A-1Bubble The junction box can be mounted on either side of the ceiling track or inline with the track . Reference: • Ceiling track [A] • Junction box [J] EV CHARGER CORD MANAGEMENT CEILING KIT www.eaton.com... -
Page 7: B Install The Ceiling Track And Junction Box
. Install the junction box into the joist using three screws [C] . Reference: • 8-32 x .5 pan head phillips screws x3 [C] • Ceiling bracket [F] EV CHARGER CORD MANAGEMENT CEILING KIT www.eaton.com... -
Page 8: C Install The Charging Cable
STEP C-1 Loosen the two hex nuts on the pre-assembled end stops and slide to both ends of the ceiling track [A] . Tighten the hex nuts . Reference: • Ceiling track [A] EV CHARGER CORD MANAGEMENT CEILING KIT www.eaton.com... - Page 9 EV cord grip screws [I] . 8 inches Reference: • J1772 EV connector and 25-foot cord [K] • EV cord grip bottom half [G] • EV cord rubber grip [H] • EV cord grip screws x2 [I] EV CHARGER CORD MANAGEMENT CEILING KIT www.eaton.com...
- Page 10 . The cable should make even loops between the trollies, ensure they hang with limited twisting . Reference: • EV cord grips bottom half x3 [G] • EV cord rubber grips x3 [H] • EV cord grip screws x6 [I] EV CHARGER CORD MANAGEMENT CEILING KIT www.eaton.com...
- Page 11 Wire the charger cable to the junction box according to the charging cable installation guide EV smart breaker charger junction box kit. Turn on the supply side power . STEP C-5 Installation of the ceiling kit is complete. EV CHARGER CORD MANAGEMENT CEILING KIT www.eaton.com...
- Page 12 Eaton 1000 Eaton Boulevard Cleveland, OH 44122 United States Eaton .com © 2024 Eaton All Rights Reserved Eaton is a registered trademark. Printed in USA Publication No. IL191029EN / XXXX All trademarks are property March 2024 of their respective owners.
