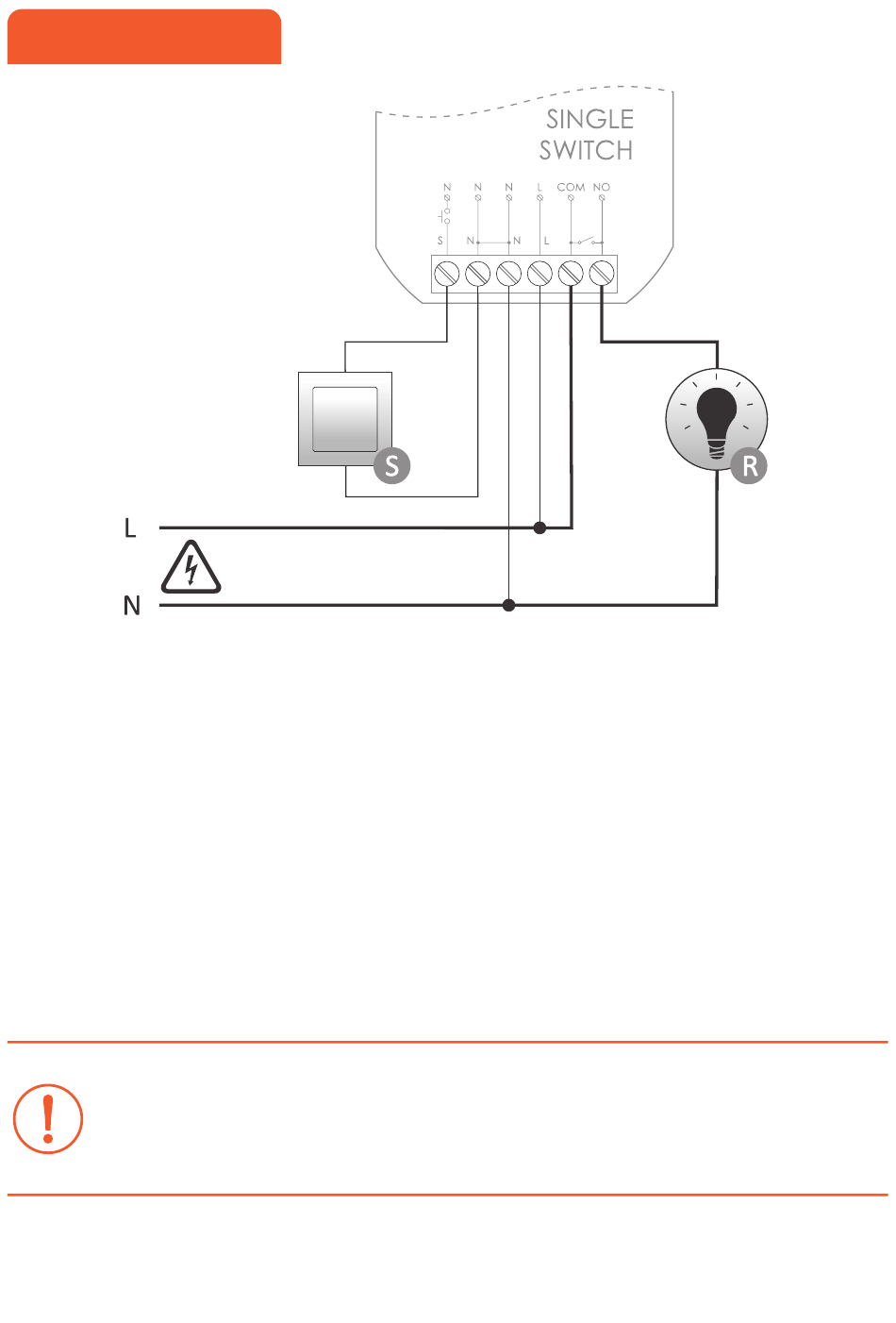

Wiring diagram

Description of terminals
S local control button input
(default – R ON/OFF function)
N power supply – neutral wire
N power supply – neutral wire
(N terminals connected inside of the device)
L power supply – phase wire
COM internal relay COM contact
NO internal relay NO contact
It is recommended to use monostable (momentary)
buttons. When using bistable buttons, at most one
pushbutton can be connected to the input.
- 4 -
