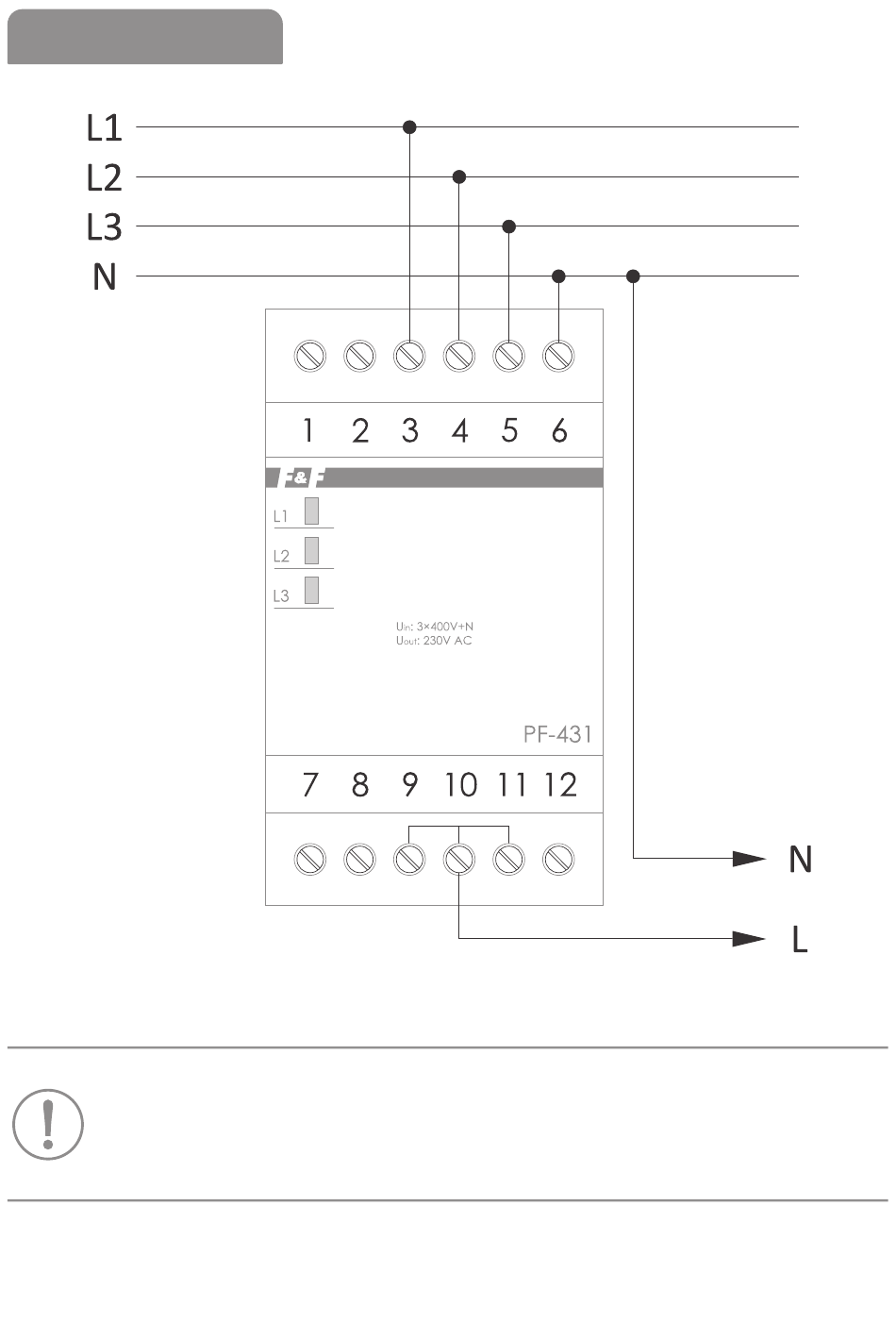

Wiring diagram
The outputs 9, 10, 11 are connected in parallel, which
means that the output signal is available on each of
them.
