5.9

Mounting the welding torch system on the robot

Item Symbol
1
2
3
4
5
6
7
8
9
10
11
• Mount the mounting bracket at the changeable body using the pan head screws M3 x 10 mm.
• Mount the mounting bracket to the CAT torchholder.
099-500073-EW501
22.02.2023
Description 0
Changeable body MTR500W > see 5.5.1 chapter
Cylinder head screw, M3 x 10 mm
Mounting bracket
Plain washer - M6
Shoulder bolt - M6 x 28 mm
Hexagon nut, M8
Plain washer - M8
Hexagon nut - M6
CAT torch holder
Robot
Shoulder bolt - M8 x 38 mm

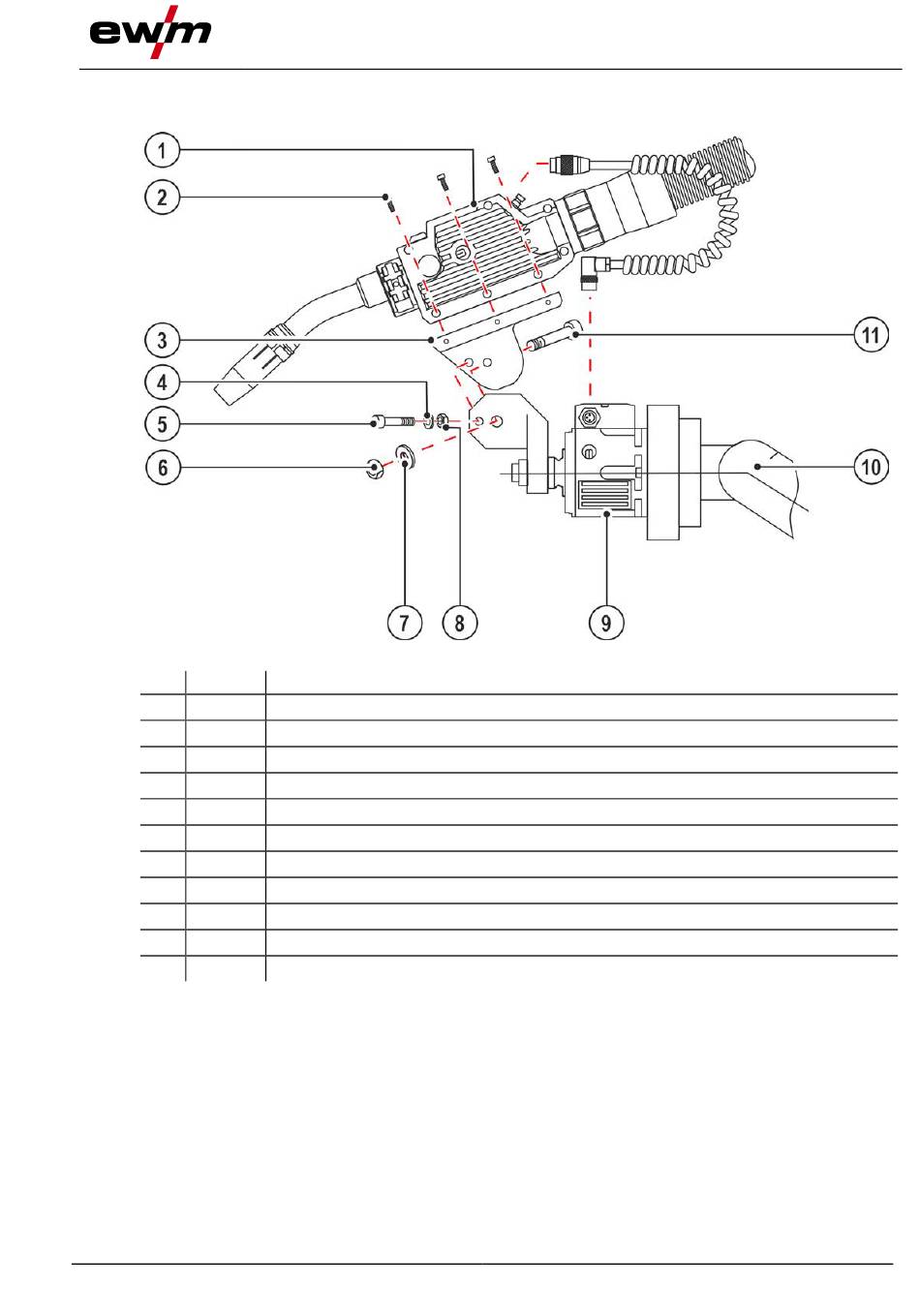

Mounting the welding torch system on the robot
Figure 5-48
Design and function
45
