Design and function
Configure welding torch
Do not change the hand lever position during the change procedure! This will result in malfunc-
tions.
Item Symbol
1
2
3
4

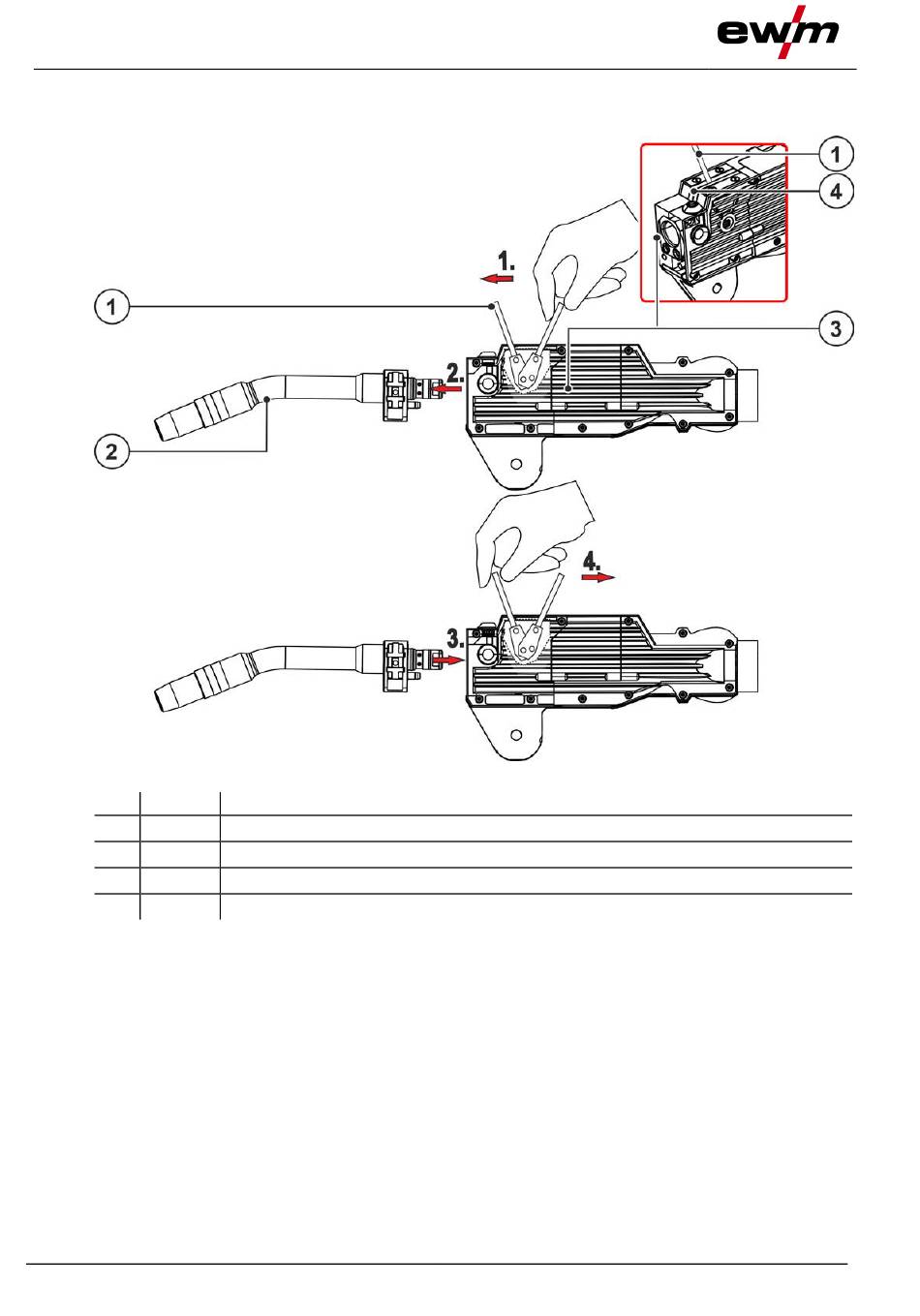

• Insert the tension arm through the sealing lips of the clamp clip into the bore.
• Move the tension arm forwards in the direction of the torch neck past the pressure point to the stop
and take out the torch neck.
• Insert the torch neck into the changeable body up to the stop.
• Push the tension arm toward the rear up to the stop and take it out, after locking it.
24
Description 0
Tension arm
Torch neck 45°
Changeable body MTR500W PP
Sealing lips
Figure 5-5
