5.7

Wire feed

5.7.1

Changing the wire feed rollers

Unsatisfactory welding results due to faulty wire feeding!
Wire feed rollers must be suitable for the wire diameter and the material.
• Check the colour code to verify that the rollers are suitable for the wire diameter.
Change if necessary.
• Match the drive roll to the wire diameter and material.

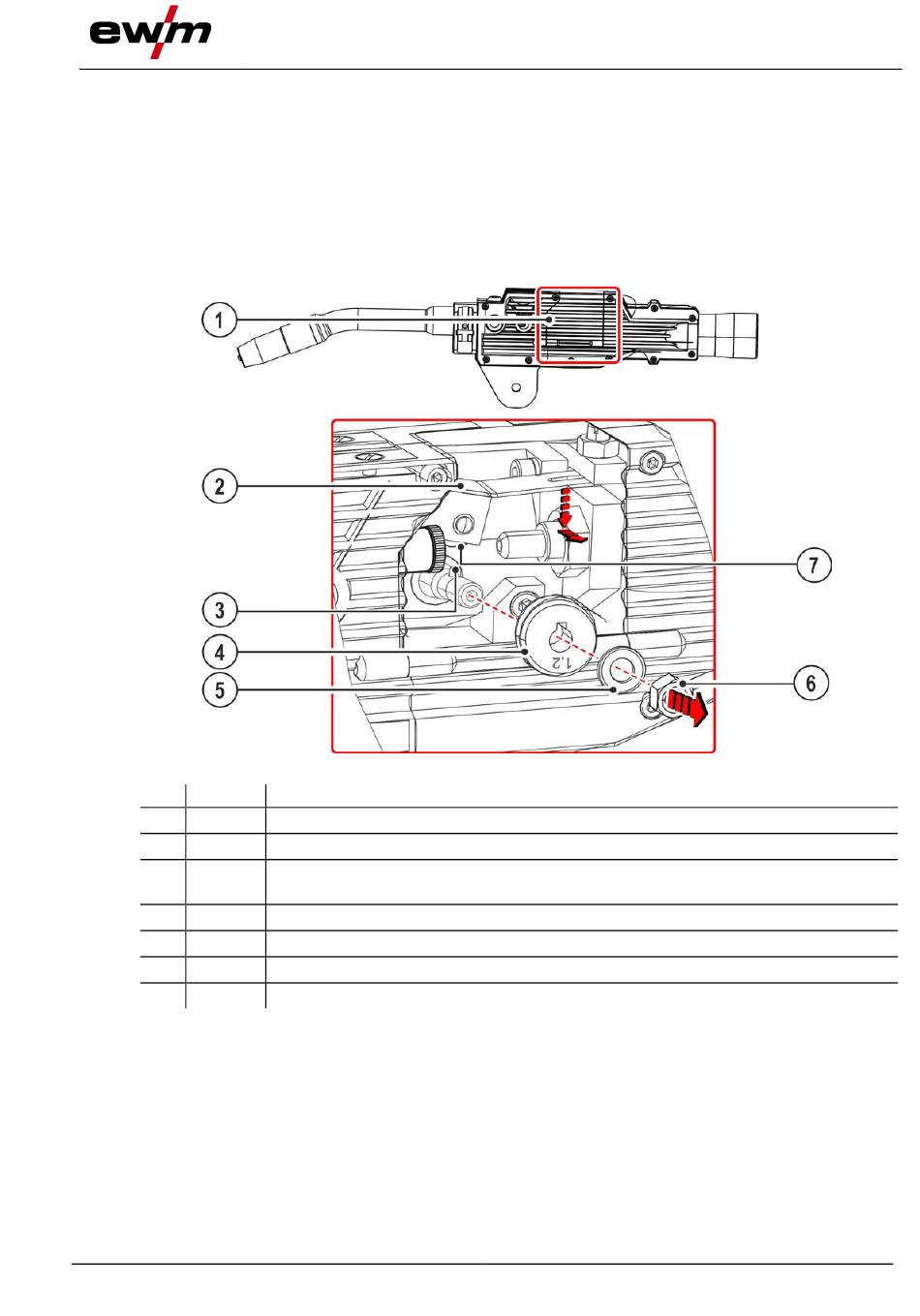

Item Symbol
1
2
3
4
5
6
7
• Remove cap
• Reverse inch the wire electrode.
• Relieve the leaf spring tension and swing out the pressure roller.
• Loosen the hexagonal socket screws.
• Remove hexagonal nut and plain washer.
• Remove drive roll.
• Insert drive roller (see colour code and labeling) and secure with the plain washer and hexagon nut.
• Assemble by following these steps in the reverse order
099-500073-EW501
22.02.2023
Description 0
Cap
Flat spring
Carrier pin
For fixing the drive roller
Drive roller
Plain washer
Hexagon nut
Pressure roller
Figure 5-38
Design and function
Wire feed
37
