Euro Central Connection (Ec-S) - EWM MTR242W Operating Instructions Manual

4.3.2

Euro central connection (EC-S)

Item Symbol
1
2
3
4
5
099-500073-EW501
22.02.2023
Machine description – quick overview
Description 0
Welding torch central connector (EC-S)
Integrated welding current and shielding.
Air-blast hose
Quick connect coupling, red (coolant return)
Control lead cable plug
Quick connect coupling, blue (coolant supply)

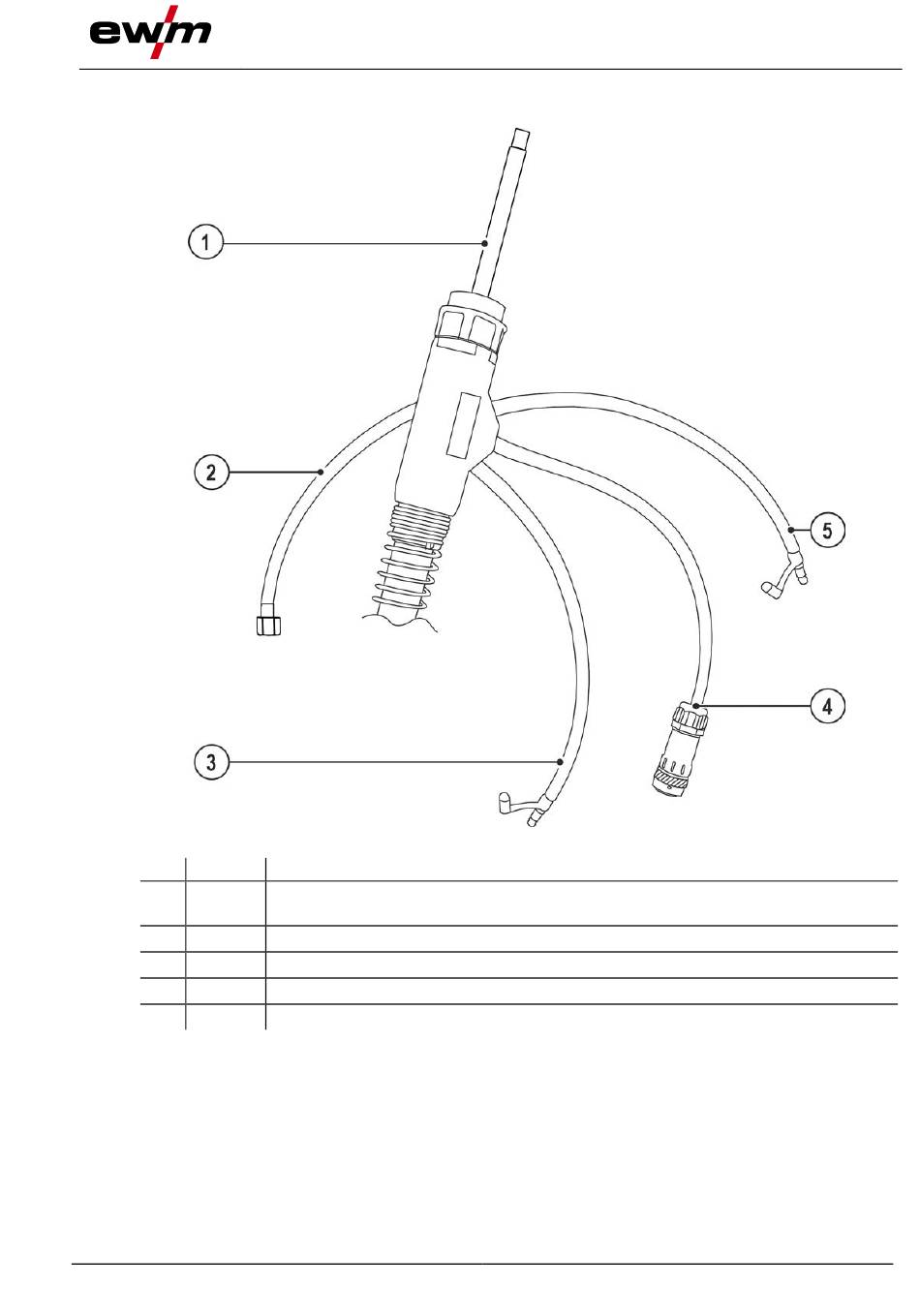

Figure 4-4
Welding torch connection
17
