5.4

Welding torch connection

Equipment damage due to improperly connected coolant pipes!
If the coolant pipes are not properly connected or a gas-cooled welding torch is used, the cool-
ant circuit is interrupted and equipment damage can occur.
• Connect all coolant pipes correctly!
• Completely unroll the hose package and the torch hose package!
• Observe maximal hose package length > see 5.3.2.2 chapter.
• When using a gas-cooled welding torch, use a hose bridge to establish the coolant cir-
cuit > see 9 chapter.
On delivery, the Euro torch connector is fitted with a capillary tube for welding torches with a steel liner.
Conversion is necessary if a welding torch with a liner is used!
• Operate welding torches with a liner > with a guide tube.
• Operate welding torches with a steel liner > with a capillary tube.
Depending on the wire electrode diameter or type, either a steel liner or liner with the correct inner
diameter must be inserted in the torch!
Recommendation:
• Use a steel liner when welding hard, unalloyed wire electrodes (steel).
• Use a chrome nickel liner when welding hard, high-alloy wire electrodes (CrNi).
• Use a plastic or teflon liner when welding or brazing soft wire electrodes, high-alloy wire electrodes or
aluminium materials.
Preparation for connecting welding torches with a liner:
• Push forward the capillary tube on the wire feed side in the direction of the Euro torch connector and
remove it there.
• Insert the liner guide tube from the Euro torch connector side.
• Carefully insert the welding torch connector with as yet too long a liner into the Euro torch connector
and secure with a crown nut.
• Cut off the liner with a liner cutter > see 9 chapter just before the wire feed roller.
• Loosen the welding torch connector and remove.
• Carefully chamfer the cut off end of the liner with a liner sharpener > see 9 chapter and sharpen.
Item Symbol
1
2
3
099-500073-EW501
22.02.2023
Description 0
Welding torch
Welding torch hose package
19-pole connection socket (analogue)
Connection socket for analogue control signals (collision protection, etc.)
Design and function

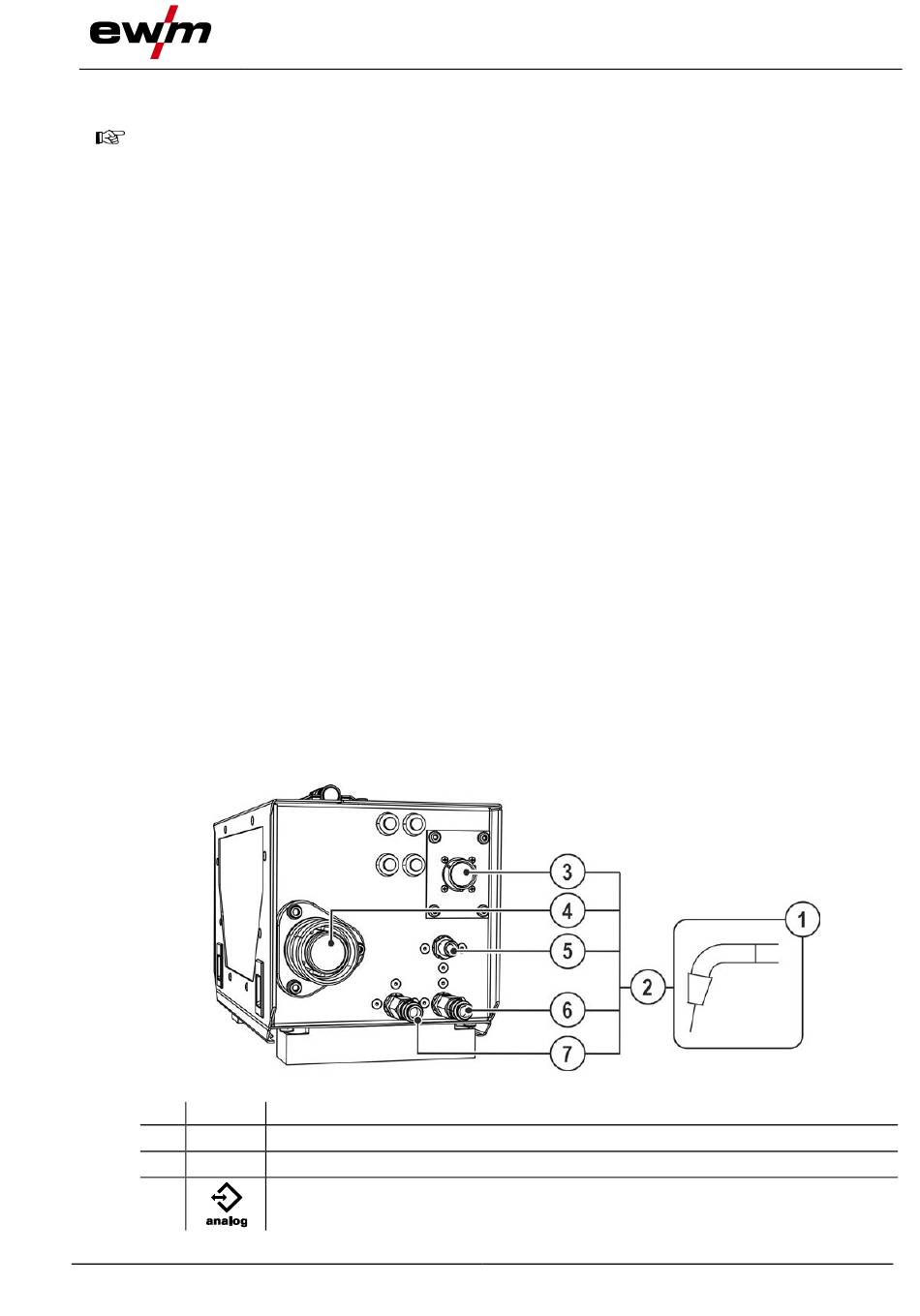

Figure 5-1
Welding torch connection
21
