Design and function

Converting Euro central connection (EC-S) to Euro central connection

• Remove cap
• Reverse inch the wire electrode.
• Relieve the leaf spring tension and swing out the pressure roller.
• Loosen the hexagonal socket screws.
• Remove hexagonal nut and plain washer.
• Remove drive roll.
• Unfasten and remove wire guide bush.
• Install the new replacement parts.
• Assemble by following these steps in the reverse order

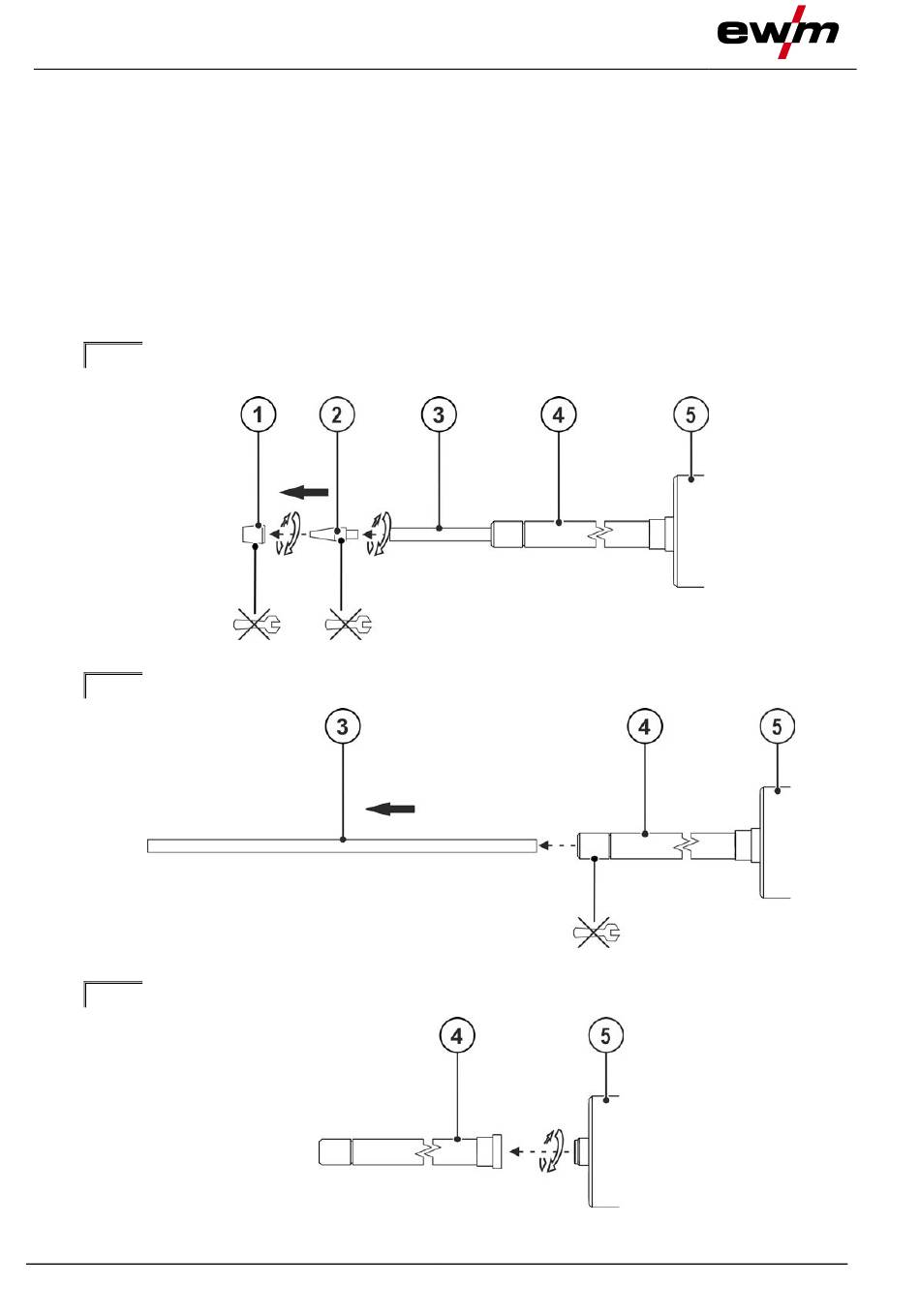

5.8 Converting Euro central connection (EC-S) to Euro central connection
1.
2.
3.
42
Figure 5-41
Figure 5-42
Figure 5-43
