Hardware Installation and Reference Guide

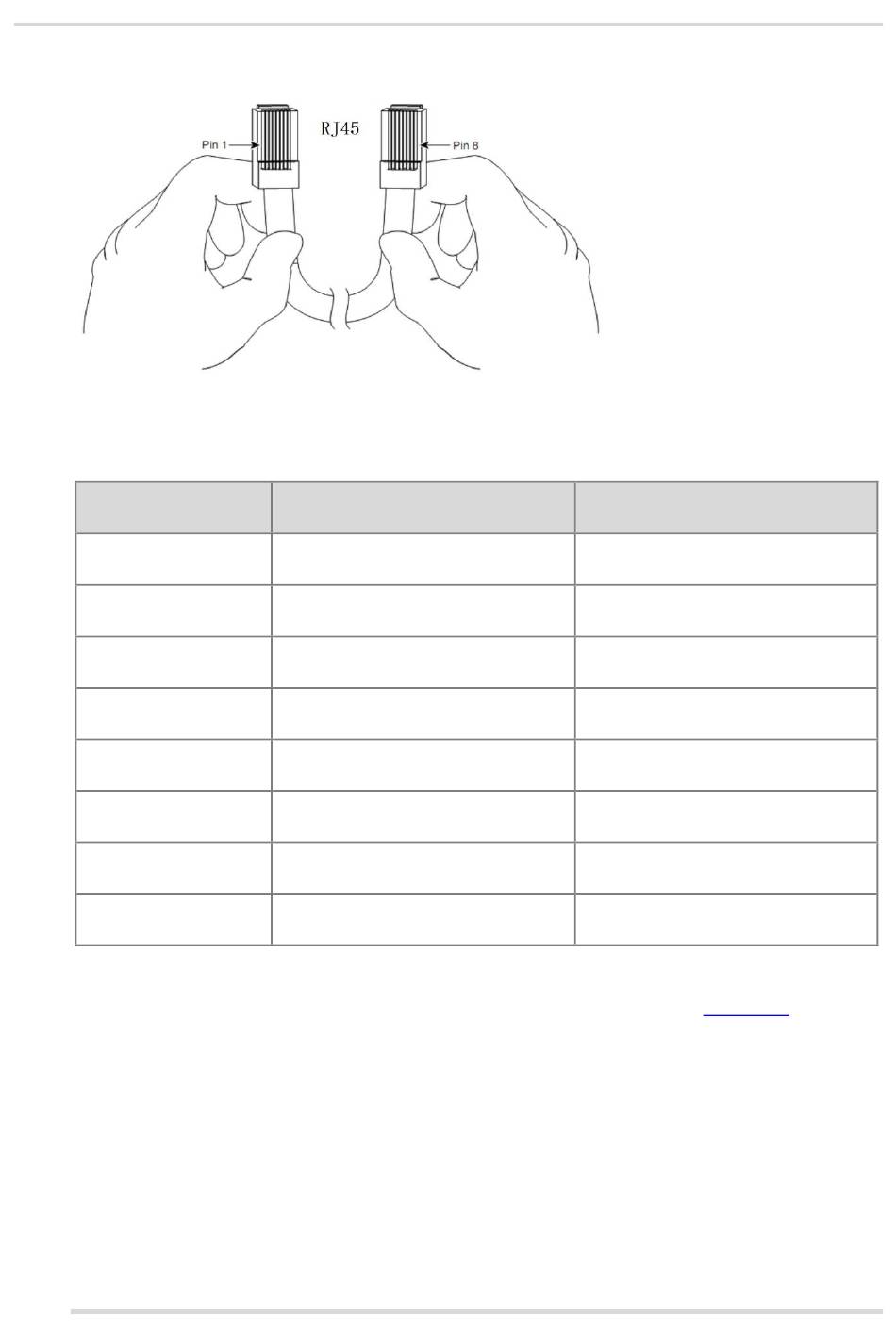

Figure 7-5
Cable Connection Modes and Signals
Table 7-2
1000BASE-T Pin Assignment
Pin
1
2
3
4
5
6
7
8
The 1000BASE-T port employs all four pairs of wires for data transmission.
the twisted pair connection for the 1000BASE-T port.
MDI Mode
Media Dependent Interface A+
Media Dependent Interface A–
Media Dependent Interface B+
Media Dependent Interface C+
Media Dependent Interface C–
Media Dependent Interface B–
Media Dependent Interface D+
Media Dependent Interface D–
MDI-X Mode
Media Dependent Interface B+
Media Dependent Interface B–
Media Dependent Interface A+
Media Dependent Interface D+
Media Dependent Interface D–
Media Dependent Interface A–
Media Dependent Interface C+
Media Dependent Interface C–
68
Appendix
Figure 7-6
shows
