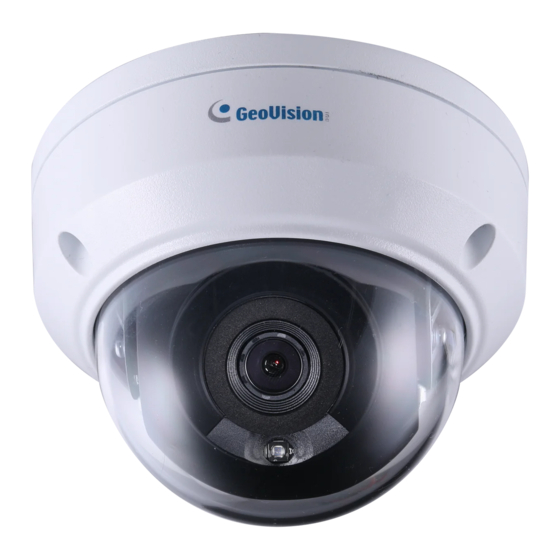

GeoVision GV-TFD Series Quick Start Manual

GeoVision GV-TFD Series Quick Start Manual

Gv-ip camera
Hide thumbs Also See for GV-TFD Series:

Advertisement

Quick Links

GV-ABL / TBL Series, GV-TBLP5800
GV-ADR / TDR Series
GV-AVD / TVD Series
GV-BLFC5800
GV-EBD Series, GV-EBDP5800
GV-EBFC5800
GV-FER5702
GV-PTZ5810-IR
GV-TFD Series
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
Quick Start Guide
GV-IP Camera
UBN-QG-ZC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-TFD Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GeoVision GV-TFD Series

  • Page 1 GV-ABL / TBL Series, GV-TBLP5800 GV-ADR / TDR Series GV-AVD / TVD Series GV-BLFC5800 GV-EBD Series, GV-EBDP5800 GV-EBFC5800 GV-FER5702 GV-PTZ5810-IR GV-TFD Series Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. UBN-QG-ZC...
  • Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
  • Page 3: Table Of Contents

    4.2.2 GV-TVD4711 / TVD4811 ..........................30 4.3 Installation .......................... 32 4.3.1 GV-AVD2700 / 4710 / 8710, GV-TVD4700 / 4710 / 4810 / 8710 / 8810 ..........32 4.3.2 GV-TVD4711 / TVD4811 ..........................34 5. GV-TFD Series ........................36 5.1 Packing List ........................36...
  • Page 4 5.1.1 GV-TFD4700 / 4800 ........................... 36 5.2 Overview ..........................37 5.2.1 GV-TFD4700 / 4800 ........................... 37 5.3 Installation .......................... 38 5.3.1 GV-TFD4700 / 4800 ........................... 38 6. GV-FER5702 ..........................39 6.1 Packing List ........................39 6.1.1 GV-FER5702 ............................... 39 6.2 Overview ..........................40 6.2.1 GV-FER5702 ...............................
  • Page 5: Note For Connecting To Gv-Vms / Dvr / Nvr

    Note for Connecting to GV-VMS / DVR / NVR The GV-IPCAM is designed to work with and record on GV-VMS / DVR / NVR, a video management system. • Once the camera is connected to the GV-VMS / DVR / NVR, the resolution set on the GV-VMS / DVR / NVR will override the resolution set on the camera’s Web interface.
  • Page 6: Note For Face Detection

    Note for Face Detection To use the camera’s built-in face detection feature (see 3.6.1.7 Face Detection in the User’s Manual), which is only supported by certain models, it is recommended to install the camera according to the criteria listed below Surveillance Condition •...
  • Page 7: Note For People Counting

    Note for People Counting To use the camera’s built-in people counting feature (see 3.6.1.8 People Counting in the User’s Manual), which is only supported by certain models, it is recommended to install the camera according to the criteria listed below: Surveillance Condition •...
  • Page 8: Gv-Ebd Series, Gv-Ebfc5800, Gv-Ebdp5800

    1. GV-EBD Series, GV-EBFC5800, GV-EBDP5800 Camera Type Model No. GV-EBD2702 (IP67) GV-EBD2704 (IP67) GV-EBD4700 (IP67) GV-EBD4701 (IP67) GV-EBD4704 (IP67) GV-EBD4711 (IP67) GV-EBD4712 (IP67) Eyeball IP Dome GV-EBD4813 (IP67) GV-EBD8700 (IP67) GV-EBD8711 (IP67) GV-EBD8800 (IP67) GV-EBD8813 (IP67) GV-EBDP5800 (IP67) GV-EBFC5800 (IP67)
  • Page 9: Packing List

    1.1 Packing List The packing list varies depending on the model. Product details can be found on the datasheet. Eyeball Dome • Screw Kit Drill Template Paster • • Waterproof Rubber Set Download Guide • • Torx Wrench (not available for all models) •...
  • Page 10: Overview

    GV-EBD Series 1.2 Overview 1.2.1 GV-EBD2702 / 2704 / 4700 / 4701 / 4704 / 8700 / 8800 and GV-EBFC5800 Description Bottom ring Housing Lens Infrared indicator / Warm LEDs (GV-EBFC5800 only) Power connector (DC 12 V) Ethernet connector / PoE Micro SD card slot (GV-EBD2704 / 4701 / 4704 / 8800 and GV-EBFC5800 only) Microphone (GV-EBD2704 / 4701 / 4704 / 8800 and...
  • Page 11: Gv-Ebd4711 / 4712 / 4813 / 8711 / 8813, Gv-Ebdp5800

    1.2.2 GV-EBD4711 / 4712 / 4813 / 8711 / 8813, GV-EBDP5800 Description Bottom ring Housing Microphone Lens Power connector (DC 12 V) Ethernet connector / PoE Micro SD card slot and default button compartment Default button Micro SD card slot Note: If the default button doesn’t respond after pressing for 15 seconds, reboot the camera and try again within 10 minutes of rebooting.
  • Page 12: Installation

    GV-EBD Series 1.3 Installation The Target Eyeball Dome is designed for outdoors. With the standard package, you can install the camera on the ceiling. Or you can purchase optional mounting accessories to mount the dome on a wall. Below are the instructions for Ceiling Mount. There are two kinds of Ceiling Mount: Concealed Installation and Open Installation.
  • Page 13 3. Remove the bottom ring by turning it anticlockwise. Bottom Ring 4. Connect the cables and secure the camera. Connect the cables and protect them with waterproof tape Attach the camera to ceiling with screws 5. Adjust the monitoring direction. The camera can rotate 360 degrees horizontally The lens can rotate 80...
  • Page 14 GV-EBD Series 6. Mount the bottom ring. Push the bottom ring back up and turn it clockwise to lock into position For Open Installation Lead the cables out from the open slot on the bottom ring before screwing the camera to the ceiling as shown in step 4 of Conceal Installation.
  • Page 15: Gv-Ebd4711 / 4712 / 4813 / 8711 / 8813 Installation

    1.3.2 GV-EBD4711 / 4712 / 4813 / 8711 / 8813 Installation For Concealed Installation Stick the drill template paster to the ceiling and drill three holes according to the drill template. Drill Template Paster Insert the screw anchors. Drill a hole to lead the cables out of the ceiling Knock in screw anchors...
  • Page 16 GV-EBD Series Loosen the fixing screw and remove the housing by turning it to the position as shown. Secure the bottom ring to the ceiling with 3 supplied screws and connect the cable. Connect cable and protect it with waterproof tape (Optional) insert a Attach bottom ring to micro SD card...
  • Page 17 Adjust the monitoring direction. Then tighten the screw. For Open Installation Lead the cables out from the open slot on the bottom ring before screwing the camera to the ceiling as shown in step 5 of Concealed Installation. Open slot on the bottom ring Note: You can optionally purchase GV-Mount211 or GV-Mount212 for Wall Bracket Mount.
  • Page 18: Gv-Abl / Tbl Series, Gv-Blfc5800, Gv-Tblp5800

    2. GV-ABL / TBL Series, GV-BLFC5800, GV-TBLP5800 Camera Type Model No. GV-ABL2701 Series (IP66) GV-ABL2702 (IP67 + IK10) GV-ABL2703 Series (IP67) GV-ABL4701 Series (IP66) GV-ABL4703 (IP67) GV-ABL4711 (IP67 + IK10) GV-ABL4712 (IP67) GV-ABL8712 (IP67 + IK10) GV-TBL2703 Series (IP67) GV-TBL2705 (IP67) Bullet IP Camera GV-TBL4700 (IP67 + IK10) GV-TBL4703 (IP67)
  • Page 19: Packing List

    2.1 Packing List The packing list varies depending on the model. Product details can be found on the datasheet. • Bullet IP Camera Waterproof Rubber Set • • Screw Kit Drill Template Paster • • Download Guide Torx Wrench (not available for all models) •...
  • Page 20: Overview

    GV-ABL Series 2.2 Overview 2.2.1 GV-ABL2701 / 2703 / 4701 / 4703 & TBL2703 / 2705 / 4703 / 4705 / 8804 Description Power connector (DC 12 V) Ethernet connector / PoE No. Description No. Description Load Default button Grounding screw (GV-TBL8804) Note: The Load Default button is for GV-ABL2703 / 4703 &...
  • Page 21 GV-TBL8804 GV-TBL2705 / 4705 GV-TBL4807 GV-TBLP5800 No. Description Description ⚫ Load default button / SD card slot (GV-TBL4807 / 8804, GV-TBLP5800) IR LED x 2 (GV-TBL2705 / 4705) ⚫ SD card slot (GV-TBL2705 / 4705 / 4807 / 8804, GV-TBLP5800) Built-in speaker (GV-TBL8804) Built-in microphone x 2 (GV-TBL4807) IR LED x 4 (GV-TBL4807)
  • Page 22: Blfc5800

    GV-ABL Series 2.2.2 GV-ABL2702 / 4711 / 4712 / 8712, TBL4700 / 4710 / 4711 / 4807 / 4810 / 8710 / 8810, and BLFC5800 Description Power connector (DC 12 V) Audio input / output / GND Alarm input (IN, GND) / output (N, P) Ethernet connector / PoE Video Output (GV-ABL8712 / TBL8710 Only) Note: GV-TBL4807 does not have the terminal blocks for audio input / output (No.
  • Page 23: Installation

    2.3 Installation The Bullet IP Camera is designed for outdoors. With the standard package, you can install the camera on the wall or ceiling. Or, you can purchase optional mounting accessories to mount your camera on a wall. Below are the instructions for Wall Mount. There are two kinds of Wall Mount: Concealed Installation and Open Installation.
  • Page 24 GV-ABL Series Lead the cables across the hole on the wall. Drill the holes according to the drill template. Insert the screw anchors.
  • Page 25 Screw the locknut and loosen the universal joint before attaching the camera to the wall. Secure the camera to the wall and connect all cables. To adjust the monitoring direction: GV-ABL2702 / 4711 / 4712 / 8712, TBL4700 / 4710 / 4711 / 4810 / 8710 / 8804 / 8810, and BLFC5800...
  • Page 26 GV-ABL Series GV- TBL2705 / 4705 / 8804, GV-TBLP5800 For Open Installation Lead the cables out from the open slot on the base before screwing the camera to the wall as shown in step 6 in For Concealed Installation.
  • Page 27: Gv-Adr / Tdr Series

    3. GV-ADR / TDR Series Camera Type Model No. GV-ADR2701 (IP66) GV-ADR2702 (IP67 + IK10) GV-ADR4701 (IP66 + IK10) GV-ADR4702 (IP67 + IK10) GV-TDR2700 Series (IP67 + IK10) GV-TDR2702 (IP67 + IK10) Mini Fixed Rugged IP Dome GV-TDR2704 Series (IP67 + IK10) GV-TDR4700 Series (IP67 + IK10) GV-TDR4702 (IP67 + IK10) GV-TDR4703 (IP67 + IK10)
  • Page 28: Packing List

    GV-ADR / TDR Series 3.1 Packing List IR Mini Fixed Rugged IP Dome Waterproof Rubber Set • • Screw Kit Drill Template Paster • • Download Guide • Torx wrench (comes with some models) •...
  • Page 29: Overview

    3.2 Overview Description Ethernet connector / PoE Power connector (DC 12 V) Transparent Dome Cover Micro SD card slot For GV-TDR2700 / 4700 / 4703 series / GV-TDR8805 only, see the table below. Wire Definition GV-TDR4703 series / 4803 series / GV-TDR2700 series / 4700 series GV-TDR8805 Wire...
  • Page 30: Installation

    GV-ADR / TDR Series 3.3 Installation The IR Mini Fixed Rugged IP Dome is designed for outdoors. With the standard package, you can install the camera on the ceiling. Below are the instructions for Ceiling Mount. There are two kinds of Ceiling Mount: Concealed Installation and Open Installation.
  • Page 31 Unscrew the transparent dome cover with the supplied torx wrench. Connect the cables and secure the camera. Adjust the monitoring direction and tighten the screws after vertically adjusting the lens.
  • Page 32 GV-ADR / TDR Series Secure the transparent dome cover with the supplied torx wrench. Note: Before securing the transparent dome cover, make sure the waterproof rubber strip is tightly held by the six retainers on the bottom ring. For Open Installation Lead the cables out from the open slot on the camera base before screwing the camera to the ceiling as shown in step 4 in For Concealed Installation.
  • Page 33: Gv-Avd / Tvd Series

    4. GV-AVD / TVD Series Camera Name Model No. GV-AVD2700 (IP67 + IK10) GV-AVD4710 (IP67 + IK10) GV-AVD8710 (IP67 + IK10) GV-TVD4700 (IP67 + IK10) GV-TVD4710 (IP67 + IK10) Vandal Proof IP Dome GV-TVD4711 (IP66 + IK10) GV-TVD4810 (IP67 + IK10) GV-TVD4811 (IP66 + IK10) GV-TVD8710 (IP67 + IK10) GV-TVD8810 (IP67 + IK10)
  • Page 34: Packing List

    GV-AVD / TVD Series 4.1 Packing List 4.1.1 GV-TVD4711 / TVD4811 IR Vandal Proof IP Dome Screw Kit • • Drill Template Paster Torx Wrench • • Spare Waterproof Rubber Plug Cable Protection Connector • • 2-Pin Power Terminal Block Download Guide •...
  • Page 35: Gv-Avd / Tvd Series

    4.1.2 GV-AVD / TVD Series IR Vandal Proof IP Dome Waterproof Rubber Set • • Screw Kit Drill Template Paster • • Torx Wrench Download Guide • •...
  • Page 36: Overview

    GV-AVD / TVD Series 4.2 Overview 4.2.1 GV-AVD2700 / 4710 / 8710, GV-TVD4700 / 4710 / 4810 / 8710 / 8810 No. Description No. Description Power connector (DC 12 V) Default button Ethernet connector / PoE Micro SD card slot Video output Default button (For GV-TVD4810 / 8810)
  • Page 37: Gv-Tvd4711 / Tvd4811

    4.2.2 GV-TVD4711 / TVD4811 No. Description Description Ethernet port Digital Input Power port (2-Pin terminal block) 9 Micro SD card slot Audio In Default button Digital Output (N) Audio Out Digital Output (P) Microphone (GV-TVD4811 only)
  • Page 38 GV-AVD / TVD Series Note: There are two ways to supply power to the camera: ⚫ Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time. ⚫...
  • Page 39: Installation

    4.3 Installation The Target Vandal Proof Dome is designed for outdoors. With the standard package, you can install the camera on the ceiling. Alternatively, you can purchase optional mounting accessories to mount the camera on a wall. Below are the instructions for Ceiling Mount. There are two kinds of Ceiling Mount: Concealed Installation and Open Installation.
  • Page 40 GV-AVD / TVD Series 3. Unscrew the transparent dome cover with the supplied torx wrench. 4. Connect the camera cables and secure the camera. 5. Insert a SD card into the slot. 6. Adjust the monitoring direction and tighten the screws after vertically adjusting the lens.
  • Page 41: Gv-Tvd4711 / Tvd4811

    4.3.2 GV-TVD4711 / TVD4811 Follow steps 1 to 3 in 4.3.1 GV-AVD2700 / 4710 / 8710, GV-TVD4700 / 4710 / 4810 / 8710. To install an Ethernet / PoE cable: Remove the large waterproof rubber plug from the base of the camera. Cut a small opening on the tip of the large waterproof rubber plug.
  • Page 42 GV-AVD / TVD Series 10. Connect the 2-pin terminal block and I/O wires to the camera. Tip: When connecting the I/O wires to the camera, thread the I/O wires through the protruded loop. To finish the installation: 11. Secure the camera and insert a micro SD card to the slot. 12.
  • Page 43: Gv-Tfd Series

    5. GV-TFD Series Camera Type Model No. GV-TFD4700 Mini Fixed IP Dome GV-TFD4800 5.1 Packing List 5.1.1 GV-TFD4700 / 4800 IR Mini Fixed IP Dome Screw Kit • • 2-Pin Power Terminal Block (for GV-TFD4700 Torx Wrench • • only) Drill Template Paster •...
  • Page 44: Overview

    GV-AVD / TVD Series 5.2 Overview 5.2.1 GV-TFD4700 / 4800 11 12 No. Description No. Description Power port (2-Pin terminal block) Audio In Ethernet port Alarm Input Default button Micro SD card slot Audio Out Alarm Output P Alarm Output N Note: There are two ways to supply power to the camera: ⚫...
  • Page 45: Installation

    5.3 Installation The IR Mini Fixed IP Dome is designed for indoors. With the standard package, you can install the camera on the ceiling. Below are the instructions for Ceiling Mount. There are two kinds of Ceiling Mount: Concealed Installation and Open Installation. In Concealed Installation, the cables are hidden in the ceiling.
  • Page 46: Gv-Fer5702

    6. GV-FER5702 Camera Type Model No. IR Fisheye Rugged IP Camera GV-FER5702 6.1 Packing List 6.1.1 GV-FER5702 IR Fisheye Rugged IP Camera (GV-FER5702) • Drill Template Paster • Waterproof Rubber Set Screw Kit • • Download Guide •...
  • Page 47: Overview

    GV-FER5702 6.2 Overview 6.2.1 GV-FER5702 No. Description No. Description Green wire-Alarm output - Power connector (DC 12V) Yellow wire-Audio output Ethernet connector / PoE White wire-GND Brown wire-Alarm input Purple wire-Audio input Blue wire-GND Orange wire-Alarm output + Load Default Button No.
  • Page 48: Installation

    6.3 Installation The IR Fisheye Rugged IP Camera is designed for outdoors. With the standard package, you can install the camera on the wall or ceiling. Or, you can purchase optional mounting accessories to mount your camera on a wall. Below are the instructions for Ceiling Mount.
  • Page 49 GV-FER5702 Remove the housing by turning it anticlockwise. Secure the camera base onto the ceiling with 3 screws supplied and lock up the housing by turning it clockwise.
  • Page 50: Gv-Ptz5810-Ir

    7. GV-PTZ5810-IR Camera Type Model No. IR IP Mini PTZ Camera GV-PTZ5810-IR 7.1 Packing List 7.1.1 GV-PTZ5810-IR IR IP Mini PTZ Camera (GV-PTZ5810-IR) • Screw Kit • Download Guide • Drill Template Paster •...
  • Page 51: Overview

    GV-PTZ5810-IR 7.2 Overview 7.2.1 GV-PTZ5810-IR No. Description No. Description Power connector (DC 12V) Orange / white wire-Alarm output_P Ethernet connector / PoE Orange wire-Alarm output_N Yellow / black wire-RS485_A Built-in microphone Yellow wire-RS485_B IR LED Purple wire-Alarm input Built-in speaker Black wire-GND Ready LED No.
  • Page 52: Installation

    7.3 Installation The IR IP Mini PTZ Camera is designed for indoors. With the standard package, you can install the camera on the wall or ceiling. Or, you can purchase optional mounting accessories to mount your camera on a wall. Below are the instructions for Ceiling Mount.
  • Page 53 GV-PTZ5810-IR Fix the adapter plate to the ceiling with screws. Secure the camera to the adapter plate and rotate the camera counterclockwise until it’s fastened.
  • Page 54: Waterproofing The Cable

    8. Waterproofing the Cable Waterproof the Ethernet cable by using the supplied waterproof rubber set. Attach the seal ring to the RJ-45 plug. Insert the waterproof components through the Ethernet cable as shown below. Insert the cylindrical waterproof ring into waterproof bolt. Insert the cable into the RJ-45 plug and screw the waterproof bolt in.
  • Page 55 Screw in the waterproof bolt lid. Finish the waterproof installation. If the camera has a DC cable and is not in use, you can waterproof it by inserting the supplied plug into the DC interface. IMPORTANT: After installing the camera, it is required to use waterproof tapes to cover and protect any of the tail cables and connection points that are exposed, see Note for Installing Camera Outdoor at the beginning of the quick start guide.
  • Page 56: Accessing The Camera

    9. Accessing the Camera 9.1 System Requirements Once installed, your camera is accessible over the network. Make sure your PC has good network connection and meet the following requirements: Intel Core i5-4670, 3.40 GHz Memory DDR3 8 GB RAM On Board Graphics Intel HD Graphics 4600 (Versions of driver from year 2014 or later required) ⚫...
  • Page 57: Looking Up The Dynamic Ip Address

    9.2 Looking Up the Dynamic IP Address By default, when the camera is connected to LAN a with DHCP server, it is automatically assigned with a dynamic IP address. Follow the steps below to look up its IP address. Note: The computer you use to configure the IP address must be under the same LAN as your camera.
  • Page 58: Configuring The Ip Address

    Accessing the Camera 9.3 Configuring the IP Address If the camera is connected to a LAN without DHCP server, the default IP address will be 192.168.0.10. Follow the steps below to modify the IP address to avoid IP conflict with other GV-IP devices on the same LAN. 1.
  • Page 59: The Web Interface

    10. The Web Interface Once you log in the Web interface, you will see the live view as shown below. 10 11 12 13 14 15 No. Name Function Set the display ratio of the image. • Scale: display images by 16:9. Proportional •...
  • Page 60 The Web Interface Only for models with motorized varifocal lens, increase Zoom +/- the camera’s optical zoom. or decrease Only for models with motorized varifocal lens, increase Focus +/- or decrease the camera focus. Play/Stop Play or stop live video. Only for audio-supporting models, adjust the audio output Video Volume volume on the PC.
  • Page 61: Upgrading System Firmware

    11. Upgrading System Firmware GeoVision periodically releases updated firmware on the company website. To load the new firmware into the camera, follow the instructions below. 1. At the top of the Web interface, click Setup. 2. In the left menu, select System and select Maintenance. This page appears.
  • Page 62: Restoring To Factory Default

    12. Restoring to Factory Default If for any reason the camera is not responding correctly, you can restore the camera back to its factory default settings using the Web interface or the Default button. Note: 1. Only the following models have a default button: GV-ABL2703 series / 4703, GV-AVD2700 / 4710 / 8710, GV-EBD4711 / 4712 / 8711 / 8813, GV-FER5702, GV-PTZ5810-IR, GV-TBL2703 series / 4703 / 4807 / 8804, GV-TFD4700 / 4800, and GV-TVD4700 / 4710 / 4711 / 4811 / 8710 / 8810.
