GV-IP Camera
GV-ABL / TBL Series
GV-ADR / TDR Series
GV-AVD / TVD Series
GV-BLFC5800
GV-EBD Series
GV-EBFC5800
GV-FER5702
GV-PTZ5810-IR
GV-TFD Series
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
User's Manual
UBN-UM-Y

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-ABL Series and is the answer not in the manual?

Questions and answers

Related Manuals for GeoVision GV-ABL Series

Summary of Contents for GeoVision GV-ABL Series

  • Page 1 GV-IP Camera User's Manual GV-ABL / TBL Series GV-ADR / TDR Series GV-AVD / TVD Series GV-BLFC5800 GV-EBD Series GV-EBFC5800 GV-FER5702 GV-PTZ5810-IR GV-TFD Series Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. UBN-UM-Y...
  • Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
  • Page 3 Preface Welcome to the GV-IP Camera User’s Manual. The features described in the manual vary among camera models and versions. Some features may not be available in your camera. This Manual is designed for the following models: Model Model Number GV-EBD2702 / 2704 GV-EBD4700 / 4701 / 4704 / 4711 / 4712 / 4813 IR Eyeball Dome...

  • Page 4: Table Of Contents

    Contents Naming Definition ..............vi Note for Connecting to GV-VMS / DVR / NVR ......vii Note for Installing Camera Outdoor ........vii Note for Powering the Camera ..........vii Note for Face Detection ............viii Note for People Counting ............ix Chapter 1 Introduction ............1 1.1 GV-EBD Series and GV-EBFC5800 ..............
  • Page 5 1.2.5.1 GV-Mount502 ................36 1.2.5.2 GV-Mount503 ................38 1.2.5.3 GV-Mount420 + GV-Mount503 ............40 1.2.5.4 GV-Mount504 ................42 1.3 GV-ADR / TDR Series ..................44 1.3.1 Packing List....................46 1.3.2 Optional Accessories ................46 1.3.3 Overview ....................49 1.3.4 Installation ....................50 1.3.5 Optional Installation ...................53 1.3.5.1 GV-Mount211P ..................53 1.4 GV-AVD / TVD Series ...................57 1.4.1 Packing List....................58 1.4.1.1 GV-TVD4711 ................58...
  • Page 6 1.6 GV-FER5702 ......................81 1.6.1 Packing List ....................81 1.6.2 Optional Accessories ..................82 1.6.3 Overview .....................83 1.6.3.1 GV-FER5702 ..................83 1.6.4 Installation ....................84 1.6.5 Optional Installation ..................86 1.7 GV-PTZ5810-IR ....................87 1.7.1 Packing List ....................87 1.7.2 Optional Accessories ..................88 1.7.3 Overview .....................89 1.7.3.1 GV-PTZ5810-IR ...................89 1.7.4 Installation ....................90 1.7.5 Optional Installation ..................92 1.8 System Requirements ...................93...
  • Page 7 3.2.3 Port ......................119 3.2.4 DDNS ...................... 120 3.2.5 E-mail ...................... 122 3.2.6 SNMP ..................... 123 3.2.7 802.1x ..................... 124 3.2.8 QoS ......................125 3.3 Video & Audio ..................... 126 3.3.1 Video....................... 126 3.3.2 Snapshot ....................128 3.3.3 Audio....................... 130 3.3.4 ROI ......................
  • Page 8 Events ........................ 169 3.7.1 Motion Detection ..................169 3.7.2 Tampering Alarm ..................171 3.7.3 Audio Detection ..................172 3.7.4 Alarm Input....................173 3.7.5 Alarm Output ................... 174 3.7.6 One-Key Shielding Linkage ..............175 3.8 Storage ....................... 176 3.8.1 Formatting Storage ................. 176 3.8.2 FTP ......................
  • Page 9 Appendix ................202 A. RTSP Multicast Protocol Support ................. 202 B. RTSP Protocol Support ..................202 C. HTTP Protocol Support ..................202 D. Compatible Versions of GV-VMS / DVR / NVR ............. 203 E. GV-Mount Dimensions ..................205 F. GV-Mount300-2 / 310-2 ..................208 G.

  • Page 10: Naming Definition

    Naming Definition GV-DVR / NVR GeoVision Analog and Digital Video Recording Software. The GV- DVR also refers to GV-Multicam System or GV-Hybrid DVR. GV-VMS GeoVision Video Management System for IP cameras.

  • Page 11: Note For Connecting To Gv-Vms / Dvr / Nvr

    Note for Connecting to GV-VMS / DVR / NVR The GV-IPCAM in this Manual is designed to work with and record on GV-VMS / DVR / NVR, a video management system. • Once the camera is connected to the GV-VMS / DVR / NVR, the resolution set on the GV-VMS / DVR / NVR will override the resolution set on the camera’s Web interface.

  • Page 12: Note For Face Detection

    Note for Face Detection To use the camera’s built-in face detection feature (see 3.5.1.7 Face Detection), which is only supported by certain models, it is recommended to install the camera according to the criteria listed below: Surveillance Condition • The camera shall be installed at a site with uniform, sufficient lighting, where the face(s) to be detected are fully illuminated.

  • Page 13: Note For People Counting

    Note for People Counting To use the camera’s built-in people counting feature (see 3.5.1.8 People Counting), which is only supported by certain models, it is recommended to install the camera according to the criteria listed below: Surveillance Condition • The camera shall be installed at a site with uniform, sufficient lighting, where the person(s) to be counted are fully illuminated.

  • Page 14: Chapter 1 Introduction

    Introduction Chapter 1 Introduction 1.1 GV-EBD Series and GV-EBFC5800 The H.265 Eyeball Dome is an outdoor, network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. For GV-EBFC5800, it’s equipped with full color smart warm LEDs for accurate day and night surveillance. The camera adheres to IP67 standards for dust / water protection and supports H.265 video codec to achieve better compression ratio while maintaining high quality image at reduced network bandwidths.

  • Page 15: Packing List

    1.1.1 Packing List • H.265 Target Eyeball Dome • • Screw Kit Drill Template Paster • • Waterproof Rubber Set Download Guide 1.1.2 Optional Accessories Optional accessories can expand the capabilities and versatility of your camera. Contact your dealer for more information. Model Number Name Details...
  • Page 16 Introduction GV-Mount300-2 Convex Corner Mount Dimensions: 137 x 233 x 160 mm (5.4” x 9.17” x 6.3”) Weight: 1.65 kg (3.64 lb) GV-Mount310-2 Concave Corner Mount Dimensions: 111.2 x 369.9 x 210 mm (2.6” x 11.4” x 6.6”) Weight: 1.65 kg (3.64 lb) GV-Mount420 Pole Mount Bracket Dimensions: Ø...

  • Page 17: Overview

    1.1.3 Overview 1.1.3.1 GV-EBD2702 / 2704 / 4700 / 4701 / 4704 / 8700 / 8800 and GV- EBFC5800 Figure 1-1 No. Description Bottom ring Housing Lens Infrared indicator / Warm LEDs (GV-EBFC5800 only) Power connector (DC 12 V) Ethernet connector / PoE Micro SD card slot (GV-EBD2704 / 4701 / 4704 / 8800 and GV- EBFC5800 only) Microphone (GV-EBD2704 / 4701 / 4704 / 8800 and GV-...

  • Page 18: Gv-Ebd4711 / 4712 / 4813 / 8711 / 8813

    Introduction 1.1.3.2 GV-EBD4711 / 4712 / 4813 / 8711 / 8813 Figure 1-2 Description Bottom ring Housing Microphone Lens Power connector (DC 12 V) Ethernet connector / PoE Micro SD card slot and default button compartment Default button Micro SD card slot Note: If the default button doesn’t respond after pressing for 15 seconds, reboot the camera and try again within 10 minutes of rebooting.

  • Page 19: Installation

    1.1.4 Installation The Target Eyeball Dome is designed for outdoors. With the standard package, you can install the camera on the ceiling. Alternatively, you can purchase optional mounting accessories to mount the dome on a wall. Below are the instructions for Ceiling Mount. There are two kinds of Ceiling Mount: Concealed Installation and Open Installation.
  • Page 20 Introduction Insert the screw anchors. Drill a hole to lead the cables out of the ceiling Knock in screw anchors Figure 1-4 Remove the bottom ring by turning it anticlockwise. Bottom Ring Figure 1-5 Connect the cables and secure the camera. Connect the cables and protect them with waterproof tape Attach the camera to ceiling...
  • Page 21 Adjust the monitoring direction. The camera can rotate 360 degrees horizontally The lens can rotate 80 degrees vertically Figure 1-7 Mount the bottom ring. Push the bottom ring back up and turn it clockwise to lock into position Figure 1-8 For Open Installation Lead the cables out from the open slot on the bottom ring before screwing the camera to the ceiling as shown in Figure 1-6.

  • Page 22: Gv-Ebd4711 / 4712 / 4813 / 8711 / 8813 Standard Installation

    Introduction 1.1.4.2 GV-EBD4711 / 4712 / 4813 / 8711 / 8813 Standard Installation For Concealed Installation 1. Stick the drill template paster to the ceiling and drill three holes according to the drill template. Drill Template Paster Figure 1-10 2. Insert the screw anchors. Drill a hole to lead the cables out of the ceiling Knock in screw anchors Figure 1-11...
  • Page 23 4. Secure the bottom ring to the ceiling with 3 supplied screws and connect the cable. Connect cable and protect it with waterproof tape (Optional) insert a Attach bottom ring to micro SD card ceiling with taping screws Figure 1-13 5.
  • Page 24 Introduction WARNING: Make sure the housing is not dismounted from the bottom ring when adjusting the monitoring direction. Unintentional removal of the housing may result in circumstantial damages. For Open Installation Lead the cables out from the open slot on the bottom ring before mounting the housing as shown in Figure 1-14.

  • Page 25: Optional Installation

    1.1.5 Optional Installation You can optionally purchase the following accessories to fit your mounting environment: GV-Mount211P / GV-Mount212P for Wall Box Mount: see section 1.1.5.1 and 1.1.5.2. ⚫ GV-Mount420 + GV-Mount211P for Pole Box Mount: see section 1.1.5.3. ⚫ GV-Mount212P + GV-Mount107 for Pendant Tube Mount: see section 1.1.5.4. ⚫...
  • Page 26 Introduction Unscrew the bracket. Figure 1-18 Loosen the indicated area by turning it anticlockwise. Power Box Figure 1-19 Stick the drill template paster to the wall with the arrow pointing up. Drill 4 holes according to the sticker and insert the 4 screw anchors to the 4 holes. Secure the power box to the wall with 4 long screws Figure 1-20...
  • Page 27 Remove the bottom ring by turning it anticlockwise. Bottom Ring Figure 1-21 Secure the camera to the wall mount bracket with the provided short screws according to the screw position for each model: GV-EBD4700 / 4701 / 4704 / 4711 / 4712 / 4813 / 8700 / 8711 / 8800 / 8813 and GV-EBFC5800 Figure 1-22 GV-EBD2702 / 2704...
  • Page 28 Introduction GV-ADR2701 / 4701 Figure 1-24 GV-ADR2702 / ADR4702 / TDR2700 / TDR2702 / TDR2704 / TDR4700 / TDR4702 / TDR4703 / TDR4704 / TDR4803 Figure 1-25 Thread the Ethernet cable through the PG21 conduit connector and the power box as shown in No.
  • Page 29 10. Screw the wall mount bracket to the power box as shown in No. 10, Figure 1-26. Plastic Ring Figure 1-26 11. Mount the bottom ring. Figure 1-27...

  • Page 30: Gv-Mount212P

    Introduction 1.1.5.2 GV-Mount212P Figure 1-28 GV-Mount212P Packing List • • GV-Mount212P Long Screw x 3 • • Short Screw x 3 Screw Anchor x 3...
  • Page 31 Standard Installation Attach the wall box to the wall and use a marker to mark the location for the center socket and the screws. Make sure the knob points down. Long Screw This knob points down Figure 1-29 Drill 3 holes according to the screw location. Then, drill a bigger hole at the center socket location for the Ethernet cable.
  • Page 32 Introduction Thread the Ethernet cable through the center socket and waterproof the Ethernet cable. For details, see 1.8 Waterproofing the Cable. Figure 1-31 Fit the cable into the wall box. Secure the camera by locking the provided short screws to the screw position for each model: GV-EBD2702 / 2704 Figure 1-32...
  • Page 33 8. Mount the bottom ring. Note: In addition to the Standard Installation, you can also choose to run the Ethernet cable through a corrugated tube. To do this, you will have to purchase your own conduit connector and corrugated tube. 3/4” NPS is the recommended type of connector. After you secure the wall box to the desired location, remove the knob at the bottom and connect the conduit connector with a self-prepared corrugated tube to the wall box.

  • Page 34: Gv-Mount420 + Gv-Mount211P

    Introduction 1.1.5.3 GV-Mount420 + GV-Mount211P Figure 1-35 GV-Mount420 Packing List • • GV-Mount420 M4 Screw x 4 • Additional Screw Kit M6 Screw x 4 M6 Nut x 4 M6 Plain Washer x 4 M6 Split Washer x 4 Note: For GV-ADR / TDR / EBD Series, GV-Mount420 can only be used in conjunction with GV-Mount211P.
  • Page 35 1. Unscrew the bracket. Figure 1-36 2. Loosen the indicated area by turning it anticlockwise. Power Box Figure 1-37 3. Align and attach the power box to the back plate using the 4 supplied M4 screws as indicated. Figure 1-38 Note: Make sure the direction of the “up ↑”...
  • Page 36 Introduction 4. Thread the 3 steel straps onto the back plate. Figure 1-39 5. Follow Step 6 ~ 12 in 1.1.5.1 GV-Mount211P. 6. Secure the camera onto the desired pole by tightening the steel straps.

  • Page 37: Gv-Mount212P + Gv-Mount107

    1.1.5.4 GV-Mount212P + GV-Mount107 Figure 1-40 GV-Mount107 Packing List • • Pendant Bracket Pendant Tube • • Tube Connector Torx Wrench Note: Before installing GV-Mount107, note the following. • Install your GV-EBD Series camera on a GV-Mount212P by cutting a hole in the center of the mount and thread the camera wires through.
  • Page 38 Introduction Place GV-Mount107 on the ceiling and mark the location for the center socket and the 3 screws. Drill the marks and secure the Pendant Bracket onto the ceiling. Figure 1-41 Attach one end of the Pendant Tube to the Pendant Bracket, and the other end to the Tube Connector.

  • Page 39: Gv-Abl / Tbl Series & Gv-Blfc5800

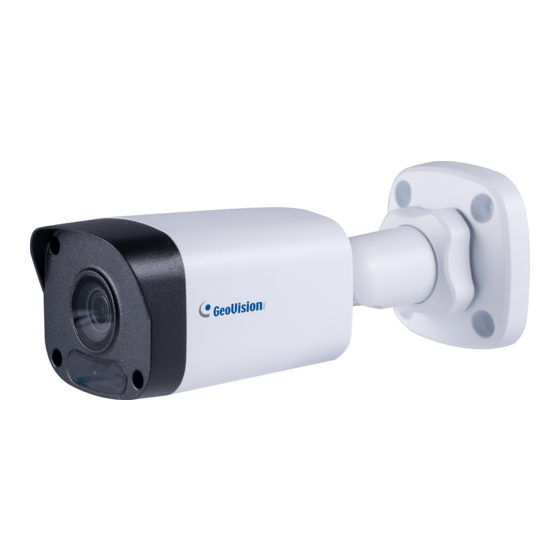

    1.2 GV-ABL / TBL Series & GV-BLFC5800 The Bullet IP Camera is an outdoor, fixed, network camera equipped with an automatic IR- cut filter and an IR LED for day and night surveillance. For GV-BLFC5800, it’s equipped with full color smart warm LEDs for accurate day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality image at reduced network bandwidths.

  • Page 40: Packing List

    Introduction Fixed Iris, f: 2.8 ~ 12 mm, GV-TBL4711 F/1.6, Ø 14 mm Lens Mount 4 MP, H.265, Super Low Lux, WDR Pro Fixed Iris, f: 2.7 ~ 13.5 mm, GV-TBL4810 F/1.2, Ø 14 mm Lens Mount Fixed Iris, f: 2.8 ~ 12 mm, 8 MP, H.265, Super GV-TBL8710 F/1.5, Ø...
  • Page 41 GV-Mount420 (must be Pole Mount Bracket Dimensions: Ø 120 x 120 x 53.4 mm (Ø 4.7” x 4.7” x 2.1”) used with GV-Mount503) Weight: 0.45 kg (0.99 lb) Steel Strap Diameter: Ø 67 ~ 127 mm (Ø 2.6” ~ 5”) GV-Mount502 (for GV- Wall Mount Bracket Dimensions: 93 x 93 x 39 mm...

  • Page 42: Overview

    Introduction 1.2.3 Overview 1.2.3.1 GV-ABL2701 / 2703 / 4701 / 4703 & TBL2703 / 2705 / 4703 / 4705 / 8804 Figure 1-43 No. Description No. Description Power connector (DC 12 V) Ethernet connector / PoE Load Default Button (for GV-ABL2703 / 4703 & TBL2703 / 4703 / 8804 only) Figure 1-44 No.
  • Page 43 Note: 1. For safety precautions, it is recommended to connect a grounding wire to the grounding screw, and do not loosen or remove the grounding screw under any circumstances. 2. If the default button doesn’t respond after pressing for 15 seconds, reboot the camera and try again within 10 minutes of rebooting.

  • Page 44: 8710 / 8804 / 8810, And Blfc5800

    Introduction 1.2.4 Installation The Bullet IP Camera is designed for outdoors. With the standard package, you can install the camera on the wall or ceiling. Or, you can purchase optional mounting accessories to mount your camera on a wall. Below are the instructions for Wall Mount. There are two kinds of Wall Mount: Concealed Installation and Open Installation.
  • Page 45 Lead the cables across the hole on the wall. GV-ABL2702 / 4711 / 4712 / 8712 GV-TBL2705 / 4705 / 8804 TBL4700 / 4710 / 4711 / 4810 / 8710 / 8810 BLFC5800 Figure 1-47 Drill the holes according to the drill template. GV-ABL2702 / 4711 / 4712 / 8712 GV-TBL2705 / 4705 / 8804 TBL4700 / 4710 / 4711 / 4810 / 8710 / 8810...
  • Page 46 Introduction Insert the screw anchors. GV-ABL2702 / 4711 / 4712 / 8712 GV-TBL2705 / 4705 / 8804 TBL4700 / 4710 / 4711 / 4810 / 8710 / 8810 BLFC5800 Figure 1-49 Screw the locknut and loosen the universal joint before attaching the camera to the wall. Figure 1-50 Secure the camera to the wall and connect all cables.

  • Page 47: Optional Installation

    To adjust the monitoring direction: GV-ABL2702 / 4711 / 4712 / 8712, TBL4700 / 4705 / 4710 / 4711 / 4810 / 8710 / 8804 / 8810, and BLFC5800 Figure 1-52-1 GV-TBL2705 / 4705 / 8804 Figure 1-52-2 For Open Installation Lead the cables out from the open slot on the base before screwing the camera to the wall as shown in Figure 1-51.
  • Page 48 Introduction For GV-ABL2702 / 4711 / 4712 / 8712, TBL4700 / 4710 / 4711 / 4810 / 8710 / 8810, and BLFC5800, you can optionally purchase: GV-Mount503 for Wall Box Mount: see section 1.2.5.2. ⚫ GV-Mount420 + GV-Mount503 for Pole Box Mount: see section 1.2.5.3. ⚫...

  • Page 49: Gv-Mount502

    1.2.5.1 GV-Mount502 GV-Mount502 Packing List • • GV-Mount502 M3 25 mm Screw x 4 • • M3 12 mm Screw x 4 Screw Anchor x 4 • Plastic PG21 Conduit Connector 1. Unscrew the box cover. Figure 1-56...
  • Page 50 Introduction 2. Loosen the knob by turning it anticlockwise. Loosen the knob Figure 1-57 3. Attach the box to the wall with the knob pointing down and use a marker to mark 4 dots. 4. Drill 4 holes according to the marks. 5.

  • Page 51: Gv-Mount503

    1.2.5.2 GV-Mount503 GV-Mount503 Packing List • • GV-Mount503 Long Screw x 4 • • Short Screw x 4 Screw Anchor x 4 • Waterproof Rubber Plug ⚫ Plastic PG21 Conduit Connector 1. Unscrew the box cover. Figure 1-59...
  • Page 52 Introduction 2. Loosen the knobs by turning it anticlockwise. Long Screw Loosen the knob Figure 1-60 3. Attach the box to the wall with the knobs pointing down and use a marker to mark 4 dots. 4. Drill 4 holes according to the marks. 5.

  • Page 53: Gv-Mount420 + Gv-Mount503

    Note: Alternatively, you can use the supplied waterproof rubber plug to seal the box cover by following the steps below. Thread the camera cable through the box cover, and then through the supplied waterproof rubber plug from the bottom side. Figure 1-62 Align the gap of the waterproof rubber plug to the direction of the “up ↑”...
  • Page 54 Introduction Note: For GV-ABL2702 / 4711 / 4712 / 8712 and GV-TBL4700 / 4710 / 4711 / 4810 / 8710 / 8810, GV-Mount420 can only be used in conjunction with GV-Mount503. 1. Follow Step 1 & 2 in 1.2.5.2 GV-Mount503. 2.

  • Page 55: Gv-Mount504

    1.2.5.4 GV-Mount504 GV-Mount504 Packing List • • GV-Mount504 Long Screw x 4 • • Short Screw x 3 Screw Anchor x 4 • • Drill Template Paster Waterproof Rubber Plug • Plastic PG21 Conduit Connector 1. Unscrew the box cover. Figure 1-65 2.
  • Page 56 Introduction 5. Position the power box on the wall with the “up ↑” indicator pointing up and align the screw holes indicated below to the 4 mounting holes on the wall. Figure 1-66 6. Secure the power box to the wall with the supplied long screws. 7.

  • Page 57: Gv-Adr / Tdr Series

    1.3 GV-ADR / TDR Series The IR Mini Fixed Rugged IP Dome is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality image at reduced network bandwidths.
  • Page 58 Introduction Fixed Iris, f: 4 mm, 2 MP, H.265, Low GV-TDR2702-1F Lux, WDR F/2.0, M12 Lens Mount Fixed Iris, f: 2.8 mm, GV-TDR2704-2F F/2.0, M12 Lens Mount 2 MP, H.265, Low Lux, WDR Pro Fixed Iris, f: 4 mm, GV-TDR2704-4F F/2.0, M12 Lens Mount Fixed Iris, f: 2.8 mm, GV-TDR4700-0F...

  • Page 59: Packing List

    Fixed Iris, f: 2.8 mm, GV-TDR4803-2F F/1.6, M12 Lens Mount 4 MP, H.265, Super Fixed lens Low Lux, WDR Pro Fixed Iris, f: 4 mm, F/1.6, GV-TDR4803-4F M12 Lens Mount Fixed Iris, f: 2.8 mm, 5 MP, H.265, Super GV-TDR8805 Fixed lens F/1.6, M12 Lens Mount Low Lux, WDR Pro...

  • Page 60: Optional Accessories

    Introduction 1.3.2 Optional Accessories Optional accessories can expand the capabilities and versatility of your camera. Contact your dealer for more information. Model Number Name Details GV-Mount107 Pendant Bracket Dimensions: Ø 120 x 334 mm (Ø 4.72” x 13.15”) (must be used with GV-Mount213) Weight: 0.74 kg (1.63 lb) GV-Mount211P...
  • Page 61 GV-PA191 Power over Ethernet (PoE) GV-PA191 is a Power over Ethernet Adapter (PoE) adapter designed to provide power to the IP device through a single Ethernet cable. GV-POE Switch GV-POE Switch is designed to provide power along with network connection for IP devices. GV-POE Switch is available in various models with different numbers and types of ports.

  • Page 62: Overview

    Introduction 1.3.3 Overview Figure 1-69 Description Ethernet connector / PoE Power connector (DC 12 V) Transparent Dome Cover For GV-TDR2700 / 4700 / 4703 / 4803 series and GV-TDR8805 only, see the table below. Wire Definition GV-TDR4703 series / 4803 series / GV-TDR2700 series / 4700 series GV-TDR8805 Wire...

  • Page 63: Installation

    1.3.4 Installation The IR Mini Fixed Rugged IP Dome is designed for outdoors. With the standard package, you can install the camera on the ceiling. Below are the instructions for Ceiling Mount. There are two kinds of Ceiling Mount: Concealed Installation and Open Installation. In Concealed Installation, the cables are hidden in the ceiling.
  • Page 64 Introduction Unscrew the transparent dome cover with the supplied torx wrench. Connect the cables and secure the camera. Figure 1-72 Adjust the monitoring direction and tighten the screws after vertically adjusting the lens. Figure 1-73...
  • Page 65 Secure the transparent dome cover with the supplied torx wrench. Figure 1-74 Note: Before securing the transparent dome cover, make sure the waterproof rubber strip is tightly held by the six retainers on the bottom ring. Figure 1-75 For Open Installation Lead the cables out from the open slot on the camera base before screwing the camera to the ceiling as shown in Figure 1-72.

  • Page 66: Optional Installation

    Introduction 1.3.5 Optional Installation You can optionally purchase the following accessories to fit your mounting environment: GV-Mount211P for Wall Mount: see section 1.1.5.1. ⚫ GV-Mount213 for Wall / Ceiling Box Mount: see section 1.3.5.1 ⚫ GV-Mount420 + GV-Mount211P for Pole Box Mount: see section 1.1.5.3. ⚫...
  • Page 67 1. Attach the GV-Mount213 to the wall / ceiling and use a marker to mark the location for the center socket and the 3 screws. Figure 1-77 Note: To prevent rain from getting into GV-ADR2701 / 2702 / 4701 / 4702 & TDR2702 / 2704 / 4702 / 4703 / 4704 / 4803 / 8805, •...
  • Page 68 Introduction 3. Insert 3 screw anchors to the screw locations and secure the GV-Mount213 to the wall / ceiling with 3 long screws. 4. Thread the Ethernet cable through the center socket and waterproof the Ethernet cable. For details, see 1.8 Waterproofing the Cable. Figure 1-79 5.
  • Page 69 GV-ADR2702 / ADR4702 / TDR2700 / TDR2702 / TDR2704 / TDR4700 / TDR4702 / TDR4703 / TDR4704 / TDR4803 / TDR8805 Figure 1-81 7. Secure the camera cover. Note: In addition to the Standard Installation, you can also choose to run the Ethernet cable through a corrugated tube.

  • Page 70: Gv-Avd / Tvd Series

    Introduction 1.4 GV-AVD / TVD Series The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. The camera is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axes (pan, tilt and rotate), it offers an entry- level surveillance solution with all the essential features and excellent image quality.

  • Page 71: Packing List

    1.4.1 Packing List 1.4.1.1 GV-TVD4711 • IR Vandal Proof IP Dome • Screw Kit • • Drill Template Paster Torx Wrench • • Spare Waterproof Rubber Plug Cable Protection Connector • • 2-Pin Power Terminal Block Download Guide...

  • Page 72: Gv-Avd / Tvd Series

    Introduction 1.4.1.2 GV-AVD / TVD Series • • IR Vandal Proof IP Dome Waterproof Rubber Set • • Screw Kit Drill Template Paster • • Torx Wrench Download Guide...

  • Page 73: Optional Accessories

    1.4.2 Optional Accessories Optional accessories can expand the capabilities and versatility of your camera. Contact your dealer for more information. Model Number Name Details GV-Mount107 Pendant Bracket Dimensions: Ø 120 x 334 mm (must be used with (Ø 4.72” x 13.15”) GV-Mount212P / Weight: 0.74 kg (1.63 lb) GV-Mount212-2)
  • Page 74 Introduction GV-Mount704 Extension Tube Dimensions: Ø 3.5 x 10 or 20 or 30 (must be used with or 50 cm (Ø 1.38 x 3.9 or 7.9 or 11.8 or 19.7”) GV-Mount107) Weight: 225g or 360g or 500g or 780g (0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb) GV-Mount921 Power over Ethernet (PoE)

  • Page 75: Overview

    1.4.3 Overview 1.4.3.1 GV-AVD2700 / 4710 / 8710, GV-TVD4700 / 4710 / 4810 / 8710 / 8810 Figure 1-82 No. Description No. Description Power connector (DC 12 V) Default button Ethernet connector / PoE Micro SD card slot Video output Default button (For GV-TVD8810) (Not applicable to GV-TVD4700 / 8810) Audio input / Audio output / GND (Not...

  • Page 76: Gv-Tvd4711

    Introduction 1.4.3.2 GV-TVD4711 Figure 1-83 No. Description No. Description Ethernet port Power port (2-Pin terminal block) Digital Input Micro SD card slot Default button Audio In Digital Output (N) Digital Output (P) Audio Out Note: There are two ways to supply power to the camera: Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and ⚫...

  • Page 77: Installation

    1.4.4 Installation The Target Vandal Proof Dome is designed for outdoors. With the standard package, you can install the camera on the ceiling. Alternatively, you can purchase optional mounting accessories to mount the camera on a wall. Below are the instructions for Ceiling Mount. There are two kinds of Ceiling Mount: Concealed Installation and Open Installation.
  • Page 78 Introduction 4. Connect the camera cables and secure the camera. Figure 1-87 5. Insert a SD card into the slot. 6. Adjust the monitoring direction and tighten the screws after vertically adjusting the lens. Figure 1-88 7. Secure the transparent dome cover with the supplied torx wrench. For Open Installation Lead the cables out from the open slot on the camera base before screwing the camera to the ceiling as shown in Figure 1-87.

  • Page 79: Gv-Tvd4711

    1.4.4.2 GV-TVD4711 Follow steps 1 to 3 in 1.4.4.1 GV-AVD2700 / 4710 / 8710, GV-TVD4700 / 4710 / 4810 / 8710 / 8810. To install an Ethernet / PoE cable: Remove the large waterproof rubber plug from the base of the camera. Cut a small opening on the tip of the large waterproof rubber plug.

  • Page 80: Optional Installation

    Introduction 10. Connect the 2-pin terminal block and I/O wires to the camera. Tip: When connecting the I/O wires to the camera, thread the I/O wires through the protruded loop. Figure 1-90 To finish the installation: 11. Secure the camera and insert a micro SD card to the slot. 12.

  • Page 81: Gv-Mount211-2

    1.4.5.1 GV-Mount211-2 GV-Mount211-2 Figure 1-91 GV-Mount211-2 Packing List • • GV-Mount211-2 Long Screw x 5 • • Short Screw x 4 Screw Anchor x 5 • • Plastic PG21 Conduit Connector Drill Template Paster 1. To install the power box from the wall mount bracket on the wall, follow steps 1 to 5 in 1.1.5.1 GV-Mount211P.
  • Page 82 Introduction 2. Unscrew the transparent dome cover with the supplied torx wrench. Figure 1-92 3. Optionally insert a SD card into the slot. 4. Thread the camera cables through the bracket. 5. Secure the camera to the wall mount bracket with the provided short screws. Figure 1-93 6.

  • Page 83: Gv-Mount212-2

    1.4.5.2 GV-Mount212-2 GV-Mount212-2 Figure 1-95 GV-Mount212-2 Packing List • • GV-Mount212-2 Long Screw x 3 • • Short Screw x 3 Screw Anchor x 3...
  • Page 84 Introduction 1. Attach the ceiling box to the ceiling and use a marker to mark the location for the center socket and the screws. Make sure the knob points inwards. Screw Location This knob points down Figure 1-96 2. Drill 3 holes according to the screw location. Then, drill a bigger hole at the center socket location for the Ethernet cable.
  • Page 85 6. Secure the camera to the ceiling box. Figure 1-98 Note: In addition to the Standard Installation, you can also choose to run the Ethernet cable through a corrugated tube. To do this, see Figure 1-34 and its related Note.

  • Page 86: Gv-Mount420 + Gv-Mount211-2

    Introduction 1.4.5.3 GV-Mount420 + GV-Mount211-2 Figure 1-99 GV-Mount420 Packing List • • GV-Mount420 M4 Screw x 4 • Additional Screw Kit M6 Screw x 4 M6 Nut x 4 M6 Plain Washer x 4 M6 Split Washer x 4 Note: For GV-AVD Series, GV-Mount420 can only be used in conjunction with GV- Mount211-2.

  • Page 87: Gv-Mount606

    1.4.5.4 GV-Mount606 GV- Mount606 Figure 1-100 GV-Mount606 Packing List • • In-Ceiling Mount Bracket In-Ceiling Cover • • In-Ceiling Plate Drill Template Paster • Screw Kit: M4 Screw (8 mm) x 3 M4 Screw (40 mm) x 2...
  • Page 88 Introduction Paste the drill template to the ceiling and drill the ceiling to the size of the drill template. Place the In-Ceiling Plate behind the ceiling with the flat side facing down. Loosen the knob on the side of the camera and thread the camera wires through. Thread the camera wires through the side of the In-Ceiling Mount Bracket and place the camera in the Mount Bracket.

  • Page 89: Gv-Tfd Series

    1.5 GV-TFD Series The IR Mini Fixed IP Dome is an indoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality image at reduced network bandwidths.

  • Page 90: Optional Accessories

    Introduction 1.5.2 Optional Accessories Optional accessories can expand the capabilities and versatility of your camera. Contact your dealer for more information. Model Number Name Details GV-Mount107 Pendant Bracket Dimensions: Ø 120 x 334 mm (Ø 4.72” x 13.15”) (must be used with GV-Mount213) Weight: 0.74 kg (1.63 lb) GV-Mount211P...

  • Page 91: Overview

    GV-PA191 Power over Ethernet (PoE) GV-PA191 is a Power over Ethernet Adapter (PoE) adapter designed to provide power to the IP device through a single Ethernet cable. GV-POE Switch GV-POE Switch is designed to provide power along with network connection for IP devices. GV-POE Switch is available in various models with different numbers and types of ports.

  • Page 92: Installation

    Introduction 1.5.4 Installation The IR Mini Fixed IP Dome is designed for indoors. With the standard package, you can install the camera on the ceiling. Below are the instructions for Ceiling Mount. There are two kinds of Ceiling Mount: Concealed Installation and Open Installation. In Concealed Installation, the cables are hidden in the ceiling.

  • Page 93: Optional Installation

    Note: Make sure to adjust the lens as stated in Step 4 for any type of installation, in order for the lens to rotate smoothly upon powering up. For installation on the wall, also make sure the “UP” indicator is facing up towards the ceiling. Secure the transparent dome cover with the supplied torx wrench.

  • Page 94: Gv-Fer5702

    Introduction 1.6 GV-FER5702 The IR Fisheye Rugged IP Camera is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality image at reduced network bandwidths.

  • Page 95: Optional Accessories

    1.6.2 Optional Accessories Model Number Name Details GV-Mount107 (must Pendant Bracket Dimensions: Ø 120 x 334 mm (Ø 4.72” x 13.15”) be used with GV- Mount212P) Weight: 0.74 kg (1.63 lb) GV-Mount211P Wall Mount and Dimensions: 233 x 125 x 125 mm (9.2”...

  • Page 96: Overview

    Introduction 1.6.3 Overview 1.6.3.1 GV-FER5702 Figure 1-107 No. Description No. Description Power connector (DC 12V) Green wire-Alarm output - Ethernet connector / PoE Yellow wire-Audio output Brown wire-Alarm input White wire-GND Blue wire-GND Purple wire-Audio input Orange wire-Alarm output +...

  • Page 97: Installation

    Load Default Button Figure 1-108 Description Description Load default button SD card slot Note: If the default button doesn’t respond after pressing for 15 seconds, reboot the camera and try again within 10 minutes of rebooting. 1.6.4 Installation The IR Fisheye Rugged IP Camera is designed for outdoors. With the standard package, you can install the camera on the wall or ceiling.
  • Page 98 Introduction Insert the screw anchors. Figure 1-110 Remove the housing by turning it anticlockwise. Figure 1-111 Secure the camera base onto the ceiling with 3 screws supplied and lock up the housing by turning it clockwise. Figure 1-112...

  • Page 99: Optional Installation

    1.6.5 Optional Installation You can optionally purchase the following accessories to fit your mounting environment: GV-Mount212P for Wall Box Mount: see similar installation procedures in section ⚫ 1.1.5.2. GV-Mount107 + GV-Mount212P for Pendant Tube Mount: see similar installation ⚫ procedures in section 1.1.5.4.

  • Page 100: Gv-Ptz5810-Ir

    Introduction 1.7 GV-PTZ5810-IR GV-PTZ5810-IR is an indoor network PTZ camera that offers 5x optical zoom, capable of showing smooth live view with great details. This camera can simultaneously deliver three video streams in resolutions up to 2880 x 1620 at 30 fps. In low-light environments, night vision is enhanced with its LEDs, which allow up to 30 m (100 ft) effective IR distance.

  • Page 101: Optional Accessories

    1.7.2 Optional Accessories Optional accessories can expand the capabilities and versatility of your camera. Contact your dealer for more information. Model Number Name Details GV-Mount107 Pendant Bracket Dimensions: Ø 120 x 334 mm (Ø 4.72" x 13.15") (must be used Weight: 0.74 kg (1.63 lb) with GV- Mount212P)

  • Page 102: Overview

    Introduction GV-Mount704 Extension Tube Dimensions: Ø 3.5 x 10 or 20 or 30 or 50 cm (Ø 1.38" x 3.9" or 7.9" or 11.8" or x 19.7") (must be used with GV- Weight: 225 g or 360 g or 500 g or 780 g Mount107) (0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb) GV-POE Switch...

  • Page 103: Installation

    Load Default Button Figure 1-114 Description Description Load default button SD card slot Note: If the default button doesn’t respond after pressing for 15 seconds, reboot the camera and try again within 10 minutes of rebooting. 1.7.4 Installation The IR IP Mini PTZ Camera is designed for indoors. With the standard package, you can install the camera on the wall or ceiling.
  • Page 104 Introduction Stick the drill template paster to the ceiling and drill holes on the ceiling according to the drill template. Figure 1-116 Fix the adapter plate to the ceiling with screws. Figure 1-117 Secure the camera to the adpater plate and rotate the camera counterclockwise until it’s fastened.

  • Page 105: Optional Installation

    1.7.5 Optional Installation You can optionally purchase the following accessories to fit your mounting environment: GV-Mount107 + GV-Mount212P for Pendant Tube Mount: see similar installation ⚫ procedures in section 1.1.5.4. GV-Mount211P / GV-Mount212P for Wall Box Mount: see section 1.1.5.1 and 1.1.5.2. ⚫...

  • Page 106: System Requirements

    Introduction 1.8 System Requirements Intel Core i5-4670, 3.40 GHz Memory DDR3 8 GB RAM On Board Graphics Intel HD Graphics 4600 (Versions of driver from year 2014 or later required) ⚫ Web Browsers Internet Explorer 11.0 or above ⚫ Google Chrome ⚫...

  • Page 107: Waterproofing The Cable

    1.9 Waterproofing the Cable Waterproof the Ethernet cable by using the supplied waterproof rubber set. 1. Attach the seal ring to the RJ-45 plug. Figure 1-119 2. Insert the waterproof components through the Ethernet cable as shown below. Insert in order Figure 1-120 3.
  • Page 108 Introduction 5. Screw in the waterproof bolt lid. Figure 1-123 6. Finish the waterproof installation. Figure 1-124 7. If the camera has a DC cable and is not in use, you can waterproof it by inserting the supplied plug into the DC interface. DC interface Plug Figure 1-125...

  • Page 109: Chapter 2 Accessing The Camera

    Accessing the Camera Chapter 2 Accessing the Camera Once installed, the IP camera is accessible on a network. Follow these steps to configure the network settings and access your surveillance images. 2.1 Installing on a Network These instructions describe the basic connections to install the camera on the network. 1.

  • Page 110: Looking Up The Dynamic Ip Address And Logging In

    Accessing the Camera 2.1.1 Looking Up the Dynamic IP Address and Logging In By default, when the device is connected to LAN with a DHCP server, it is automatically assigned with a dynamic IP address. Follow the steps below to look up its IP address and log in the Web interface.

  • Page 111: Configuring The Ip Address

    By default, when the device is connected to LAN without a DHCP server, it is assigned with a static IP address of 192.168.0.10. Follow the steps below to assign a new IP address to avoid IP conflict with other GeoVision devices. Open your Web browser and type the default IP address 192.168.0.10.

  • Page 112: Accessing Live View

    Accessing the Camera 2.2 Accessing Live View After logging into the camera, you will see the Home page as shown below: 10 11 12 13 14 15 16 Figure 2-3 No. Name Function Set the display ratio of the image. •...
  • Page 113 Accessing the Camera Play/Stop Play or stop live video. Only for the audio-supporting models, adjust the audio output Video Volume volume on the PC. Only for audio-supporting models, enable or disable Microphone microphone. Only for audio-supporting models, adjust the microphone Microphone volume on the PC during audio communication between the PC Volume...

  • Page 114: Digital Zoom

    Accessing the Camera 2.2.1 Digital Zoom To use the digital zoom function, follow these steps: 1. Click (No. 13, Figure 2-4) on the toolbar. 2. Click and drag the mouse button in any direction to specify an area. 3. To restore the original image size, right click on the enlarged area. 4.

  • Page 115: Ptz Control Panel

    Accessing the Camera 2.3 PTZ Control Panel In this section, you will be guided through the various functions of PTZ Control Panel. The PTZ Control Panel is accessed from the live view interface of the camera. Note this is only applicable to GV-PTZ5810-IR. 2.3.1 Accessing the PTZ Control Panel Figure 2-5 No.
  • Page 116 Accessing the Camera Select a preset and the camera goes to the selected preset. Preset -- See 2.3.2 Setting Presets. Patrol Select a patrol route. -- See 2.3.3 Setting Patrol.

  • Page 117: Setting Presets

    Accessing the Camera 2.3.2 Setting Presets You can create and delete preset points by clicking Preset on the control panel of Live View. Adding a Preset 1. Select Preset on the control panel, and adjust the camera view to the desired direction, zoom and focus.

  • Page 118: Setting A Patrol

    Accessing the Camera 2.3.3 Setting Patrol A patrol route is the track by which the camera follows when moving from a preset to the next. The length of time that the camera stays at each preset is configurable. Multiple patrol routes are allowed for the camera.
  • Page 119 Accessing the Camera Note: 1. It is recommended that the first action type is Go to Preset. 2. If Keep Rotating is selected, the camera will rotate at the set speed and zoom in the set direction or position for a certain amount of time. Starting a Patrol Route After you have added a patrol route, you can start patrolling by clicking on the control...
  • Page 120 Accessing the Camera Delete a Patrol Route On the control panel, click for a patrol route and confirm the delete. Figure 2-12 Making a Patrol Plan You can set up the camera to perform different patrol routes at different time periods throughout the week by making a patrol plan.
  • Page 121 Accessing the Camera 1. On the control panel, click the Patrol Plan button to set the correct patrol time and route. Figure 2-13 2. Select Enable Patrol Plan. 3. Click OK.

  • Page 122: Playing Back Recorded Videos

    Accessing the Camera 2.4 Playing Back Recorded Videos Note this function is only applicable to models with SD card slot for local storage. To play back recorded videos from the camera’s local storage, click Playback at the top of the Web interface. Figure 2-14 No.

  • Page 123: Recording Download

    Accessing the Camera Note: To store and play back recorded videos to and from the camera’s local storage, make sure to configure the storage settings in Storage. For details, refer to 3.7.1 Formatting Storage. 2.4.1 Recording Download To download recorded videos from the local storage, follow the steps below: 1.

  • Page 124: Chapter 3 Administrator Mode

    Administrator Mode Chapter 3 Administrator Mode The Administrator can access and configure the GV-IP Camera through the network. Click Setup at the top of the Web interface to access the following configuration tabs: Common, Network, Video & Audio, Image, Intelligent, Events, Storage, Security and System. Figure 3-1...
  • Page 125 List of Options See the table below for the settings available on the Web interface. Find the topic of interest by referring to the section number prefixed to each option. IMPORTANT: The available functions may vary among camera models and firmware versions.
  • Page 126 Administrator Mode 3.8.1 Formatting Storage 3.8 Storage 3.8.2 FTP 3.8.3 Backing Up Storage 3.9.1 User 3.9 Security 3.9.2 Network Security 3.10.1 Time 3.10.2 Server 3.10.3 Maintenance 3.10 System 3.10.4 Network Diagnosis 3.10.5 Log 3.10.6 Ports and Devices...

  • Page 127: Common

    3.1 Common Under the Common tab, the Administrator can find the general settings of the camera, as well as shortcuts to the following setting pages. ◼ Network: See 3.2.1 Network for details. ◼ Time: See 3.9.1 Time for details. ◼ OSD: See 3.4.2 OSD for details ◼...

  • Page 128: Local Parameters

    Administrator Mode 3.1.2 Local Parameters You can set the local parameters for your PC. Figure 3-3 [Smart / Intelligent Mark] ◼ Intelligent Mark: Enabled by default to display the detection line or area as defined by Smart Settings. See details in 3.6.1 Smart Settings. ◼...
  • Page 129 [Video] ◼ Processing Mode  Real-Time Priority: Select this if the network is in good condition.  Fluency Priority: Select this if you want short time lag for live video.  Ultra-low Latency: Select this if you want the minimum time lag for live video. ◼...

  • Page 130: Network

    Administrator Mode 3.2 Network The network section allows you to configure the network settings, modify ports, configure FTP server, and set up e-mail for notification. 3.2.1 Network Figure 3-4 ◼ Obtain IP Address: Select Static IP or DHCP according to your network environment. ...

  • Page 131: Dns

     PPPoE: The network environment is xDSL connection. Type the Username and Password provided by ISP to establish the connection. If you use the xDSL connection with dynamic IP addresses, first use the DDNS function to obtain a domain name linking to the camera’s changing IP address. ...

  • Page 132: Port

    Administrator Mode 3.2.3 Port Port You can modify the default HTTP, HTTPS and RTSP ports if necessary. Figure 3-6 Port Mapping This function can automatically forward and open certain ports on your router, allowing connection to your camera from the Internet. 1.

  • Page 133: Ddns

    1. Click On to enable DDNS Service. 2. Select the DDNS service provider you have registered with. If you choose DynDNS, skip to Step 5. 3. Copy the website address http://ns.gvdip.com/register.aspx to a browser to access Geovision DDNS service. Figure 3-9...
  • Page 134 Administrator Mode 4. In the Geovision DDNS Server page, type a desired Hostname and Password. Re-type Password and type the verification letters shown in the image. Click Send. 5. In the Web interface of your camera, type Username. The username is the hostname registered in DDNS Server.

  • Page 135: E-Mail

    3.2.5 E-mail After the configuration of E-mail, you will be able to send messages to the specified E-mail addresses when alarms are triggered. 1. Type the Name and Address of the sender. 2. Type the SMTP Server. 3. Type the SMTP Port number. 4.

  • Page 136: Snmp

    Administrator Mode 3.2.6 SNMP Users can transfer the configurations of the device through SNMP protocol to communicate with and/or integrate it into a central server. Note this function is NOT supported by GV- ABL2701 series / 2703 series / 4703 / 4711, GV-ADR2701 / 2702 / 4702, GV-EBD4701 / 4712, GV-TBL2703 series / 4700 / 4703 / 4711, GV-TDR2702 / 4702 / 4703 series, GV- TFD4700, and GV-TVD4700 / 4711.

  • Page 137: 124

    3.2.7 802.1x IEEE 802.1x is an IEEE standard for port-based Network Access Control. It provides an authentication mechanism to devices wishing to attach to a LAN or WLAN. Note this function is only applicable to GV-ABL2702 / 4712 / 8712, GV-AVD2700 / 4710 / 8710, GV-BLFC5800, GV-EBD2702 / 4700 / 4704 / 4711 / 4813 / 8700 / 8711 / 8800 / 8813, GV-EBFC5800, GV- FER5702, GV-PTZ5810-IR, GV-TBL4705 / 4710 / 4810 / 8710 / 8804 / 8810, GV-TDR2700 / 4700 / 4704 / 4803 / 8805, and GV-TVD4710 / 4810 / 8710 / 8810.

  • Page 138: Qos

    Administrator Mode 3.2.8 QoS QoS is the prioritization of network traffic used to ensure resource reservation under abundant data flow. Note this function is NOT supported by GV-ABL2701 series, GV- ADR2701, GV-EBD4701 / 4712, GV-TDR4703 series, and GV-TFD4700. Figure 3-14 ◼...

  • Page 139: Video & Audio

    3.3 Video & Audio This section allows you to configure the three video streams and audio input. The audio function is only applicable to GV-ABL2702 / 4711 / 4712 / 8712, GV-AVD2700 / 4710 / 8710, GV-BLFC5800, GV-EBD2702 / 2704 / 4701 / 4704 / 4711 / 4712 / 8711 / 8800 / 8813, GV- EBFC5800, GV-FER5702, GV-PTZ5810-IR, GV-TBL4705 / 4710 / 4711 / 8710 / 8804 / 8810, GV-TDR4703 series / 8805, and GV-TFD4700, GV-TVD4710 / 4711 / 8810.
  • Page 140 Administrator Mode The following options are available for the main, sub and third streams. ◼ Video Compression: Set the codec type to H.265, H.264 or MJPEG. ◼ Resolution: Select different resolutions for each stream. Note: Changing the resolution in this option will not affect the Capture Mode. For GV-ABL4711, GV-EBD4701 / 4712, GV-TBL4700 / 4711, GV-TDR4703 series, GV-TFD4700, and GV-TVD4700 / 4711, the resolution of the main stream cannot be modified.

  • Page 141: Snapshot

    3.3.2 Snapshot Using the Snapshot function, when an alarm is triggered, the camera will automatically upload the captured snapshots to the FTP server and/or send snapshots to the specified e- mail addresses. Note: If Upload Images is selected in Figure 3-65, 3.8.2 FTP, the captured snapshots will only be sent to the FTP server.
  • Page 142 Administrator Mode Select Schedule or Repeat to set up the Snapshot Mode. ⚫ If you select Schedule, click to specify the desired time to take a snapshot. ⚫ If you select Repeat, type the interval, from 1 to 86400 seconds, to repeat the process of taking snapshots and sending them to the FTP server or e-mail.

  • Page 143: Audio

    3.3.3 Audio Note this function is only applicable to audio-supporting models. You can configure the audio settings of the camera. Figure 3-17 ◼ Audio Input: Select On to enable audio input. ◼ Input Gain: Set the audio signal amplification for sampling. The greater the gain, the greater amplification.

  • Page 144: Roi

    Administrator Mode 3.3.4 ROI When Region of Interest (ROI) is enabled, the system ensures image quality for ROI first if the bit rate is insufficient. Figure 3-18 Click to enable and add ROI. Click and drag on the image to specify an area. To add additional ROI areas, repeat steps 1 and 2.

  • Page 145: Media Stream

    3.3.5 Media Stream Media Stream By configuring media stream, you can set the camera to transmit code streams by UDP or TCP protocol to a specified IP address and port number. The settings can be saved and take effect after the camera is rebooted. Figure 3-19 1.
  • Page 146 Administrator Mode RTSP Multicast Address After an RTSP multicast address is configured, the third-party player can request for the RTSP multicast media stream from the camera through RTSP protocol. Figure 3-20 1. Type the Multicast Address (224.0.1.0 to 239.255.255.255) and Port number (0 to 65535).

  • Page 147: Ptz

    3.4 PTZ This section allows you to configure basic PTZ settings, home position, remote control, orientation and more on the PTZ camera. Note this is only applicable to GV-PTZ5810-IR. 3.4.1 Basic Settings Basic settings allows you to configure basic PTZ settings related to the camera’s position and PTZ control timeout.

  • Page 148: Home Position

    Administrator Mode 3.4.2 Home Position The PTZ camera will return to home position if no operation is made within a specified period. Home Position allows you to select the desired preset as the home position and set the time. Figure 3-22 3.4.3 Limit Users can set PTZ limitations to prevent the camera from hitting obstacles such as walls.

  • Page 149: Remote Control

    1. Click Start PTZ Limit to enable the function. 2. Adjust the view in such a way that it reaches the PTZ limit you want to set. 3. Click to set the position relative to the current dome view as a limit. For example, click at the top to set the upper limit.

  • Page 150: Patrol

    Administrator Mode 3.4.5 Patrol You can set the camera to take a snapshot and upload the image to the FTP server when the camera goes to the preset during the patrol route. Figure 3-25 1. Enable Preset Snapshot. 2. Type the Resume Patrol(s) interval in seconds to upload snapshots. 3.

  • Page 151: Orientation

    3.4.6 Orientation You can manually set a north direction or home position for the camera. Figure 3-26 [Orientation] ◼ Set as north: After the camera is positioned to a specific direction, the position will be set as the north direction. ◼...

  • Page 152: Image

    Administrator Mode 3.5 Image This section introduces the Image Settings, On-screen Display and Privacy Mask. 3.5.1 Image This page allows you to adjust image settings such as brightness, exposure, IR illumination and white balance. [Scene] Figure 3-27 ◼ Current: Indicates the scene that is being used. ◼...
  • Page 153 [Image Enhancement] Figure 3-28 ◼ Brightness: Adjust the degree of brightness of the image. ◼ Saturation: Adjust the amount of hue contained in a color. ◼ Contrast: Set the degree of difference between the blackest pixel and the whitest pixel. ◼...
  • Page 154 Administrator Mode ◼ Exposure Mode: Select the correct exposure mode to achieve the desired exposure effect. The default setting is Outdoor. ⚫ Low Motion Blur: Improve image quality by reducing motion blur in low light conditions. ◼ Shutter(s): The length of time that allows light to enter into the lens. You can set a shutter speed when Exposure Mode is set to Manual / Custom.
  • Page 155 ◼ Day/Night Switching(s): Set the length of time before the camera switches between day mode and night mode after the conditions for switching are met. ◼ WDR: Enable WDR to distinguish the bright and dark areas in the same image. ◼...
  • Page 156 Administrator Mode Control Mode: ◼ Global Mode: Adjust IR illumination and exposure to achieve balanced image effects. Some areas might be overexposed if you select this option. This option is recommended if monitored range and image brightness are your first priority. ◼...

  • Page 157: Osd

    [Advanced] Figure 3-32 ◼ Defog: Select On to activate the slider for adjusting the defog intensity of the image. ◼ Dewarping: Only for GV-ABL2703 series / 4703, GV-ADR2702 / 4702, GV-EBD8800 / 8813, GV-TBL2703 series / 4703 / 8804 / 8810, GV-TDR2702 series / 4702 series / 8805 and GV-TVD8810, select On to activate the slider for adjusting the Dewarping Level of the camera image.
  • Page 158 Administrator Mode 1. Enable a No. to select an area #, and click Overlay OSD Content to select the content to display on the screen. 2. Adjust the position of the Area 1/2/3 boxes either by dragging them directly on the live view or by specifying the coordinates under X-Axis / Y-Axis column.

  • Page 159: Privacy Mask

    After you have set the position and OSD content, the symbol appears in the Status column, which means that the OSD is set successfully. Note: You can also configure OSD under Common for GV-ABD1300, ABL2701, ADR1300, BLFC5800, EBD4700 / 8711, EBFC5800, TBL2705 / 4700 / 4701 / 8804, TDR2700 / 2704 / 8805, and TFD4700.

  • Page 160: Intelligent

    Administrator Mode 3.6 Intelligent Under Intelligent, users can set the camera to detect for a number of video-analytic events, which can be used to send FTP and/or e-mail alerts, based on the parameters set. Note this function is NOT supported by GV-ABL2701 series / 2703 series / 4701 series / 4703, GV- ADR2701 / 2702 / 4701 / 4702, GV-TBL2703 series / 4703, GV-TDR2702 / 4702, and GV- FER5702.
  • Page 161 Figure 3-36...

  • Page 162: Cross Line

    Administrator Mode 3.6.1.1 Cross Line Cross line detection generates an alarm when an object moves past the detection threshold in the direction you defined. Up to 4 detection lines can be added. Note that when adding multiple detection lines, make sure they do NOT intersect as it may affect the detection results.
  • Page 163 For other models NOT equipped with AI functions Figure 3-38 1. Based on your installation environment, select the Detection Scene between outdoor and indoor (see Detection Parameters in 3.6.2 Advanced Settings). By default, Outdoor is selected. 2. Once enabled, select Rule Settings > click to add a detection line.
  • Page 164 Administrator Mode D. Select Recording Edge Storage, Image Edge Storage, or FTP Video Storage. Snapshots captured or videos recorded will automatically be stored in the selected storages. 7. Optionally select Enable Plan under Plan to set the start and end times during which the video analytic monitoring is enabled.

  • Page 165: Intrusion

    3.6.1.2 Intrusion With Intrusion Detection, an alarm is generated when an object enters the boundaries of the detection area. Up to 4 detection areas can be added. Note that it is recommended NOT to overlap the detection areas when adding multiple detection areas. Select the checkbox next to Intrusion to enable and click to configure.
  • Page 166 Administrator Mode Note: 1. Certain models may only support uploading snapshots to an FTP server and output trigger for Trigger Actions. 2. Motor Vehicle includes cars, trucks, and buses. Non-Motor Vehicle includes bicycles and motorcycles. 3. Alarm Sound is only applicable to GV-PTZ5810-IR / GV-TBL8804 and Alarm Light is only applicable to GV-TBL8804.
  • Page 167 5. For Trigger Actions and Plan, follow Step 6 ~ 7 at the bottom of 3.6.1.1 Cross Line. Note: Under Trigger Actions: ⚫ Alarm Output and Storage are not supported by GV-TBL4700 and GV-TVD4700. ⚫ Alarm Output is not supported by GV-EBD2704 / 4701 / 4704 / 4712, GV-EBFC5800, GV-TBL2705 / 4705, and GV-TDR2704 series / 4704 series.

  • Page 168: Object Removed

    Administrator Mode 3.6.1.3 Object Removed Object Removed can generate an alarm when an object is removed from the specified area. Up to 4 detection areas can be added. Note that it is recommended NOT to overlap the detection areas when adding multiple detection areas. Select the checkbox next to Object Removed to enable and click to configure.

  • Page 169: Object Left Behind

    3.6.1.4 Object Left Behind With Object Left Behind, an alarm can be generated when an object which remained in the detection area for the specified period of time, leaves the specified region. Up to 4 detection areas can be added. Note that it is recommended NOT to overlap the detection areas when adding multiple detection areas.

  • Page 170: Defocus

    Administrator Mode 3.6.1.5 Defocus Defocus generates an alarm to be sent through e-mail whenever the camera’s image is out of focus. Select the checkbox next to Defocus to enable and click to configure. Figure 3-45 Once enabled, drag the slider to adjust the detection Sensitivity. For Trigger Actions, follow Step 6 at the bottom of 3.6.1.1 Cross Line.

  • Page 171: Scene Change

    3.6.1.6 Scene Change Scene Change is able to generate an alarm whenever there is a drastic scene change to the image of the camera. Select the checkbox next to Scene Change to enable and click configure. Figure 3-46 Once enabled, drag the slider to adjust the detection Sensitivity. For Trigger Actions and Plans, follow Step 6 ~ 7 at the bottom of 3.6.1.1 Cross Line.

  • Page 172: Face Detection

    Administrator Mode 3.6.1.7 Face Detection The Face function can detect for and capture face(s) in a specified area and send to an FTP server. Select the checkbox next to Face to enable and click to configure. For other models NOT equipped with AI functions Figure 3-47 1.
  • Page 173 Note: The Counting and Counting Direction features are currently nonfunctional. For GV-BLFC5800, GV-EBD4813 / 8800 / 8813, GV-EBFC5800, GV-PTZ5810-IR, GV- TBL4810 / 8804 / 8810, GV-TDR4803 / 8805, and GV-TVD4810 / 8810 Figure 3-48 1. Once enabled, define the detection area, either by selecting Specified Area and drawing a desired area on the image, or select Full Screen to set the entire image as detection area.
  • Page 174 Administrator Mode [Face Selection] ◼ Selection Mode: Select Effect Priority for the best image quality of the captured snapshots, Speed Priority for optimal snapshots from the moment of detection until the specified timeout is up, and Periodic Selection for a snapshot captured in every selection period.

  • Page 175: People Counting

    3.6.1.8 People Counting The People Counting function can count the number of person(s) entering and leaving the vicinity, which is useful at an entrance/exit setting. Select the checkbox next to People Counting to enable and click to configure. For other models NOT equipped with AI functions Figure 3-49 1.
  • Page 176 Administrator Mode For GV-BLFC5800, GV-EBD4813 / 8800 / 8813, GV-EBFC5800, GV-PTZ5810-IR, GV- TBL4810 / 8804 / 8810, GV-TDR4803 / 8805, and GV-TVD4810 / 8810 Figure 3-50 1. Once enabled, draw a detection line and define the entrance direction. Select the entrance direction from the Enter drop-down list.

  • Page 177: Human Body Detection

    3.6.1.9 Human Body Detection Human Body Detection is used to generate an alarm whenever a human figure appears in the specified area. Note this function is only applicable to GV-ABL4711, GV-EBD4701 / 4712, GV-TBL4700 / 4711, GV-TDR4703 series, GV-TFD4700, and GV-TVD4700 / 4711. Figure 3-51 In the Snapshot Area, click to add a new detection area.

  • Page 178: Enter Area / Leave Area

    Administrator Mode 3.6.1.10 Enter Area / Leave Area With Enter Area / Leave Area, an alarm is generated when a person or vehicle enters / leaves the boundaries of the detection area. Note this function is only applicable to GV- BLFC5800, GV-EBD4813 / 8800 / 8813, GV-EBFC5800, GV-PTZ5810-IR, GV-TBL4810 / 8804 / 8810, GV-TDR4803 / 8805, and GV-TVD4810 / 8810.
  • Page 179 ⚫ Optionally click next to Alarm Sound to set the desired Day, Start Time, End Time, Alarm Audio, and Number of Repeat Times. You can set up to four periods for each time, and the time periods cannot overlap. 7. For Plan, follow Step 7 at the bottom of 3.6.1.1 Cross Line. Note: 1.

  • Page 180: Crowd Density Monitoring

    Administrator Mode 3.6.1.11 Crowd Density Monitoring With Crowd Density Monitoring, an alarm is triggered when the number of people in a specified area exceeds the defined alarm threshold. Note this function is only applicable to GV-EBD4813 / 8800 / 8813, GV-BLFC5800, GV-EBFC5800, GV-PTZ5810-IR, GV-TBL4810 / 8804 / 8810, GV-TDR4803 / 8805, and GV-TVD4810 / 8810.

  • Page 181: Advanced Settings

    3.6.2 Advanced Settings This section allows you to configure the clarity of the snapshots captured by face detection events and choose the detection modes used for all video-analytic events. Photo Parameters Figure 3-54 ◼ Thumbnail Image Clarity: Drag the slider to adjust the clarity of the snapshots captured by face detection events.

  • Page 182: Events

    Administrator Mode 3.7 Events You can set the camera to generate an alarm upon motion detection, tampering alarm, audio detection and one-key shielding linkage. 3.7.1 Motion Detection Motion detection is used to generate an alarm whenever movement occurs in the specified area.
  • Page 183 ⚫ If the alarm is triggered within the set time, the alarm will not be cleared until the suppress alarm time expires. Then the alarm can be reported again. 6. For Trigger Actions and Plan, follow Step 6 ~ 7 at the bottom of 3.6.1.1 Cross Line. Note: 1.

  • Page 184: Tampering Alarm

    Administrator Mode 3.7.2 Tampering Alarm Note this function is only applicable to GV-ABL2702 / 2703 series / 4703 / 4711 / 4712 / 8712, GV-ADR2700 / 4710 / 8710, GV-AVD2700 / 4710 / 8710, GV-BLFC5800, GV-EBD series, GV-EBFC5800, GV-PTZ5810-IR, GV-TBL series, GV-TDR series, GV-TFD4700, GV-TVD series, and GV-FER5702.

  • Page 185: Audio Detection

    3.7.3 Audio Detection Note this function is only applicable to audio-in-supporting models. Audio detection is used to detect abnormal audio volume. When the rise, fall, or change of volume exceeds the set limit, or when the input volume reaches the set threshold, an alarm is generated.

  • Page 186: Alarm Input

    Administrator Mode 3.7.4 Alarm Input Note this function is only applicable to GV-ABL2701 Series / 2702 / 4701 Series / 4711 / 4712 / 8712, AVD2700 / 4701 / 8710, GV-BLFC5800, GV-TBL4710 / 4711 / 4810 / 8710 / 8810, GV-TDR2700 series / 4700 series / 4703 series / 4803 series / 8805, GV-TFD4700, GV-TVD4710 / 4711 / 4810 / 8710 / 8810, and GV-FER5702.

  • Page 187: Alarm Output

    3.7.5 Alarm Output Note this function is only applicable to GV-ABL2701 Series / 2702 / 4701 Series / 4711 / 4712 / 8712, AVD2700 / 4701 / 8710, GV-BLFC5800, GV-PTZ5810-IR, GV-TBL4710 / 4711 / 4810 / 8710 / 8810, GV-TDR2700 series / 4700 series / 4703 series / 4803 series / 8805, GV-TFD4700, GV-TVD4710 / 4711 / 4810 / 8710 / 8810, and GV-FER5702.

  • Page 188: One-Key Shielding Linkage

    Administrator Mode 3.7.6 One-Key Shielding Linkage Note this function is only applicable to GV-BLFC5800, GV-EBD4704 / 4813 / 8800 / 8813, GV-EBFC5800, GV-FER5702, GV-PTZ5810-IR, GV-TBL4705 / 4810 / 8804 / 8810, GV- TDR4704 / 4803 / 8805, and GV-TVD4810 / 8810. You can disable input / output alarms or e-mails alerts trigger over appointed period of time.

  • Page 189: Storage

    3.8 Storage This section allows you to configure storage related settings and set up FTP server. 3.8.1 Formatting Storage Note this function is only applicable to GV-ABL2702 / 4712 / 8712, GV-AVD2700 / 4710 / 8710, GV-BLFC5800, GV-EBD2704 / 4701 / 4704 / 4711 / 4712 / 4813 / 8711 / 8800 / 8813, GV-EBFC5800, GV-FER5702, GV-PTZ5810-IR, GV-TBL2705 / 4700 / 4705 / 4710 / 4810 / 8710 / 8804 / 8810, GV-TDR2700 series / 2704 series / 4700 series / 4703 series / 4704 series / 4803 series / 8805, GV-TFD4700, and GV-TVD4700 / 4710 / 4810 / 8710 / 8810.
  • Page 190 Administrator Mode Note: Face Snapshot is only supported by GV-ABL2702 / 4701 / 4712 / 8712, GV-ADR4701, GV-AVD2700 / 4710 / 8710, GV-EBD2702 / 4700 / 4711 / 8700 / 8711, GV-PTZ5810- IR, GV-TBL4710 / 8710, GV-TDR2700 / 4700, GV-TVD4710 / 8710, and GV-SD2722- IR / 3732-IR.
  • Page 191 ◼ Stream: Select the stream you want to use for recording. ◼ When Storage Full: ◼ Overwrite: If there is no free space in the memory card, new data will overwrite the existing date repeatedly. ◼ Stop: If there is no free space in the memory card, new data will not be saved to the memory card.

  • Page 192: Ftp

    Administrator Mode 3.8.2 FTP After the configuration of FTP, you will be able to upload snapshots from the camera to the specified FTP server. General Figure 3-65 1. Type the Server IP address. 2. Change the Port No. of the FTP server if needed. 3.
  • Page 193 Face (Intelligent) This function is used to store snapshots taken for smart functions such as face detection. For GV-BLFC5800, GV-EBD4813 / 8800 / 8813, GV-EBFC5800, GV-PTZ5810-IR, GV- TBL4810 / 8804 / 8810, GV-TDR4803 series / 8805, and GV-TVD4810 / 8810, this function is named Intelligent to store captured snapshots of motor vehicle (cars, trucks, and buses), non-motor vehicle (bicycles and motorcycles), and people.

  • Page 194: Backing Up Storage

    Administrator Mode 3.8.3 Backing Up Storage Note this function is only applicable to Internet Explorer browsers. In the Photo setting, you can back up the existing videos and snapshots to your local PC. Figure 3-67 1. Select Photo at the top of the Web interface and click Refresh. 2.

  • Page 195: Security

    3.9 Security This section allows you to create user accounts and set the network security settings. 3.9.1 User There are two types of accounts: Administrator and Common User. ◼ Administrator: Admin has full permission and can manage all users and devices. Only one admin account is allowed in the system.

  • Page 196: Network Security

    Administrator Mode 3.9.2 Network Security There are five types of network security settings: HTTPS, Authentication, ARP Protection, IP Address Filtering and Access Policy. HTTPS You can enable the Hypertext Transfer Protocol Secure (HTTPS) settings to access the camera through a secure protocol. Click On to enable, and optionally click Browse to locate an SSL certificate from your local computer and click Upload.
  • Page 197 ARP Protection This function can protect the camera from ARP attacks. When the camera visits an IP of another network segment via a gateway, it can only communicate with the MAC address binding to the gateway address in the same segment. Figure 3-71 1.
  • Page 198 Administrator Mode Access Policy Access Policy measures the strength of account passwords upon login. Figure 3-73 By enabling Illegal Login Lock, the camera will apply a 5-minute account lockout duration after 5 failed login attempts.

  • Page 199: System

    3.10 System This section allows you to set the camera time and update the firmware. 3.10.1 Time You can use the following methods to adjust the system time of your camera. Time Figure 3-74 Select a Sync Mode. ◼ Sync with System Configuration: Select a Time Zone, manually set a time by clicking on the System Time, or synchronize with the computer time.
  • Page 200 Administrator Mode To adjust the camera’s time for daylight saving time: Click the DST tab at the top. Figure 3-75 Select On to enable DST. Set a Start Time and End Time for the Daylight Saving Time. Select a time period for DST Bias. Click Save.

  • Page 201: Server

    3.10.2 Server Note this function is only applicable to GV-BLFC5800, GV-EBD4813 / 8800 / 8813, GV- EBFC5800, GV-PTZ5810-IR, GV-TBL4810 / 8804 / 8810, GV-TDR4803 / 8805, and GV- TVD4810 / 8810. Server allows you to quickly access the FTP setting page. Click the FTP button to go to the FTP settings page and complete the storage settings.
  • Page 202 Administrator Mode Figure 3-77 [Software Upgrade] For detailed instructions, refer to 4.1 Upgrading System Firmware and 4.1.1 Using the Web Interface. [Config Management] Export the current configurations of the camera and save them to the PC or an external storage medium. You can also quickly restore configurations by importing backup configurations stored on the PC or an external storage medium back to the camera.

  • Page 203: Network Diagnosis

    3.10.4 Network Diagnosis Note this function is only applicable to GV-BLFC5800, GV-EBD4704 / 4813 / 8800 / 8813, GV-EBFC5800, GV-FER5702, GV-PTZ5810-IR, TBL4705 / 4810 / 8804 / 8810, TDR4704 / 4803 / 8805, and TVD4810 / 8810. This section allows personnel to examine your network environment. Figure 3-78 3.10.5 Log Note this function is only applicable to GV-BLFC5800, GV-EBD4704 / 4813 / 8800 / 8813,...

  • Page 204: Ports And Devices

    Administrator Mode 3.10.6 Ports and Devices Note this function is only applicable to GV-PTZ5810-IR. This section allows you to exchange data with a third-party device with the RS485 serial port. Note that the serial setting on the camera should match that of the connected third-party device.

  • Page 205: Chapter 4 Advanced Applications

    This chapter introduces more advanced applications. 4.1 Upgrading System Firmware GeoVision periodically releases updated firmware on the company website. The new firmware can be loaded into the camera using the Web interface or GV-IP Device Utility. Important Notes before You Start Before you start updating the firmware, please read these important notes: 1.

  • Page 206: Using The Web Interface

    Advanced Applications 4.1.1 Using the Web Interface Log into the Web interface and follow the steps below to update the firmware. 1. At the top, click Setup. 2. In the left menu, select System and select Maintenance. This page appears. Figure 4-1 3.

  • Page 207: Using Gv-Ip Device Utility

    4.1.2 Using GV-IP Device Utility You can upgrade the camera firmware using GV-IP Device Utility. Note the computer used to upgrade firmware must be under the same network as the camera. 1. Download GV-IP Device Utility from the company website. Then follow the onscreen instructions to install the program.

  • Page 208: Restoring To Factory Default Settings

    Advanced Applications 4.2 Restoring to Factory Default Settings If for any reason the camera is not responding correctly, you can restore the camera back to its factory default settings using the Web interface or the Default Button. Note: 1. Only GV-EBD4711 / 4712 / 8711 / 8813, GV-ABL2703 series / 4703, GV-AVD2700 / 4710 / 8710, GV-FER5702, GV-PTZ5810-IR, GV-TBL2703 series / 4703 / 8804, GV- TFD4700, and GV-TVD4700 / 4710 / 4711 / 8710 / 8810 support a default button.

  • Page 209: Chapter 5 Dvr / Nvr / Vms

    GV-EBD4704 Other models 40 Mbps • When an IP camera is connected to IE browser or any GeoVision CMS application, it takes up 1 stream; when it is connected to GV-VMS / DVR / NVR, it takes up 2 streams.

  • Page 210: Setting Up Ip Cameras On Gv-Dvr / Nvr

    DVR /NVR / VMS 5.1 Setting Up IP Cameras on GV-DVR / NVR To set up the camera on GV-DVR / NVR, follow these steps: On the main screen, click the Configure button, select System Configure, select Camera Install and click IP Camera Install. This dialog box appears. Figure 5-1 To automatically set up the camera, click Scan Camera to detect any camera on the LAN.
  • Page 211 Click OK. This dialog box appears. Figure 5-3 Click OK. The IP camera is added to the connection list. Click the listed camera and select Display position to map the IP camera to a channel on the GV-DVR / NVR. Figure 5-4 The Statue column should display “Connected”.
  • Page 212 DVR /NVR / VMS After the camera is connected and assigned with a display position, you can configure the camera’s settings, such as frame rate, codec type and resolution. Right-click the desired camera to see the following list of options: Figure 5-5 ◼...

  • Page 213: Setting Up Ip Cameras On Gv-Vms

    5.2 Setting Up IP Cameras on GV-VMS Follow the steps below to manually connect your camera to GV-VMS. 1. To access the IP Device Setup page, click Home , select Toolbar , click Configure and select Camera Install. Figure 5-6 2.
  • Page 214 DVR /NVR / VMS 4. Click OK. This dialog box appears. Figure 5-8 5. Click OK to add the camera to the list. 6. To connect the added camera, click the box beside the ID column. Upon successful connection, the Status icon shows green, with the video resolution and bitrate being displayed in the correspondent columns.

  • Page 215: Appendix

    Appendix A. RTSP Multicast Protocol Support The camera can support RTSP multicast protocol for both video and audio streaming. You can use the following RTSP multicast command to access the camera image: Stream 1: rtsp://<IP of the camera>/multicast/video1 Stream 2: rtsp://<IP of the camera>/multicast/video2 For example, rtsp:// 192.168.4.115/multicast/video1 B.

  • Page 216: Compatible Versions Of Gv-Vms / Dvr / Nvr

    Appendix D. Compatible Versions of GV-VMS / DVR / NVR Compatible versions of GV-VMS / DVR / NVR based on camera models listed as follows: Camera Model Compatible GV-DVR / NVR Compatible GV-VMS GV-EBD2702 V8.7.4.0 with patch files or later V17.1 with patch files or later V17.4.1 with patch files or later GV-EBD2704...
  • Page 217 GV-TBL4703 V8.8.0 with patch files or later V17.3.0 with patch files or later V17.4.1 with patch files or later GV-TBL4705 V8.9.1 with patch files or later V18.2.1 with patch files or later GV-TBL4710 V8.8.0 with patch files or later V17.1.0.100 with patch files or later V17.3.0 with patch files or later GV-TBL4711 V8.8.0 with patch files or later...

  • Page 218: Gv-Mount Dimensions

    Appendix E. GV-Mount Dimensions Dimensions of various GV-Mount are illustrated below: GV-Mount Models Dimensions 1"NPT (0.3") GV-Mount107 120mm (4.72") 16mm (0.63") GV-Mount211-2 GV-Mount211P GV-Mount212-2...
  • Page 219 GV-Mount212P GV-Mount213 160mm 233mm (9.17") (6.3") 7.5mm 20mm (0.3") (0.79") 15mm GV-Mount300-2 (0.59") 160mm (6.3") 160mm (6.3") 290mm (11.4") 20mm (0.79") GV-Mount310-2 15mm (0.59") 45mm 45mm (1.77") (1.77") 130mm (5.11") 160mm (6.3") GV-Mount502...
  • Page 220 Appendix GV-Mount503 GV-Mount504 GV-Mount606 100mm (3.94") 200mm (7.87") GV-Mount704 300mm (11.8") 10 / 20 / 30 / 50 cm 500mm (19.7")

  • Page 221: Gv-Mount300-2 / 310-2

    F. GV-Mount300-2 / 310-2 GV-Mount300-2 / 310-2 Packing List • • Mounting Bracket Convex Mounting Plate x 2 (for GV-Mount300-2) • Concave Mounting Plate x 2 (for GV-Mount310-2) • • 1/4” Plain Washer x 6 Carriage Bolt x 6 • •...
  • Page 222 Appendix To install GV-ABL / TBL Series, GV-ADR2702 / 4702, GV-AVD / TVD Series, GV- BLFC5800, GV-EBD Series, GV-EBFC5800, GV-PTZ5810-IR, GV-TDR Series, GV- TFD4700, or directly on GV-Mount300-2 / 310-2, follow the instructions below. Assemble the GV-Mount300-2 / 310-2, by attaching the two mounting plates onto the mounting bracket with the supplied carriage bolts, 1/4”...

  • Page 223: Screw Position Chart

    To install GV-Mount211P / 211-2 / 212-2 / 212P / 213 / 502 / 503 on GV-Mount300-2 / 310-2 Assemble the GV-Mount300-2 / 310-2, by attaching the two mounting plates onto the mounting bracket with the supplied carriage bolts, 1/4” plain washers, and 1/4” flange nuts.

  • Page 224: Note For Fisheye Camera With Ir Led

    Appendix H. Note for Fisheye Camera with IR LED When installing Mount107 / 211P / 212P to your GV-FER5702, leave a distance of 1 M (3.28 ft) or more between the camera body and the wall to ensure the image quality.
