Page 15: Chapter 1 Introduction
Introduction Chapter 1 Introduction 1.1 GV-EBD Series The H.265 Eyeball Dome is an outdoor, network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera adheres to IP67 standards for dust / water protection and supports H.265 video codec to achieve better compression ratio while maintaining high quality image at reduced network bandwidths.
Page 16: Packing List
1.1.1 Packing List • H.265 Target Eyeball Dome • • Screw Kit Drill Template Paster • • Waterproof Rubber Set Download Guide 1.1.2 Optional Accessories Optional accessories can expand the capabilities and versatility of your camera. Contact your dealer for more information. Model Number Name Details...
Page 17 Introduction GV-Mount300-2 Convex Corner Mount Dimensions: 137 x 233 x 160 mm (5.4” x 9.17” x 6.3”) Weight: 1.65 kg (3.64 lb) GV-Mount310-2 Concave Corner Mount Dimensions: 111.2 x 369.9 x 210 mm (2.6” x 11.4” x 6.6”) Weight: 1.65 kg (3.64 lb) GV-Mount420 Pole Mount Bracket Dimensions: Ø...
Page 18: Overview
1.1.3 Overview 1.1.3.1 GV-EBD2702 / 2704 / 4700 / 4701 / 4704 / 8700 / 8800 Figure 1-1 No. Description Bottom ring Housing Lens Infrared indicator Power connector (DC 12 V) Ethernet connector / PoE Micro SD card slot (GV-EBD2704 / 4701 / 4704 / 8800 only) Microphone (GV-EBD2704 / 4701 / 4704 / 8800 only)
Page 19: Gv-Ebd4711 / 4712 / 4813 / 8711 / 8813
Introduction 1.1.3.2 GV-EBD4711 / 4712 / 4813 / 8711 / 8813 Figure 1-2 Description Bottom ring Housing Microphone Lens Power connector (DC 12 V) Ethernet connector / PoE Micro SD card slot and default button compartment Default button Micro SD card slot Note: If the default button doesn’t respond after pressing for 15 seconds, reboot the camera and try again within 10 minutes of rebooting.
Page 20: Installation
1.1.4 Installation The Target Eyeball Dome is designed for outdoors. With the standard package, you can install the camera on the ceiling. Alternatively, you can purchase optional mounting accessories to mount the dome on a wall. Below are the instructions for Ceiling Mount. There are two kinds of Ceiling Mount: Concealed Installation and Open Installation.
Page 21 Introduction 3. Remove the bottom ring by turning it anticlockwise. Bottom Ring Figure 1-5 4. Connect the cables and secure the camera. Figure 1-6 5. Adjust the monitoring direction. The camera can rotate 360 degrees horizontally The lens can rotate 80 degrees vertically Figure 1-7...
Page 22 6. Mount the bottom ring. Push the bottom ring back up and turn it clockwise to lock into position Figure 1-8 For Open Installation Lead the cables out from the open slot on the bottom ring before screwing the camera to the ceiling as shown in Figure 1-6.
Page 23: Gv-Ebd4711 / 4712 / 4813 / 8711 / 8813 Standard Installation
Introduction 1.1.4.2 GV-EBD4711 / 4712 / 4813 / 8711 / 8813 Standard Installation For Concealed Installation 1. Stick the drill template paster to the ceiling and drill three holes according to the drill template. Drill Template Paster Figure 1-10 2. Insert the screw anchors. Drill a hole to lead the cables out of the ceiling Knock in screw anchors Figure 1-11...
Page 24 4. Secure the bottom ring to the ceiling with 3 supplied screws and connect the cable. Connect cable and protect it with waterproof tape (Optional) insert a Attach bottom ring to micro SD card ceiling with taping screws Figure 1-13 5.
Page 25: Optional Installation
Introduction WARNING: Make sure the housing is not dismounted from the bottom ring when adjusting the monitoring direction. Unintentional removal of the housing may result in circumstantial damages. For Open Installation Lead the cables out from the open slot on the bottom ring before mounting the housing as shown in Figure 1-14.
Page 26: Gv-Mount211P
1.1.5.1 GV-Mount211P GV-Mount211P GV-Mount211 Figure 1-17 GV-Mount211P Packing List • • GV-Mount211P Long Screw x 5 • • Short Screw x 4 Screw Anchor x 5 • • Plastic PG21 Conduit Connector Drill Template Paster...
Page 27 Introduction Unscrew the bracket. Figure 1-18 Loosen the indicated area by turning it anticlockwise. Power Box Figure 1-19 Stick the drill template paster to the wall with the arrow pointing up. Drill 4 holes according to the sticker and insert the 4 screw anchors to the 4 holes. Secure the power box to the wall with 4 long screws Figure 1-20...
Page 28 Remove the bottom ring by turning it anticlockwise. Bottom Ring Figure 1-21 Secure the camera to the wall mount bracket with the provided short screws according to the screw position for each model: GV-EBD4700 / 4701 / 4704 / 4711 / 4712 / 4813 / 8700 / 8711 / 8800 / 8813 Figure 1-22 GV-EBD2702 / 2704 Figure 1-23...
Page 29 Introduction GV-ADR2701 / 4701 Figure 1-24 GV-ADR2702 / ADR4702 / TDR2700 / TDR2702 / TDR2704 / TDR4700 / TDR4702 / TDR4703 / TDR4704 / TDR4803 Figure 1-25 Thread the Ethernet cable through the PG21 conduit connector and the power box as shown in No.
Page 30 10. Screw the wall mount bracket to the power box as shown in No. 10, Figure 1-26. Plastic Ring Figure 1-26 11. Mount the bottom ring. Figure 1-27...
Page 31: Gv-Mount212P
Introduction 1.1.5.2 GV-Mount212P Figure 1-28 GV-Mount212P Packing List • • GV-Mount212P Long Screw x 3 • • Short Screw x 3 Screw Anchor x 3...
Page 32 Standard Installation Attach the wall box to the wall and use a marker to mark the location for the center socket and the screws. Make sure the knob points down. Long Screw This knob points down Figure 1-29 Drill 3 holes according to the screw location. Then, drill a bigger hole at the center socket location for the Ethernet cable.
Page 33 Introduction Thread the Ethernet cable through the center socket and waterproof the Ethernet cable. For details, see 1.8 Waterproofing the Cable. Figure 1-31 Fit the cable into the wall box. Secure the camera by locking the provided short screws to the screw position for each model: GV-EBD2702 / 2704 Figure 1-32...
Page 34 8. Mount the bottom ring. Note: In addition to the Standard Installation, you can also choose to run the Ethernet cable through a corrugated tube. To do this, you will have to purchase your own conduit connector and corrugated tube. 3/4” NPS is the recommended type of connector. After you secure the wall box to the desired location, remove the knob at the bottom and connect the conduit connector with a self-prepared corrugated tube to the wall box.
Page 35: Gv-Mount420 + Gv-Mount211P
Introduction 1.1.5.3 GV-Mount420 + GV-Mount211P Figure 1-35 GV-Mount420 Packing List • • GV-Mount420 M4 Screw x 4 • Additional Screw Kit M6 Screw x 4 M6 Nut x 4 M6 Plain Washer x 4 M6 Split Washer x 4 Note: For GV-ADR / TDR / EBD Series, GV-Mount420 can only be used in conjunction with GV-Mount211P.
Page 36 1. Unscrew the bracket. Figure 1-36 2. Loosen the indicated area by turning it anticlockwise. Power Box Figure 1-37 3. Align and attach the power box to the back plate using the 4 supplied M4 screws as indicated. Figure 1-38 Note: Make sure the direction of the “up ↑”...
Page 37 Introduction 4. Thread the 3 steel straps onto the back plate. Figure 1-39 5. Follow Step 6 ~ 12 in 1.1.5.1 GV-Mount211P. 6. Secure the camera onto the desired pole by tightening the steel straps.
Page 38: Gv-Mount212P + Gv-Mount107
1.1.5.4 GV-Mount212P + GV-Mount107 Figure 1-40 GV-Mount107 Packing List • • Pendant Bracket Pendant Tube • • Tube Connector Torx Wrench Note: Before installing GV-Mount107, note the following. • Install your GV-EBD Series camera on a GV-Mount212P by cutting a hole in the center of the mount and thread the camera wires through.
Page 39 Introduction Place GV-Mount107 on the ceiling and mark the location for the center socket and the 3 screws. Drill the marks and secure the Pendant Bracket onto the ceiling. Figure 1-41 Attach one end of the Pendant Tube to the Pendant Bracket, and the other end to the Tube Connector.
Page 40: Gv-Abl / Tbl Series & Gv-Blfc5800
1.2 GV-ABL / TBL Series & GV-BLFC5800 The Bullet IP Camera is an outdoor, fixed, network camera equipped with an automatic IR- cut filter and an IR LED for day and night surveillance. For GV-BLFC5800, it’s equipped with full color smart warm LEDs for accurate day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality image at reduced network bandwidths.
Page 41: Packing List
Introduction Fixed Iris, f: 2.8 ~ 12 mm, GV-TBL4711 F/1.6, Ø 14 mm Lens Mount 4 MP, H.265, Super Low Lux, WDR Pro Fixed Iris, f: 2.7 ~ 13.5 mm, GV-TBL4810 F/1.2, Ø 14 mm Lens Mount Fixed Iris, f: 2.8 ~ 12 mm, 8 MP, H.265, Super GV-TBL8710 F/1.5, Ø...
Page 42 GV-Mount420 (must be Pole Mount Bracket Dimensions: Ø 120 x 120 x 53.4 mm (Ø 4.7” x 4.7” x 2.1”) used with GV-Mount503) Weight: 0.45 kg (0.99 lb) Steel Strap Diameter: Ø 67 ~ 127 mm (Ø 2.6” ~ 5”) GV-Mount502 (for GV- Wall Mount Bracket Dimensions: 93 x 93 x 39 mm...
Page 43: Overview
Introduction 1.2.3 Overview 1.2.3.1 GV-ABL2701 / 2703 / 4701 / 4703 & TBL2703 / 2705 / 4703 / 4705 / 8804 Figure 1-43 No. Description No. Description Power connector (DC 12 V) Ethernet connector / PoE Load Default Button (for GV-ABL2703 / 4703 & TBL2703 / 4703 / 8804 only) Figure 1-44 No.
Page 44 Note: 1. For safety precautions, it is recommended to connect a grounding wire to the grounding screw, and do not loosen or remove the grounding screw under any circumstances. 2. If the default button doesn’t respond after pressing for 15 seconds, reboot the camera and try again within 10 minutes of rebooting.
Page 45: 8710 / 8804 / 8810, And Blfc5800
Introduction 1.2.4 Installation The Bullet IP Camera is designed for outdoors. With the standard package, you can install the camera on the wall or ceiling. Or, you can purchase optional mounting accessories to mount your camera on a wall. Below are the instructions for Wall Mount. There are two kinds of Wall Mount: Concealed Installation and Open Installation.
Page 46 Lead the cables across the hole on the wall. GV-ABL2702 / 4711 / 4712 / 8712 GV-TBL2705 / 4705 / 8804 TBL4700 / 4710 / 4711 / 4810 / 8710 / 8810 BLFC5800 Figure 1-47 Drill the holes according to the drill template. GV-ABL2702 / 4711 / 4712 / 8712 GV-TBL2705 / 4705 / 8804 TBL4700 / 4710 / 4711 / 4810 / 8710 / 8810...
Page 47 Introduction Insert the screw anchors. GV-ABL2702 / 4711 / 4712 / 8712 GV-TBL2705 / 4705 / 8804 TBL4700 / 4710 / 4711 / 4810 / 8710 / 8810 BLFC5800 Figure 1-49 Screw the locknut and loosen the universal joint before attaching the camera to the wall. Figure 1-50 Secure the camera to the wall and connect all cables.
Page 48: Optional Installation
To adjust the monitoring direction: GV-ABL2702 / 4711 / 4712 / 8712, TBL4700 / 4705 / 4710 / 4711 / 4810 / 8710 / 8804 / 8810, and BLFC5800 Figure 1-52-1 GV-TBL2705 / 4705 / 8804 Figure 1-52-2 For Open Installation Lead the cables out from the open slot on the base before screwing the camera to the wall as shown in Figure 1-51.
Page 49 Introduction For GV-ABL2702 / 4711 / 4712 / 8712, TBL4700 / 4710 / 4711 / 4810 / 8710 / 8810, and BLFC5800, you can optionally purchase: GV-Mount503 for Wall Box Mount: see section 1.2.5.2. ⚫ GV-Mount420 + GV-Mount503 for Pole Box Mount: see section 1.2.5.3. ⚫...
Page 50: Gv-Mount502
1.2.5.1 GV-Mount502 GV-Mount502 Packing List • • GV-Mount502 M3 25 mm Screw x 4 • • M3 12 mm Screw x 4 Screw Anchor x 4 • Plastic PG21 Conduit Connector 1. Unscrew the box cover. Figure 1-56...
Page 51 Introduction 2. Loosen the knob by turning it anticlockwise. Loosen the knob Figure 1-57 3. Attach the box to the wall with the knob pointing down and use a marker to mark 4 dots. 4. Drill 4 holes according to the marks. 5.
Page 52: Gv-Mount503
1.2.5.2 GV-Mount503 GV-Mount503 Packing List • • GV-Mount503 Long Screw x 4 • • Short Screw x 4 Screw Anchor x 4 • Waterproof Rubber Plug ⚫ Plastic PG21 Conduit Connector 1. 1. Unscrew the box cover. Figure 1-59...
Page 53 Introduction 2. Loosen the knobs by turning it anticlockwise. Long Screw Loosen the knob Figure 1-60 3. Attach the box to the wall with the knobs pointing down and use a marker to mark 4 dots. 4. Drill 4 holes according to the marks. 5.
Page 54: Gv-Mount420 + Gv-Mount503
Note: Alternatively, you can use the supplied waterproof rubber plug to seal the box cover by following the steps below. Thread the camera cable through the box cover, and then through the supplied waterproof rubber plug from the bottom side. Figure 1-62 Align the gap of the waterproof rubber plug to the direction of the “up ↑”...
Page 55 Introduction Note: For GV-ABL2702 / 4711 / 4712 / 8712 and GV-TBL4700 / 4710 / 4711 / 4810 / 8710 / 8810, GV-Mount420 can only be used in conjunction with GV-Mount503. 1. Follow Step 1 & 2 in 1.2.5.2 GV-Mount503. 2.
Page 56: Gv-Mount504
1.2.5.4 GV-Mount504 GV-Mount504 Packing List • • GV-Mount504 Long Screw x 4 • • Short Screw x 3 Screw Anchor x 4 • • Drill Template Paster Waterproof Rubber Plug • Plastic PG21 Conduit Connector 1. Unscrew the box cover. Figure 1-65 2.
Page 57 Introduction 5. Position the power box on the wall with the “up ↑” indicator pointing up and align the screw holes indicated below to the 4 mounting holes on the wall. Figure 1-66 6. Secure the power box to the wall with the supplied long screws. 7.
Page 58: Gv-Adr / Tdr Series
1.3 GV-ADR / TDR Series The IR Mini Fixed Rugged IP Dome is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality image at reduced network bandwidths.
Page 59 Introduction Fixed Iris, f: 4 mm, 2 MP, H.265, Low GV-TDR2702-1F Lux, WDR F/2.0, M12 Lens Mount Fixed Iris, f: 2.8 mm, GV-TDR2704-2F F/2.0, M12 Lens Mount 2 MP, H.265, Low Lux, WDR Pro Fixed Iris, f: 4 mm, GV-TDR2704-4F F/2.0, M12 Lens Mount Fixed Iris, f: 2.8 mm, GV-TDR4700-0F...
Page 60: Packing List
Fixed Iris, f: 2.8 mm, GV-TDR4803-2F F/1.6, M12 Lens Mount 4 MP, H.265, Super Fixed lens Low Lux, WDR Pro Fixed Iris, f: 4 mm, F/1.6, GV-TDR4803-4F M12 Lens Mount 1.3.1 Packing List • IR Mini Fixed Rugged IP Dome •...
Page 61 Introduction GV-Mount211P Wall Mount and Junction Box Dimensions: 233 x 126 x 126 mm (9.2” x 5” x 5”) Weight: 1 kg (2.2 lb) GV-Mount213 Wall / Ceiling Box Mount Dimensions: Ø 109 x 39 mm (Ø 4.3” x 1.5”) Weight: 0.2 kg (0.44 lb) GV-Mount300-2 Convex Corner Mount...
Page 62: Overview
1.3.3 Overview Figure 1-69 Description Ethernet connector / PoE Power connector (DC 12 V) Transparent Dome Cover For GV-TDR2700 / 4700 / 4703 / 4803 series only, see the table below. Wire Definition GV-TDR2700 series / 4700 series GV-TDR4703 series / 4803 series Wire Definition Wire...
Page 63: Installation
Introduction 1.3.4 Installation The IR Mini Fixed Rugged IP Dome is designed for outdoors. With the standard package, you can install the camera on the ceiling. Below are the instructions for Ceiling Mount. There are two kinds of Ceiling Mount: Concealed Installation and Open Installation.
Page 64 Unscrew the transparent dome cover with the supplied torx wrench. Connect the cables and secure the camera. Figure 1-72 Adjust the monitoring direction and tighten the screws after vertically adjusting the lens. Figure 1-73...
Page 65 Introduction Secure the transparent dome cover with the supplied torx wrench. Figure 1-74 Note: Before securing the transparent dome cover, make sure the waterproof rubber strip is tightly held by the six retainers on the bottom ring. Figure 1-75 For Open Installation Lead the cables out from the open slot on the camera base before screwing the camera to the ceiling as shown in Figure 1-72.
Page 66: Optional Installation
1.3.5 Optional Installation You can optionally purchase the following accessories to fit your mounting environment: GV-Mount211P for Wall Mount: see section 1.1.5.1. ⚫ GV-Mount213 for Wall / Ceiling Box Mount: see section 1.3.5.1 ⚫ GV-Mount420 + GV-Mount211P for Pole Box Mount: see section 1.1.5.3. ⚫...
Page 67 Introduction 1. Attach the GV-Mount213 to the wall / ceiling and use a marker to mark the location for the center socket and the 3 screws. Figure 1-77 Note: To prevent rain from getting into GV-ADR2701 / 2702 / 4701 / 4702 & TDR2702 / 2704 / 4702 / 4703 / 4704 / 4803, •...
Page 68 3. Insert 3 screw anchors to the screw locations and secure the GV-Mount213 to the wall / ceiling with 3 long screws. 4. Thread the Ethernet cable through the center socket and waterproof the Ethernet cable. For details, see 1.8 Waterproofing the Cable. Figure 1-79 5.
Page 69 Introduction GV-ADR2702 / ADR4702 / TDR2700 / TDR2702 / TDR2704 / TDR4700 / TDR4702 / TDR4703 / TDR4704 / TDR4803 Figure 1-81 7. Secure the camera cover. Note: In addition to the Standard Installation, you can also choose to run the Ethernet cable through a corrugated tube.
Page 70: Gv-Avd / Tvd Series
1.4 GV-AVD / TVD Series The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. The camera is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axes (pan, tilt and rotate), it offers an entry- level surveillance solution with all the essential features and excellent image quality.
Page 71: Packing List
Introduction 1.4.1 Packing List 1.4.1.1 GV-TVD4711 • IR Vandal Proof IP Dome • Screw Kit • • Drill Template Paster Torx Wrench • • Spare Waterproof Rubber Plug Cable Protection Connector • • 2-Pin Power Terminal Block Download Guide...
Page 72: Gv-Avd / Tvd Series
1.4.1.2 GV-AVD / TVD Series • • IR Vandal Proof IP Dome Waterproof Rubber Set • • Screw Kit Drill Template Paster • • Torx Wrench Download Guide...
Page 73: Optional Accessories
Introduction 1.4.2 Optional Accessories Optional accessories can expand the capabilities and versatility of your camera. Contact your dealer for more information. Model Number Name Details GV-Mount107 Pendant Bracket Dimensions: Ø 120 x 334 mm (must be used with (Ø 4.72” x 13.15”) GV-Mount212P / Weight: 0.74 kg (1.63 lb) GV-Mount212-2)
Page 74 GV-Mount704 Extension Tube Dimensions: Ø 3.5 x 10 or 20 or 30 (must be used with or 50 cm (Ø 1.38 x 3.9 or 7.9 or 11.8 or 19.7”) GV-Mount107) Weight: 225g or 360g or 500g or 780g (0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb) GV-Mount921 Power over Ethernet (PoE)
Page 75: Overview
Introduction 1.4.3 Overview 1.4.3.1 GV-AVD2700 / 4710 / 8710, GV-TVD4700 / 4710 / 4810 / 8710 / 8810 Figure 1-82 No. Description No. Description Power connector (DC 12 V) Default button Ethernet connector / PoE Micro SD card slot Video output Default button (For GV-TVD8810) (Not applicable to GV-TVD4700 / 8810) Audio input / Audio output / GND (Not...
Page 76: Gv-Tvd4711
1.4.3.2 GV-TVD4711 Figure 1-83 No. Description No. Description Ethernet port Power port (2-Pin terminal block) Digital Input Micro SD card slot Default button Audio In Digital Output (N) Digital Output (P) Audio Out Note: There are two ways to supply power to the camera: Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and ⚫...
Page 77: Installation
Introduction 1.4.4 Installation The Target Vandal Proof Dome is designed for outdoors. With the standard package, you can install the camera on the ceiling. Alternatively, you can purchase optional mounting accessories to mount the camera on a wall. Below are the instructions for Ceiling Mount. There are two kinds of Ceiling Mount: Concealed Installation and Open Installation.
Page 78 4. Connect the camera cables and secure the camera. Figure 1-87 5. Insert a SD card into the slot. 6. Adjust the monitoring direction and tighten the screws after vertically adjusting the lens. Figure 1-88 7. Secure the transparent dome cover with the supplied torx wrench. For Open Installation Lead the cables out from the open slot on the camera base before screwing the camera to the ceiling as shown in Figure 1-87.
Page 79: Gv-Tvd4711
Introduction 1.4.4.2 GV-TVD4711 Follow steps 1 to 3 in 1.4.4.1 GV-AVD2700 / 4710 / 8710, GV-TVD4700 / 4710 / 4810 / 8710 / 8810. To install an Ethernet / PoE cable: Remove the large waterproof rubber plug from the base of the camera. Cut a small opening on the tip of the large waterproof rubber plug.
Page 80: Optional Installation
10. Connect the 2-pin terminal block and I/O wires to the camera. Tip: When connecting the I/O wires to the camera, thread the I/O wires through the protruded loop. Figure 1-90 To finish the installation: 11. Secure the camera and insert a micro SD card to the slot. 12.
Page 81: Gv-Mount211-2
Introduction 1.4.5.1 GV-Mount211-2 GV-Mount211-2 Figure 1-91 GV-Mount211-2 Packing List • • GV-Mount211-2 Long Screw x 5 • • Short Screw x 4 Screw Anchor x 5 • • Plastic PG21 Conduit Connector Drill Template Paster 1. To install the power box from the wall mount bracket on the wall, follow steps 1 to 5 in 1.1.5.1 GV-Mount211P.
Page 82 2. Unscrew the transparent dome cover with the supplied torx wrench. Figure 1-92 3. Optionally insert a SD card into the slot. 4. Thread the camera cables through the bracket. 5. Secure the camera to the wall mount bracket with the provided short screws. Figure 1-93 6.
Page 83: Gv-Mount212-2
Introduction 1.4.5.2 GV-Mount212-2 GV-Mount212-2 Figure 1-95 GV-Mount212-2 Packing List • • GV-Mount212-2 Long Screw x 3 • • Short Screw x 3 Screw Anchor x 3...
Page 84 1. Attach the ceiling box to the ceiling and use a marker to mark the location for the center socket and the screws. Make sure the knob points inwards. Screw Location This knob points down Figure 1-96 2. Drill 3 holes according to the screw location. Then, drill a bigger hole at the center socket location for the Ethernet cable.
Page 85 Introduction 6. Secure the camera to the ceiling box. Figure 1-98 Note: In addition to the Standard Installation, you can also choose to run the Ethernet cable through a corrugated tube. To do this, see Figure 1-34 and its related Note.
Page 86: Gv-Mount420 + Gv-Mount211-2
1.4.5.3 GV-Mount420 + GV-Mount211-2 Figure 1-99 GV-Mount420 Packing List • • GV-Mount420 M4 Screw x 4 • Additional Screw Kit M6 Screw x 4 M6 Nut x 4 M6 Plain Washer x 4 M6 Split Washer x 4 Note: For GV-AVD Series, GV-Mount420 can only be used in conjunction with GV- Mount211-2.
Page 87: Gv-Mount606
Introduction 1.4.5.4 GV-Mount606 GV- Mount606 Figure 1-100 GV-Mount606 Packing List • • In-Ceiling Mount Bracket In-Ceiling Cover • • In-Ceiling Plate Drill Template Paster • Screw Kit: M4 Screw (8 mm) x 3 M4 Screw (40 mm) x 2...
Page 88 Paste the drill template to the ceiling and drill the ceiling to the size of the drill template. Place the In-Ceiling Plate behind the ceiling with the flat side facing down. Loosen the knob on the side of the camera and thread the camera wires through. Thread the camera wires through the side of the In-Ceiling Mount Bracket and place the camera in the Mount Bracket.
Page 89: Gv-Tfd Series
Introduction 1.5 GV-TFD Series The IR Mini Fixed IP Dome is an indoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality image at reduced network bandwidths.
Page 90: Optional Accessories
1.5.2 Optional Accessories Optional accessories can expand the capabilities and versatility of your camera. Contact your dealer for more information. Model Number Name Details GV-Mount107 Pendant Bracket Dimensions: Ø 120 x 334 mm (Ø 4.72” x 13.15”) (must be used with GV-Mount213) Weight: 0.74 kg (1.63 lb) GV-Mount211P...
Page 91: Overview
Introduction GV-PA191 Power over Ethernet (PoE) GV-PA191 is a Power over Ethernet Adapter (PoE) adapter designed to provide power to the IP device through a single Ethernet cable. GV-POE Switch GV-POE Switch is designed to provide power along with network connection for IP devices.
Page 92: Installation
1.5.4 Installation The IR Mini Fixed IP Dome is designed for indoors. With the standard package, you can install the camera on the ceiling. Below are the instructions for Ceiling Mount. There are two kinds of Ceiling Mount: Concealed Installation and Open Installation. In Concealed Installation, the cables are hidden in the ceiling.
Page 93: Optional Installation
Introduction Note: Make sure to adjust the lens as stated in Step 4 for any type of installation, in order for the lens to rotate smoothly upon powering up. For installation on the wall, also make sure the “UP” indicator is facing up towards the ceiling. Secure the transparent dome cover with the supplied torx wrench.
Page 94: Gv-Fer5702
1.6 GV-FER5702 The IR Fisheye Rugged IP Camera is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality image at reduced network bandwidths.
Page 95: Optional Accessories
Introduction 1.6.2 Optional Accessories Optional accessories can expand the capabilities and versatility of your camera. Contact your dealer for more information. Model Number Name Details GV-Mount107 (must Pendant Bracket Dimensions: Ø 120 x 334 mm (Ø 4.72” x 13.15”) be used with GV- Mount212P) Weight: 0.74 kg (1.63 lb) Dimensions: 233 x 126 x 126 mm (9.2”...
Page 96: Overview
1.6.3 Overview 1.6.3.1 GV-FER5702 Figure 1-107 No. Description No. Description Power connector (DC 12V) Green wire-Alarm output - Ethernet connector / PoE Yellow wire-Audio output Brown wire-Alarm input White wire-GND Blue wire-GND Purple wire-Audio input Orange wire-Alarm output +...
Page 97: Installation
Introduction Load Default Button Figure 1-108 Description Description Load default button SD card slot Note: If the default button doesn’t respond after pressing for 15 seconds, reboot the camera and try again within 10 minutes of rebooting. 1.6.4 Installation The IR Fisheye Rugged IP Camera is designed for outdoors. With the standard package, you can install the camera on the wall or ceiling.
Page 98 Stick the drill template paster to the ceiling and drill holes on the ceiling according to the drill template. Figure 1-109 Insert the screw anchors. Figure 1-110 Remove the housing by turning it anticlockwise. Figure 1-111...
Page 99: Optional Installation
Introduction Secure the camera base onto the ceiling with 3 screws supplied and lock up the housing by turning it clockwise. Figure 1-112 1.6.5 Optional Installation You can optionally purchase the following accessories to fit your mounting environment: GV-Mount212P for Wall Box Mount: see similar installation procedures in section ⚫...
Page 100: Gv-Ptz5810-Ir
1.7 GV-PTZ5810-IR GV-PTZ5810-IR is an indoor network PTZ camera that offers 5x optical zoom, capable of showing smooth live view with great details. This camera can simultaneously deliver three video streams in resolutions up to 2880 x 1620 at 30 fps. In low-light environments, night vision is enhanced with its LEDs, which allow up to 30 m (100 ft) effective IR distance.
Page 101: Optional Accessories
Introduction 1.7.2 Optional Accessories Optional accessories can expand the capabilities and versatility of your camera. Contact your dealer for more information. Model Number Name Details GV-Mount107 Pendant Bracket Dimensions: Ø 120 x 334 mm (Ø 4.72" x 13.15") (must be used Weight: 0.74 kg (1.63 lb) with GV- Mount212P)
Page 102: Overview
GV-Mount704 Extension Tube Dimensions: Ø 3.5 x 10 or 20 or 30 or 50 cm (Ø 1.38" x 3.9" or 7.9" or 11.8" or x 19.7") (must be used with GV- Weight: 225 g or 360 g or 500 g or 780 g Mount107) (0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb) GV-POE Switch...
Page 103: Installation
Introduction Load Default Button Figure 1-114 Description Description Load default button SD card slot Note: If the default button doesn’t respond after pressing for 15 seconds, reboot the camera and try again within 10 minutes of rebooting. 1.7.4 Installation The IR IP Mini PTZ Camera is designed for indoors. With the standard package, you can install the camera on the wall or ceiling.
Page 104 Stick the drill template paster to the ceiling and drill holes on the ceiling according to the drill template. Figure 1-116 Fix the adapter plate to the ceiling with screws. Figure 1-117 Secure the camera to the adpater plate and rotate the camera counterclockwise until it’s fastened.
Page 105: Optional Installation
Introduction 1.7.5 Optional Installation You can optionally purchase the following accessories to fit your mounting environment: GV-Mount107 + GV-Mount212P for Pendant Tube Mount: see similar installation ⚫ procedures in section 1.1.5.4. GV-Mount211P / GV-Mount212P for Wall Box Mount: see section 1.1.5.1 and 1.1.5.2. ⚫...
Page 106: System Requirements
1.8 System Requirements Intel Core i5-4670, 3.40 GHz Memory DDR3 8 GB RAM On Board Graphics Intel HD Graphics 4600 (Versions of driver from year 2014 or later required) ⚫ Web Browsers Internet Explorer 11.0 or above ⚫ Google Chrome ⚫...
Page 107: Waterproofing The Cable
Introduction 1.9 Waterproofing the Cable Waterproof the Ethernet cable by using the supplied waterproof rubber set. 1. Attach the seal ring to the RJ-45 plug. Figure 1-119 2. Insert the waterproof components through the Ethernet cable as shown below. Insert in order Figure 1-120 3.
Page 108 5. Screw in the waterproof bolt lid. Bolt lid Figure 1-123 6. Finish the waterproof installation. Figure 1-124 7. If the camera has a DC cable and is not in use, you can waterproof it by inserting the supplied plug into the DC interface. DC interface Plug Figure 1-125...
Page 109: Chapter 2 Accessing The Camera
Accessing the Camera Chapter 2 Accessing the Camera Once installed, the IP camera is accessible on a network. Follow these steps to configure the network settings and access your surveillance images. 2.1 Installing on a Network These instructions describe the basic connections to install the camera on the network. 1.
Page 110: Looking Up The Dynamic Ip Address And Logging In
Accessing the Camera 2.1.1 Looking Up the Dynamic IP Address and Logging In By default, when the device is connected to LAN with a DHCP server, it is automatically assigned with a dynamic IP address. Follow the steps below to look up its IP address and log in the Web interface.
Page 111: Configuring The Ip Address
By default, when the device is connected to LAN without a DHCP server, it is assigned with a static IP address of 192.168.0.10. Follow the steps below to assign a new IP address to avoid IP conflict with other GeoVision devices. Open your Web browser and type the default IP address 192.168.0.10.
Page 112: Accessing Live View
Accessing the Camera 2.2 Accessing Live View After logging into the camera, you will see the Home page as shown below: 10 11 12 13 14 15 16 Figure 2-3 No. Name Function Set the display ratio of the image. •...
Page 113 Accessing the Camera Play/Stop Play or stop live video. Only for the audio-supporting models, adjust the audio output Video Volume volume on the PC. Only for audio-supporting models, enable or disable Microphone microphone. Only for audio-supporting models, adjust the microphone Microphone volume on the PC during audio communication between the PC Volume...
Page 114: Digital Zoom
Accessing the Camera 2.2.1 Digital Zoom To use the digital zoom function, follow these steps: 1. Click (No. 13, Figure 2-4) on the toolbar. 2. Click and drag the mouse button in any direction to specify an area. 3. To restore the original image size, right click on the enlarged area. 4.
Page 115: Ptz Control Panel
Accessing the Camera 2.3 PTZ Control Panel In this section, you will be guided through the various functions of PTZ Control Panel. The PTZ Control Panel is accessed from the live view interface of the camera. Note this is only applicable to GV-PTZ5810-IR. 2.3.1 Accessing the PTZ Control Panel Figure 2-5 No.
Page 116 Accessing the Camera Select a preset and the camera goes to the selected preset. Preset -- See 2.3.2 Setting Presets. Patrol Select a patrol route. -- See 2.3.3 Setting Patrol.
Page 117: Setting Presets
Accessing the Camera 2.3.2 Setting Presets You can create and delete preset points by clicking Preset on the control panel of Live View. Adding a Preset 1. Select Preset on the control panel, and adjust the camera view to the desired direction, zoom and focus.
Page 118: Setting Patrol
Accessing the Camera 2.3.3 Setting Patrol A patrol route is the track by which the camera follows when moving from a preset to the next. The length of time that the camera stays at each preset is configurable. Multiple patrol routes are allowed for the camera.
Page 119 Accessing the Camera Note: 1. It is recommended that the first action type is Go to Preset. 2. If Keep Rotating is selected, the camera will rotate at the set speed and zoom in the set direction or position for a certain amount of time. Starting a Patrol Route After you have added a patrol route, you can start patrolling by clicking on the control...
Page 120 Accessing the Camera Delete a Patrol Route On the control panel, click for a patrol route and confirm the delete. Figure 2-12 Making a Patrol Plan You can set up the camera to perform different patrol routes at different time periods throughout the week by making a patrol plan.
Page 121 Accessing the Camera 1. On the control panel, click the Patrol Plan button to set the correct patrol time and route. Figure 2-13 2. Select Enable Patrol Plan. 3. Click OK.
Page 122: Playing Back Recorded Videos
Accessing the Camera 2.4 Playing Back Recorded Videos Note this function is only applicable to models with SD card slot for local storage. To play back recorded videos from the camera’s local storage, click Playback at the top of the Web interface. Figure 2-14 No.
Page 123: Recording Download
Accessing the Camera Note: To store and play back recorded videos to and from the camera’s local storage, make sure to configure the storage settings in Storage. For details, refer to 3.7.1 Formatting Storage. 2.4.1 Recording Download To download recorded videos from the local storage, follow the steps below: 1.
Page 124: Chapter 3 Administrator Mode
Chapter 3 Administrator Mode The Administrator can access and configure the GV-IP Camera through the network. Click Setup at the top of the Web interface to access the following configuration tabs: Common, Network, Video & Audio, Image, Intelligent, Events, Storage, Security and System. Figure 3-1...
Page 125 Administrator Mode List of Options See the table below for the settings available on the Web interface. Find the topic of interest by referring to the section number prefixed to each option. IMPORTANT: The available functions may vary among camera models and firmware versions.
Page 126 3.8.1 Formatting Storage 3.8 Storage 3.8.2 FTP 3.8.3 Backing Up Storage 3.9.1 User 3.9 Security 3.9.2 Network Security 3.10.1 Time 3.10.2 Server 3.10.3 Maintenance 3.10 System 3.10.4 Network Diagnosis 3.10.5 Log 3.10.6 Ports and Devices...
Page 127: Common
Administrator Mode 3.1 Common Under the Common tab, the Administrator can find the general settings of the camera, as well as shortcuts to the following setting pages. ◼ Network: See 3.2.1 Network for details. ◼ Time: See 3.9.1 Time for details. ◼...
Page 128: Local Parameters
3.1.2 Local Parameters You can set the local parameters for your PC. Figure 3-3 [Smart / Intelligent Mark] ◼ Intelligent Mark: Enabled by default to display the detection line or area as defined by Smart Settings. See details in 3.5.1 Smart Settings. ◼...
Page 129 Administrator Mode [Video] ◼ Processing Mode  Real-Time Priority: Select this if the network is in good condition.  Fluency Priority: Select this if you want short time lag for live video.  Ultra-low Latency: Select this if you want the minimum time lag for live video. ◼...
Page 130: Network
3.2 Network The network section allows you to configure the network settings, modify ports, configure FTP server, and set up e-mail for notification. 3.2.1 Network Figure 3-4 ◼ Obtain IP Address: Select Static IP or DHCP according to your network environment. ...
Page 131: Dns
Administrator Mode  PPPoE: The network environment is xDSL connection. Type the Username and Password provided by ISP to establish the connection. If you use the xDSL connection with dynamic IP addresses, first use the DDNS function to obtain a domain name linking to the camera’s changing IP address.
Page 132: Port
3.2.3 Port Port You can modify the default HTTP, HTTPS and RTSP ports if necessary. Figure 3-6 Port Mapping This function can automatically forward and open certain ports on your router, allowing connection to your camera from the Internet. 1. Enable Port Mapping, and select UPnP or Manual for Mapping Type. •...
Page 133: Ddns
1. Click On to enable DDNS Service. 2. Select the DDNS service provider you have registered with. If you chose DynDNS, skip to Step 5. 3. Copy the website address http://ns.gvdip.com/register.aspx to a browser to access Geovision DDNS service. Figure 3-9...
Page 134 4. In the Geovision DDNS Server page, type a desired Hostname and Password. Re-type Password and type the verification letters shown in the image. Click Send. 5. In the Web interface of your camera, type Username. The username is the hostname registered in DDNS Server.
Page 135: E-Mail
Administrator Mode 3.2.5 E-mail After the configuration of E-mail, you will be able to send messages to the specified E-mail addresses when alarms are triggered. 1. Type the Name and Address of the sender. 2. Type the SMTP Server. 3. Type the SMTP Port number. 4.
Page 136: Snmp
3.2.6 SNMP Users can transfer the configurations of the device through SNMP protocol to communicate with and/or integrate it into a central server. Note this function is NOT supported by GV- ABL2701 series / 2703 series / 4703 / 4711, GV-ADR2701 / 2702 / 4702, GV-EBD4701 / 4712, GV-TBL2703 series / 4700 / 4703 / 4711, GV-TDR2702 / 4702 / 4703 series, GV- TFD4700, and GV-TVD4700 / 4711.
Page 137: 123
Administrator Mode 3.2.7 802.1x IEEE 802.1x is an IEEE standard for port-based Network Access Control. It provides an authentication mechanism to devices wishing to attach to a LAN or WLAN. Note this function is only applicable to GV-ABL2702 / 4712 / 8712, GV-AVD2700 / 4710 / 8710, GV-BLFC5800, GV-EBD2702 / 4700 / 4704 / 4711 / 4813 / 8700 / 8711 / 8800 / 8813, GV-FER5702, GV- PTZ5810-IR, GV-TBL4705 / 4710 / 4810 / 8710 / 8804 / 8810, GV-TDR2700 / 4700 / 4704 / 4803, and GV-TVD4710 / 4810 / 8710 / 8810.
Page 138: Qos
3.2.8 QoS QoS is the prioritization of network traffic used to ensure resource reservation under abundant data flow. Note this function is NOT supported by GV-ABL2701 series, GV- ADR2701, GV-EBD4701 / 4712, GV-TDR4703 series, and GV-TFD4700. Figure 3-14 ◼ Audio & Video: Optionally modify the priority of value of Audio & Video. The higher the value, the higher the priority.
Page 139: Video & Audio
Administrator Mode 3.3 Video & Audio This section allows you to configure the three video streams and audio input. The audio function is only applicable to GV-ABL2702 / 4711 / 4712 / 8712, GV-AVD2700 / 4710 / 8710, GV-BLFC5800, GV-EBD2702 / 2704 / 4701 / 4704 / 4711 / 4712 / 8711 / 8800 / 8813, GV- FER5702, GV-PTZ5810-IR, GV-TBL4705 / 4710 / 4711 / 8710 / 8804 / 8810, GV-TDR4703 series, and GV-TFD4700, GV-TVD4710 / 4711 / 8810.
Page 140 The following options are available for the main, sub and third streams. ◼ Video Compression: Set the codec type to H.265, H.264 or MJPEG. ◼ Resolution: Select different resolutions for each stream. Note: Changing the resolution in this option will not affect the Capture Mode. For GV-ABL4711, GV-EBD4701 / 4712, GV-TBL4700 / 4711, GV-TDR4703 series, GV-TFD4700, and GV-TVD4700 / 4711, the resolution of the main stream cannot be modified.
Page 141: Snapshot
Administrator Mode 3.3.2 Snapshot Using the Snapshot function, when an alarm is triggered, the camera will automatically upload the captured snapshots to the FTP server and/or send snapshots to the specified e- mail addresses. Note: If Upload Images is selected in Figure 3-56, 3.7.2 FTP, the captured snapshots will only be sent to the FTP server.
Page 142 Select Schedule or Repeat to set up the Snapshot Mode. ⚫ If you select Schedule, click to specify the desired time to take a snapshot. ⚫ If you select Repeat, type the interval, from 1 to 86400 seconds, to repeat the process of taking snapshots and sending them to the FTP server or e-mail.
Page 143: Audio
Administrator Mode 3.3.3 Audio Note this function is only applicable to audio-supporting models. You can configure the audio settings of the camera. Figure 3-17 ◼ Audio Input: Select On to enable audio input. ◼ Input Gain: Set the audio signal amplification for sampling. The greater the gain, the greater amplification.
Page 144: Roi
3.3.4 ROI When Region of Interest (ROI) is enabled, the system ensures image quality for ROI first if the bit rate is insufficient. Figure 3-18 Click to enable and add ROI. Click and drag on the image to specify an area. To add additional ROI areas, repeat steps 1 and 2.
Page 145: Media Stream
Administrator Mode 3.3.5 Media Stream Media Stream By configuring media stream, you can set the camera to transmit code streams by UDP or TCP protocol to a specified IP address and port number. The settings can be saved and take effect after the camera is rebooted.
Page 146 RTSP Multicast Address After an RTSP multicast address is configured, the third-party player can request for the RTSP multicast media stream from the camera through RTSP protocol. Figure 3-20 1. Type the Multicast Address (224.0.1.0 to 239.255.255.255) and Port number (0 to 65535).
Page 147: Ptz
Administrator Mode 3.4 PTZ This section allows you to configure basic PTZ settings, home position, remote control, orientation and more on the PTZ camera. Note this is only applicable to GV-PTZ5810-IR. 3.4.1 Basic Settings Basic settings allows you to configure basic PTZ settings related to the camera’s position and PTZ control timeout.
Page 148: Home Position
3.4.2 Home Position The PTZ camera will return to home position if no operation is made within a specified period. Home Position allows you to select the desired preset as the home position and set the time. Figure 3-22 3.4.3 Limit Users can set PTZ limitations to prevent the camera from hitting obstacles such as walls.
Page 149: Remote Control
Administrator Mode 2. Adjust the view in such a way that it reaches the PTZ limit you want to set. 3. Click to set the position relative to the current dome view as a limit. For example, click at the top to set the upper limit. 4.
Page 150: Patrol
3.4.5 Patrol You can set the camera to take a snapshot and upload the image to the FTP server when the camera goes to the preset during the patrol route. Figure 3-25 1. Enable Preset Snapshot. 2. Type the Resume Patrol(s) interval in seconds to upload snapshots. 3.
Page 151: Orientation
Administrator Mode 3.4.6 Orientation You can manually set a north direction or home position for the camera. Figure 3-26 [Orientation] ◼ Set as north: After the camera is positioned to a specific direction, the position will be set as the north direction. ◼...
Page 152: Image
3.5 Image This section introduces the Image Settings, On-screen Display and Privacy Mask. 3.5.1 Image This page allows you to adjust image settings such as brightness, exposure, IR illumination and white balance. [Scene] Figure 3-27 ◼ Current: Indicates the scene that is being used. ◼...
Page 153 Administrator Mode [Image Enhancement] Figure 3-28 ◼ Brightness: Adjust the degree of brightness of the image. ◼ Saturation: Adjust the amount of hue contained in a color. ◼ Contrast: Set the degree of difference between the blackest pixel and the whitest pixel. ◼...
Page 154 ◼ Exposure Mode: Select the correct exposure mode to achieve the desired exposure effect. The default setting is Outdoor. ⚫ Low Motion Blur: Improve image quality by reducing motion blur in low light conditions. ◼ Shutter(s): The length of time that allows light to enter into the lens. You can set a shutter speed when Exposure Mode is set to Manual (Custom).
Page 155 Administrator Mode ◼ WDR: Enable WDR to distinguish the bright and dark areas in the same image. ◼ WDR Level: After enabling the WDR function, you can improve the image by adjusting the WDR level. ◼ Suppress WDR Stripes: Enable Suppress WDR Stripes to automatically adjust shutter frequency based on the frequency of light measured.
Page 156 ◼ Control Mode: ◼ Global Mode: Adjust IR illumination and exposure to achieve balanced image effects. Some areas might be overexposed if you select this option. This option is recommended if monitored range and image brightness are your first priority. ◼...
Page 157: Osd
Administrator Mode [Advanced] Figure 3-32 ◼ Defog: Select On to activate the slider for adjusting the defog intensity of the image. Or select Automatic for the camera to adjust the defog intensity automatically. ◼ Dewarping: Only for GV-ABL2703 series / 4703, GV-ADR2702 / 4702, GV-EBD8800 / 8813, GV-TBL2703 series / 4703 / 8804 / 8810, GV-TDR2702 series / 4702 series and GV-TVD8810, select On to activate the slider for adjusting the Dewarping Intensity of the camera image.
Page 158 1. Enable a No. to select an area #, and click Overlay OSD Content to select the content to display on the screen. 2. Adjust the position of the Area 1/2/3 boxes either by dragging them directly on the live view or by specifying the coordinates under X-Axis / Y-Axis column.
Page 159: Privacy Mask
Administrator Mode After you have set the position and OSD content, the symbol appears in the Status column, which means that the OSD is set successfully. 3.5.3 Privacy Mask On certain occasions, you may need to set a mask area to block out parts of the camera image to protect privacy, for example, the keyboard of an ATM machine.
Page 160: Intelligent
3.6 Intelligent Under Intelligent, users can set the camera to detect for a number of video-analytic events, which can be used to send FTP and/or e-mail alerts, based on the parameters set. Note this function is NOT supported by GV-ABL2701 series / 2703 series / 4701 series / 4703, GV- ADR2701 / 2702 / 4701 / 4702, GV-TBL2703 series / 4703, GV-TDR2702 / 4702, and GV- FER5702.
Page 161: Cross Line
Administrator Mode 3.6.1.1 Cross Line Cross line detection generates an alarm when an object moves past the detection threshold in the direction you defined. Up to 4 detection lines can be added. Note that when adding multiple detection lines, make sure they do NOT intersect as it may affect the detection results.
Page 162 For models NOT equipped with AI functions Figure 3-38 1. Based on your installation environment, select the Detection Scene between outdoor and indoor (see Detection Parameters in 3.5.2 Advanced Settings). By default, Outdoor is selected. 2. Once enabled, select Rule Settings > click to add a detection line.
Page 163 Administrator Mode C. Optionally click next to Alarm Sound to set the desired Day, Start Time, End Time, Alarm Audio, and Number of Repeat Times. You can set up to four periods for each time, and the time periods cannot overlap. D.
Page 164: Intrusion
3.6.1.2 Intrusion With Intrusion Detection, an alarm is generated when an object enters the boundaries of the detection area. Up to 4 detection areas can be added. Note that it is recommended NOT to overlap the detection areas when adding multiple detection areas. Select the checkbox next to Intrusion to enable and click to configure.
Page 165 Administrator Mode Note: 1. Certain models may only support uploading snapshots to an FTP server and output trigger for Trigger Actions. 2. Motor Vehicle includes cars, trucks, and buses. Non-Motor Vehicle includes bicycles and motorcycles. 3. Alarm Sound is only applicable to GV-PTZ5810-IR / GV-TBL8804 and Alarm Light is only applicable to GV-TBL8804.
Page 166 5. For Trigger Actions and Plan, follow Step 6 ~ 7 at the bottom of 3.5.1.1 Cross Line. Note: Under Trigger Actions: ⚫ Alarm Output and Storage are not supported by GV-TBL4700 and GV-TVD4700. ⚫ Alarm Output is not supported by GV-EBD2704 / 4701 / 4704 / 4712, GV-TBL2705 / 4705, and GV-TDR2704 series / 4704 series.
Page 167: Object Removed
Administrator Mode 3.6.1.3 Object Removed Object Removed can generate an alarm when an object is removed from the specified area. Up to 4 detection areas can be added. Note that it is recommended NOT to overlap the detection areas when adding multiple detection areas. Select the checkbox next to Object Removed to enable and click to configure.
Page 168: Object Left Behind
3.6.1.4 Object Left Behind With Object Left Behind, an alarm can be generated when an object which remained in the detection area for the specified period of time, leaves the specified region. Up to 4 detection areas can be added. Note that it is recommended NOT to overlap the detection areas when adding multiple detection areas.
Page 169: Defocus
Administrator Mode 3.6.1.5 Defocus Defocus generates an alarm to be sent through e-mail whenever the camera’s image is out of focus. Select the checkbox next to Defocus to enable and click to configure. Figure 3-45 Once enabled, drag the slider to adjust the detection Sensitivity. For Trigger Actions, follow Step 6 at the bottom of 3.5.1.1 Cross Line.
Page 170: Scene Change
3.6.1.6 Scene Change Scene Change is able to generate an alarm whenever there is a drastic scene change to the image of the camera. Select the checkbox next to Scene Change to enable and click configure. Figure 3-46 Once enabled, drag the slider to adjust the detection Sensitivity. For Trigger Actions and Plans, follow Step 6 ~ 7 at the bottom of 3.5.1.1 Cross Line.
Page 171: Face Detection
Administrator Mode 3.6.1.7 Face Detection The Face function can detect for and capture face(s) in a specified area and send to an FTP server. Select the checkbox next to Face to enable and click to configure. For models NOT equipped with AI functions Figure 3-47 1.
Page 172 Note: The Counting and Counting Direction features are currently nonfunctional. For GV-BLFC5800, GV-EBD4813 / 8800 / 8813, GV-PTZ5810-IR, GV-TBL4810 / 8804 / 8810, GV-TDR4803, and GV-TVD4810 / 8810 Figure 3-48 1. Once enabled, define the detection area, either by selecting Specified Area and drawing a desired area on the image, or select Full Screen to set the entire image as detection area.
Page 173 Administrator Mode [Face Selection] ◼ Selection Mode: Select Effect Priority for the best image quality of the captured snapshots, Speed Priority for optimal snapshots from the moment of detection until the specified timeout is up, and Period Selection for a snapshot captured in every selection period.
Page 174: People Counting
3.6.1.8 People Counting The People Counting function can count the number of person(s) entering and leaving the vicinity, which is useful at an entrance/exit setting. Select the checkbox next to People Counting to enable and click to configure. For models NOT equipped with AI functions Figure 3-49 1.
Page 175 Administrator Mode For GV-BLFC5800, GV-EBD4813 / 8800 / 8813, GV-PTZ5810-IR, GV-TBL4810 / 8804 / 8810, GV-TDR4803, and GV-TVD4810 / 8810 Figure 3-50 1. Once enabled, draw a detection line and define the entrance direction. Select the entrance direction from the Enter drop-down list. 2.
Page 176: Human Body Detection
3.6.1.9 Human Body Detection Human Body Detection is used to generate an alarm whenever a human figure appears in the specified area. Note this function is only applicable to GV-ABL4711, GV-EBD4701 / 4712, GV-TBL4700 / 4711, GV-TDR4703 series, GV-TFD4700, and GV-TVD4700 / 4711. Figure 3-51 In the Snapshot Area, click to add a new detection area.
Page 177: Enter Area / Leave Area
Administrator Mode 3.6.1.10 Enter Area / Leave Area With Enter Area / Leave Area, an alarm is generated when a person or vehicle enters / leaves the boundaries of the detection area. Note this function is only applicable to GV- BLFC5800, GV-EBD4813 / 8800 / 8813, GV-PTZ5810-IR, GV-TBL4810 / 8804 / 8810, GV- TDR4803, and GV-TVD4810 / 8810.
Page 178 ⚫ Optionally click next to Alarm Sound to set the desired Day, Start Time, End Time, Alarm Audio, and Number of Repeat Times. You can set up to four periods for each time, and the time periods cannot overlap. 7. For Plan, follow Step 7 at the bottom of 3.5.1.1 Cross Line. Note: 1.
Page 179: Crowd Density Monitoring
Administrator Mode 3.6.1.11 Crowd Density Monitoring With Crowd Density Monitoring, an alarm is triggered when the number of people in a specified area exceeds the defined alarm threshold. Note this function is only applicable to GV-EBD4813 / 8800 / 8813, GV-BLFC5800, GV-PTZ5810-IR, GV-TBL4810 / 8804 / 8810, GV-TDR4803, and GV-TVD4810 / 8810.
Page 180: Advanced Settings
3.6.2 Advanced Settings This section allows you to configure the clarity of the snapshots captured by face detection events and choose the detection modes used for all video-analytic events. Photo Parameters Figure 3-54 ◼ Thumbnail Image Clarity: Drag the slider to adjust the clarity of the snapshots captured by face detection events.
Page 181: Events
Administrator Mode 3.7 Events You can set the camera to generate an alarm upon motion detection, tampering alarm, audio detection and one-key shielding linkage. 3.7.1 Motion Detection Motion detection is used to generate an alarm whenever movement occurs in the specified area.
Page 182 ⚫ If the alarm is triggered within the set time, the alarm will not be cleared until the suppress alarm time expires. Then the alarm can be reported again. 6. For Trigger Actions and Plan, follow Step 6 ~ 7 at the bottom of 3.5.1.1 Cross Line. Note: 1.
Page 183: Tampering Alarm
Administrator Mode 3.7.2 Tampering Alarm Note this function is only applicable to GV-ABL2702 / 2703 series / 4703 / 4711 / 4712 / 8712, GV-ADR2700 / 4710 / 8710, GV-AVD2700 / 4710 / 8710, GV-BLFC5800, GV-EBD series, GV-PTZ5810-IR, GV-TBL series, GV-TDR series, GV-TFD4700, GV-TVD series, and GV-FER5702.
Page 184: Audio Detection
3.7.3 Audio Detection Note this function is only applicable to audio-in-supporting models. Audio detection is used to detect abnormal audio volume. When the rise, fall, or change of volume exceeds the set limit, or when the input volume reaches the set threshold, an alarm is generated.
Page 185: Alarm Input
Administrator Mode 3.7.4 Alarm Input Note this function is only applicable to GV-ABL2701 Series / 2702 / 4701 Series / 4711 / 4712 / 8712, AVD2700 / 4701 / 8710, GV-BLFC5800, GV-TBL4710 / 4711 / 4810 / 8710 / 8810, GV-TDR2700 series / 4700 series / 4703 series / 4803 series, GV-TFD4700, GV- TVD4710 / 4711 / 4810 / 8710 / 8810, and GV-FER5702.
Page 186: Alarm Output
3.7.5 Alarm Output Note this function is only applicable to GV-ABL2701 Series / 2702 / 4701 Series / 4711 / 4712 / 8712, AVD2700 / 4701 / 8710, GV-BLFC5800, GV-PTZ5810-IR, GV-TBL4710 / 4711 / 4810 / 8710 / 8810, GV-TDR2700 series / 4700 series / 4703 series / 4803 series, GV- TFD4700, GV-TVD4710 / 4711 / 4810 / 8710 / 8810, and GV-FER5702.
Page 187: One-Key Shielding Linkage
Administrator Mode 3.7.6 One-Key Shielding Linkage Note this function is only applicable to GV-BLFC5800, GV-EBD4704 / 4813 / 8800 / 8813, GV-FER5702, GV-PTZ5810-IR, GV-TBL4705 / 4810 / 8804 / 8810, GV-TDR4704 / 4803, and GV-TVD4810 / 8810. You can disable input / output alarms or e-mails alerts trigger over appointed period of time. Figure 3-61 1.
Page 188: Storage
3.8 Storage This section allows you to configure storage related settings and set up FTP server. 3.8.1 Formatting Storage Note this function is only applicable to GV-ABL2702 / 4712 / 8712, GV-AVD2700 / 4710 / 8710, GV-BLFC5800, GV-EBD2704 / 4701 / 4704 / 4711 / 4712 / 4813 / 8711 / 8800 / 8813, GV-FER5702, GV-PTZ5810-IR, GV-TBL2705 / 4700 / 4705 / 4710 / 4810 / 8710 / 8804 / 8810, GV-TDR2700 series / 2704 series / 4700 series / 4703 series / 4704 series / 4803 series, GV-TFD4700, and GV-TVD4700 / 4710 / 4810 / 8710 / 8810.
Page 189 Administrator Mode Note: Face Snapshot is only supported by GV-ABL2702 / 4701 / 4712 / 8712, GV-ADR4701, GV-AVD2700 / 4710 / 8710, GV-EBD2702 / 4700 / 4711 / 8700 / 8711, GV-PTZ5810- IR, GV-TBL4710 / 8710, GV-TDR2700 / 4700, GV-TVD4710 / 8710, and GV-SD2722- IR / 3732-IR.
Page 190 ◼ Stream: Select the stream you want to use for recording. ◼ When Storage Full: ◼ Overwrite: If there is no free space in the memory card, new data will overwrite the existing date repeatedly. ◼ Stop: If there is no free space in the memory card, new data will not be saved to the memory card.
Page 191: Ftp
Administrator Mode 3.8.2 FTP After the configuration of FTP, you will be able to upload snapshots from the camera to the specified FTP server. General Figure 3-65 1. Type the Server IP address. 2. Change the Port No. of the FTP server if needed. 3.
Page 192 Face (Intelligent) This function is used to store snapshots taken for smart functions such as face detection. For GV-BLFC5800, GV-EBD4813 / 8800 / 8813, GV-PTZ5810-IR, GV-TBL4810 / 8804 / 8810, GV-TDR4803 series, and GV-TVD4810 / 8810, this function is named Intelligent to store captured snapshots of motor vehicle (cars, trucks, and buses), non-motor vehicle (bicycles and motorcycles), and people.
Page 193: Backing Up Storage
Administrator Mode 3.8.3 Backing Up Storage Note this function is only applicable to Internet Explorer browsers. In the Photo setting, you can back up the existing videos and snapshots to your local PC. Figure 3-67 1. Select Photo at the top of the Web interface and click Refresh. 2.
Page 194: Security
3.9 Security This section allows you to create user accounts and set the network security settings. 3.9.1 User There are two types of accounts: Administrator and Common User. ◼ Administrator: Admin has full permission and can manage all users and devices. Only one admin account is allowed in the system.
Page 195: Network Security
Administrator Mode 3.9.2 Network Security There are five types of network security settings: HTTPS, Authentication, ARP Protection, IP Address Filtering and Access Policy. HTTPS You can enable the Hypertext Transfer Protocol Secure (HTTPS) settings to access the camera through a secure protocol. Click On to enable, and optionally click Browse to locate an SSL certificate from your local computer and click Upload.
Page 196 ARP Protection This function can protect the camera from ARP attacks. When the camera visits an IP of another network segment via a gateway, it can only communicate with the MAC address binding to the gateway address in the same segment. Figure 3-71 1.
Page 197 Administrator Mode Access Policy Access Policy measures the strength of account passwords upon login. Figure 3-73 By enabling Illegal Login Lock, the camera will apply a 5-minute account lockout duration after 5 failed login attempts.
Page 198: System
3.10 System This section allows you to set the camera time and update the firmware. 3.10.1 Time You can use the following methods to adjust the system time of your camera. Time Figure 3-74 Select a Sync Mode. ◼ Sync with System Configuration: Select a Time Zone, manually set a time by clicking on the System Time, or synchronize with the computer time.
Page 199 Administrator Mode To adjust the camera’s time for daylight saving time: Click the DST tab at the top. Figure 3-75 Select On to enable DST. Set a Start Time and End Time for the Daylight Saving Time. Select a time period for DST Bias. Click Save.
Page 200: Server
3.10.2 Server Note this function is only applicable to GV-BLFC5800, GV-EBD4813 / 8800 / 8813, GV- PTZ5810-IR, GV-TBL4810 / 8804 / 8810, GV-TDR4803, and GV-TVD4810 / 8810. Server allows you to quickly access the FTP setting page. Click the FTP button to go to the FTP settings page and complete the storage settings.
Page 201 Administrator Mode [Software Upgrade] For detailed instructions, refer to 4.1 Upgrading System Firmware and 4.1.1 Using the Web Interface. [Config Management] Export the current configurations of the camera and save them to the PC or an external storage medium. You can also quickly restore configurations by importing backup configurations stored on the PC or an external storage medium back to the camera.
Page 202: Network Diagnosis
3.10.4 Network Diagnosis Note this function is only applicable to GV-BLFC5800, GV-EBD4704 / 4813 / 8800 / 8813, GV-FER5702, GV-PTZ5810-IR, TBL4705 / 4810 / 8804 / 8810, TDR4704 / 4803, and TVD4810 / 8810. This section allows personnel to examine your network environment. Figure 3-78 3.10.5 Log Note this function is only applicable to GV-BLFC5800, GV-EBD4704 / 4813 / 8800 / 8813,...
Page 203: Ports And Devices
Administrator Mode 3.10.6 Ports and Devices Note this function is only applicable to GV-PTZ5810-IR. This section allows you to exchange data with a third-party device with the RS485 serial port. Note that the serial setting on the camera should match that of the connected third-party device.
Page 204: Chapter 4 Advanced Applications
This chapter introduces more advanced applications. 4.1 Upgrading System Firmware GeoVision periodically releases updated firmware on the company website. The new firmware can be loaded into the camera using the Web interface or GV-IP Device Utility. Important Notes before You Start Before you start updating the firmware, please read these important notes: 1.
Page 205: Using The Web Interface
Advanced Applications 4.1.1 Using the Web Interface Log into the Web interface and follow the steps below to update the firmware. 1. At the top, click Setup. 2. In the left menu, select System and select Maintenance. This page appears. Figure 4-1 3.
Page 206: Using Gv-Ip Device Utility
4.1.2 Using GV-IP Device Utility You can upgrade the camera firmware using GV-IP Device Utility. Note the computer used to upgrade firmware must be under the same network as the camera. 1. Download GV-IP Device Utility from the company website. Then follow the onscreen instructions to install the program.
Page 207: Restoring To Factory Default Settings
Advanced Applications 4.2 Restoring to Factory Default Settings If for any reason the camera is not responding correctly, you can restore the camera back to its factory default settings using the Web interface or the Default Button. Note: 1. Only GV-EBD4711 / 4712 / 8711 / 8813, GV-ABL2703 series / 4703, GV-AVD2700 / 4710 / 8710, GV-FER5702, GV-PTZ5810-IR, GV-TBL2703 series / 4703 / 8804, GV- TFD4700, and GV-TVD4700 / 4710 / 4711 / 8710 / 8810 support a default button.
Page 208: Chapter 5 Dvr / Nvr / Vms
40 Mbps in throughput and a maximum of 6 streams. • When an IP camera is connected to IE browser or any GeoVision CMS application, it takes up 1 stream; when it is connected to GV-VMS / DVR / NVR, it takes up 2 streams.
Page 209 DVR /NVR / VMS Double-click your camera and type the camera’s User name and Password. Figure 5-2 Click OK. This dialog box appears. Figure 5-3...
Page 210 Click OK. The IP camera is added to the connection list. Click the listed camera and select Display position to map the IP camera to a channel on the GV-DVR / NVR. Figure 5-4 The Statue column should display “Connected”. Click OK. After the camera is connected and assigned with a display position, you can configure the camera’s settings, such as frame rate, codec type and resolution.
Page 211 DVR /NVR / VMS ◼ Live-view frame rate control (Sub / Main): Set the frame rate of the stream to help reduce the CPU usage. If the codec is set as MJPEG, select the number of frames to allow in a second. If the codec is H.265 or H.264, select one of the following options: ...
Page 212: Setting Up Ip Cameras On Gv-Vms
5.2 Setting Up IP Cameras on GV-VMS Follow the steps below to manually connect your camera to GV-VMS. 1. To access the IP Device Setup page, click Home , select Toolbar , click Configure and select Camera Install. Figure 5-6 2.
Page 213 DVR /NVR / VMS 4. Click OK. This dialog box appears. Figure 5-8 5. Click OK to add the camera to the list. 6. To connect the added camera, click the box beside the ID column. Upon successful connection, the Status icon shows green, with the video resolution and bitrate being displayed in the correspondent columns.
Page 214: Appendix
Appendix A. RTSP Multicast Protocol Support The camera can support RTSP multicast protocol for both video and audio streaming. You can use the following RTSP multicast command to access the camera image: Stream 1: rtsp://<IP of the camera>/multicast/video1 Stream 2: rtsp://<IP of the camera>/multicast/video2 For example, rtsp:// 192.168.4.115/multicast/video1 B.
Page 215: Compatible Versions Of Gv-Vms / Dvr / Nvr
Appendix D. Compatible Versions of GV-VMS / DVR / NVR Compatible versions of GV-VMS / DVR / NVR based on camera models listed as follows: Camera Model Compatible GV-DVR / NVR Compatible GV-VMS GV-EBD2702 V8.7.4.0 with patch files or later V17.1 with patch files or later V17.4.1 with patch files or later GV-EBD2704...
Page 216 GV-TBL4703 V8.8.0 with patch files or later V17.3.0 with patch files or later V17.4.1 with patch files or later GV-TBL4705 V8.9.1 with patch files or later V18.2.1 with patch files or later GV-TBL4710 V8.8.0 with patch files or later V17.1.0.100 with patch files or later V17.3.0 with patch files or later GV-TBL4711 V8.8.0 with patch files or later...
Page 217: Gv-Mount Dimensions
Appendix E. GV-Mount Dimensions Dimensions of various GV-Mount are illustrated below: GV-Mount Models Dimensions 1"NPT (0.3") GV-Mount107 120mm (4.72") 16mm (0.63") GV-Mount211-2 GV-Mount211P GV-Mount212-2...
Page 218 GV-Mount212P GV-Mount213 160mm 233mm (9.17") (6.3") 7.5mm 20mm (0.3") (0.79") 15mm GV-Mount300-2 (0.59") 160mm (6.3") 160mm (6.3") 290mm (11.4") 20mm (0.79") GV-Mount310-2 15mm (0.59") 45mm 45mm (1.77") (1.77") 130mm (5.11") 160mm (6.3") GV-Mount502...
Page 219 Appendix GV-Mount503 GV-Mount504 GV-Mount606 100mm (3.94") 200mm (7.87") GV-Mount704 300mm (11.8") 10 / 20 / 30 / 50 cm 500mm (19.7")
Page 220: Gv-Mount300-2 / 310-2
F. GV-Mount300-2 / 310-2 GV-Mount300-2 / 310-2 Packing List • • Mounting Bracket Convex Mounting Plate x 2 (for GV-Mount300-2) • Concave Mounting Plate x 2 (for GV-Mount310-2) • • 1/4” Plain Washer x 6 Carriage Bolt x 6 • •...
Page 221 Appendix To install GV-ABL / TBL Series, GV-ADR2702 / 4702, GV-AVD / TVD Series, GV- BLFC5800, GV-EBD Series, GV-PTZ5810-IR, GV-TDR Series, GV-TFD4700, or directly on GV-Mount300-2 / 310-2, follow the instructions below. Assemble the GV-Mount300-2 / 310-2, by attaching the two mounting plates onto the mounting bracket with the supplied carriage bolts, 1/4”...
Page 222: Screw Position Chart
To install GV-Mount211P / 211-2 / 212-2 / 212P / 213 / 502 / 503 on GV-Mount300-2 / 310-2 Assemble the GV-Mount300-2 / 310-2, by attaching the two mounting plates onto the mounting bracket with the supplied carriage bolts, 1/4” plain washers, and 1/4” flange nuts.
Page 223: Note For Fisheye Camera With Ir Led
Appendix H. Note for Fisheye Camera with IR LED When installing Mount107 / 211P / 212P to your GV-FER5702, leave a distance of 1 M (3.28 ft) or more between the camera body and the wall to ensure the image quality.

This manual is also suitable for:

Tbl series Gv-adr series Tdr series Gv-avd series Tvd series Gv-tfd series ... Show all

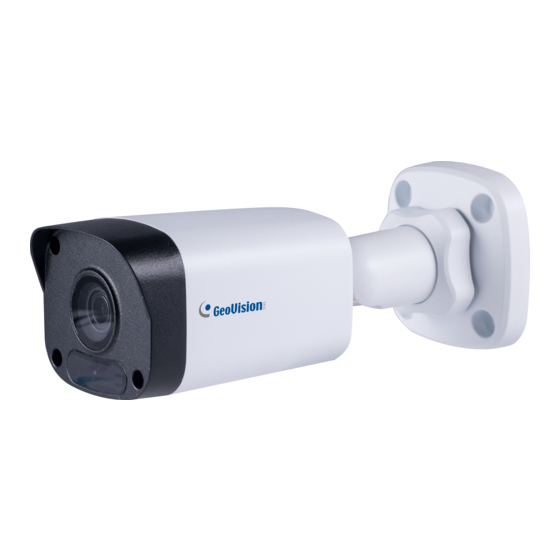

GeoVision GV-ABL Series User Manual

Chapter 1 Introduction

Chapter 2 Accessing the Camera

Chapter 3 Administrator Mode

Chapter 4 Advanced Applications

Chapter 5 DVR / NVR / VMS

Appendix

Quick Links

Need help?

Questions and answers

Related Manuals for GeoVision GV-ABL Series

Summary of Contents for GeoVision GV-ABL Series

This manual is also suitable for:

Table of Contents
